JOCCA 3-in-1 Hair Dryer Brush User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the JOCCA 3-in-1 Hair Dryer Brush. Retain this manual for future reference.

• Electrical Safety: Do not expose the appliance to moisture or use it near water. Always unplug the device from the power outlet immediately after use and before cleaning to prevent overheating and the risk of electric shock.
• Heat Warning: The ceramic coating and brush heads can become hot during use. Avoid direct contact with skin, especially the scalp, to prevent burns.
• Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Damage: Do not operate the appliance with a damaged cord or plug, or if it malfunctions or has been dropped or damaged in any manner. Contact customer support for repair.
• Ventilation: Ensure the air inlets and outlets are not blocked during operation to prevent overheating.
• Storage: Store the appliance in a dry place when not in use.

2. Product Overview

The JOCCA 3-in-1 Hair Dryer Brush is designed for efficient hair drying and styling, offering functions for drying, curling, and adding volume. It features a ceramic coating for even heat distribution and a rotating function for ease of use.

Image 2.1: The JOCCA 3-in-1 Hair Dryer Brush, showcasing the main unit and its two distinct interchangeable brush heads.

Components:

• Main Handle Unit with Power Cord
• Large Interchangeable Brush Head
• Small Interchangeable Brush Head

Key Features:

• Power: 1000-1200 W for effective drying.
• Ceramic Coating: Helps protect hair from excessive heat and ensures even heat distribution.
• Automatic Rotation: Designed to facilitate styling and add volume.
• Temperature Settings: 3 levels to suit different hair types and styling needs.
• Speed Settings: 2 speeds for airflow control.
• Long Cable: 1.73m cable for flexible movement during use.

3. Setup

Before first use, ensure all packaging materials are removed.

Attaching the Brush Head:

1. Select the desired brush head (large or small) for your styling needs.
2. Align the brush head with the main handle unit.
3. Gently push the brush head onto the handle until it clicks securely into place. Ensure it is firmly attached before use.

Image 3.1: The JOCCA 3-in-1 Hair Dryer Brush with a single brush head securely attached to the main handle.

Detaching the Brush Head:

1. Ensure the appliance is unplugged and completely cool.
2. Grasp the brush head firmly and gently pull it away from the main handle unit.

4. Operating Instructions

For best results, towel-dry your hair to remove excess water before using the brush.

Image 4.1: A detailed view of the control panel, highlighting the buttons for rotation direction and the slider for temperature and speed settings.

Powering On and Adjusting Settings:

1. Plug the appliance into a suitable power outlet.
2. Use the slider switch on the handle to select the desired temperature and speed setting:
   • Position 0: Off
   • Position 1: Low heat/speed
   • Position 2: High heat/speed
   • Cool Shot: (If available, typically a separate button or a specific setting on the slider)
3. To activate the rotating function, press and hold the rotation buttons (left or right arrow) located above the main slider. Release the button to stop rotation.

Styling Tips:

• Divide your hair into manageable sections.
• Place the brush under a section of hair close to the roots.
• Activate the rotation in the desired direction and slowly glide the brush down the hair section, following the curve of your head.
• For added volume, lift the hair at the roots while drying.
• For curling, wrap a section of hair around the brush and hold for a few seconds before releasing.
• Always move the brush continuously to prevent excessive heat exposure to one area of hair.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance.

1. Unplug and Cool: Always ensure the appliance is unplugged from the power outlet and completely cool before cleaning.
2. Remove Hair: Use your fingers or a fine comb to carefully remove any hair tangled in the brush bristles.
3. Wipe Down: Wipe the main handle unit and brush heads with a soft, damp cloth. Do not use abrasive cleaners or immerse the appliance in water.
4. Air Vents: Ensure the air inlet and outlet vents are free from dust and debris. Use a small brush or vacuum cleaner if necessary.
5. Storage: Store the appliance in a dry, safe place, away from moisture and direct sunlight.

6. Troubleshooting

If you encounter issues with your JOCCA 3-in-1 Hair Dryer Brush, refer to the following common problems and solutions:

• Appliance does not turn on:
  • Check if the power cord is securely plugged into a working electrical outlet.
  • Ensure the power switch is set to position 1 or 2.
• Brush rotation is not working:
  • Ensure you are pressing and holding the rotation buttons.
  • Check for any hair or debris obstructing the rotation mechanism. Clean the brush head if necessary.
• Insufficient heat or airflow:
  • Ensure the air inlet and outlet vents are not blocked. Clean them if necessary.
  • Verify the temperature/speed setting is appropriate for your needs.
• Hair getting tangled in the brush:
  • Ensure hair is towel-dried and detangled before use.
  • Work with smaller sections of hair.
  • Adjust the rotation speed or direction as needed.

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

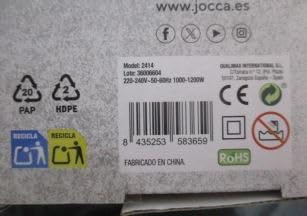

Image 7.1: Product label displaying key specifications and compliance markings.

8. Warranty and Support

The JOCCA 3-in-1 Hair Dryer Brush, Model 2414, typically comes with a 3-year warranty, as indicated on the product packaging. Please refer to your purchase documentation for specific warranty terms and conditions.

Customer Support:

For technical assistance, warranty claims, or further inquiries, please contact JOCCA customer service through their official website or the retailer from whom you purchased the product.

Please have your model number (2414) and proof of purchase ready when contacting support.
