1. Introduction
Thank you for choosing the POWOXI 12V Solar Car Battery Charger MPPT Pro-12W. This device is designed to maintain and trickle charge 12V batteries using solar energy, featuring an advanced MPPT controller for optimal efficiency. It is suitable for various vehicles and equipment, including cars, RVs, boats, motorcycles, trailers, trucks, snowmobiles, and tractors.
2. Product Features
- Innovative MPPT Built-in Controller: Maximizes charging efficiency with up to 99% conversion, adjusting power based on sunlight intensity for superior performance even on cloudy days.
- Smart Maximum Power Point Tracking: Optimizes energy extraction for changing conditions, ensuring efficient solar power harnessing by dynamically adjusting to the environment for maximum output.
- Comprehensive Battery Protection: Includes a float/maintenance stage to prevent overcharging, extending battery life and improving energy efficiency. Compatible with various 12V batteries, including gel, AGM, SLA, VRLA, and lithium-ion.
- 3 LED Indicator Lights: Provides visual feedback on operation status: blue for sunlight reception, red for charging, and green for a fully charged battery. The MPPT takes 2 seconds for calculation and LED status updates.
- Robust and Long-lasting Materials: Constructed with PC+ABS+Tempered glass, designed to withstand temperatures from -40 to 137°C and rated IP65 waterproof for durability against heavy rain. ABS+PC frames are stronger than flexible panels and prevent damage to vehicle paint.
Image: The POWOXI solar charger features an innovative built-in MPPT system for efficient power conversion.
3. Package Contents
The package includes the POWOXI 12W Solar Panel with integrated MPPT controller and various connection accessories:
- 1x POWOXI 12W Solar Panel with MPPT Controller
- 1x Alligator Clip Cable
- 1x Cigarette Lighter Plug Cable
- 1x O-ring Terminal Cable
- 4x Suction Cups for windshield mounting
- 4x Magnetic Mounts for metal surfaces
Image: Overview of the POWOXI 12W solar panel and its included accessories, including various connection cables and mounting options.
4. Setup and Installation
The POWOXI solar charger offers multiple connection and mounting options for versatility. Ensure the solar panel is placed in direct sunlight for optimal charging.
4.1. Connecting to the Battery
Choose one of the following methods to connect the solar panel to your 12V battery:
- Alligator Clips: Connect the red clip to the positive (+) battery terminal and the black clip to the negative (-) battery terminal. This is ideal for temporary connections.
- O-ring Terminals: For a more permanent connection, attach the O-ring terminals directly to your battery posts using the existing battery terminal bolts. Ensure a secure fit.
- Cigarette Lighter Plug: Plug the cigarette lighter adapter into your vehicle's 12V accessory socket. Note that some vehicles may not provide power to this socket when the engine is off.
Image: The solar charger provides three connection methods: alligator clips for direct battery connection, O-ring terminals for permanent attachment, and a cigarette lighter plug for in-vehicle charging.
4.2. Mounting the Solar Panel
Secure the solar panel using the provided accessories:
- Suction Cups: Attach the suction cups to the designated holes on the solar panel. Press firmly onto a clean, smooth surface like a windshield or window.
- Magnetic Mounts: Screw the magnetic mounts into the panel's corner holes. These can be used to secure the panel to metal surfaces on your vehicle or equipment. The magnets include a foam protection layer to prevent scratching.
Video: This video demonstrates the setup and use of the POWOXI solar battery charger, including connecting it to a car battery and mounting the panel on a vehicle's windshield.
5. Operating Instructions
Once connected and exposed to sunlight, the solar charger will automatically begin charging your 12V battery. The built-in MPPT controller optimizes the charging process.
5.1. LED Indicator Lights
The solar panel features three LED indicator lights to show its operational status:
- Blue Light: Indicates that the solar panel is receiving sufficient sunlight.
- Red Light: Indicates that the battery is currently charging.
- Green Light: Indicates that the battery is fully charged and the charger is in maintenance mode.
- No Lights: May indicate a short circuit or insufficient sunlight.

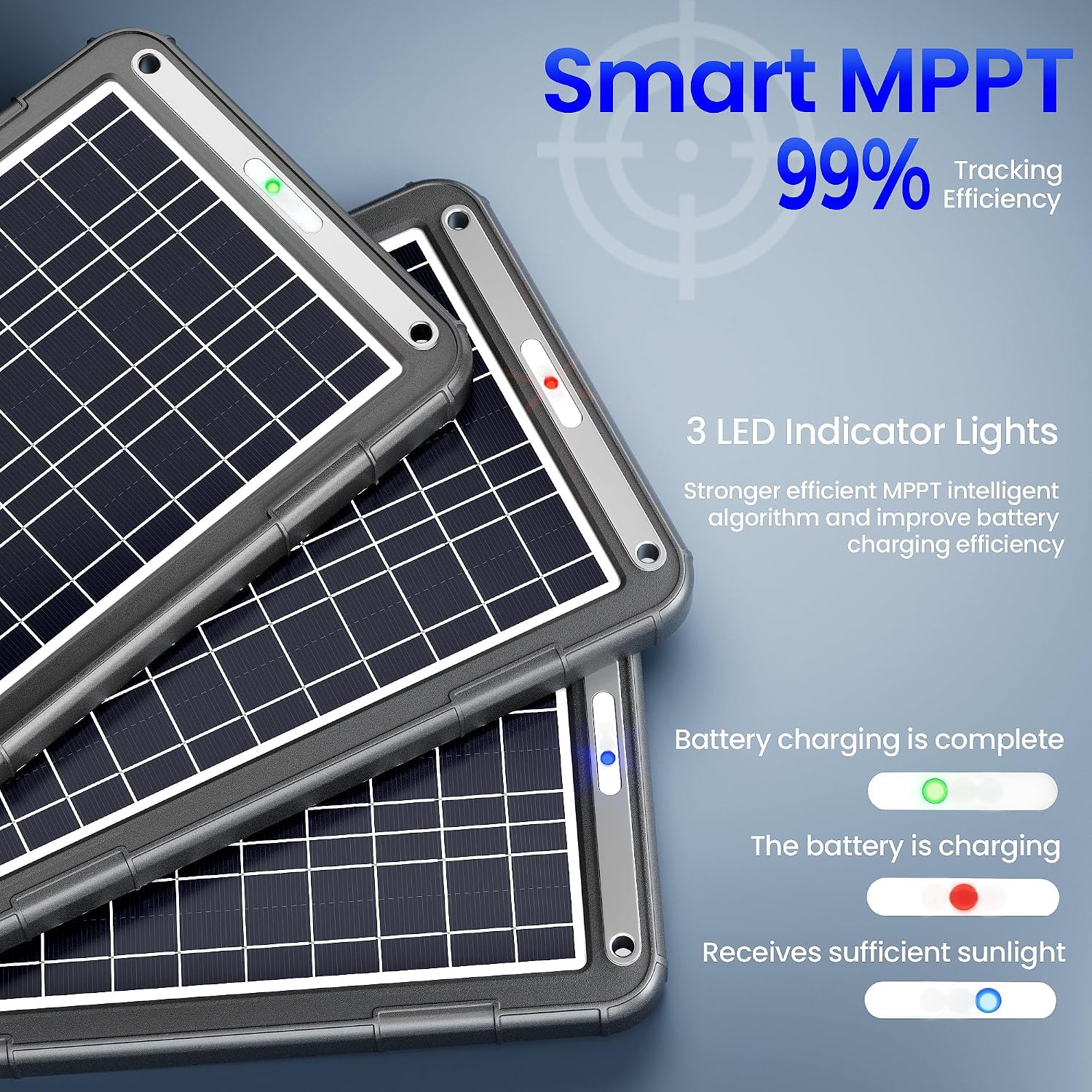

Image: Close-up of the three LED indicator lights on the solar charger, showing blue for sunlight, red for charging, and green for fully charged.
The controller will automatically shut off at night or when not generating power to prevent draining the battery. It will resume charging the next day when sunlight is available.
6. Maintenance
- Cleaning: Regularly clean the solar panel surface with a soft, damp cloth to remove dust, dirt, or debris. Do not use harsh chemicals or abrasive materials.
- Inspection: Periodically check all connections (alligator clips, O-ring terminals, cigarette lighter plug) to ensure they are secure and free from corrosion.
- Storage: When not in use for extended periods, store the solar panel in a dry, safe place away from direct sunlight and extreme temperatures.
Image: The POWOXI solar charger is IP65 waterproof, indicating its resistance to water and dust, making it suitable for outdoor use in various weather conditions.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No voltage / Indicator light is off | 1. Insufficient sunlight. 2. Incorrect connection. 3. Short circuit. | 1. Place panel in direct sunlight. 2. Verify correct polarity (+ to +, - to -). 3. Check for damaged wires or connections. |
| Battery power is consumed at night | Other products connected to the battery may consume power. | The controller automatically powers off at night. Ensure no other devices are draining the battery. |
| Inefficient charging | 1. Solar panel surface is dirty. 2. Partial shading. 3. Battery is already near full charge. | 1. Clean the solar panel surface. 2. Reposition the panel for full sun exposure. 3. The MPPT controller will maintain the charge. |
8. Specifications
| Specification | Value |
|---|---|
| Brand | POWOXI |
| Model | MPPT-Solar Battery Charger 12W |
| Maximum Power | 12 Watts |
| Maximum Voltage | 14.4 Volts |
| Output Voltage | 14.4 Volts |
| AC Adapter Current | 0.8 Amps |
| Material | PC+ABS, Tempered Glass |
| Product Dimensions | 9.45"L x 2.17"W x 16.93"H |
| Item Weight | 3.23 pounds |
| Waterproof Rating | IP65 |
| Operating Temperature | -40 to 137°C |
9. Warranty and Support
POWOXI offers a 12-month warranty and lifetime technical support for this product. If you encounter any issues or have questions, please contact customer service for assistance. Provide pictures or details of the problem for efficient support.
Customer Service Email: support@powoxi.com
