Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LUTEC P6221W-PIR24 Dual-Head Motion Activated LED Flood Light. Please read this manual thoroughly before installation and retain it for future reference. This product is designed for outdoor use, providing efficient and reliable security lighting.
Image: Two LUTEC P6221W-PIR24 flood lights, showcasing their dual-head design and integrated motion sensors.
Safety Information
Always observe the following safety precautions during installation and operation:
- Electrical Safety: Disconnect power at the fuse or circuit breaker before installing or servicing. All wiring must be in accordance with national and local electrical codes.
- Qualified Electrician: If you are unsure about the installation process, consult a qualified electrician.
- Grounding: Ensure the fixture is properly grounded to avoid potential electrical shock.
- Outdoor Use: This product is rated IP54 waterproof for outdoor use. Do not submerge in water.
- Heat: LED lights can become warm during operation. Avoid touching the light heads immediately after use.
- Mounting: Mount the fixture securely to a stable surface.
Package Contents
Verify that all components are present before beginning installation:
- LUTEC P6221W-PIR24 Flood Light (2 units for 2-pack)
- Mounting hardware (screws, wire nuts)
- Installation manual
Specifications
| Feature | Specification |
|---|---|
| Brand | LUTEC |
| Model Name | P6221-PIR |
| Light Output | 2000 Lumens |
| Wattage | 18 Watts |
| Color Temperature | 5200 Kelvin (Daylight White) |
| Motion Sensor Angle | 110 degrees |
| Motion Sensor Range | Up to 49.21 ft (15 meters) |
| Power Source | Corded Electric |
| Installation Type | Wall Mount |
| Material | Plastic |
| Water Resistance Level | IP54 Waterproof |
| Product Dimensions | 23"L x 16.5"W x 7.5"H |
| Item Weight | 2.81 pounds |
Setup and Installation
Follow these steps for proper installation of your flood light:
- Power Disconnection: Before starting, ensure the power supply to the installation area is turned off at the circuit breaker.
- Mounting Location: Choose a suitable wall-mount location. For optimal motion detection, a recommended installation height is approximately 8.2 feet (2.5 meters).
- Secure Mounting: Use the provided mounting hardware to securely attach the fixture to the wall. Ensure the mounting surface is capable of supporting the weight of the light.
- Wiring: Connect the electrical wires from the fixture to your household wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Use appropriate wire nuts to secure connections.
- Seal Installation: Ensure the provided gasket is properly installed between the fixture and the mounting surface to maintain the IP54 waterproof rating.
Image: Illustration of the motion sensor's 110-degree sensing angle and maximum 50 ft range, with a recommended installation height of 8.2 ft.
Image: The flood light installed on an exterior wall, demonstrating its waterproof design suitable for wet locations, with a gasket visible.
Operating Instructions
Your LUTEC flood light features adjustable settings for optimal performance:
- Motion Sensor: The integrated PIR motion sensor detects movement within a 110-degree angle and up to 49.21 feet (15 meters). The light will activate when motion is detected in its coverage area.
- Adjustable Light Heads: The dual light heads can be independently adjusted 360 degrees horizontally and vertically to direct light precisely where needed.
- Adjustable Motion Sensor: The motion sensor itself can also be adjusted to optimize its detection area.
- Lighting Duration: The light duration after motion detection can be set to 1, 3, or 10 minutes. Refer to the controls on the fixture for adjustment.
Image: Close-up of the flood light demonstrating its adjustable design, with arrows indicating the rotational capabilities of the light heads and the motion sensor.

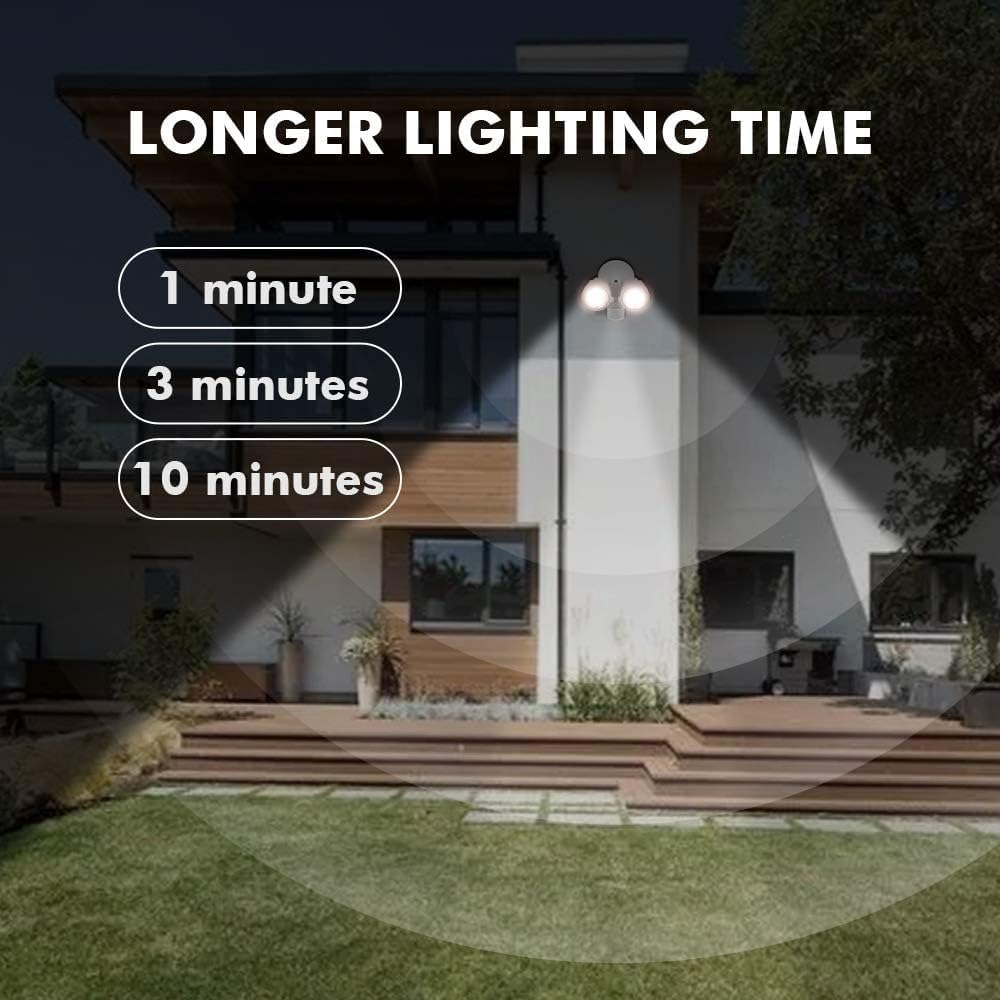

Image: An illustration depicting the selectable lighting durations for the motion sensor, offering options of 1, 3, or 10 minutes.
Image: A visual representation of the LED security light's key features, including its dimensions (W:10.28", D:5.59", H:7.24"), super bright 2000 Lumen output, and 5200K color temperature.
Maintenance
The LUTEC P6221W-PIR24 flood light requires minimal maintenance:
- Cleaning: Periodically clean the light heads and motion sensor lens with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the fixture for any signs of damage or loose connections.
- LEDs: The integrated LED lights are designed for long life and are not user-replaceable.
Troubleshooting
If you encounter issues with your flood light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, faulty wiring, sensor obstruction. | Check circuit breaker. Verify wiring connections. Ensure sensor is clear of obstructions. |
| Light stays on continuously. | Continuous motion detected, sensor sensitivity too high. | Adjust sensor angle to exclude unwanted motion sources. Reduce sensor sensitivity if adjustable. |
| Light turns on too frequently. | Sensor sensitivity too high, environmental factors (e.g., moving branches). | Adjust sensor angle. Reduce sensor sensitivity. |
| Motion not detected. | Sensor obstructed, incorrect angle, sensitivity too low. | Clear sensor. Adjust sensor angle and sensitivity. |
If problems persist after attempting these solutions, please contact LUTEC customer support.
Warranty and Support
LUTEC provides dedicated customer service for its products. For any issues or inquiries regarding your P6221W-PIR24 flood light, please contact our support team. We offer 7*24h after-sales service.
For warranty information, please refer to the documentation included with your purchase or visit the official LUTEC website. Keep your purchase receipt as proof of purchase.
Contact Information:
- Manufacturer: LUTEC
- Website: Visit the LUTEC Store on Amazon
- Customer Service: Refer to your product packaging or the LUTEC website for specific contact details.
