Important Safety Information
Please read all instructions carefully before using the ScrubWiz Steam Mop Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not leave the Steam Mop unattended while plugged in.
- Close attention is necessary when the appliance is used near children, pets, or plants.
- Never direct steam towards people, animals, or plants, as hot steam emission may cause scalding.
- Use only water in the tank. Adding chemical cleaners may cause steam nozzle blockage and damage the unit.
- Ensure the power cord is not damaged and is kept away from hot surfaces.
- Always unplug the appliance when not in use and before performing any maintenance.
Product Overview and Components
The ScrubWiz Steam Mop Cleaner is a versatile 10-in-1 cleaning system designed for various surfaces. It features a detachable handheld steamer and multiple accessories for comprehensive cleaning.
Image: The ScrubWiz Steam Mop Cleaner in its full assembly, alongside all its included accessories such as various brush heads, pads, and nozzles.
Included Components:
- Handheld pod (x1)
- Mop extension pipes (x3)
- Mop head (x1)
- Carpet glider (x1)
- Washable microfiber pads (x2)
- Window cleaner cloth (x1)
- Garment cloth (x1)
- Scouring pad brush (x1)
- Scraper tool (x1)
- Nylon brush (x1)
- Metal brush (x1)
- Bent nozzle (x1)
- Long nozzle (x1)
- Window cleaner with squeegee (x1)
- Storage bag (x1)
Image: A detailed layout of all components included in the ScrubWiz Steam Mop Cleaner package, illustrating each accessory.
Setup Instructions
1. Assembly:
Assemble the mop head with the extension pipes and handheld pod as required for your cleaning task. The modular design allows for configuration as a full-size steam mop or a compact handheld steamer.
2. Filling the Water Tank:
The ScrubWiz Steam Mop features a 350ml detachable water tank. Ensure the unit is unplugged before filling. Use distilled or demineralized water to prevent mineral buildup and prolong the life of the appliance. Do not add any chemical cleaners or detergents to the water tank.
Image: Close-up view of the detachable water tank, showing how it can be removed for easy filling.
3. Powering On and Heating:
Plug the 4-meter power cord into a suitable electrical outlet. The steam mop heats up rapidly, reaching operating temperature in approximately 10 seconds. A red light will flash during heating and become steady when ready for use.
Image: The steam mop head on a floor, with steam visible, illustrating the quick 10-second heating feature.
Image: The handheld unit displaying the LED indicator for steam levels, showing red for heating and green for ready-to-use steam modes.
Operating Instructions
1. Selecting Steam Level:
The ScrubWiz Steam Mop offers 2 adjustable steam modes. Select the appropriate level based on the surface and cleaning intensity required. One green light indicates low steam (approx. 15 minutes usage), and two green lights indicate high steam (approx. 12 minutes usage).
2. Floor Cleaning:
Attach the mop head with a clean microfiber pad. For carpets, use the carpet glider. Move the mop slowly and steadily over the surface to allow the high-pressure steam (up to 248°F) to effectively eliminate dirt, grease, and tough stains. The mop head features a flexible rotation for easy maneuverability around furniture and into tight spaces.

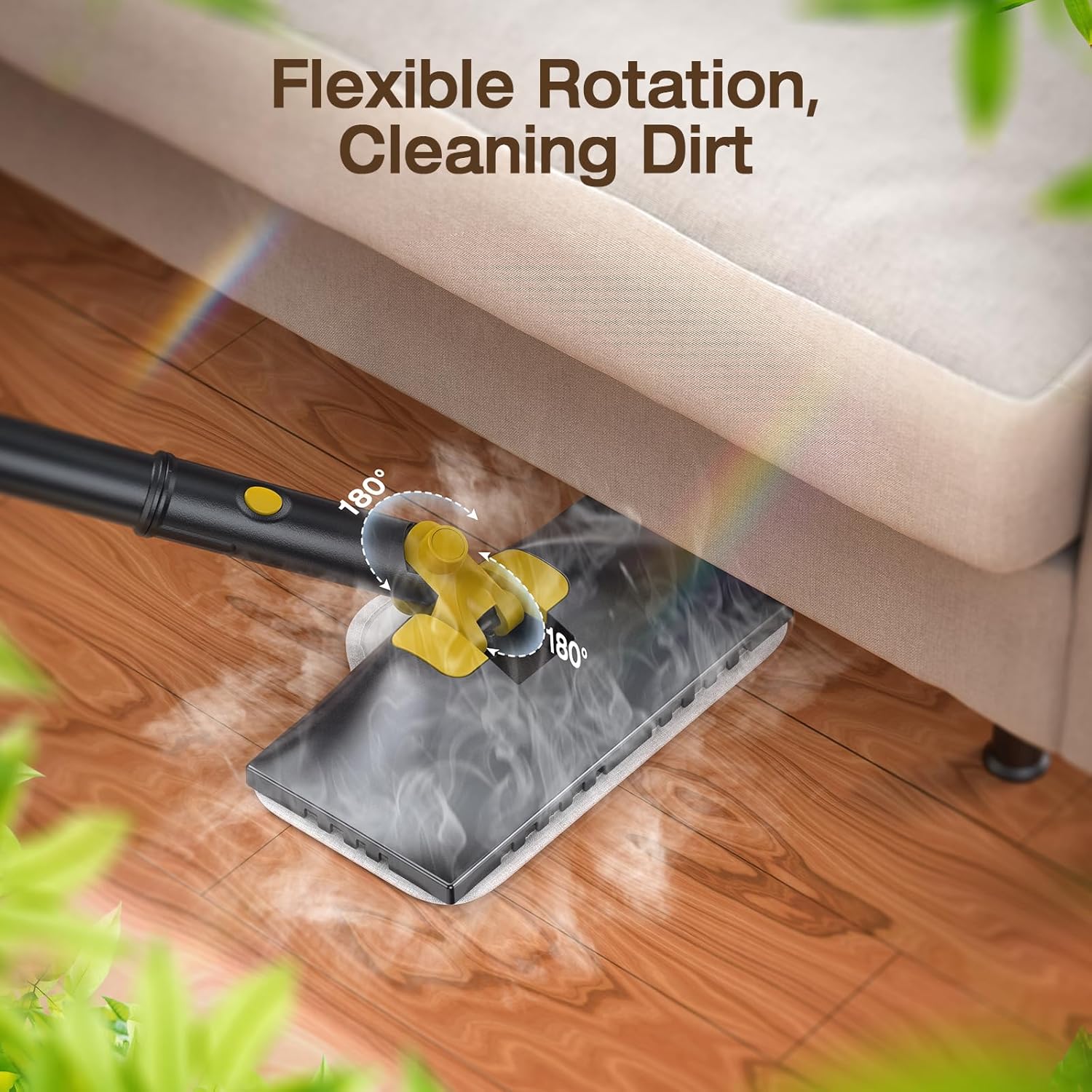

Image: The steam mop head demonstrating its flexible rotation, allowing it to clean effectively under furniture and in various angles.
3. Detachable Handheld Steamer Usage:
Detach the handheld pod from the extension pipes for targeted cleaning. Utilize the 10 multi-purpose accessories for various applications:
- Window Cleaner with Squeegee: For streak-free windows and glass surfaces.
- Garment Cloth: To refresh and de-wrinkle clothing.
- Scouring Pad Brush: For stubborn grime on stoves, grills, and grout.
- Scraper Tool: To remove baked-on residue.
- Nylon Brush: General purpose scrubbing.
- Metal Brush: For heavy-duty cleaning on durable surfaces.
- Bent Nozzle & Long Nozzle: For reaching tight corners and crevices, such as toilet rims or sink edges.
- Small Brush with Microfiber Pad: Ideal for upholstery, car interiors, and delicate surfaces.
Image: A collage demonstrating the 12-in-1 versatility of the ScrubWiz Steam Mop, showing its use on upholstery, clothing, windows, toilets, and stove tops.
Maintenance
1. Cleaning Microfiber Pads:
The washable microfiber pads can be cleaned by hand or machine washed with mild detergent. Allow them to air dry completely before reattaching.
2. Emptying Water Tank:
After each use, or when storing the unit, ensure the water tank is emptied to prevent stagnant water and potential mineral buildup. Unplug the unit and allow it to cool before emptying.
3. Storage:
Store the ScrubWiz Steam Mop Cleaner in a dry, cool place, away from direct sunlight and out of reach of children.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam or low steam output. | Water tank is empty or low. Mineral buildup in the nozzle. | Refill the water tank. If using tap water, switch to distilled water to prevent future buildup. For existing buildup, consult customer support. |
| Handheld pod beeps continuously. | Water tank has run out of water (Anti-Dry-Burn feature activated). | Unplug the unit, allow it to cool, and refill the water tank. The beeping will stop after 30 seconds if not refilled. |
| Steam nozzle blockage. | Chemical cleaners or detergents were added to the water tank. | Only use water in the tank. If blockage occurs, do not attempt to clear it with sharp objects. Contact customer support for assistance. |
| Unit not turning on. | Not properly plugged in. Power outlet issue. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
Specifications
- Brand: ScrubWiz
- Model Name: KS-7883
- Special Feature: 10-in-1, Detachable, 350ml Water Tank, 10 seconds Quick Heat Up, 248°F Powerful Steam with 2 Level Steam Control, Swivel Head, Lightweight
- Surface Recommendation: Floor, Window, Carpet, Tile, Hardwood, Stove, Grill, Grout, Sofa, Clothing crease, Car
- Wattage: 1200 watts
- Item Weight: 6.3 Pounds (2.85 kg)
- Tank Volume: 350 Milliliters
- Item Display Dimensions: 15.04 x 9.65 x 5.83 inches
- Form Factor: Handheld
- Heat Time: 10 seconds
- Color: Gray
- Power Source: Electric
- Maximum Temperature: 248 Degrees Fahrenheit (120°C)
Warranty and Support
Information regarding product warranty and customer support contact details is not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for the most up-to-date warranty information and support options.
