1. Introduction
The Techni-Pro 758CH0010 is a double-ended applicator brush designed for precision tasks, particularly in environments requiring anti-static and static-dissipative properties. It features a durable zinc-plated steel handle and yellow nylon bristles. This manual provides essential information for the proper use, maintenance, and care of your brush.

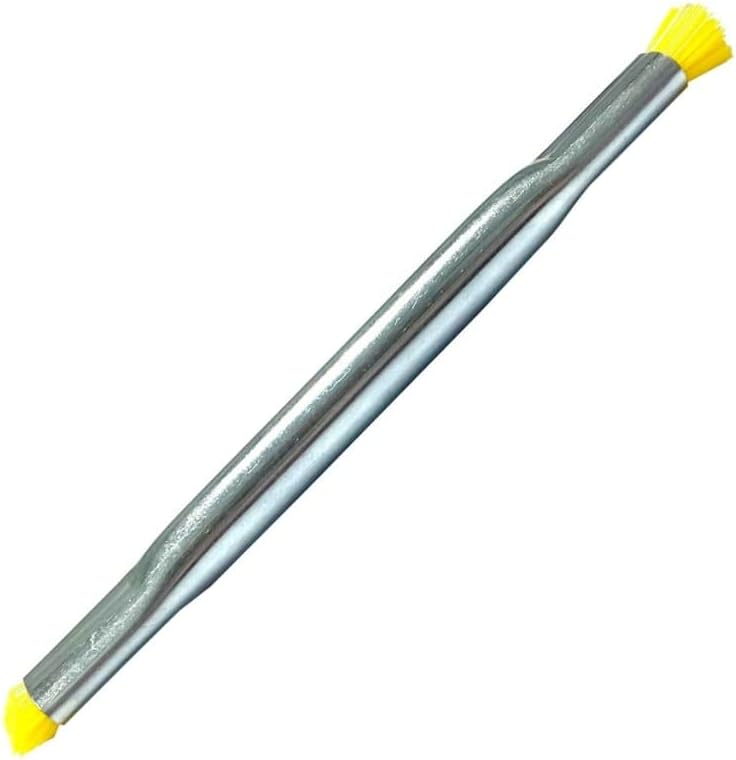

Image 1.1: The Techni-Pro 758CH0010 Double-Ended Applicator Brush. This image shows the brush with its metallic handle and yellow bristles at both ends. One end has a flat trim, and the other has a chiseled trim.
2. Setup and Initial Inspection
The Techni-Pro 758CH0010 brush requires no assembly. Upon receiving the product, perform the following steps:
- Unpacking: Carefully remove the brush from its packaging.
- Visual Inspection: Examine the brush for any signs of damage during transit. Check the integrity of the bristles and the handle.
- Cleanliness: Ensure the brush is clean and free from any debris before its first use.
3. Operating Instructions
This double-ended brush offers versatility for various application and cleaning tasks. Its anti-static nylon bristles are suitable for sensitive components.
3.1 Bristle Types and Usage
- Flat Trim End: This end features a 1/4 inch (0.64 cm) flat trim. It is ideal for broader surface applications or cleaning tasks where a wider contact area is beneficial.
- Chiseled Trim End: This end features a 3/16 inch (0.48 cm) tapered, extra-stiff chiseled trim. It is designed for precision work, reaching into tight spaces, or applying materials with greater control.
3.2 Anti-Static Properties
The 0.016 inch nylon bristles are anti-static and static-dissipative, making this brush suitable for use with electronic components or in environments where static discharge must be minimized. Always ensure proper grounding practices are followed when working with static-sensitive materials.
3.3 Temperature Considerations
The brush has a maximum recommended use temperature of 225 °F (107 °C). Avoid exposing the brush to temperatures exceeding this limit to prevent damage to the bristles or handle.
4. Maintenance and Care
Proper maintenance extends the life and effectiveness of your brush.
- Cleaning: After each use, clean the bristles thoroughly to remove any residue. Use appropriate cleaning agents compatible with nylon bristles and zinc-plated steel. Rinse with water if necessary and allow to air dry completely.
- Storage: Store the brush in a clean, dry environment, away from direct sunlight or extreme temperatures. Protect the bristles from bending or crushing to maintain their shape.
- Inspection: Periodically inspect the bristles for wear, fraying, or damage. Replace the brush if bristles become excessively worn or damaged, as this can affect performance.
5. Troubleshooting
This section addresses common issues that may arise during the use of the applicator brush.
- Issue: Bristles appear matted or bent.
Solution: Gently wash the bristles with warm, soapy water and reshape them by hand. Allow to air dry. Ensure proper storage to prevent future bending.
- Issue: Brush is not effectively cleaning or applying material.
Solution: Check if the bristles are clogged with dried material. Clean thoroughly as per maintenance instructions. If bristles are excessively worn, consider replacing the brush.
- Issue: Static discharge observed despite anti-static bristles.
Solution: While the bristles are anti-static, environmental factors and improper handling can still generate static. Ensure the work area is properly grounded and consider using additional static control measures if working with highly sensitive components.
6. Specifications
Detailed technical specifications for the Techni-Pro 758CH0010 Applicator Brush.
| Feature | Detail |
|---|---|
| Model Number | 758CH0010 |
| Brand | Techni-Pro |
| Handle Material | Zinc Plated Steel |
| Handle Length | 4-1/2 inches (11.43 cm) |
| Handle Diameter | 3/8 inches (0.95 cm) |
| Bristle Material | Nylon (0.016 inch anti-static, static dissipative) |
| Bristle Color | Yellow |
| Bristle Trim (Tapered End) | 3/16 inches (0.48 cm) |
| Bristle Trim (Flat End) | 1/4 inches (0.64 cm) |
| Brush Width (Flat) | 1/2 inches (1.27 cm) |
| Maximum Use Temperature | 225 °F (107 °C) |
| Weight | 0.64 ounces (18.14 grams) |
| Product Dimensions | 1 x 1 x 1 inches (packaging/shipping dimensions, actual brush is 4-1/2 inches long) |
7. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the retailer's policy or contact Techni-Pro directly through their official channels. Keep your purchase receipt for any warranty claims.
Manufacturer: Techni-Pro
Model: 758CH0010
