Kappesberg R626-CN Sink Cabinet User Manual

Introduction

Thank you for choosing the Kappesberg R626-CN Sink Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new kitchen cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

The Kappesberg R626-CN is a functional and elegant kitchen cabinet designed to optimize your kitchen space. It features two doors, three drawers with telescopic slides, and one internal shelf, offering ample storage for utensils, groceries, and other kitchen items. Constructed with high-quality MDP for the body and 18mm MDF for the front panels, it ensures durability and resistance. The cabinet has a touch paint finish and measures 88cm (height) x 120cm (width) x 52cm (depth). Please note that this product does not include a countertop or sink.

Safety Instructions

• Always follow the assembly instructions precisely to ensure structural integrity and safety.
• Ensure all screws and fasteners are securely tightened. Periodically check and re-tighten if necessary.
• Do not overload shelves or drawers. Distribute weight evenly to prevent tipping or damage.
• Keep small parts and hardware out of reach of children during assembly.
• Use appropriate tools for assembly. Incorrect tools can cause damage or injury.
• This cabinet is designed for indoor use only. Avoid exposure to excessive moisture or direct sunlight.
• If the cabinet is to be anchored to a wall, ensure proper wall anchors are used for your wall type.

Parts List

Before starting assembly, verify that all components and hardware are present and undamaged. Refer to the separate assembly manual for a detailed list of all parts and hardware.

• Cabinet body panels (MDP)
• 2 Front doors (MDF 18mm)
• 3 Drawer fronts (MDF 18mm)
• Drawer side and back panels
• 1 Internal shelf
• Telescopic drawer slides (for 3 drawers)
• Door hinges
• Pulls (integrated cava handle)
• Assembly hardware (screws, dowels, cam locks, etc.)

Setup and Assembly

Assembly of the Kappesberg R626-CN Sink Cabinet requires two people. Please follow the step-by-step instructions provided in the separate assembly manual included with your product. Ensure you have the necessary tools:

• Phillips head screwdriver
• Hammer
• Measuring tape
• Level

General Assembly Steps:

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Group similar hardware items together.
2. Assemble the Cabinet Frame: Follow the diagrams in the assembly manual to connect the side, back, and base panels using the provided hardware. Ensure all connections are tight and square.
3. Install Drawer Slides: Attach the telescopic drawer slides to the cabinet interior and to the drawer boxes as indicated.
4. Assemble Drawers: Construct the drawer boxes and attach the drawer fronts. Insert the assembled drawers into the cabinet, ensuring smooth operation.
5. Attach Doors: Mount the hinges to the cabinet frame and the doors. Attach the doors to the cabinet, adjusting them for proper alignment.
6. Insert Shelf: Place the internal shelf into the desired position using the shelf pins.
7. Positioning: Once assembled, carefully move the cabinet to its final location. Ensure it is level and stable.

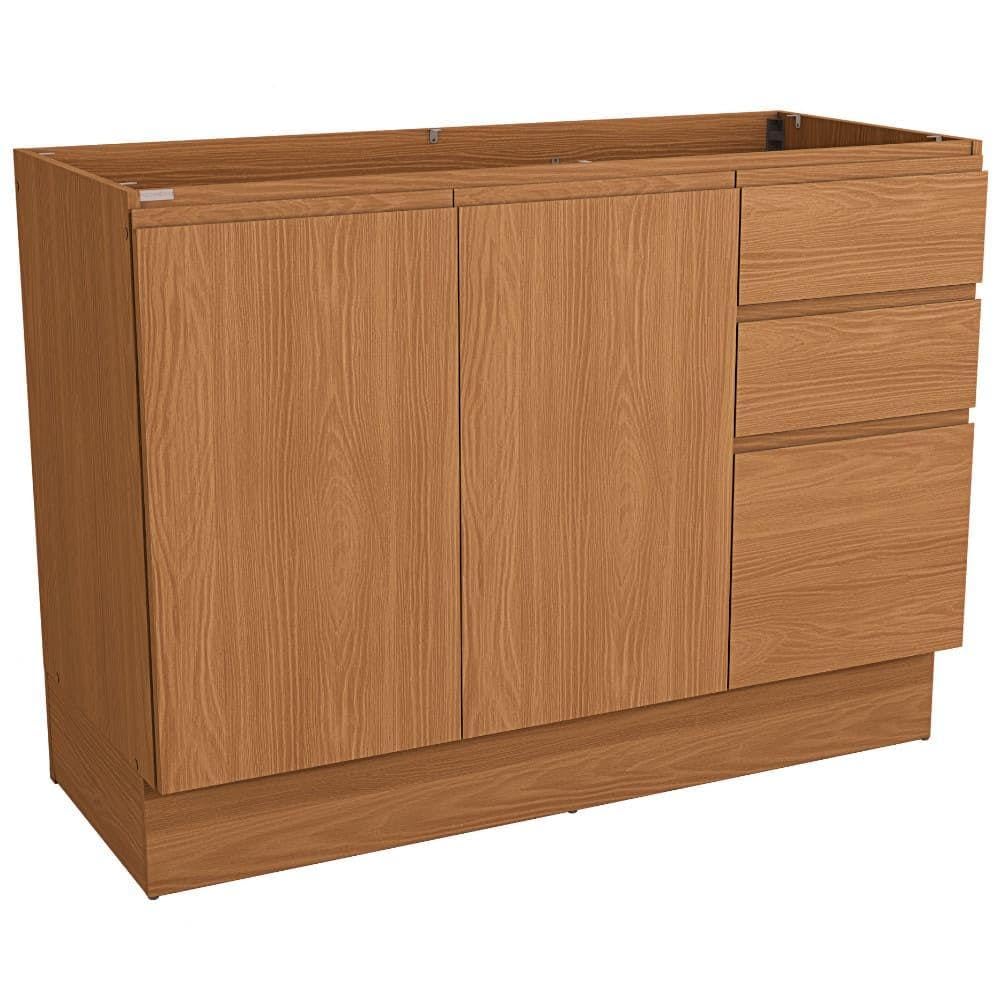

Image 1: Front view of the Kappesberg R626-CN Sink Cabinet, illustrating its overall dimensions of 88cm height, 120cm width, and 52cm depth.

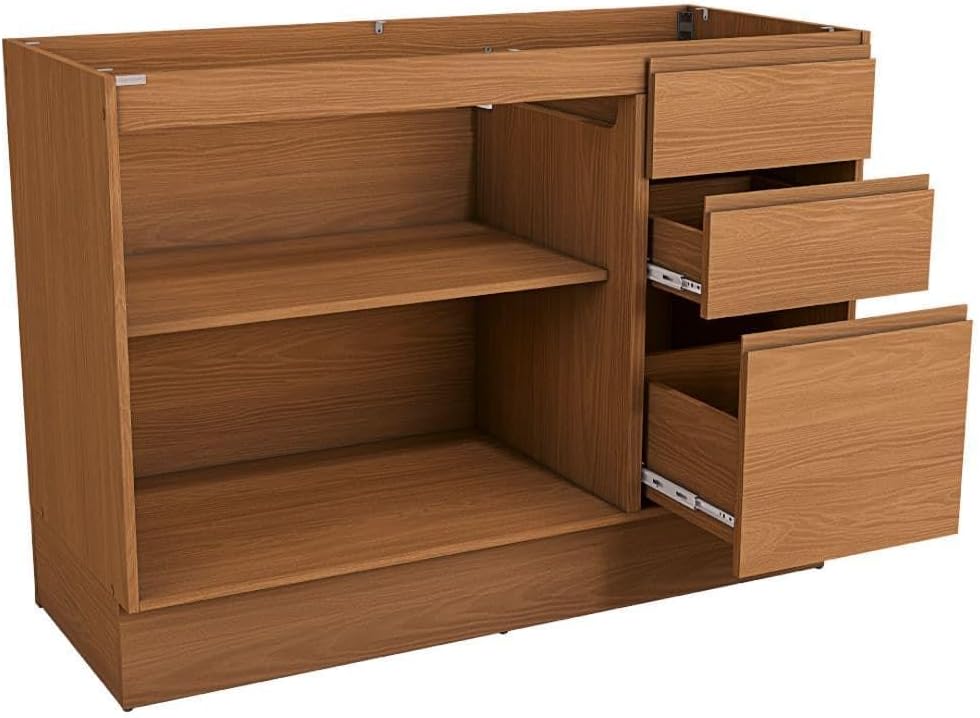

Image 2: Interior view of the Kappesberg R626-CN Sink Cabinet, showing the internal shelf and open drawers with telescopic slides.

Operating Instructions

The Kappesberg R626-CN Sink Cabinet is designed for straightforward use.

• Doors: Gently pull the integrated cava handles to open the two cabinet doors. Push them closed until they are flush with the cabinet frame.
• Drawers: Pull the integrated cava handles to open the three drawers. The telescopic slides ensure smooth and full extension. Push the drawers back until they are fully closed. Avoid slamming the drawers.
• Shelf: The internal shelf provides additional storage space. Ensure items are placed securely and do not exceed the shelf's weight capacity.

Image 3: The Kappesberg R626-CN Sink Cabinet integrated into a kitchen environment, demonstrating the use of its drawers for storing kitchen items.

Maintenance

Proper care will extend the life and appearance of your Kappesberg R626-CN Sink Cabinet.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or ammonia-based products, as these can damage the finish.
• Spills: Clean up spills immediately to prevent moisture damage, especially on the MDP and MDF surfaces.
• Hardware: Periodically check all screws, hinges, and drawer slides to ensure they are tight. Re-tighten if necessary.
• Sunlight and Heat: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause fading or warping.

Troubleshooting

If you encounter any issues with your Kappesberg R626-CN Sink Cabinet, refer to the following common solutions:

• Doors are misaligned: Adjust the screws on the hinges to align the doors. Most hinges allow for vertical, horizontal, and depth adjustments.
• Drawers do not slide smoothly: Check if the drawer slides are properly installed and free of obstructions. Ensure all screws on the slides are tight. A small amount of silicone lubricant can be applied to the slides if needed.
• Cabinet feels wobbly: Ensure the cabinet is placed on a level surface. If not, use shims under the base to stabilize it. Check all assembly screws for tightness.
• Missing parts: If you find any parts missing during assembly, contact Kappesberg customer support with your product model and part description.

Specifications

Warranty and Support

This Kappesberg R626-CN Sink Cabinet comes with a manufacturer's warranty of 3 months from the date of purchase. This warranty covers manufacturing defects under normal use conditions.

For warranty claims, missing parts, or technical assistance, please contact Kappesberg customer support. You may need to provide your proof of purchase and the product model number (R626-CN).

Please note that the warranty does not cover damages resulting from improper assembly, misuse, neglect, accidents, or unauthorized modifications.

For further assistance, please visit the official Kappesberg website or contact their customer service department.
