Emoko C93 Electric Bike User Manual

1. Introduction

Thank you for choosing the Emoko C93 Electric Bike. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.

The Emoko C93 is designed for adults, featuring a powerful brushless high-torque motor, a long-range 48V 20Ah removable battery, 20x4.0 inch fat tires, and a dual shock absorption system for a comfortable and stable ride across various terrains.

Figure 1.1: Front-side view of the Emoko C93 Electric Bike.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Helmet Use: Always wear a certified bicycle helmet when riding.
• Pre-Ride Check: Before each ride, check tire pressure, brake functionality, battery charge, and ensure all bolts and quick releases are secure.
• Traffic Laws: Obey all local traffic laws and regulations.
• Visibility: Use the integrated 10W LED headlight and ensure the rear reflector is clean and visible, especially when riding at night. Consider wearing reflective clothing.
• Weather Conditions: Exercise caution when riding in wet conditions. Braking distance increases on wet surfaces.
• Weight Limit: Do not exceed the maximum load capacity of 265 lbs (120 kg).
• Battery Safety: Do not attempt to open or modify the battery. Charge the battery only with the provided charger in a well-ventilated area.
• Children: This electric bike is designed for adults. Keep out of reach of children.

3. Components Overview

Familiarize yourself with the main components of your Emoko C93 Electric Bike.

Figure 3.1: Side view illustrating key components.

• Frame: Durable carbon steel frame with a vintage design.
• Motor: Brushless high-torque motor, integrated into the rear wheel hub.
• Battery: 48V 20Ah removable lithium-ion battery, typically located within the frame or under the seat.
• Tires: 20x4.0 inch fat pneumatic tires for enhanced grip and stability.
• Brakes: Front and rear dual mechanical disc brakes.
• Suspension: Front and rear dual mechanical shock absorbers.
• Headlight: 10W LED headlight for improved night visibility.
• Display: LCD color display for speed, mileage, battery level, and other indicators.
• Gears: 7-speed transmission system.

Figure 3.2: LCD Color Display showing various indicators.

The LCD display provides real-time information including speed, battery level, pedal assist system (PAS) mode, odometer, and fault indicators. It also features a USB charging port.

Figure 3.3: The 10W LED Headlight provides powerful illumination for night riding.

Figure 3.4: Illustration of the upgraded dual suspension system.

4. Setup and Assembly

Your Emoko C93 Electric Bike may require some assembly upon arrival. Follow these steps carefully. It is recommended to have two people for certain assembly steps.

1. Unpacking: Carefully remove the bike and all components from the packaging. Retain packaging for future transport or storage.
2. Handlebar Installation: Attach the handlebars to the stem, ensuring they are centered and tightened securely.
3. Front Wheel Installation: Install the front wheel, ensuring the disc brake rotor is correctly aligned within the caliper. Secure the axle nuts firmly.
4. Pedal Installation: Identify the left (L) and right (R) pedals. The left pedal has a reverse thread. Apply a small amount of grease to the threads and screw them in firmly.
5. Seat Post and Saddle: Insert the seat post into the frame and adjust the saddle height for comfortable riding. Secure the quick-release lever or bolt.
6. Battery Installation: If the battery is separate, insert it into its compartment and ensure it clicks securely into place.
7. Initial Charge: Fully charge the battery before your first ride. Connect the charger to the battery and a power outlet. The charging time is approximately 7-10 hours.
8. Pre-Ride Checks: Before riding, perform all safety checks mentioned in Section 2.

5. Operating Instructions

Learn how to operate your Emoko C93 Electric Bike effectively.

5.1 Powering On/Off

• To Power On: Press and hold the power button on the LCD display for a few seconds. The display will illuminate.
• To Power Off: Press and hold the power button again until the display turns off.

5.2 Riding Modes

The Emoko C93 offers 5 pedal assist modes and a throttle for various riding experiences.

• Pedal Assist System (PAS): As you pedal, the motor provides assistance. Use the '+' and '-' buttons on the display to cycle through 5 levels of assistance. Higher levels provide more motor power.
• Throttle Mode: The bike can be propelled solely by the motor using the thumb throttle, without pedaling. This mode is typically used for quick acceleration or when you need a break from pedaling.
• Manual Mode: Ride the bike like a traditional bicycle without any motor assistance.

5.3 Gear Shifting

The bike is equipped with a 7-speed transmission. Use the gear shifter on the handlebars to change gears according to terrain and desired speed. Shift to lower gears for climbing hills and higher gears for flat terrain.

5.4 Braking

The Emoko C93 features front and rear dual mechanical disc brakes.

• Apply both brake levers simultaneously for effective and controlled stopping.
• Avoid sudden, hard braking, especially at high speeds or on slippery surfaces, to prevent skidding.

6. Maintenance

Regular maintenance will extend the life of your Emoko C93 Electric Bike and ensure safe operation.

• Cleaning: Clean the bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Tires: Check tire pressure before each ride. Recommended pressure is typically indicated on the tire sidewall. Inspect tires for wear and damage.
• Brakes: Regularly check brake pads for wear and replace them when necessary. Ensure brake levers are firm and responsive.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Battery Care:
  • Charge the battery after each ride, or at least once a month if not in use, to maintain battery health.
  • Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Do not fully discharge the battery frequently.
• Fasteners: Periodically check all bolts, nuts, and quick releases for tightness.
• Professional Service: For complex repairs or adjustments, consult a qualified bicycle mechanic.

7. Troubleshooting

This section addresses common issues you might encounter with your Emoko C93 Electric Bike.

8. Specifications

Detailed technical specifications for the Emoko C93 Electric Bike.

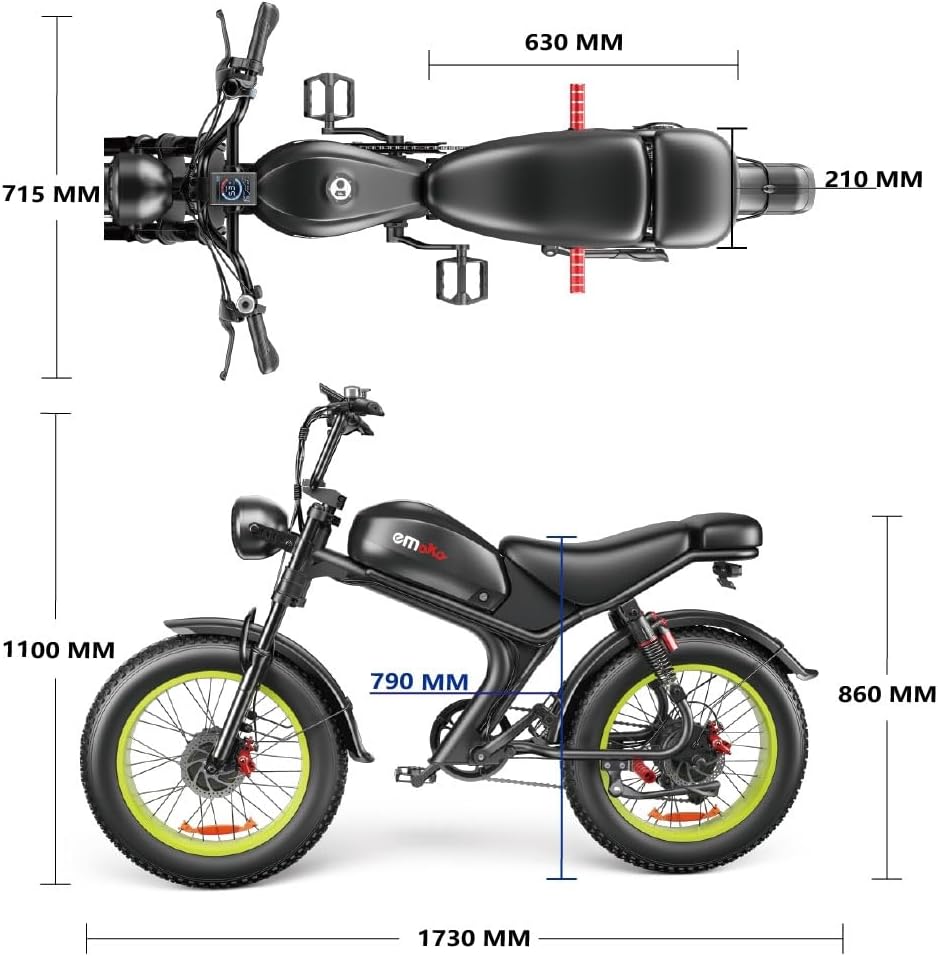

Figure 8.1: Detailed dimensions of the Emoko C93 Electric Bike.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the retailer where you purchased the Emoko C93 Electric Bike. Keep your proof of purchase for warranty claims.

For technical assistance or spare parts, please reach out to the manufacturer, Emoko, through their official support channels.
