1. Important Safety Information
Please read these instructions carefully before installing and using the appliance. Keep this manual for future reference. Incorrect installation or use can cause injury or damage.
- Electrical Safety: Ensure the appliance is correctly earthed and installed by a qualified electrician. Do not use adapters or extension cords.
- Burn Hazard: The hob surface becomes hot during operation. Do not touch hot surfaces. Always use oven mitts.
- Overheating: Do not leave cooking unattended. Overheated fats and oils can ignite.
- Foreign Objects: Do not place metallic objects such as knives, forks, spoons, or lids on the hob surface as they can become hot.
- Children: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Cleaning: Disconnect the appliance from the power supply before cleaning.
- Damage: Do not operate the appliance if it is damaged. Contact customer service.
2. Product Overview
The Balay 3EB960AH is a 60cm wide induction hob featuring advanced cooking technology for flexible and efficient meal preparation. Its anthracite design integrates seamlessly into modern kitchens.
Image: Balay 3EB960AH induction hob in a kitchen setting, showcasing its sleek anthracite design.
Key Features:
- Flex Induction Total: Allows combining cooking zones to accommodate large or irregularly shaped cookware.
- Two Cooking Zones: Each measuring 38 x 23 cm, with an additional central inductor.
- 11 Power Levels: Precise temperature control for various cooking needs.
- Oil Temperature Control: Select specific oil temperatures (e.g., 70°C for sauces, 200°C for steaks).
- Hob-Hood Control: Manage your extractor hood directly from the hob or enable automatic operation.
- Sprint Function: Rapid heating for liquids.
- Cooking Time Programming: Set individual timers for each cooking zone.
- Child Lock: Permanent or temporary locking feature for safety.
- Home Connect App: Remote control, access to recipes, remote diagnostics, and voice control capabilities.
3. Setup and Installation
The Balay 3EB960AH induction hob is designed for built-in installation. Professional installation by a qualified technician is recommended to ensure electrical safety and proper fit.
Installation Steps (General Guidance):
- Unpacking: Carefully remove the hob from its packaging. Inspect for any damage.
- Countertop Preparation: Ensure the countertop opening meets the specified dimensions (refer to Section 6: Specifications). The surface must be flat and stable.
- Ventilation: Ensure adequate ventilation space beneath the hob as per installation diagrams (not provided in this manual, refer to full installation guide).
- Electrical Connection: Connect the hob to a suitable electrical supply according to local regulations. This must be performed by a qualified electrician. The appliance requires a 230 Volt supply and 7400 Watts power.
- Securing the Hob: Place the hob into the prepared opening and secure it using the provided clips or brackets.
- Final Check: Before first use, ensure all connections are secure and the hob is stable.
4. Operating Instructions
This section details the basic operation of your Balay 3EB960AH induction hob.
Image: Detailed view of the hob's electronic control panel with power level indicators and function buttons.
4.1 Basic Operation
- Turning On/Off: Press the main power button (O|) to switch the hob on or off.
- Selecting a Cooking Zone: Place suitable cookware on the desired cooking zone. The hob will automatically detect the cookware. Select the zone using the corresponding touch control.
- Adjusting Power Level: Use the '+' and '-' touch controls or the slider to select a power level from 1 to 11.
4.2 Advanced Functions
- Flex Induction Total: To activate, select two adjacent cooking zones and press the Flex function button. This combines them into one large cooking area, ideal for griddle plates or large pots.
- Oil Temperature Control: Select a cooking zone and activate the oil temperature control function. Choose the desired temperature (e.g., 70°C for melting chocolate, 200°C for frying). The hob will maintain this temperature.
- Hob-Hood Control: If your extractor hood is compatible, activate this function on the hob. You can manually adjust the extraction level or set it to automatic mode, where the hob adjusts the fan speed based on cooking intensity.
- Sprint Function: For rapid heating, select a cooking zone and activate the Sprint function. This provides a temporary power boost to quickly boil water or heat liquids.
- Timer Function: Select a cooking zone and press the timer button. Use the '+' and '-' controls to set the desired cooking duration. The zone will switch off automatically once the time expires.
- Child Lock: To activate, press and hold the child lock button (key symbol) for a few seconds. The hob controls will be locked. Repeat the process to deactivate.
- Home Connect: Download the Home Connect app on your smartphone or tablet. Follow the in-app instructions to connect your hob. This enables remote control, access to recipes, remote diagnostics, and voice control.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction hob.
Cleaning Instructions:
- Before Cleaning: Always ensure the hob is switched off and has cooled down completely. Disconnect from the power supply if possible.
- Daily Cleaning: For light spills and everyday cleaning, wipe the glass surface with a soft cloth dampened with warm water and a mild detergent.
- Stubborn Stains: For burnt-on food or stubborn stains, use a specialized ceramic hob cleaner. Apply a small amount to the cooled surface and gently rub with a non-abrasive sponge or cloth.
- Avoid Abrasives: Do not use abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the glass surface.
- Control Panel: Wipe the control panel with a soft, damp cloth. Ensure no liquid enters the control area.
- Spills: Clean up sugar or plastic spills immediately while the hob is still warm (but not hot) using a scraper, then clean thoroughly once cooled.
Image: Detail of the hob's glass edge, highlighting the smooth, easy-to-clean surface.
6. Troubleshooting
If you encounter issues with your induction hob, refer to the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; Child lock activated. | Check power connection; Deactivate child lock (refer to Section 4.2). |
| Cooking zone not heating. | Cookware not suitable for induction; Cookware not centered; Power level too low. | Use induction-compatible cookware; Center cookware on the zone; Increase power level. |
| Display shows an error code (e.g., 'E' followed by numbers). | Internal fault; Overheating; Sensor issue. | Turn off the hob, wait a few minutes, then restart. If the error persists, disconnect power for 10 minutes. If still present, contact customer service. |
| Hob makes clicking or humming noises. | Normal operation of induction technology; Cookware material. | This is normal. Some cookware may produce more noise than others. |
| Hob switches off unexpectedly. | Overheating protection activated; Liquid spill on controls. | Allow hob to cool down; Clean and dry the control panel. |
If the problem persists after attempting these solutions, please contact Balay customer support.
7. Specifications
Detailed technical specifications for the Balay 3EB960AH Induction Hob.

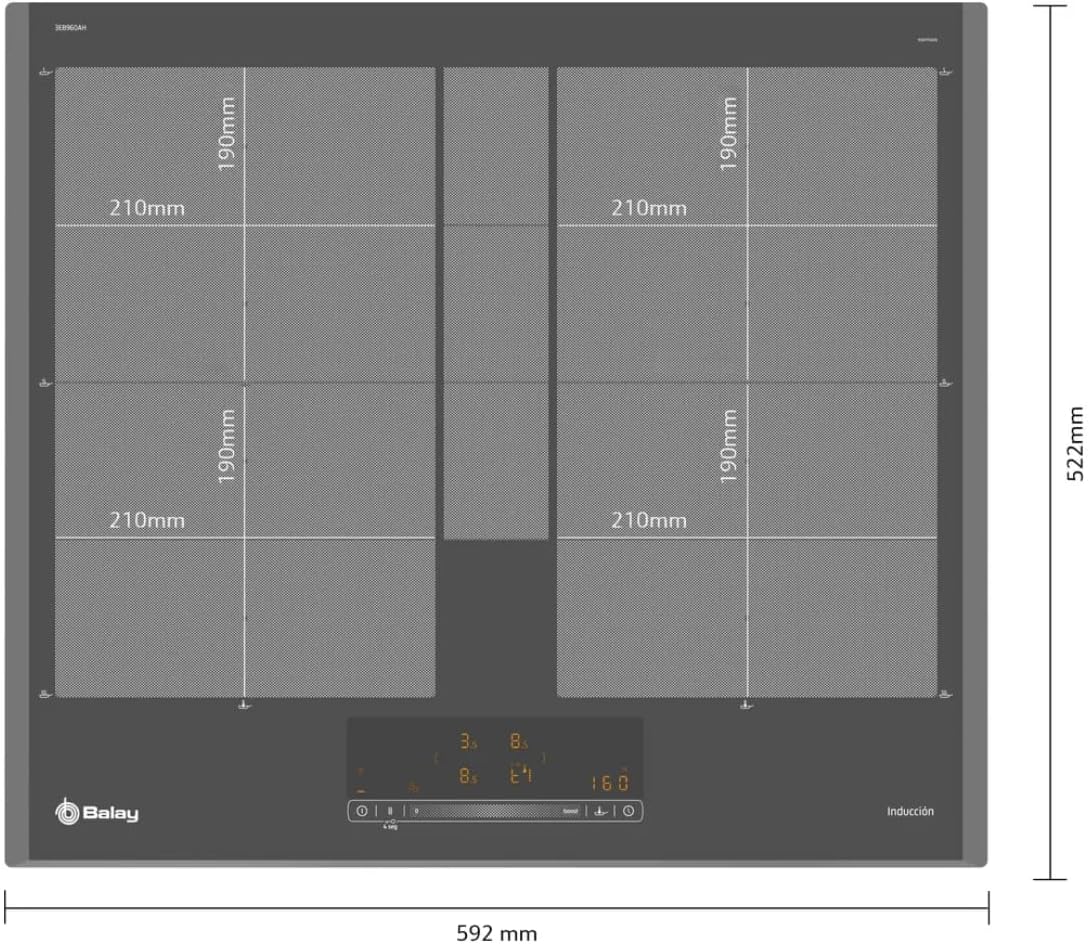

Image: Technical diagram showing the dimensions of the Balay 3EB960AH induction hob, including width (592mm) and depth (522mm).
| Feature | Detail |
|---|---|
| Model Number | 3EB960AH |
| Brand | Balay |
| Product Dimensions (D x W x H) | 52.2 x 59.2 x 5.1 cm |
| Weight | 12.6 Kilograms |
| Number of Heating Elements | 2 (Flex Induction Zones) |
| Zone Dimensions | 2 x 38 x 23 cm |
| Color | Grey (Anthracite) |
| Power Source | Induction |
| Special Features | Power-on indicator, Programmable, Adjustable temperature, Home Connect |
| Heating Surface Material | Glass |
| Control Type | Electronic Touch Control |
| Installation Type | Built-in (listed as 'Autonome' but typical for built-in hobs) |
| Voltage | 230 Volts |
| Wattage | 7400 Watts |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Balay website. Keep your proof of purchase for any warranty claims.
For technical support, spare parts, or service requests, please contact Balay customer service. Contact details can typically be found on the Balay website or in your product documentation.
- Online Support: Visit the official Balay website for FAQs, troubleshooting guides, and contact forms.
- Telephone Support: Refer to your regional Balay contact numbers.
