Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Ohuhu Mini Greenhouse, Model GGH-16. Please read these instructions carefully before use to ensure proper setup and safe operation. Retain this manual for future reference.
Product Overview
The Ohuhu Mini Greenhouse is designed to provide an optimal environment for seedlings and young plants, suitable for both indoor and outdoor use. Its portable design and durable construction offer year-round protection and extended growing seasons.
- Flexible Movement: Equipped with four smooth, locking wheels for easy relocation and position adjustments.
- Ample Storage: Features four shelves, each measuring 16 x 12.8 inches with a height of 13 inches, providing generous space for various plants. Patented clips secure each shelf.
- Durable Construction: Made from PE material for the cover, offering 50-60% light transmission and waterproof properties. The frame is rust-resistant iron. Each shelf supports up to 17.6 lbs (8 kg).
- Year-Round Protection: Creates an ideal environment for plant growth, shielding plants from adverse weather and extending the growing cycle.
- Ventilation and Pest Prevention: A roll-up door with a zipper allows easy access and ventilation while protecting plants from pests.
Image: The Ohuhu Mini Greenhouse, fully assembled and stocked with various potted plants.
Safety Information
Please observe the following safety precautions:
- Always assemble and disassemble the greenhouse with care. Some components may have sharp edges.
- Avoid prolonged exposure of the greenhouse to direct, intense sunlight to prevent UV damage to the cover material.
- Ensure adequate ventilation, especially in warm climates, to prevent overheating of plants.
- Supervise children and pets around the greenhouse to prevent accidents or injuries.
- Do not exceed the maximum shelf load capacity of 17.6 lbs (8 kg) per shelf.
- In windy conditions, secure the greenhouse to prevent tipping. Consider placing weights on the bottom shelf for added stability.
Package Contents
Verify that all components listed below are present before beginning assembly. Refer to the diagram for visual identification.
Image: Exploded view of greenhouse components and parts list.
| Part | Description | Quantity |
|---|---|---|
| 1 | Long Pole (36cm) | 1 |
| 2 | Short Pole (32cm) | 24 |
| 3 | Corner Connector | 8 |
| 4 | Shelf | 4 |
| A | T-Connector | 8 |
| B | Top Arch Connector | 2 |
| C | Locking Wheel | 4 |
| G | Shelf Clip | 2 |
| Cover | PE Grid Cover | 1 |
Setup Instructions
Follow these steps to assemble your Ohuhu Mini Greenhouse. A rubber mallet (not included) may be helpful for securing connections.
Image: Visual guide for greenhouse assembly.
- Assemble Base Frame: Connect four (2) Short Poles (32cm) to two (3) Corner Connectors and two (A) T-Connectors to form the bottom rectangular base. Ensure all connections are firm.
- Attach Wheels: Insert the four (C) Locking Wheels into the designated holes on the bottom of the base frame. Ensure they are securely seated.
- Build Lower Tiers: Attach four (2) Short Poles (32cm) vertically into the T-Connectors of the base. Place a (4) Shelf on top of these poles, ensuring it rests securely. Repeat this process for the next two tiers, using four (2) Short Poles and one (4) Shelf for each.
- Install Top Tier: For the top tier, attach four (2) Short Poles (32cm) vertically. Place the final (4) Shelf on top.
- Form Arch Top: Connect the (1) Long Pole (36cm) to the two (B) Top Arch Connectors. Attach these arch connectors to the top vertical poles.
- Secure Shelves: Use the (G) Shelf Clips to further secure the shelves to the frame, enhancing stability.
- Install Cover: Carefully drape the (Cover) PE Grid Cover over the assembled frame, ensuring the zipper opening aligns with the front. Roll up the door and secure it with the built-in straps. Zip down the cover completely.

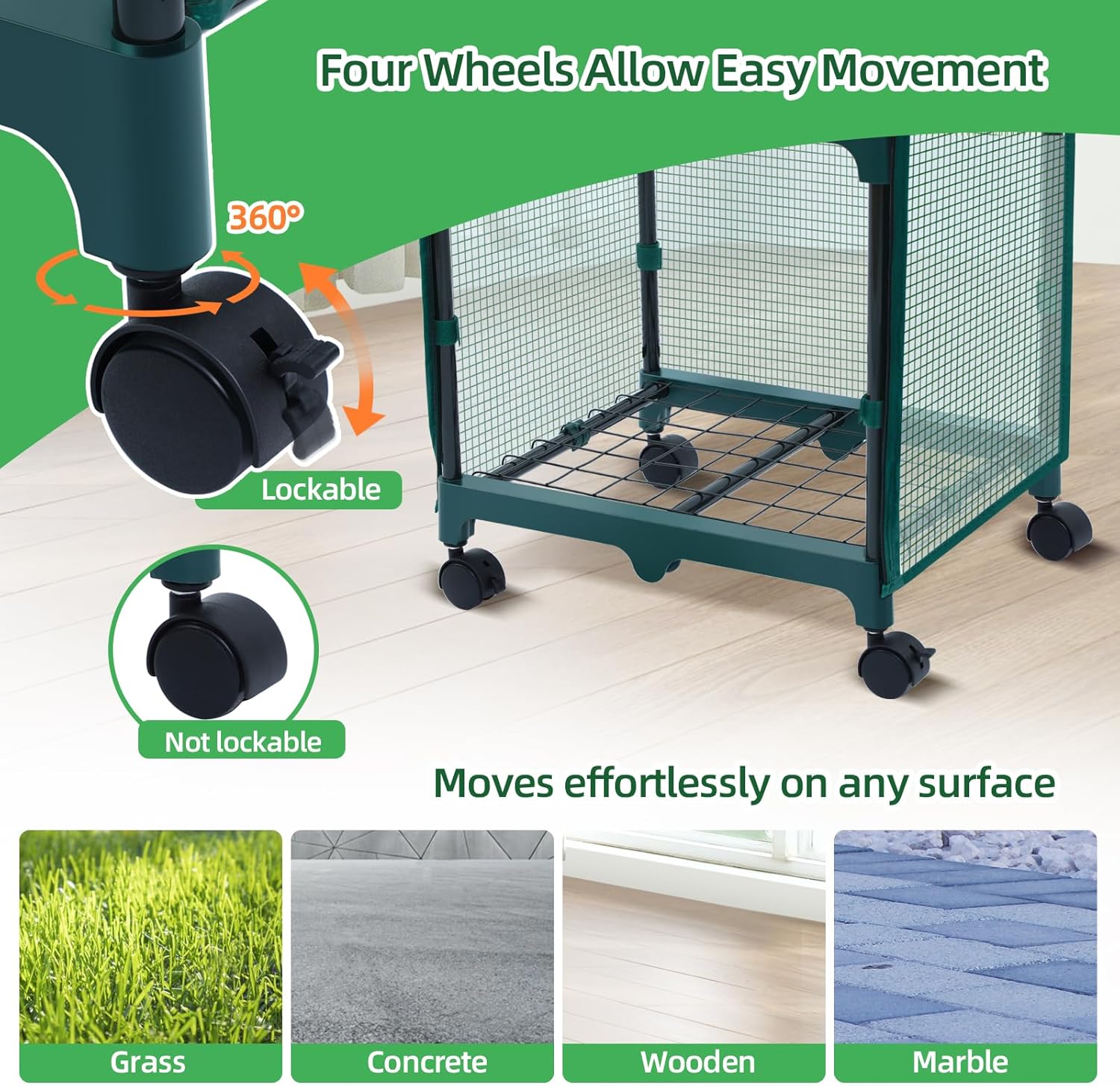

Image: Detail of the locking wheels for easy movement and stability.
Image: The greenhouse positioned indoors and outdoors, demonstrating its versatility.
Operating Instructions
Placement
The Ohuhu Mini Greenhouse is suitable for both indoor and outdoor environments. Consider the light requirements of your plants when choosing a location. Use the locking wheels to easily move the greenhouse as needed.
Ventilation
To regulate temperature and humidity, utilize the roll-up zippered door. Open the door partially or fully to allow air circulation, especially on warm days, to prevent excessive heat buildup and promote healthy plant growth.
Plant Care
Arrange plants on the four shelves, ensuring adequate space for growth. The greenhouse cover helps retain moisture and warmth, creating a microclimate beneficial for seedlings and sensitive plants. Monitor plant health regularly and adjust watering and light exposure as necessary.
Image: The greenhouse providing protection for plants during winter conditions.
Image: Detail of the four wire shelves and bonus clips for stability.
Maintenance
Cleaning the Cover
Periodically clean the PE grid cover with a damp cloth and mild soap to remove dirt and debris. Avoid abrasive cleaners that could damage the material. Ensure the cover is dry before zipping it up completely to prevent mold or mildew growth.
Frame Inspection
Regularly inspect the iron frame and connectors for any signs of rust, damage, or loosening. Tighten any loose connections. If any parts are damaged, contact customer support for replacements.
Winter Storage (if applicable)
If storing the greenhouse for an extended period, especially in harsh winter conditions, it is recommended to disassemble it and store the components in a dry, protected area to prolong its lifespan.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Greenhouse feels unstable or wobbly. | Connections are not fully seated; uneven surface; insufficient weight. | Ensure all poles are firmly inserted into connectors. Use a rubber mallet to gently tap connections if needed. Place the greenhouse on a flat, level surface. Add weights (e.g., heavy pots) to the bottom shelf for increased stability, especially outdoors. |
| Shelves are not staying in place. | Shelf clips not used or improperly installed; excessive weight on shelves. | Ensure the provided shelf clips (Part G) are correctly installed to secure the shelves to the frame. Do not exceed the maximum load capacity of 17.6 lbs (8 kg) per shelf. |
| Zipper on cover is difficult to close. | Cover is not aligned correctly; zipper teeth are obstructed. | Adjust the cover to ensure it is evenly draped over the frame. Gently guide the zipper, ensuring no fabric is caught. Avoid forcing the zipper. |
| Plants are overheating inside. | Insufficient ventilation; direct sunlight exposure. | Roll up the zippered door to increase airflow. Consider relocating the greenhouse to a partially shaded area during peak sun hours, or use a shade cloth if permanent relocation is not possible. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | GGH-16 |
| Product Dimensions | 16.14 x 12.99 x 49.21 inches (L x W x H) |
| Item Weight | 6.6 pounds (3 kg) |
| Frame Material | Iron |
| Cover Material | Polyethylene (PE) |
| Number of Shelves | 4 |
| Shelf Dimensions | 16 x 12.8 inches |
| Shelf Height | 13 inches |
| Max. Shelf Load Capacity | 17.6 lbs (8 kg) per shelf |
| Number of Vents | 1 (zippered roll-up door) |
| Color | Green |
| Manufacturer | Ohuhu |
Warranty and Support
Ohuhu products are supported by a 1-year commitment. We offer free replacements for connectors and covers within this period. For any questions, concerns, or to request replacement parts, please contact Ohuhu customer support through the retailer's platform or the official Ohuhu website.
