Fockety Needle Threader Hook Tool Instruction Manual

1. Introduction

The Fockety Needle Threader Hook Tool is a stainless steel accessory designed to simplify the process of threading needles and switching them on compatible sewing machines. This tool is engineered for durability and ease of use, aiming to enhance your sewing experience by reducing the effort and frustration associated with manual needle threading.

It is compatible with a range of sewing machines, including Singer 140q, Singer 2639, and Juki hzl‑25z models.

2. Product Features

• Durable Construction: Made from high-quality stainless steel for long-term reliability and resistance to wear.
• Wide Compatibility: Designed to work with various sewing machine models, including Singer 140q, Singer 2639, and Juki hzl‑25z.
• Effortless Threading: Simplifies the task of threading needles, making it quicker and more efficient.
• Easy Needle Switching: Facilitates the process of changing sewing machine needles.
• Ergonomic Design: Provides a comfortable grip and easy manipulation for precise use.

3. Setup and Installation

The Needle Threader Hook Tool is a handheld accessory and does not require permanent installation onto your sewing machine. It is used manually to assist with threading and needle changes.

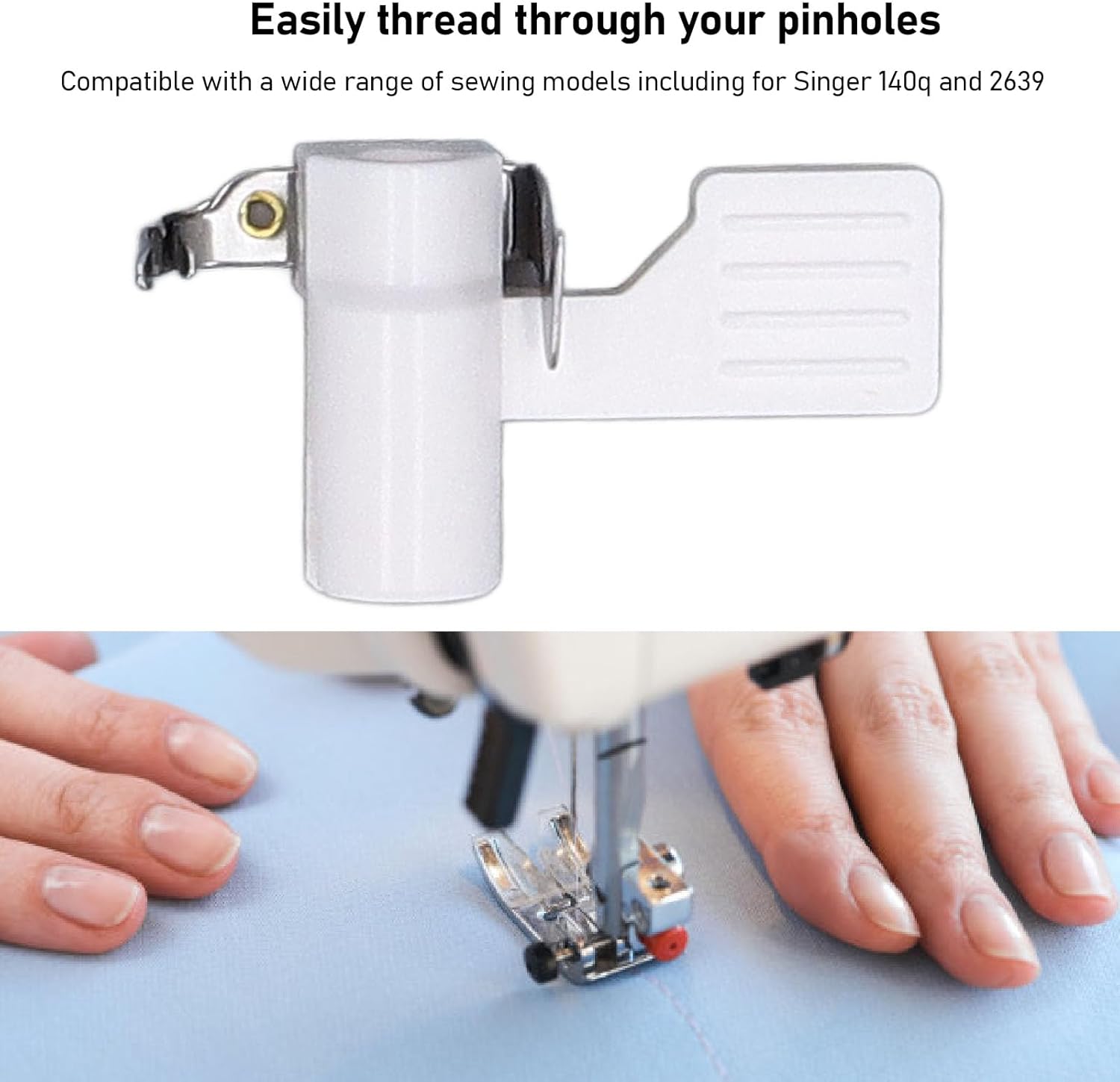

Figure 3.1: The Fockety Needle Threader Hook Tool. This image shows the overall design of the tool, featuring its white body and stainless steel hook mechanism.

3.1 Preparing for Use

1. Ensure your sewing machine is turned off and unplugged for safety before handling needles.
2. Position your sewing machine needle in its lowest position, then raise it slightly to expose the needle eye.
3. Hold the needle threader tool comfortably in your hand.

4. Operating Instructions

4.1 Threading a Needle

1. With the needle in the correct position (as described in Section 3.1), carefully insert the hook end of the threader tool through the eye of the needle from front to back.
2. Once the hook is through the needle eye, take your thread and loop it through the hook of the threader tool.
3. Gently pull the threader tool back through the needle eye. The hook will pull the thread through the needle eye, completing the threading process.

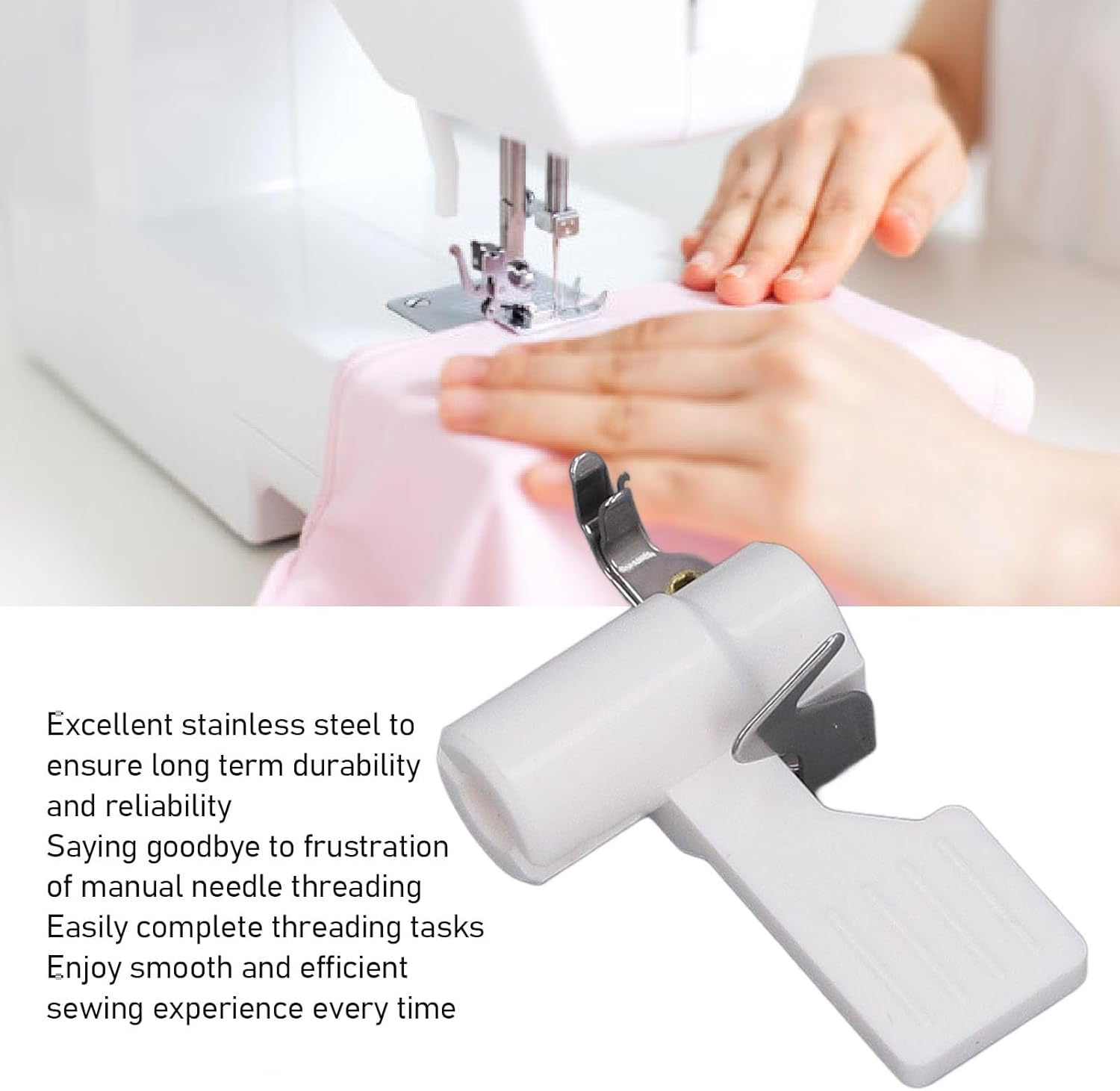

Figure 4.1: Demonstrating the needle threading process. The image shows the tool's hook inserted through the needle eye, ready to pull the thread.

4.2 Switching Needles

The tool can also assist in gripping and manipulating needles for easier replacement.

1. Ensure the sewing machine is off and unplugged.
2. Loosen the needle clamp screw on your sewing machine.
3. Use the hook or the flat part of the threader tool to gently grip the needle and pull it downwards to remove it.
4. Insert the new needle, ensuring the flat side is facing the correct direction according to your machine's specifications.
5. Use the tool to hold the new needle in place while tightening the needle clamp screw.

Figure 4.2: Illustrating needle replacement. The image shows the tool being used to assist in handling a sewing machine needle.

5. Maintenance

• Cleaning: Wipe the tool with a soft, dry cloth after each use to remove any lint or debris. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
• Storage: Store the needle threader in a clean, dry place, away from direct sunlight and extreme temperatures. Keeping it in a sewing kit or a dedicated compartment will prevent loss and damage.
• Inspection: Periodically inspect the stainless steel hook for any signs of bending or damage. A damaged hook may not function correctly and could potentially damage your needle or thread.

6. Troubleshooting

The Fockety Needle Threader Hook Tool is a simple mechanical device. Most issues can be resolved by ensuring correct usage.

• Issue: The hook does not pass through the needle eye.
  • Solution: Ensure the needle is positioned correctly and the hook is aligned directly with the needle eye. Some very fine needles may have extremely small eyes, requiring careful alignment.
  • Solution: Check if the hook is bent or damaged. If so, the tool may need replacement.
• Issue: The thread does not catch on the hook.
  • Solution: Ensure the thread is fully looped around the hook before pulling back.
  • Solution: Verify that the thread is not too thick for the needle eye.

7. Specifications

Figure 7.1: Visual representation of the tool's dimensions, showing its length and width measurements.

8. Warranty and Support

This product is designed for durability and reliable performance. For specific warranty information or support inquiries, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your proof of purchase for any warranty claims.

For general questions regarding the use of this tool, please consult this instruction manual or seek advice from experienced sewing professionals.
