EUGAD Bathroom Storage Cabinet with Sliding Doors and Wheels

1. Introduction

Thank you for choosing the EUGAD Bathroom Storage Cabinet, Model 0247WY. This versatile and compact storage solution is designed to optimize space in various rooms, including bathrooms, kitchens, and laundry areas. Featuring adjustable shelves, sliding doors, and mobile casters, this cabinet offers both functionality and modern design. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

2. Safety Instructions

• Always assemble the product on a clean, soft surface to prevent scratches.
• Ensure all parts are present and undamaged before beginning assembly.
• Do not overtighten screws, as this may damage the material.
• Keep small parts away from children during assembly.
• Do not exceed the maximum weight capacities specified in the 'Specifications' section.
• Regularly check all connections to ensure they remain tight and secure.
• Use the locking casters to secure the cabinet in place when not moving it.

3. Package Contents

Please verify that all components listed below are included in your package. If any parts are missing or damaged, please contact customer support.

• Cabinet Panels (Top, Bottom, Sides, Back, Shelves, Doors)
• Metal Frame Components
• Sliding Door Rails
• Casters (4 pieces, 2 with locks)
• Assembly Hardware (Screws, dowels, magnetic catches, etc.)
• Assembly Instructions Manual

4. Setup and Assembly

Follow the detailed instructions provided in the included assembly guide. A general overview of the assembly process is provided below:

1. Unpack and Identify Parts: Lay out all components and hardware. Refer to the parts list in your assembly guide to ensure everything is present.
2. Assemble the Metal Frame: Attach the black metal frame components to the main cabinet panels as instructed.
3. Install Casters: Secure the four casters to the bottom panel of the cabinet. Ensure the two locking casters are positioned at the front for easy access.
4. Construct the Cabinet Body: Assemble the side, top, and bottom panels.
5. Install Shelves: Insert the adjustable shelf into the desired position. The shelf can be moved up or down in 3.3 cm increments. It can also be removed entirely for larger storage needs.
6. Attach Sliding Doors: Install the sliding door rails and then carefully place the doors onto the rails. Ensure they slide smoothly.
7. Final Checks: Verify all screws are tightened and the cabinet is stable.

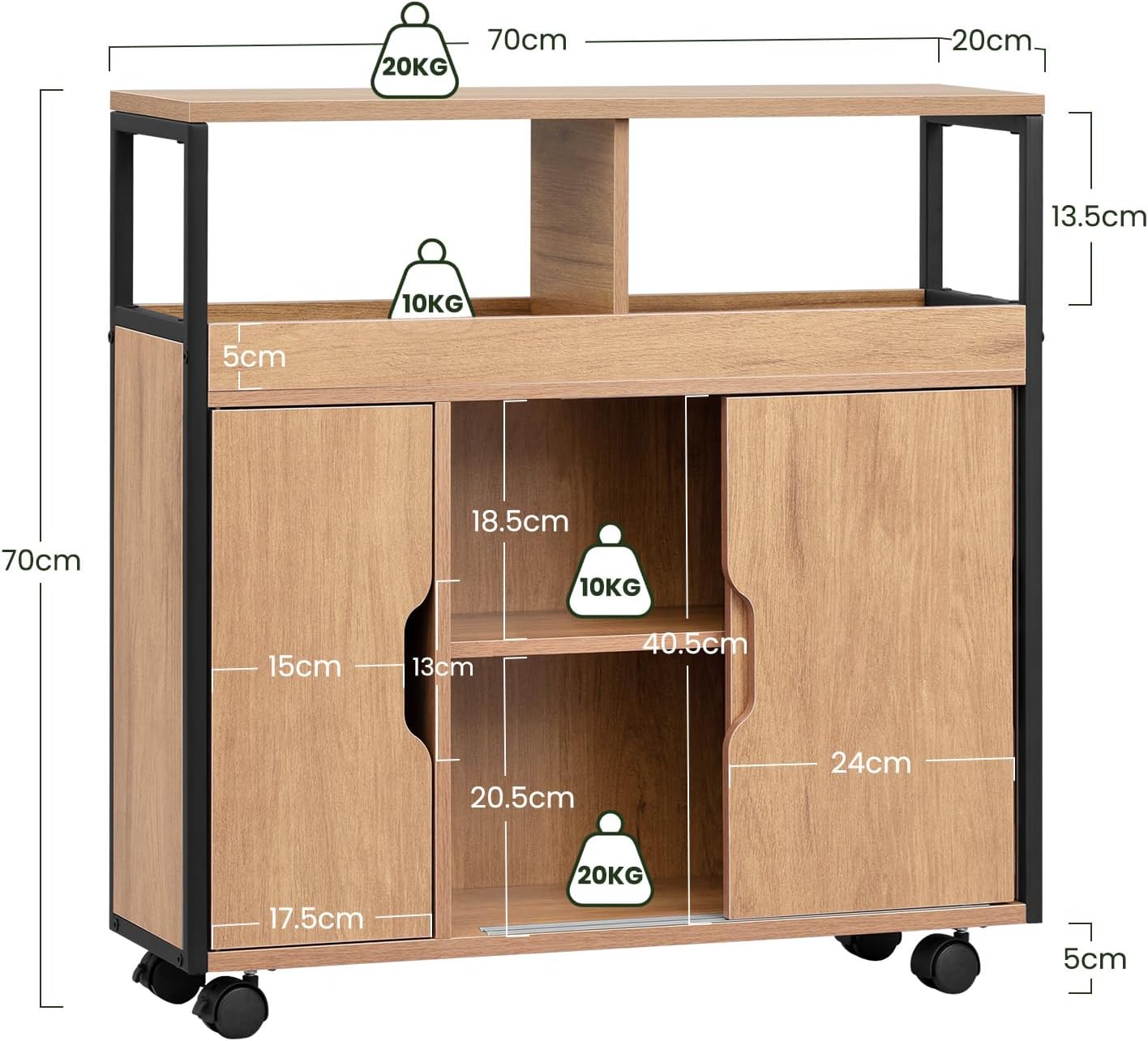

This diagram illustrates the overall dimensions of the cabinet (70cm width, 20cm depth, 70cm height) and the individual compartment dimensions. It also indicates the maximum weight capacity for the top shelf (20kg) and internal shelves (10kg each).

This image focuses on the interior of the cabinet, demonstrating how the shelf can be adjusted vertically by 3.3 cm increments to accommodate items of various heights.

This image illustrates the versatility of the cabinet, showing how the internal shelves can be removed to create larger storage spaces, adapting to different storage needs.

5. Operating Instructions

5.1 Using the Sliding Doors

The cabinet features two sliding doors that move smoothly along metal runners. Gently push or pull the doors using the integrated cutout handles to access the hidden compartments. Avoid forcing the doors to prevent damage to the runners.

5.2 Adjusting/Removing Shelves

To adjust the height of the internal shelf, carefully lift the shelf and reposition the shelf pins into the desired holes. Ensure the shelf is level and securely seated before placing items on it. To remove a shelf, simply lift it out of the cabinet.

5.3 Utilizing the Casters

The cabinet is equipped with four 360-degree swivel casters for easy mobility. Two of these casters include locking mechanisms. To move the cabinet, ensure the caster locks are disengaged. To secure the cabinet in a stationary position, press down on the locking levers of the two front casters until they click into place.

This image displays the EUGAD Bathroom Storage Cabinet, showcasing its light oak finish, black metal frame, two open top compartments, and two lower compartments with sliding doors. The cabinet is equipped with wheels for mobility.

This image highlights key features: 360-degree universal casters with locking brakes for mobility and stability, magnetic door closures, smooth metal runners for sliding doors, a water-repellent and easy-to-clean surface, and ergonomic cutout handles.

6. Maintenance

6.1 Cleaning

The cabinet's surface is made of MDF with a melamine veneer, making it water-repellent and easy to clean. Wipe the surface with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish. Dry immediately with a clean cloth.

This image demonstrates the water-repellent property of the cabinet's surface, showing water beading on the material and a cloth wiping it away, highlighting its ease of cleaning.

6.2 General Care

• Avoid prolonged exposure to direct sunlight or extreme temperatures.
• Do not place hot items directly on the surface without protection.
• Periodically check all screws and fittings to ensure they are tight.

7. Troubleshooting

• Problem: Doors are difficult to slide.
  Solution: Check if the sliding rails are clean and free of obstructions. Ensure the doors are correctly seated in the rails.
• Problem: Cabinet feels wobbly.
  Solution: Verify that all assembly screws are securely tightened. Ensure the cabinet is on a flat, level surface.
• Problem: Casters are not locking.
  Solution: Ensure the locking mechanism is fully engaged. Check for any debris obstructing the caster's movement or lock.
• Problem: Missing parts during assembly.
  Solution: Double-check the package contents against the parts list in the assembly manual. Contact customer support for assistance with missing parts.

8. Specifications

9. Warranty and Support

EUGAD products are manufactured with quality and durability in mind. For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
