1. Introduction
Thank you for choosing the Adax Eco Basic 250W Electric Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new radiator. Please read these instructions carefully before use and retain them for future reference.
The Adax Eco Basic is a compact, wall-mounted electric radiator designed for efficient heating in various indoor spaces. It features smart Bluetooth control for easy temperature management and is built with safety and durability in mind.
2. Safety Information
Always adhere to the following safety precautions to prevent personal injury or damage to the product:
- Ensure the radiator is installed by a qualified electrician, especially when installing in bathrooms or wet areas.
- Do not cover the radiator. Covering can lead to overheating and fire hazards.
- Keep children and pets away from the radiator, especially when it is operating at high temperatures.
- Do not insert objects into the radiator's openings.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- The radiator is IP24 certified for protection against splashing water, making it suitable for bathroom installation in specific zones as per local electrical regulations.
- The appliance has Class II double insulation for enhanced safety.
3. Package Contents
Verify that all components are present in the package:
- Adax Eco Basic Electric Radiator
- Wall mounting brackets
- Installation screws and wall plugs
- User Manual (this document)
4. Setup and Installation
The Adax Eco Basic radiator is designed for wall mounting. Follow these steps for proper installation:
4.1 Choosing a Location
Select a suitable wall location, preferably under a window to counteract cold drafts. Ensure there is adequate clearance around the radiator for proper heat circulation. Do not install directly below an electrical socket.
4.2 Mounting the Radiator
- Mark the drilling points on the wall using the mounting bracket as a template.
- Drill holes and insert the wall plugs.
- Secure the mounting bracket to the wall using the provided screws.
- Carefully hang the radiator onto the mounting bracket, ensuring it is securely seated.

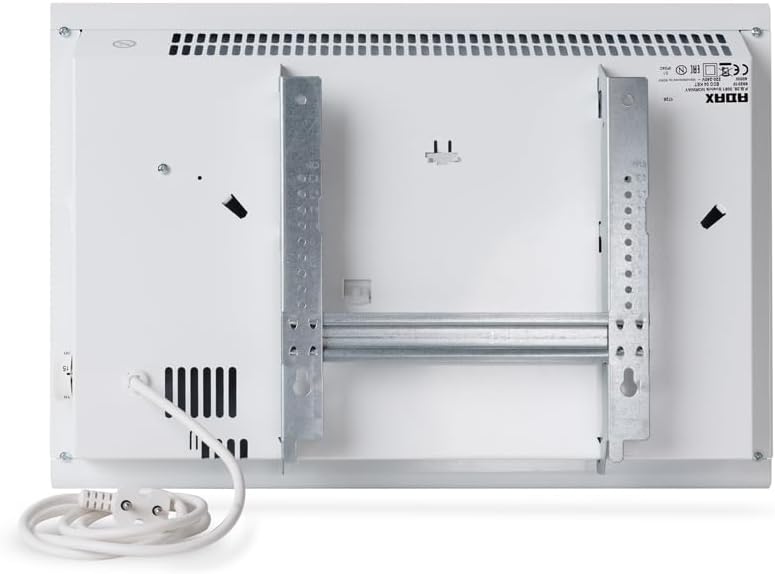

Image 1: Rear view of the Adax Eco Basic radiator, showing the integrated wall mounting brackets and the coiled power cord.
4.3 Electrical Connection
Connect the radiator to a suitable power outlet. Ensure the voltage matches the product specifications (230 Volts). The radiator comes with a corded electric power source.
4.4 Optional Floor Installation
If you intend to install this radiator on the floor, additional 'P' feet accessories must be purchased separately. This product is primarily designed for wall mounting.
5. Operating Instructions
The Adax Eco Basic radiator features an electronic thermostat and Bluetooth control for precise temperature management.
5.1 Initial Power On
Once installed and connected to power, switch on the radiator using the main power switch, usually located on the side or bottom of the unit.
Image 2: Front and side view of the Adax Eco Basic electric radiator, showcasing its minimalist design.
5.2 Adjusting Temperature
You can adjust the desired room temperature directly from the control panel on the radiator or via the dedicated smartphone application using Bluetooth.
Image 3: Close-up of the radiator's control panel, featuring a digital display and control buttons for temperature adjustment.
5.3 Bluetooth Control
Download the Adax app from your smartphone's app store. Follow the in-app instructions to pair your device with the radiator. This allows for remote temperature setting, weekly programming, and other smart features without requiring a Wi-Fi connection.
5.4 Frost Protection Mode
The radiator includes a frost protection mode, which maintains a minimum temperature to prevent freezing in unoccupied rooms. Refer to the app or device manual for activation details.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your radiator.
6.1 Cleaning
- Always disconnect the radiator from the power supply before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Ensure no water enters the control panel or internal components.
6.2 Storage
If storing the radiator for an extended period, ensure it is clean, dry, and stored in a safe place away from moisture and extreme temperatures.
7. Troubleshooting
If you encounter issues with your Adax Eco Basic radiator, refer to the following common problems and solutions:
- Radiator not heating: Check if the power cord is securely plugged in and the main power switch is on. Verify the thermostat setting is higher than the current room temperature.
- Bluetooth connection issues: Ensure Bluetooth is enabled on your smartphone and the radiator is within range. Restart both the app and the radiator if necessary.
- Overheating protection activated: If the radiator shuts off unexpectedly, it might be due to the integrated overheat protection. Unplug the unit, allow it to cool down, and ensure there are no obstructions covering the radiator before restarting.
For persistent issues, contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | ADAX |
| Model Number | 680060 |
| Color | White |
| Product Dimensions (L x W x H) | 40 x 9.7 x 33 cm |
| Power | 250 Watts |
| Voltage | 230 Volts |
| Item Weight | 3.3 Kilograms |
| Form Factor | Wall-mounted |
| Indoor/Outdoor Use | Indoor |
| Power Source | Corded Electric |
| Heating Method | Convection |
| Mounting Type | Wall Mount |
| Special Feature | Bluetooth Control, Electronic Thermostat, Frost Protection, Overheat Protection, IP24, Class II Insulation |
8.1 Recommended Heating Power vs. Room Size
The following table provides guidance on selecting the appropriate heating power based on room size and heat demand. This is a general guide; actual requirements may vary based on insulation, window area, and external temperatures. Maximum ceiling height for this guide is 2.4 meters.

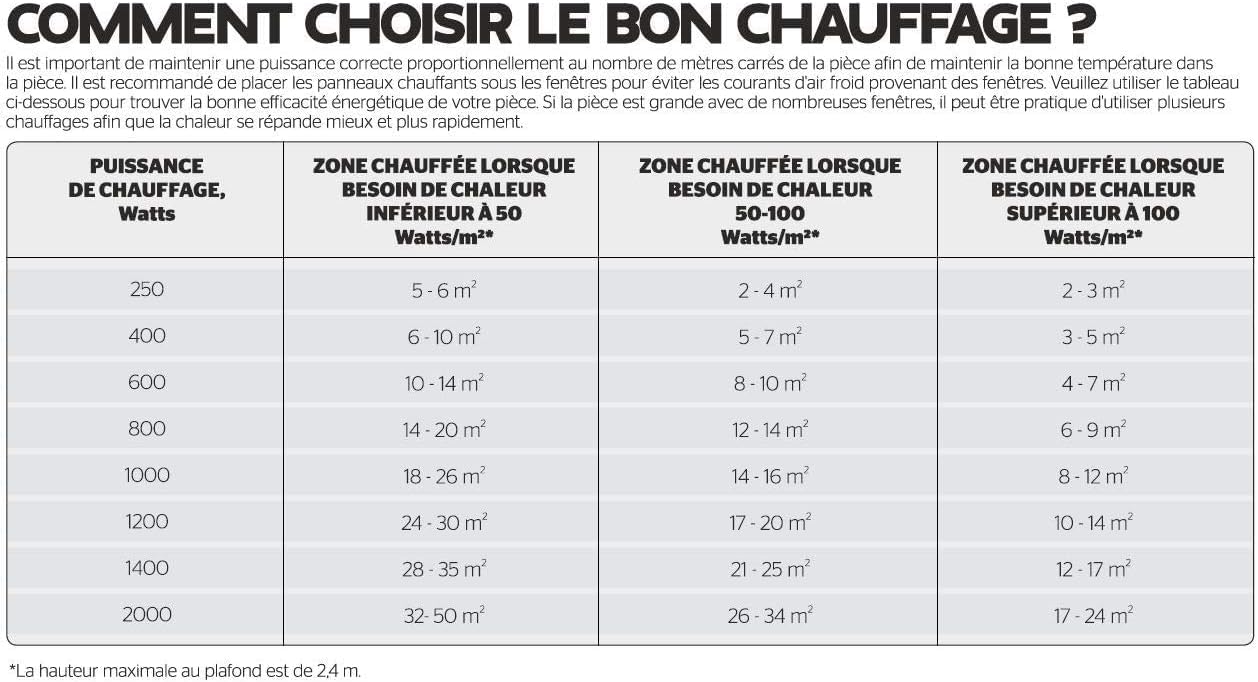

Image 4: A table illustrating recommended heating power (Watts) for different room sizes (m²) based on varying heat demand levels.
| Heating Power, Watts | Heated Area for Heat Demand < 50 Watts/m² | Heated Area for Heat Demand 50-100 Watts/m² | Heated Area for Heat Demand > 100 Watts/m² |
|---|---|---|---|
| 250 | 5 - 6 m² | 2 - 4 m² | 2 - 3 m² |
| 400 | 6 - 10 m² | 5 - 7 m² | 3 - 5 m² |
| 600 | 10 - 14 m² | 8 - 10 m² | 4 - 7 m² |
| 800 | 14 - 20 m² | 12 - 14 m² | 6 - 9 m² |
| 1000 | 18 - 26 m² | 14 - 16 m² | 8 - 12 m² |
| 1200 | 24 - 30 m² | 17 - 20 m² | 10 - 14 m² |
| 1400 | 28 - 35 m² | 21 - 25 m² | 12 - 17 m² |
| 2000 | 32 - 50 m² | 26 - 34 m² | 17 - 24 m² |
Note: Maximum ceiling height for these recommendations is 2.4 meters.
9. Warranty and Support
The Adax Eco Basic radiator comes with a 5-year warranty, compliant with Ecodesign 2018 standards. For warranty claims, technical support, or spare parts inquiries, please contact your retailer or the official Adax customer service. Keep your proof of purchase for warranty validation.
10. Video Resources
No official product videos from the seller were found for this specific model in the provided data. Please refer to the manufacturer's website or official channels for any available video guides.
