Balay 3TS273BA Washing Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Balay 3TS273BA washing machine. Please read these instructions carefully before installation, first use, and maintenance. Keep this manual for future reference.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to the appliance:

• Ensure the washing machine is properly installed and grounded before use.
• Do not allow children to play with or operate the appliance. The machine includes a child safety lock feature.
• Never force the door open during operation. Use the Pause+Load function if you need to add or remove items during a cycle.
• Do not wash items that have been soiled with flammable substances.
• Unplug the appliance from the power supply before cleaning or maintenance.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• The appliance is designed for domestic use only.

3. Product Overview

The Balay 3TS273BA is a 7 kg front-load washing machine designed for efficient and quiet operation. Key features include:

• Capacity: 7 kg, suitable for family use.
• Motor: ExtraSilencio motor for smooth and quiet operation.
• Display: LED display showing remaining time, program status, and delayed end up to 24 hours.
• Special Programs: Super Fast 15 minutes, Fast/Mix, and Hygiene program.
• Functions: Pause+Load function allows adding items during a cycle, spin reduction option.
• Safety: Multiple water protection and child safety lock.
• Detergent Dispenser: Self-cleaning detergent dispenser.

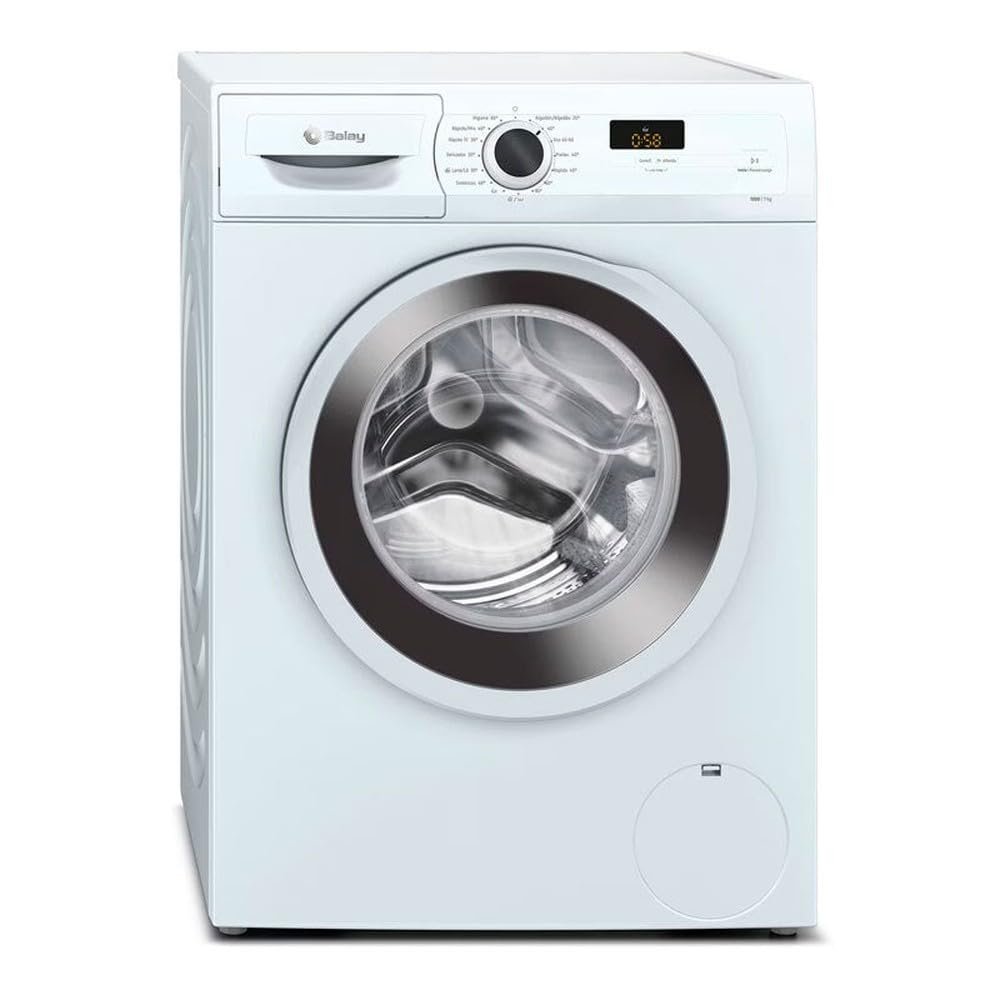

Figure 1: Front view of the Balay 3TS273BA washing machine. This image shows the control panel, detergent drawer, and main door.

4. Setup and Installation

4.1 Unpacking

Carefully remove all packaging materials. Inspect the appliance for any transport damage. Keep packaging materials out of reach of children.

4.2 Positioning

Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and maintenance. The dimensions are 84.8 cm (height) x 59.8 cm (width) x 58.8 cm (depth without door). It is designed to be installed under a worktop on furniture 85 cm or higher.

4.3 Water and Drain Connections

Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain pipe. Ensure all connections are secure to prevent leaks.

4.4 Electrical Connection

Connect the power cable (included) to a grounded electrical outlet. Ensure the voltage and frequency match the specifications of the appliance.

5. Operating Instructions

5.1 Loading Laundry

Open the door and load laundry into the drum, ensuring not to overload. Close the door firmly.

5.2 Adding Detergent

Pull out the detergent drawer and add the appropriate amount of detergent and fabric softener to the designated compartments. The detergent dispenser is self-cleaning.

5.3 Program Selection

Turn the program selector dial to choose the desired washing program. The LED display will show the estimated cycle time.

Available programs include:

• Cottons: For durable cotton items.
• Super Fast 15 minutes: For lightly soiled items requiring a quick wash.
• Fast / Mix: For mixed loads and everyday washing.
• Hygiene: For items requiring thorough sanitization.
• Refer to the program table in your quick start guide for a complete list.

5.4 Special Functions

• Pause+Load: Press this button to pause the cycle and open the door to add or remove laundry. The door can be opened during the wash cycle if conditions allow.
• Delayed Start: Use the corresponding button to set a delayed end time for the wash cycle, up to 24 hours.
• Spin Reduction: Adjust the spin speed according to your laundry type and desired dryness.
• Child Safety Lock: Activate this function to prevent accidental changes to settings by children.

5.5 Starting and Ending a Cycle

Press the Start/Pause button to begin the selected program. The LED display will show the remaining time. At the end of the cycle, an acoustic signal may sound, and the display will indicate completion. Open the door and remove your laundry.

6. Maintenance

6.1 Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6.2 Cleaning the Detergent Dispenser

The detergent dispenser is self-cleaning. However, occasional manual cleaning may be required to remove residue. Remove the drawer and rinse it under running water.

6.3 Cleaning the Drum

Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to clean the drum and remove any buildup.

6.4 Cleaning the Drain Filter

Regularly check and clean the drain filter to prevent blockages. Refer to the quick start guide for instructions on accessing and cleaning the filter.

7. Troubleshooting

Before contacting customer service, refer to the following table for common issues and solutions:

8. Specifications

9. Warranty and Support

Your Balay washing machine comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions. For technical assistance, spare parts, or warranty claims, please contact Balay customer service or an authorized service center. Keep your purchase receipt as proof of purchase.
