1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your AINAVI 10-inch Touchscreen Car Stereo. This unit is designed to upgrade the in-car entertainment and navigation system for compatible Dodge Ram 1500, 2500, and 3500 models from 2009 to 2012. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.
2. Vehicle Compatibility
This AINAVI 10-inch Touchscreen Car Stereo is specifically designed for:
- Dodge Ram 1500 (2009-2012)
- Dodge Ram 2500 (2009-2012)
- Dodge Ram 3500 (2009-2012)
The unit comes with a customized fit, wiring harness cables, CANbus decoder, and a frame panel to ensure seamless integration with your vehicle's existing systems.
3. Package Contents
Please verify that all items listed below are included in your package:
- 1x Android Car Stereo (Head Unit)
- 1 x Wiring Harness Power Cable with CANbus Decoder
- 1 x Radio Antenna Adaptor
- 1 x GPS Antenna
- USB & Audio Cables
- 1 x User Manual
- 1 x AHD 1080P Backup Camera
- 1 x External Microphone
- Frame Removal Tool
Image: Illustration of all components included in the AINAVI car stereo package, such as the head unit, wiring harnesses, antennas, and accessories.
4. Setup and Installation
The AINAVI car stereo is designed for a plug-and-play installation, minimizing the need for complex wiring modifications. However, professional installation is recommended if you are unfamiliar with car audio systems.
4.1 Pre-Installation Steps
- Disconnect Battery: Before beginning any electrical work, disconnect the vehicle's negative battery terminal to prevent electrical shorts.
- Remove Original Radio: Carefully remove your vehicle's existing radio and dashboard trim. Refer to your vehicle's service manual for specific instructions on trim removal.
4.2 Connecting the Unit
- Wiring Harness: Connect the provided wiring harness and CANbus decoder to the car stereo and your vehicle's factory wiring. Ensure all connections are secure.
- GPS Antenna: Mount the GPS antenna in a location with a clear view of the sky, typically under the dashboard, away from metal obstructions.
- External Microphone: Connect the external microphone for improved call quality.
- Backup Camera: Connect the AHD 1080P backup camera. Ensure proper wiring for reverse signal detection if using the included camera. If retaining the OEM backup camera, a separate harness may be required (not included).
- USB & Audio Cables: Route USB and audio cables to desired locations for easy access.
4.3 Post-Installation
- Test Connections: Before fully reassembling the dashboard, reconnect the battery and perform a basic test of the stereo's functions (power, audio, touch screen, steering wheel controls).
- Reassemble Dashboard: Once confirmed working, carefully reassemble the dashboard trim and secure the new head unit.

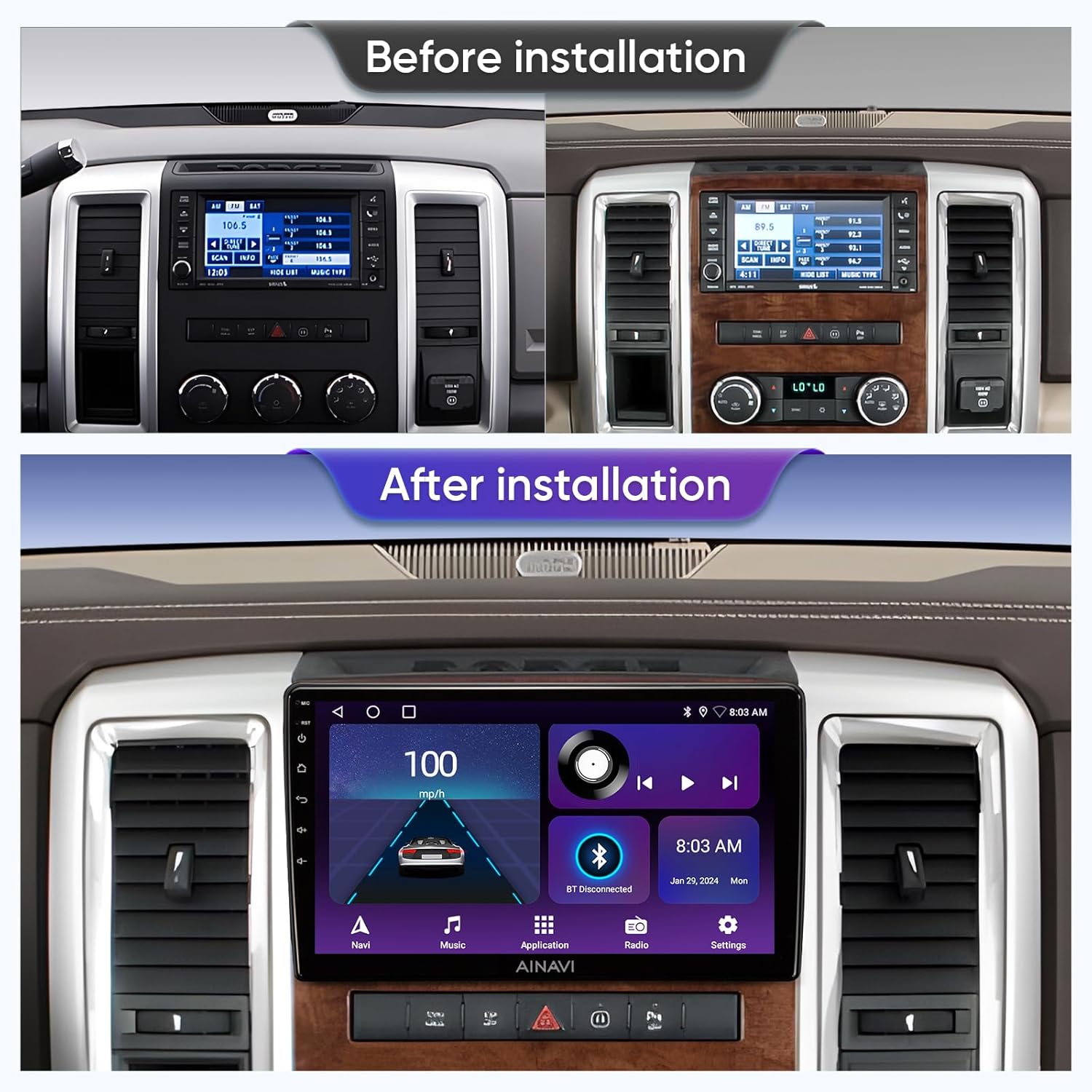

Image: A visual comparison showing the original Dodge Ram dashboard radio and the upgraded AINAVI 10-inch touchscreen car stereo installed.
5. Operating Instructions
Your AINAVI car stereo runs on Android 12 OS, offering a range of features for an enhanced driving experience.
5.1 Basic Operation
- Power On/Off: The unit typically powers on with the vehicle's ignition. Press and hold the power button for manual power control.
- Touchscreen Interface: Navigate through menus and applications using the responsive 10-inch QLED touchscreen (1280x720 resolution, G+G full lamination, 178-degree viewing angles).
- Volume Control: Adjust audio volume using the physical buttons or on-screen controls.

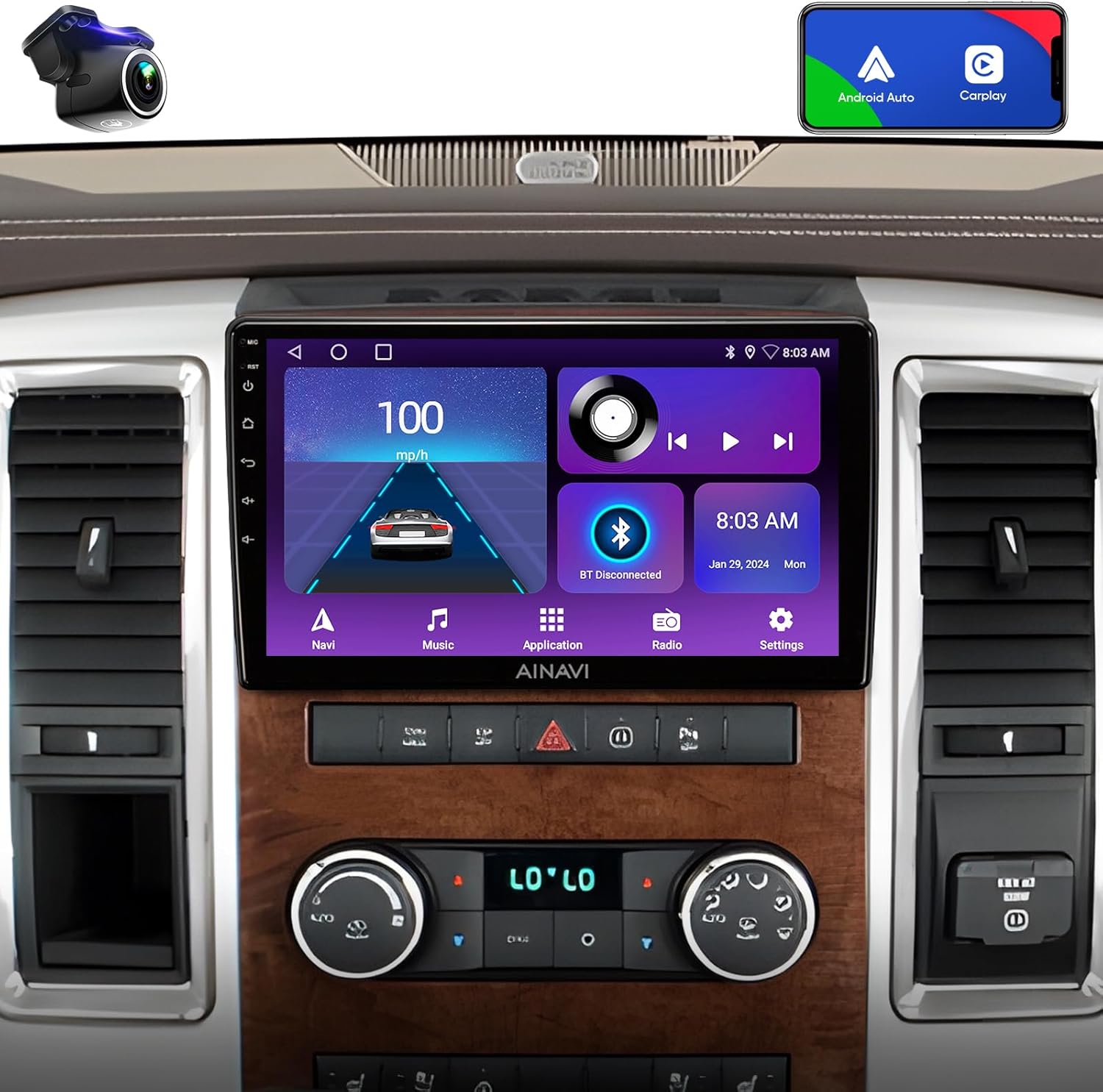

Image: The AINAVI 10-inch car stereo seamlessly integrated into a Dodge Ram dashboard, showcasing its user interface with various functions.
5.2 Wireless CarPlay & Android Auto
Connect your smartphone for seamless integration of navigation, communication, and entertainment apps.
- Wireless CarPlay: For iPhone users, connect wirelessly via Bluetooth and Wi-Fi.
- Wired CarPlay/Android Auto: Connect via USB cable for a stable connection.
- Voice Control: Access voice commands by saying "Hey Siri" or "Hey Google" directly to the head unit.
Image: The car stereo displaying both Apple CarPlay and Android Auto interfaces, demonstrating smartphone integration.
Image: An infographic detailing the smart voice control capabilities, allowing users to interact with the system using voice commands for navigation, messaging, and music.
5.3 GPS Navigation
The unit features built-in GPS navigation for reliable guidance.
- Online Navigation: Access real-time traffic information when connected to a network.
- Offline Maps: Download offline maps for navigation without an internet connection.
Image: The car stereo screen showing a detailed GPS navigation map, indicating directions and distance to destination.
5.4 5G WiFi & Bluetooth 5.0
Stay connected with high-speed internet and seamless device pairing.
- WiFi Connectivity: Supports dual-band 2.4Ghz & 5Ghz WiFi for fast internet access and online content streaming.
- Bluetooth 5.0: Enables hands-free calls, music streaming, and phonebook synchronization.

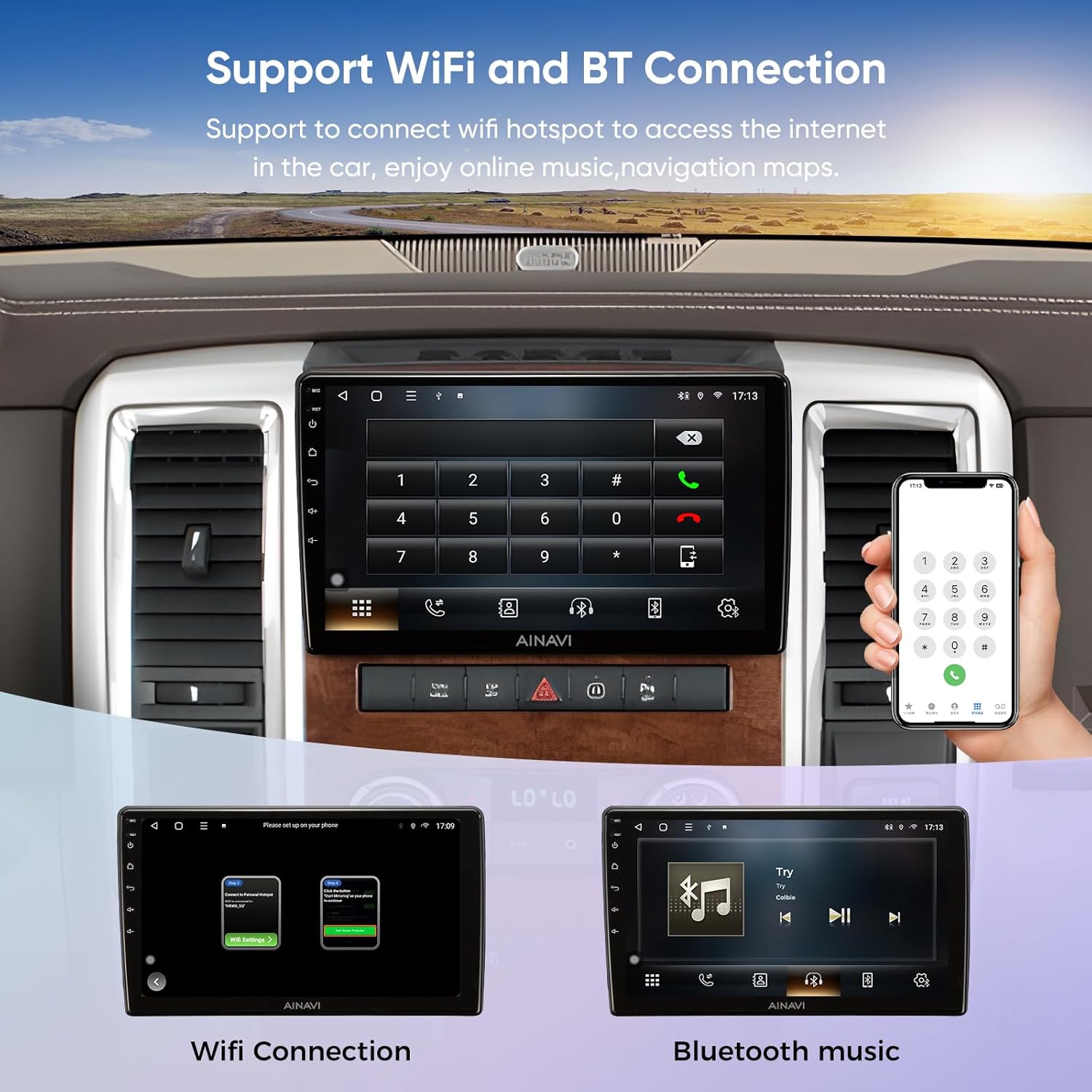

Image: The car stereo displaying options for WiFi connection and Bluetooth music playback, highlighting connectivity features.
5.5 Digital Sound Processor (DSP)
Experience enhanced audio quality with the built-in DSP.
- 4*45W Amplifier: Provides powerful and clear audio output.
- Time Correction & 48-band EQ: Allows precise adjustment of sound timing and equalization for an optimized listening experience.
5.6 Split Screen Function
Multitask efficiently by running two applications simultaneously on the screen.
Image: The car stereo displaying split-screen mode with two apps open, and an illustration of how steering wheel controls integrate with the unit.
Image: The car stereo showcasing its split-screen and mirroring features, allowing for simultaneous display of different content.
5.7 Steering Wheel Control
The unit supports most of your vehicle's original steering wheel control functions, allowing you to manage audio and calls without taking your hands off the wheel.
5.8 Rear View Camera
The included AHD 1080P backup camera provides a clear view of the area behind your vehicle, enhancing safety during reversing maneuvers.
Image: The car stereo screen showing a clear 1080P rearview camera feed with parking assistance lines, improving visibility when backing up.
5.9 Full RCA Output
The unit provides full RCA output, allowing connection to external monitors, such as headrest displays, for passenger entertainment.

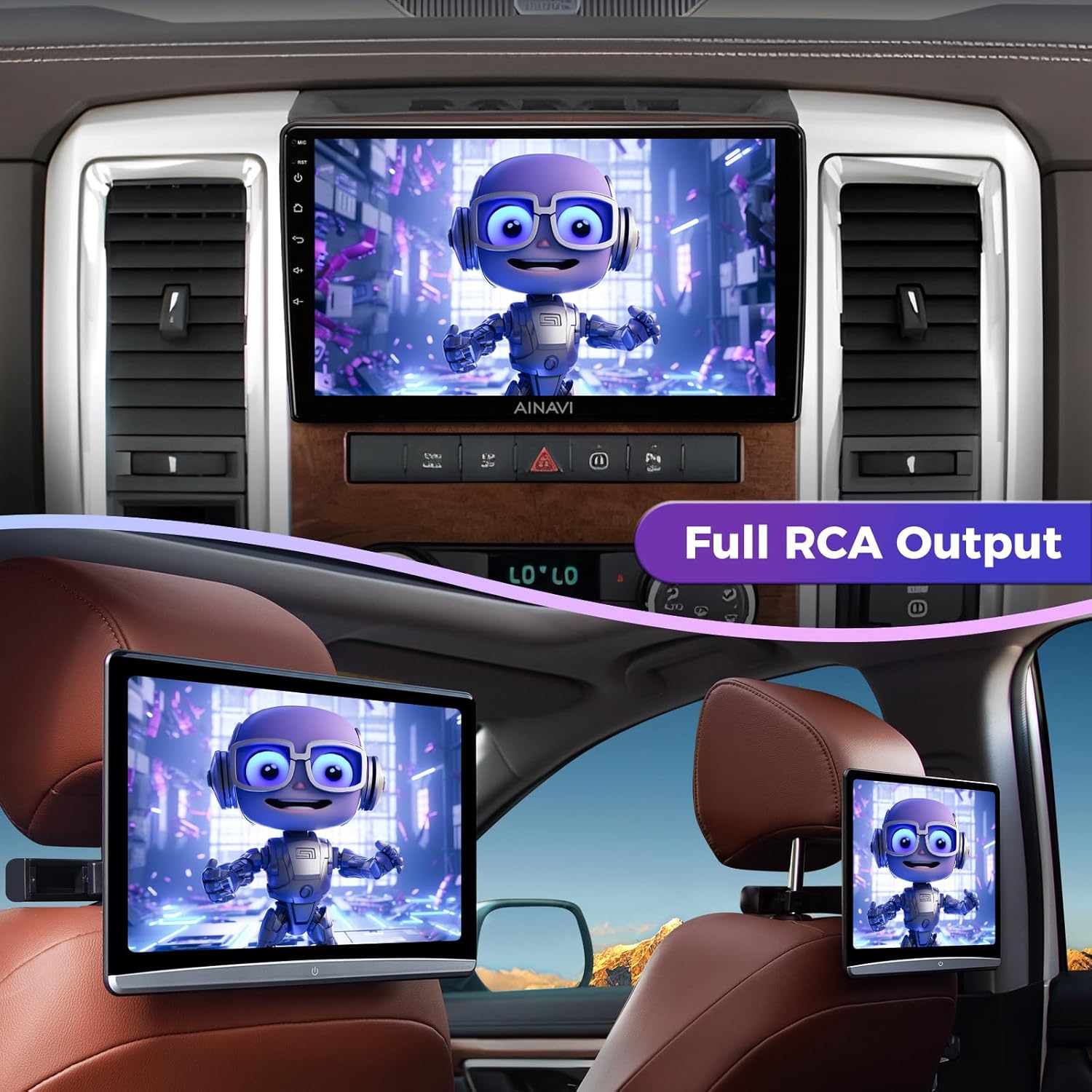

Image: The car stereo playing video, with the same video mirrored on rear-seat entertainment screens via full RCA output.
6. Maintenance
To ensure the longevity and optimal performance of your AINAVI car stereo, follow these maintenance guidelines:
- Screen Cleaning: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaner. Avoid harsh chemicals or abrasive materials.
- Software Updates: Periodically check for and install software updates to ensure the system runs efficiently and has the latest features and security patches.
- Environmental Conditions: Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Cable Connections: Periodically check all cable connections to ensure they are secure and free from damage.
7. Troubleshooting
If you encounter issues with your AINAVI car stereo, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Loose power connection, blown fuse, incorrect wiring. | Check power cable connections. Inspect vehicle's fuse box for blown fuses (e.g., 30-amp fuse #12 for some Ram models). Ensure correct wiring during installation. |
| No sound or poor sound quality | Speaker wires disconnected, incorrect audio settings, amplifier issue. | Verify speaker wire connections. Check audio settings (EQ, balance, fader). Ensure external amplifier (if used) is powered and connected correctly. |
| Touchscreen unresponsive or inaccurate | Software glitch, screen calibration needed, physical damage. | Restart the unit. Check for software updates. If available, perform screen calibration in settings. |
| GPS not acquiring signal or inaccurate | GPS antenna obstruction, loose connection, outdated maps. | Ensure GPS antenna has a clear view of the sky and is securely connected. Download updated maps if necessary. |
| CarPlay/Android Auto not connecting | Incorrect settings, faulty USB cable, phone compatibility. | Verify CarPlay/Android Auto settings on both the unit and your phone. Try a different USB cable. Ensure your phone's OS is up to date. |
| Backup camera not displaying | Camera wiring issue, incorrect input selection, CANbus error. | Check camera power and video signal connections. Ensure the unit is set to the correct camera input. Verify CANbus decoder is functioning correctly for reverse signal. |
| System freezes or runs slowly | Too many apps running, low storage, software bug. | Close unnecessary applications. Clear cache or free up storage. Perform a system restart. Check for and install software updates. |
If these solutions do not resolve the issue, please contact AINAVI customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Operating System | Android 12 |
| Display Size | 10 Inches |
| Display Resolution | 1280x720 |
| RAM | 2GB |
| ROM | 64GB |
| Amplifier Output | 4*45W |
| Bluetooth Version | 5.0 |
| WiFi Connectivity | Dual-band 2.4Ghz & 5Ghz |
| Special Features | Wireless/Wired CarPlay, Android Auto, Built-In Bluetooth, Touchscreen, RDS, DSP (48-band EQ, Sound Point Control), QLED Display, Split Screen Function, GPS Navigation, FM Tuner, Music Streaming, RCA Output, Screen Mirroring, Subwoofer Support, Rear View Camera Input, Built-In Wi-Fi, Steering Wheel Control Support |
| Connectivity Technology | Bluetooth, USB, Wi-Fi, Wired, Wireless |
| Map Type | Europe, North America, South America, Worldwide |
| Mounting Type | Dashboard Mount |
| Item Weight | 4.24 pounds |
| Package Dimensions | 13.89 x 9.84 x 5.24 inches |
| ASIN | B0DHZF5JCH |
9. Warranty and Customer Support
9.1 Product Warranty
The AINAVI 10-inch Touchscreen Car Stereo comes with a one-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
9.2 Technical Support
For any technical assistance, installation questions, or troubleshooting not covered in this manual, please contact AINAVI customer support. You can reach us via Amazon email. We are committed to providing professional technical support and will respond as soon as possible.
Image: An example of how to access customer support through the Amazon platform, highlighting the 'Ask a question' option for seller contact.
