1. Introduction
This manual provides detailed instructions for installing and operating your YEABRICKS LED Light Kit, specifically designed for the 76437 Harry Potter The Burrow – Collectors' Edition building blocks model. This light kit enhances the visual appeal of your model by illuminating its various sections. Please note that the building blocks model itself is not included with this light kit.
2. Product Contents
Before beginning installation, please verify that all components are present in your package:
- LED Light Kit (various light strings and connecting cables)
- Battery Box (for power supply)
- Service Card (for support and instructions)
Image: The light kit components, including LED light strings, a battery box, and a service card, displayed alongside the unlit Burrow model.
Image: A visual representation of the package contents and the method to access instructions via QR code.
3. Setup and Installation
Installation of the LED light kit requires careful attention to detail. It is recommended to follow the step-by-step instructions provided via QR code for the best results. The installation process involves integrating delicate wires and small LED components into your existing building model.
3.1 Accessing Instructions
Detailed instructions are available in two formats: PDF and video. To access these, please scan the QR code located on the product packaging or the included service card. Alternatively, you can visit the official YEABRICKS instruction page: www.yeabricks.com/pages/instruction-pdf
3.2 General Installation Tips
- Prepare Your Workspace: Ensure a clean, well-lit area with enough space to work on your building model.
- Handle with Care: The LED wires are delicate. Avoid excessive pulling or bending to prevent damage.
- Disassembly: You may need to carefully disassemble certain sections of your building model to properly route and secure the lights. A LEGO pry tool or similar instrument can be helpful.
- Test Periodically: Connect the lights to the battery box and test them at various stages of installation to ensure they are functioning correctly.
- Cable Management: Route wires neatly to avoid visible clutter and ensure they do not interfere with the model's structure.

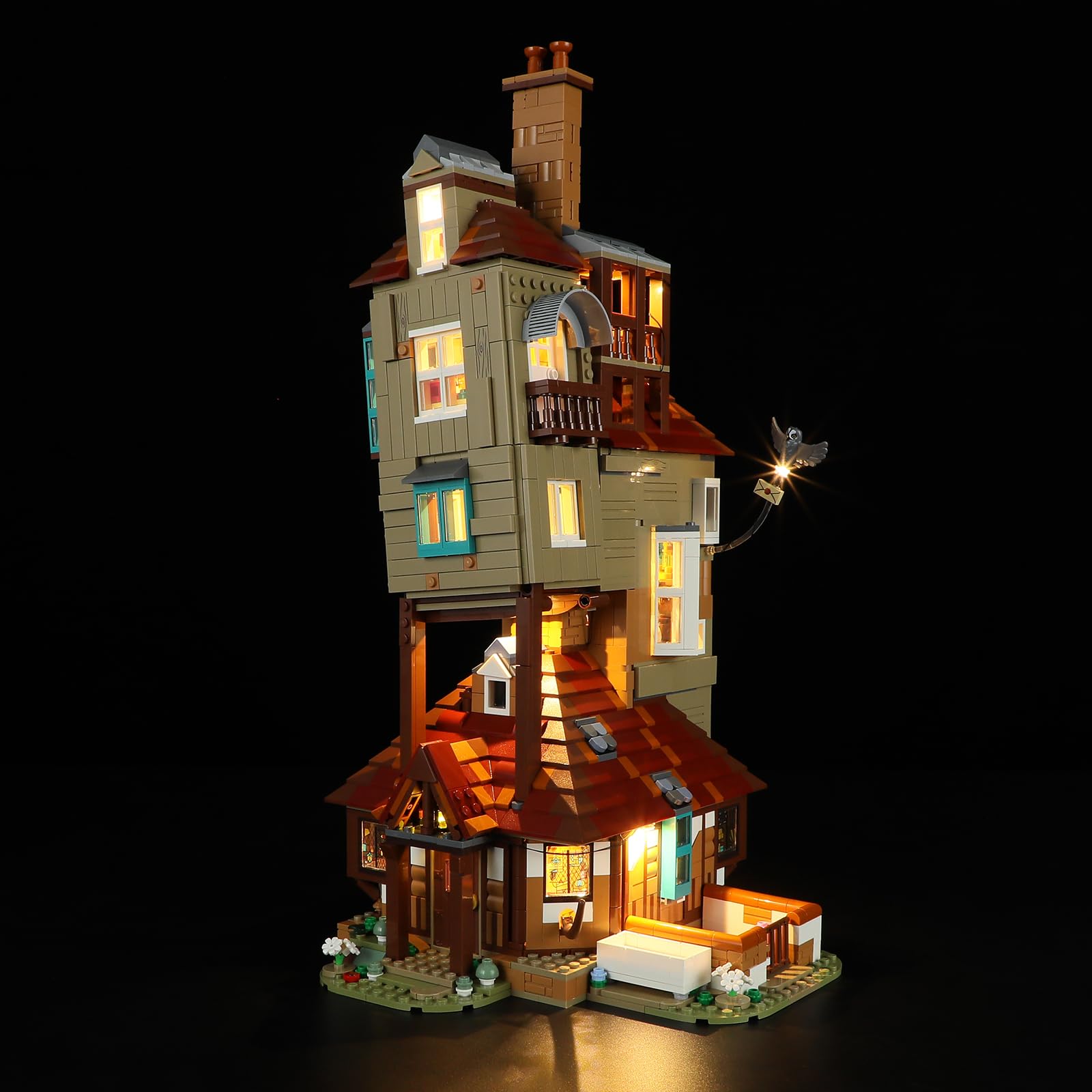

Image: The completed Harry Potter The Burrow model, brightly lit by the installed LED light kit, highlighting interior and exterior details.
Image: Detailed close-ups of the illuminated interior of The Burrow, demonstrating the effect of the LED lights in various rooms.
Image: A visual comparison illustrating The Burrow model without lights (Before) and with the YEABRICKS LED light kit installed (After), demonstrating the enhanced illumination.
4. Operation
The LED light kit is powered by a battery box. To operate the lights, ensure that the battery box is correctly connected to the light kit and contains the required batteries (not included). Use the switch on the battery box to turn the lights on or off.
4.1 Power Source
The light kit operates on battery power. Batteries are not included and must be purchased separately. Refer to the battery box for specific battery type requirements.
5. Maintenance
To ensure the longevity and optimal performance of your LED light kit, consider the following maintenance guidelines:
- Cleaning: Gently dust the LED components and wires with a soft, dry cloth. Avoid using liquids or abrasive cleaners.
- Wire Integrity: Periodically inspect wires for any signs of damage or fraying. If damage is observed, contact customer support.
- Battery Replacement: Replace batteries as needed to maintain consistent light output. Always use the recommended battery type.
- Storage: If storing the model for an extended period, remove batteries from the battery box to prevent leakage.
6. Troubleshooting
If you encounter issues with your LED light kit, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | Incorrect battery installation, dead batteries, loose connection, damaged wire. | Check battery polarity, replace batteries, ensure all connections are secure, inspect wires for damage. |
| Some lights are not working. | Damaged individual LED, loose connection to a specific light string. | Carefully check connections for the non-working lights. If an individual LED is damaged, contact customer support for replacement. |
| Lights are dim. | Low battery power. | Replace batteries with fresh ones. |
If the problem persists after attempting these solutions, please contact our after-sales service.
7. Specifications
- Brand: YEABRICKS
- Model Compatibility: 76437 Harry Potter The Burrow – Collectors' Edition
- Light Source Type: Light Emitting Diode (LED)
- Power Source: Battery Powered (Batteries not included)
- Material: Plastic
- Product Dimensions: 6.3 x 4.3 x 1.18 inches (Packaging/Kit size)
- Item Weight: 4.9 ounces / 140 Grams
- Recommended Age: 6 years and up
8. Warranty and Support
YEABRICKS is committed to providing high-quality products and excellent customer service. If you encounter any problems or difficulties with your product, please do not hesitate to contact us.
8.1 Free Replacement Service
We offer complimentary replacements for any quality issues, such as missing parts or non-functional lights. Please contact our support team with details of the issue.
8.2 24-Hour Quality Help
For any questions or suggestions, please contact us using the information provided on your service card. Our team is available to assist you.
