VIAGDO Floating Bed Frame Twin Size User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your VIAGDO Floating Bed Frame Twin Size. This bed frame features a modern floating design, dynamic RGB LED lights, a utility storage headboard, and an embedded charging station. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

Figure 1: Overview of the VIAGDO Floating Bed Frame Twin Size.

2. Safety Information

Please observe the following safety guidelines to prevent injury or damage to the product:

• Do not load more than 1000 pounds onto the bed frame. Exceeding this weight capacity may compromise the structural integrity.
• Exercise caution around sharp edges during the assembly process. It is recommended to wear protective gloves.
• Ensure all parts are properly assembled and securely fastened according to the instructions. Loose connections can lead to instability and potential squeaking.
• Regularly inspect the bed frame for any signs of wear or damage. Address any issues promptly to maintain safety and performance.

3. Package Contents

Before beginning assembly, verify that all components listed below are present in your package:

• Headboard
• Installation Manual
• LED Light Strip
• Slats (wooden slat support system)
• Frame components (metal structure)
• Assembly tools (included)
• Hardware (screws, bolts, etc.)

4. Assembly Instructions

The VIAGDO Floating Bed Frame is designed for straightforward assembly. Follow the numbered steps in the included installation manual. All necessary parts and tools are provided.

4.1 Key Assembly Features

• Velcro Design: The wooden slats feature a Velcro design for simple and quick attachment to the frame, ensuring a firm and stable foundation.
• Sound Absorption Straps: Extra sound absorption straps are included to minimize squeaking and provide a quiet sleeping environment.

Figure 2: Illustration of the heavy-duty structure and Velcro slat design for easy assembly and stability.

For detailed, step-by-step instructions, refer to the dedicated installation manual provided in your package. Ensure all connections are tightened appropriately to prevent any movement or noise.

5. Operating Instructions

5.1 Dynamic RGB LED Lights

Your bed frame is equipped with LED light strips on both the headboard and underneath the bed. These lights offer a wide range of customization options:

• Color Options: Over 60,000 RGB colors are available.
• Dynamic Modes: Choose from 29 dynamic lighting modes.
• Adjustments: Brightness and speed are adjustable to suit your preference.
• Music Sync: The lights can synchronize with music beats using the integrated microphone function.
• Timing Function: Set schedules for the lights to turn on or off automatically.
• Dual Control: Control the LED lights using either the included remote control or a dedicated smartphone application.

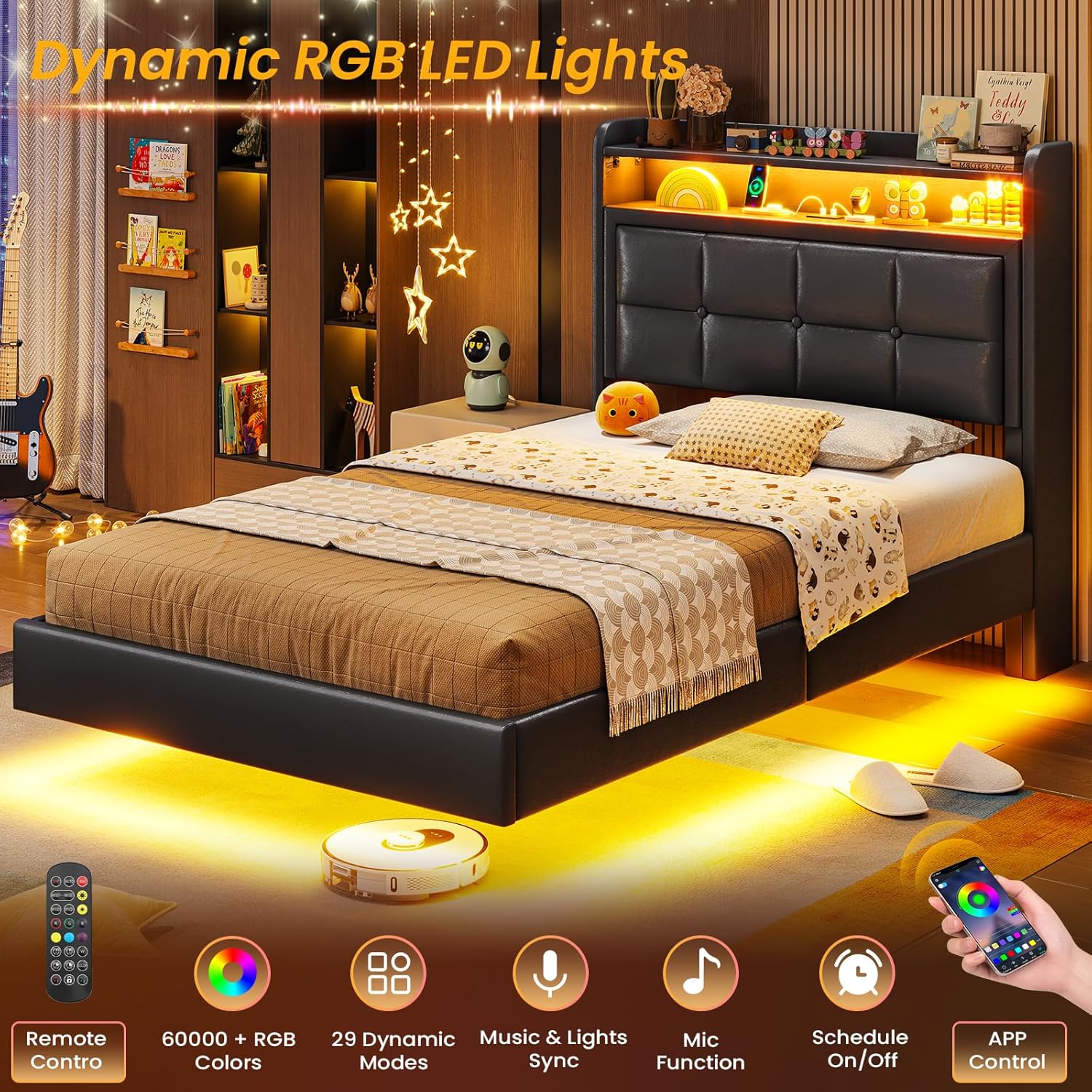

Figure 3: Control options for the dynamic RGB LED lights, including remote and app control.

5.2 Embedded Charging Station

The headboard includes a convenient charging station to power your electronic devices:

• USB Ports: 3 standard USB ports (5V/2A) are available.
• Type C Port: 1 Type C port (5V/3A) is included for faster charging of compatible devices.
• Power Cord: The charging station is powered via a 6.5-foot power cord.

Figure 4: Details of the embedded charging station in the headboard.

5.3 Utility Storage Headboard

The headboard is designed with integrated storage solutions:

• 2-Tier Storage Shelf: Provides open shelving for displaying items or keeping frequently used objects accessible.
• Large Hidden Storage Space: A concealed compartment allows for discreet storage of personal items, magazines, or books.

Figure 5: The utility storage headboard with its hidden compartment and shelves.

6. Maintenance

To ensure the longevity and appearance of your VIAGDO Floating Bed Frame, follow these maintenance tips:

• Cleaning: For the upholstered parts, gently wipe with a damp cloth and mild soap if necessary. Avoid harsh chemicals that may damage the fabric. For the frame, a dry or slightly damp cloth is sufficient.
• Tightening: Periodically check and tighten all screws and bolts to maintain structural integrity and prevent wobbling or squeaking.
• LED Lights: If LED lights malfunction, check the power connection and ensure the remote control or app is functioning correctly. Do not attempt to repair the LED strips yourself; contact customer support.
• Charging Station: Keep the charging ports free of dust and debris. Avoid forcing cables into the ports.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Squeaking Noise: If the bed frame produces squeaking noises, first ensure all assembly hardware is securely tightened. The design includes Velcro and sound absorption straps to minimize noise, but loose connections can still cause issues. Re-tighten all bolts and screws.
• LED Lights Not Working: Check if the power cord for the LED lights is properly plugged into a functional outlet. Ensure the remote control batteries are not depleted, or that the smartphone app is correctly paired and updated.
• Charging Station Not Functioning: Verify that the bed frame's main power cord is connected to a live electrical outlet. Test with different devices and cables to rule out device-specific issues.
• Instability/Wobbling: This usually indicates incomplete or incorrect assembly. Review the assembly instructions carefully and ensure all parts are correctly aligned and tightened.

8. Specifications

Figure 6: Product dimensions and weight capacity for the Twin size bed frame. Note: The listed weight capacity in the image is 800 lbs, while the feature bullet states 1000 lbs. Please refer to the most recent product information for the accurate weight limit.

Figure 7: Explanation of the hidden legs design, which minimizes bumping hazards.

9. Support

For any questions, concerns, or assistance with your VIAGDO Floating Bed Frame, please do not hesitate to contact our customer service team. We are committed to providing solutions and support for our products.

Please refer to the contact information provided on your purchase receipt or the official VIAGDO website for the most current support channels.
