BLISSRIDE 24V 4WD Kids Ride-On Jeep

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your BLISSRIDE 24V 4WD Kids Ride-On Jeep, Model XMX637. Please read all instructions carefully before use to ensure proper function and safety.

Safety Information

Your safety and the safety of others are paramount. Adhere to the following guidelines:

• Read the Manual First: Always read the user manual before using the 24V kids' Jeep. Failure to do so may result in accidents or injury.
• For Recreational Use Only: This ride-on Jeep is designed solely for recreational use and is not intended for use on public roads or as a means of transportation.
• Parental Supervision Required: Always ensure an adult is present to supervise and assist while the Jeep is in use.

What's in the Box

Upon unpacking, verify that all components are present:

• 1 X Ride on car
• 1 X Manual
• 1 X Remote Control
• 1 X Charger

Image: All components of the BLISSRIDE 24V 4WD Kids Ride-On Jeep laid out for assembly.

Setup and Assembly

Follow these steps to assemble your ride-on jeep. For a visual guide, refer to the installation video below.

Key Assembly Steps:

1. Unpacking: Carefully remove all parts from the packaging.
2. Wheel Installation: Attach the wheels to the axles, ensuring all washers and nuts are securely fastened.
3. Steering Wheel Connection: Connect the steering wheel wiring to the main body and secure the steering wheel in place.
4. Front Bumper Attachment: Securely attach the front bumper to the chassis.
5. Roll Bar and Lights: Connect the wiring for the top lights and attach the roll bar assembly.
6. Battery Connection: Connect the main battery terminals. Ensure a secure connection to prevent power issues.
7. Seat Installation: Place the seats into position and secure them.

Operating Instructions

Familiarize yourself with the controls for a safe and enjoyable driving experience.

1. Driving Modes:

• Child-Driven Mode: The child operates the foot pedal for acceleration and the steering wheel for direction.
• Parental Remote Control Mode: An adult can use the 2.4GHz remote to control forward/reverse movement, steering, and braking. This mode overrides child input for added safety.

Image: Illustration of dual control modes, showing a child driving and an adult using the remote control.

2. Speed Options:

The jeep features three adjustable speed settings, allowing for a customizable driving experience. The top speed is approximately 4.9 mph.

3. Media and Entertainment:

• Bluetooth Music: Connect your device via Bluetooth to stream music through the jeep's speakers.
• USB and AUX Ports: Use the integrated USB and AUX ports for MP3 playback.

Image: The jeep's dashboard displaying media controls and Bluetooth music functionality.

4. Lights and Horn:

The jeep is equipped with LED headlights, rear warning lights, and a functional horn button on the steering wheel for a realistic driving experience.

Features Overview

The BLISSRIDE 24V 4WD Kids Ride-On Jeep is designed with several features for performance and safety:

• Powerful Performance: Equipped with a high-capacity 24V battery and advanced 4WD motors, offering superior traction and up to 2 hours of playtime (varies with load, temperature, and terrain).
• Speed: Achieves a thrilling top speed of 4.9 mph.
• Weight Capacity: Can handle up to 110 lbs.
• All-Terrain Capability: Features all-terrain tires and a robust all-metal spring suspension system for diverse surfaces.
• Safety Features: Includes a soft start and brake feature for gentle acceleration, a safety belt, and dual-opening doors.
• Entertainment: Bluetooth music streaming, USB and AUX ports for MP3 playback, LED headlights, rear warning lights, and a horn.
• Storage: A cleverly designed storage compartment at the rear is perfect for toys and essentials.
• Size: Measures 43 x 26 x 27 inches (L x W x H) with a seat width of 16.5 inches, accommodating one child aged 3-8 or two children under 4.

Image: The ride-on jeep demonstrating its ability to handle diverse terrains.

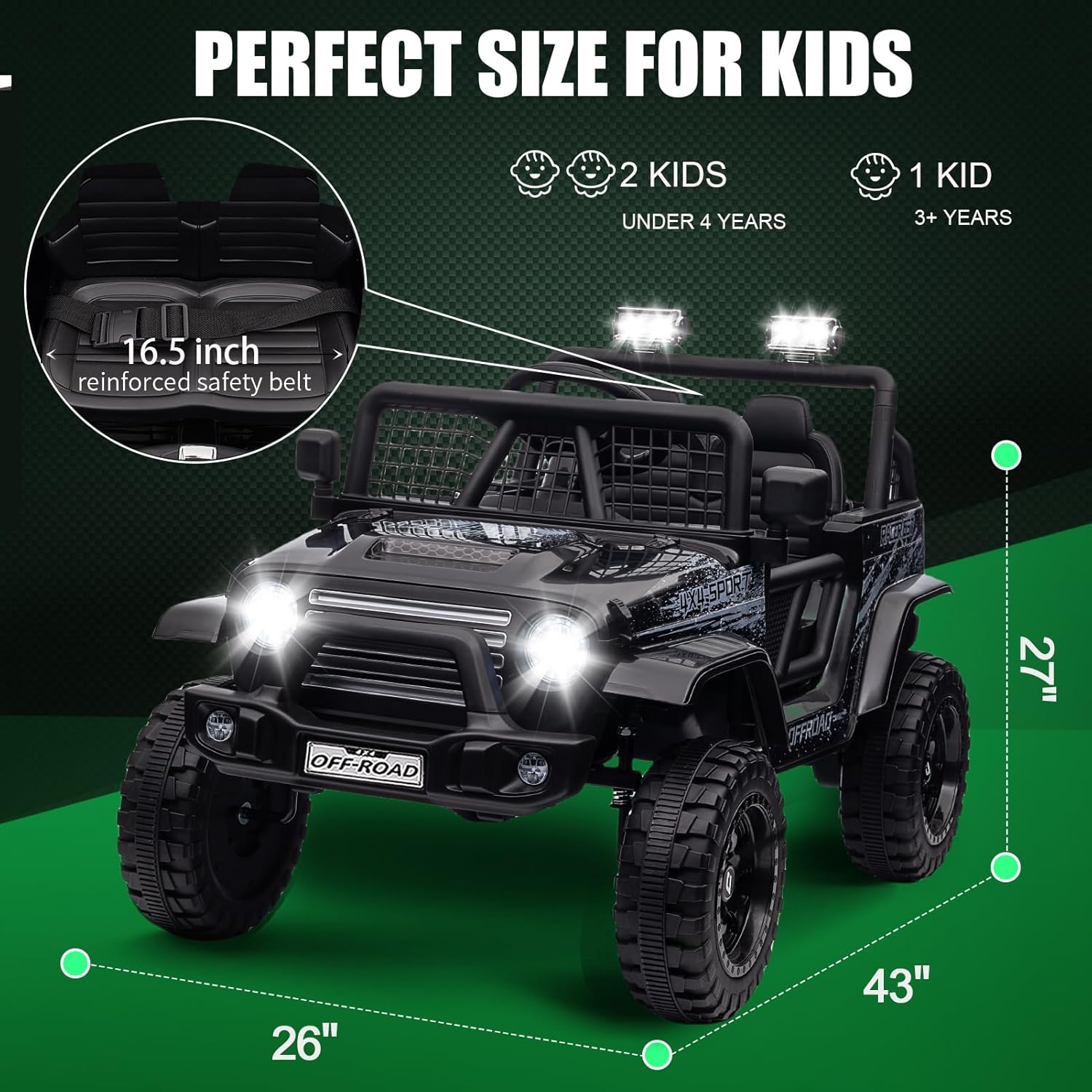

Image: Dimensions of the ride-on jeep, illustrating its size and seating capacity.

Maintenance

Proper maintenance ensures the longevity and safe operation of your ride-on jeep.

• Battery Charging: Always use the provided charger. Charge the battery fully before first use and after each play session. Do not overcharge.
• Cleaning: Wipe the vehicle with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the jeep in a dry, covered area away from direct sunlight and moisture. If storing for extended periods, ensure the battery is fully charged and disconnect it if recommended by the manufacturer.
• Regular Checks: Periodically inspect all screws, connections, and moving parts for tightness and wear.

Troubleshooting

If you encounter any issues, refer to these common solutions:

• Vehicle Not Moving: Check all battery connections to ensure they are secure. Verify the battery is charged. Ensure the power switch is in the 'ON' position.
• Short Playtime: The battery may not be fully charged or may be nearing the end of its lifespan. Ensure proper charging procedures are followed. Playtime can vary with load, temperature, and terrain.
• Remote Control Not Working: Ensure the remote control batteries are fresh and correctly inserted. Re-pair the remote with the vehicle if necessary (refer to the remote control section of the full manual for pairing instructions).
• Unusual Noises: Inspect wheels and axles for any obstructions or loose parts.

Specifications

Warranty and Support

For any questions, concerns, or support needs, BLISSRIDE offers 24/7 customer support. Please contact us via email at BLISSRIDE.US@GMAIL.COM.
