ZAZU Robby Automatic Baby Rocker Instruction Manual

Introduction

The ZAZU Robby Automatic Baby Rocker is designed to gently soothe your baby by mimicking natural rocking motions. This device attaches to most strollers and buggies, providing a hands-free solution for parents. It features adjustable rocking intensity, a 40-minute automatic timer, and a cry sensor for instant comfort.

Safety Information

Always ensure the device is securely attached to the stroller or buggy handle.
Do not use the device with a fast charger. Use only the provided USB cable and a standard 5V USB power adapter.
Keep the device away from extreme temperatures and direct sunlight.
This product is water-resistant (IPX1) and can withstand light rain, but it is not waterproof. Do not immerse in water.
Ensure the baby is always supervised while the rocker is in use.
Do not allow children to play with the device.
Regularly check the device for any signs of damage or wear. Discontinue use if damaged.

Image showing features of Robby the Baby Rocker, including a 'NOT COMPATIBLE WITH FAST CHARGER' warning.

Important Note: The ZAZU Robby is not compatible with fast chargers. Use only standard USB charging.

Package Contents

Please check that all items are present in the package:

ZAZU Robby Automatic Baby Rocker
USB Charging Cable
Instruction Manual

Product Features

5 Adjustable Rocking Settings: Customize the rocking intensity to your baby's preference.
Quiet Motor Technology: Ensures a peaceful sleep environment.
Gentle 40-Minute Cycle: Automatically stops after 40 minutes to conserve battery and prevent over-stimulation.
USB Rechargeable: Convenient charging with the included USB cable.
Cry Sensor: Automatically activates rocking when your baby cries.
IPX1 Water Resistance: Suitable for light rain.
Universal Design: Attaches easily and securely to most strollers, prams, car seats, and baby hammocks.
Long Battery Life: Over 10 hours of use on a single charge.

Diagram illustrating the features of Robby the Baby Rocker, including 5 adjustable rocking settings, quiet motor, 40-minute timer, USB rechargeable, cry sensor, and IPX1 water resistance.

Overview of Robby's key features and dimensions.

Image showing the ZAZU Robby attached to a stroller with a baby sleeping, highlighting the silent motor with a decibel scale indicating 55 dB.

The silent motor ensures a quiet environment for your baby's sleep.

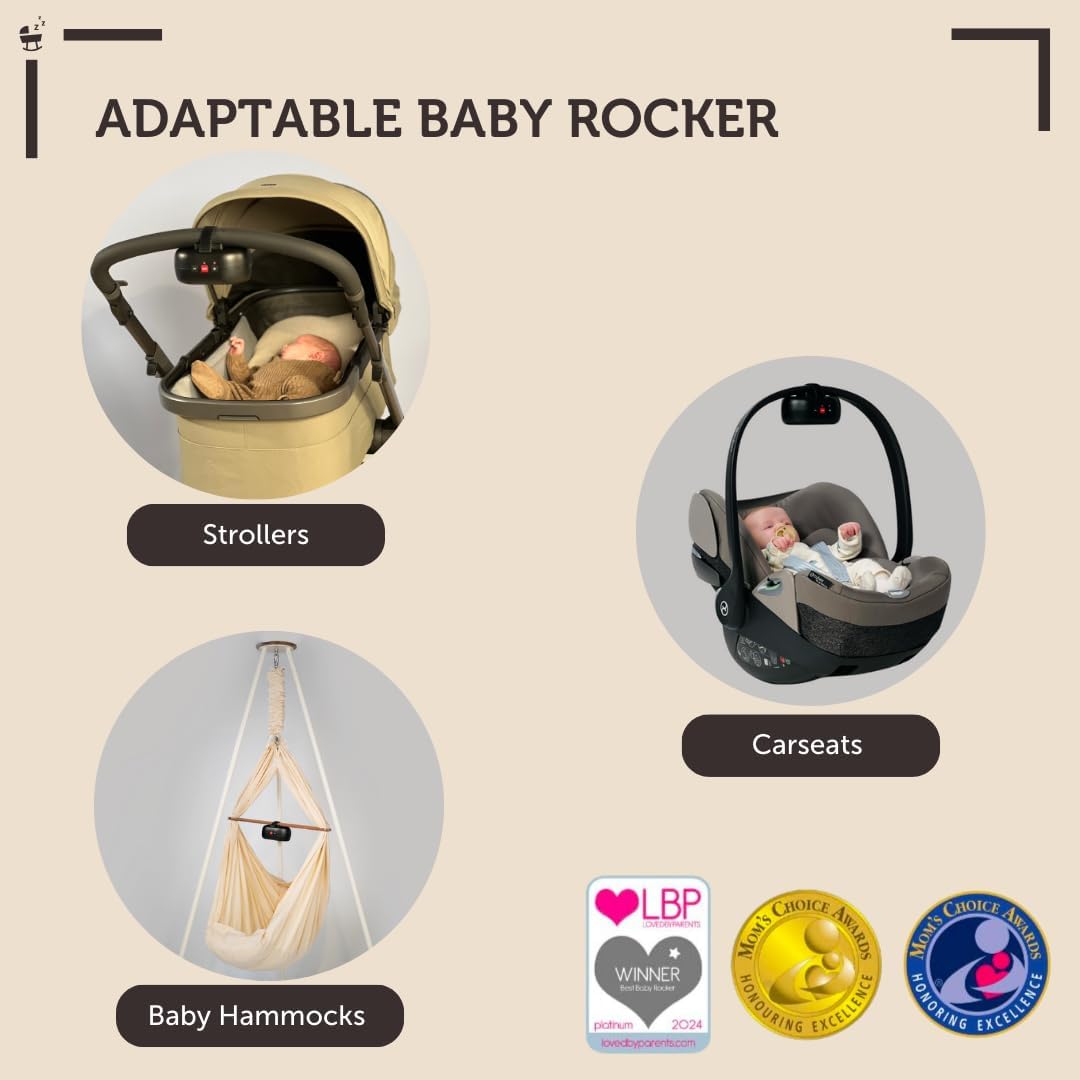

Image showing the ZAZU Robby attached to various baby carriers: a stroller, a car seat, and a baby hammock, demonstrating its adaptability.

Robby's universal design allows it to be used with various baby carriers.

Setup

Charge the Device: Before first use, fully charge the ZAZU Robby using the provided USB cable. Connect the cable to the device and a standard 5V USB power adapter. The charging indicator light will show charging status.
Attach to Stroller/Carrier: Securely attach the Robby to the handle or frame of your stroller, pram, car seat, or baby hammock using its integrated strap. Ensure it is firmly fastened and cannot easily detach.
Position Correctly: Place the Baby Rocker in a horizontal position. Avoid angling it, as this can reduce rocking effectiveness and shorten the motor's lifespan.

Diagram showing correct and incorrect positioning of the ZAZU Robby Baby Rocker. The correct position is horizontal, while angled positions are marked as incorrect.

Ensure the Robby is positioned horizontally for optimal performance and longevity.

Operating Instructions

Power On/Off: Press and hold the power button (usually the ZAZU logo button) to turn the device on or off.
Adjust Rocking Intensity: Use the '+' and '-' buttons to increase or decrease the rocking intensity. There are 5 adjustable settings.
Automatic Timer: Once activated, the Robby will rock for a gentle 40-minute cycle before automatically stopping.
Cry Sensor Activation: The integrated cry sensor will detect when your baby cries and automatically activate the rocking motion to soothe them. The rocking will continue for a 40-minute cycle or until manually stopped.

Image showing the ZAZU Robby attached to a stroller, with arrows pointing to the '+' and '-' buttons for adjusting rocking intensity, indicating 5 adjustable settings.

Adjust rocking intensity using the '+' and '-' buttons.

Charging

The ZAZU Robby is equipped with a 1500mAh rechargeable Lithium-ion battery.

Connect the provided USB cable to the charging port on the device.
Plug the other end of the USB cable into a standard 5V USB power adapter (not included).
A full charge takes approximately 2 hours, providing up to 600 minutes (10 hours) of continuous use.
Do not use fast chargers, as this can damage the device.

Image displaying the ZAZU Robby's battery capacity of 1500mAh and charging time: 2 hours for 600 minutes of use.

The 1500mAh battery provides long-lasting performance.

Maintenance

Cleaning: Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
Storage: Store the ZAZU Robby in a cool, dry place when not in use.
Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge it regularly.

Troubleshooting

Problem	Possible Cause	Solution
Device does not turn on.	Battery is depleted.	Charge the device fully using the provided USB cable.
Rocking motion is weak or inconsistent.	Incorrect positioning; low battery; obstruction.	Ensure the device is positioned horizontally. Charge the battery. Check for any obstructions.
Cry sensor not activating.	Sensor sensitivity setting; environmental noise.	Ensure the cry sensor is enabled (if applicable, check manual for specific button). Reduce background noise.
Device stops working unexpectedly.	Battery depleted; internal fault.	Recharge the device. If the problem persists, contact customer support.

Specifications

Model Number: ZA-ROCKER-02
Composition: Plastic
Battery: 1 Lithium-ion (included), 1500mAh
Charging Time: Approximately 2 hours
Operating Time: Up to 10 hours (600 minutes)
Dimensions (L x W x H): 13 x 9.5 x 10.5 cm
Weight: 560 grams
Water Resistance: IPX1 (light rain)
Manufacturer: ZAZU LIMITED

Warranty and Support

ZAZU offers a 2-year availability for spare parts.

For any issues with your ZAZU Robby Automatic Baby Rocker, please contact customer support at contact@zazu-kids.nl. We are committed to ensuring your satisfaction.
