EDYELL C9 Motorcycle Bluetooth Headset User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your EDYELL C9 Motorcycle Bluetooth Headset. Please read this manual thoroughly before using the product to ensure proper function and safety.

Package Contents

Verify that all items listed below are included in your package:

• EDYELL C9 Motorcycle Bluetooth Headset (1 unit)
• Replaceable Hard Mic and Soft Mic Speakers (1 set)
• Clamping Base (1 unit)
• Microphone Velcro Tape (2 pieces)
• Speaker Velcro (2 pieces)
• Booster Sticker (2 pieces)
• Stand Velcro Tape (1 piece)
• Thick Double Sided Tape (1 piece)
• User Manual (1 unit)
• Charging Cable (1 unit)

Figure 1: Package Contents. This image displays the EDYELL C9 Bluetooth headset, speakers with microphone, clamping base, various adhesive tapes, charging cable, and user manual.

Product Features

• High-Quality Audio: Equipped with 50MM speakers for enhanced volume and bass.
• Long-Range Intercom: Connects two riders up to 600 meters apart.
• Extended Battery Life: 1000mAh battery provides up to 65 hours of music, 50 hours of calls, and over 60 days of standby time. Fully charges in approximately 1.5 hours.
• Music Sharing: Share audio with another EDYELL C9 user.
• Voice Control: Access voice assistants like Siri for hands-free operation.
• Durable Design: IPX6 waterproof rating for use in various weather conditions.
• User-Friendly: Large buttons for easy operation, even with gloves.
• Customizable Appearance: Includes 3 colors of optional decorative accessories.

Figure 2: EDYELL C9 Headset. The main unit of the EDYELL C9 Bluetooth headset, showcasing its design and interchangeable decorative shells.

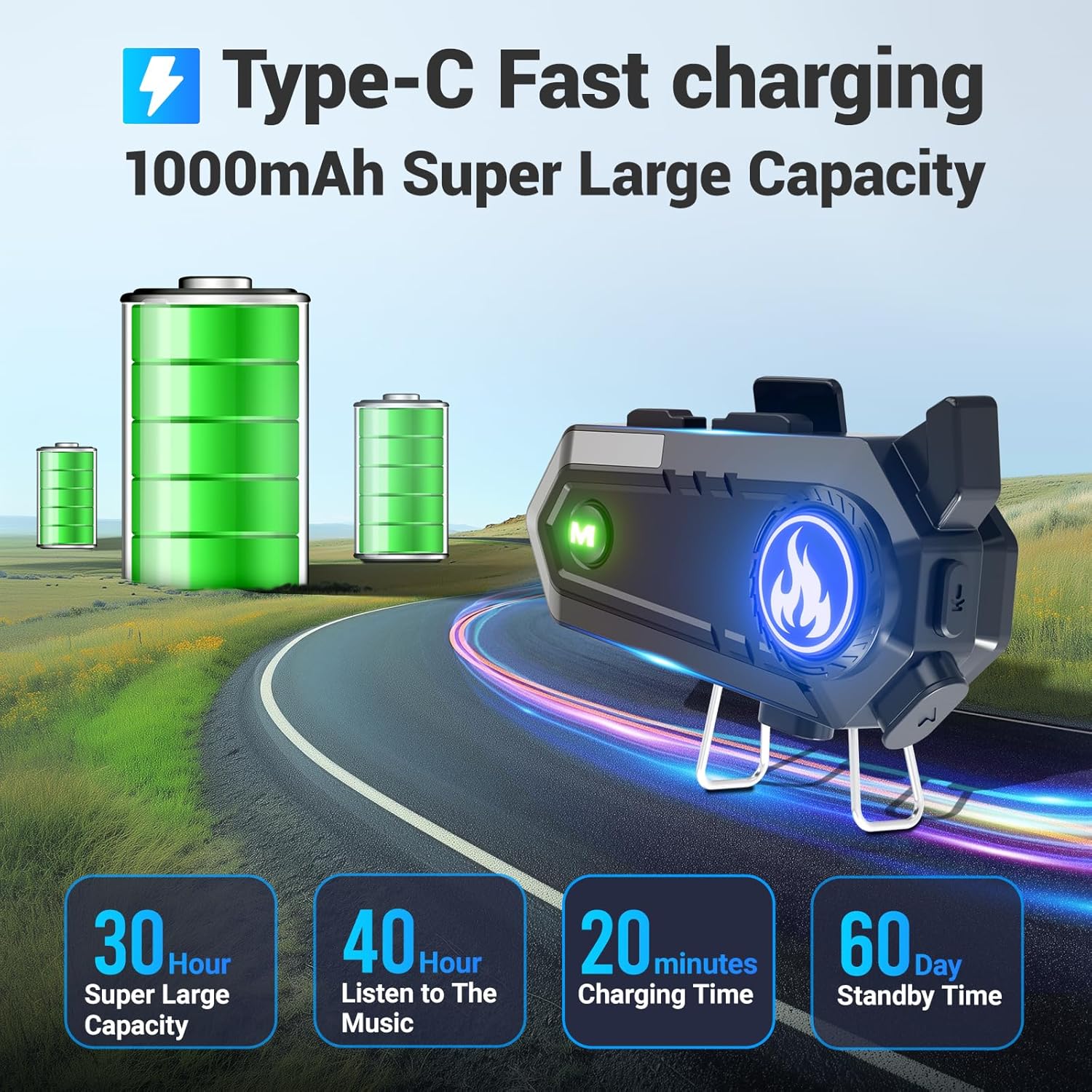

Figure 3: Battery Life and Charging. This image highlights the 1000mAh battery, 30 hours of super large capacity, 40 hours of music listening, 20 minutes charging time (likely for quick charge, full charge is 1.5 hours), and 60 days standby time.

Installation Guide

Follow these steps to properly install the EDYELL C9 headset on your helmet.

1. Attaching the Clamping Base

1. Choose a suitable location on the left side of your helmet, ensuring it does not obstruct your vision or helmet functionality.
2. Secure the clamping base to the helmet edge. Ensure it is firmly attached. Alternatively, use the provided thick double-sided tape for helmets without suitable edges for clamping.

2. Installing Speakers and Microphone

1. Attach the speaker Velcro pads inside the helmet, aligning them with your ears.
2. Place the speakers onto the Velcro pads. Ensure the speakers are positioned directly over your ears for optimal audio quality.
3. Attach the microphone Velcro tape inside the helmet, near your mouth.
4. Connect the microphone to the headset unit and position it so it is close to your mouth, minimizing wind noise. Use either the hard mic (for open-face helmets) or soft mic (for full-face helmets) as appropriate.
5. Route all cables neatly under the helmet padding to avoid interference and ensure comfort.

3. Mounting the Headset Unit

1. Slide the EDYELL C9 main unit onto the installed clamping base until it clicks securely into place.
2. Connect the speaker/microphone cable to the designated port on the headset unit.

Figure 4: Headset Installation and Controls. This image illustrates the EDYELL C9 headset's compatibility with different helmet types and labels its control buttons.

Operating Instructions

1. Power On/Off

• Power On: Press and hold the Power On/Off button (labeled 3 in Figure 4) for approximately 3 seconds until the indicator light illuminates.
• Power Off: Press and hold the Power On/Off button for approximately 3 seconds until the indicator light turns off.

2. Bluetooth Pairing

1. Ensure the headset is powered off.
2. Press and hold the Power On/Off button for approximately 5-7 seconds until the indicator light flashes red and blue alternately, indicating pairing mode.
3. On your mobile device, enable Bluetooth and search for "EDYELL C9".
4. Select "EDYELL C9" from the list of available devices to connect. Once paired, the indicator light will flash blue slowly.

3. Intercom Function (Connecting 2 Riders)

The EDYELL C9 supports intercom communication between two units up to 600 meters.

1. Ensure both EDYELL C9 units are powered on and not connected to any other Bluetooth devices.
2. On one unit, press and hold the Intercom Switch Keypad (labeled 7 in Figure 4) for approximately 5 seconds until the indicator light flashes rapidly.
3. Repeat the same step on the second unit.
4. The units will automatically search and pair with each other. Once connected, the indicator lights will flash blue slowly, and you will hear a confirmation tone.
5. To end intercom, briefly press the Intercom Switch Keypad on either unit.

Figure 5: 600m Communication Range. This image visually represents the 600-meter Bluetooth communication distance between two EDYELL C9 headsets.

4. Music Playback and Sharing

• Play/Pause: Briefly press the Power On/Off button (labeled 3 in Figure 4).
• Next Track: Briefly press the Volume Up / Next Track button (labeled 2 in Figure 4).
• Previous Track: Briefly press the Volume Down / Previous Track button (labeled 1 in Figure 4).
• Volume Adjustment: Long press the Volume Up / Next Track button to increase volume, and long press the Volume Down / Previous Track button to decrease volume.
• Music Sharing: While music is playing, long-press the Music Sharing/AI Assistant button (labeled 4 in Figure 4) to enter music sharing mode. The other paired EDYELL C9 unit will then receive the shared audio.

Figure 6: Music Sharing Feature. This image depicts two motorcyclists sharing music wirelessly between their EDYELL C9 headsets.

5. Phone Calls

• Answer Call: Briefly press the Power On/Off button when an incoming call is received.
• End Call: Briefly press the Power On/Off button during a call.
• Reject Call: Press and hold the Power On/Off button for 2 seconds when an incoming call is received.
• Redial Last Number: Double-press the Power On/Off button.

6. Voice Assistant

• Activate Voice Assistant: Briefly press the Music Sharing/AI Assistant button (labeled 4 in Figure 4) to activate your smartphone's voice assistant (e.g., Siri, Google Assistant).

Figure 7: Voice Assistant Control. This image illustrates how to use the voice assistant feature for hands-free commands.

Charging the Device

To charge your EDYELL C9 headset:

1. Connect the provided USB charging cable to the Charging Port (labeled 5 in Figure 4) on the headset.
2. Connect the other end of the USB cable to a standard USB power adapter (not included) or a computer's USB port.
3. The indicator light will show red during charging and turn blue when fully charged.
4. A full charge takes approximately 1.5 hours.

Figure 8: Charging the Headset. This image illustrates the charging process and reiterates the battery capacity and usage times.

Maintenance

• Keep the device dry. Do not expose it to extreme temperatures.
• Clean the headset with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Ensure the charging port cover is securely closed when not charging to maintain IPX6 waterproof integrity.
• Store the headset in a cool, dry place when not in use for extended periods.

Figure 9: IPX6 Waterproof Design. This image demonstrates the headset's ability to withstand rain, emphasizing its waterproof feature.

Troubleshooting

Specifications

Warranty and Support

The EDYELL C9 Motorcycle Bluetooth Headset comes with a 12 Months EDYELL India Warranty.

For any quality problems or support inquiries, please contact EDYELL India Customer Care:

• Email: support@fenman.in
• Phone: +91 8882786235

Please retain your purchase receipt for warranty claims.
