DATOUBOSS Lifepo4 Battery 12V 100Ah
DATOUBOSS 12V 100Ah LiFePO4 Lithium Battery User Manual
Model: Lifepo4 Battery 12V 100Ah
1. Introduction
This manual provides essential information for the safe and efficient use of your DATOUBOSS 12V 100Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before installation and operation. Retain this manual for future reference.
The DATOUBOSS 12V 100Ah LiFePO4 battery is designed for deep cycle applications, offering high efficiency and a long service life. It features an integrated Battery Management System (BMS) for comprehensive protection.

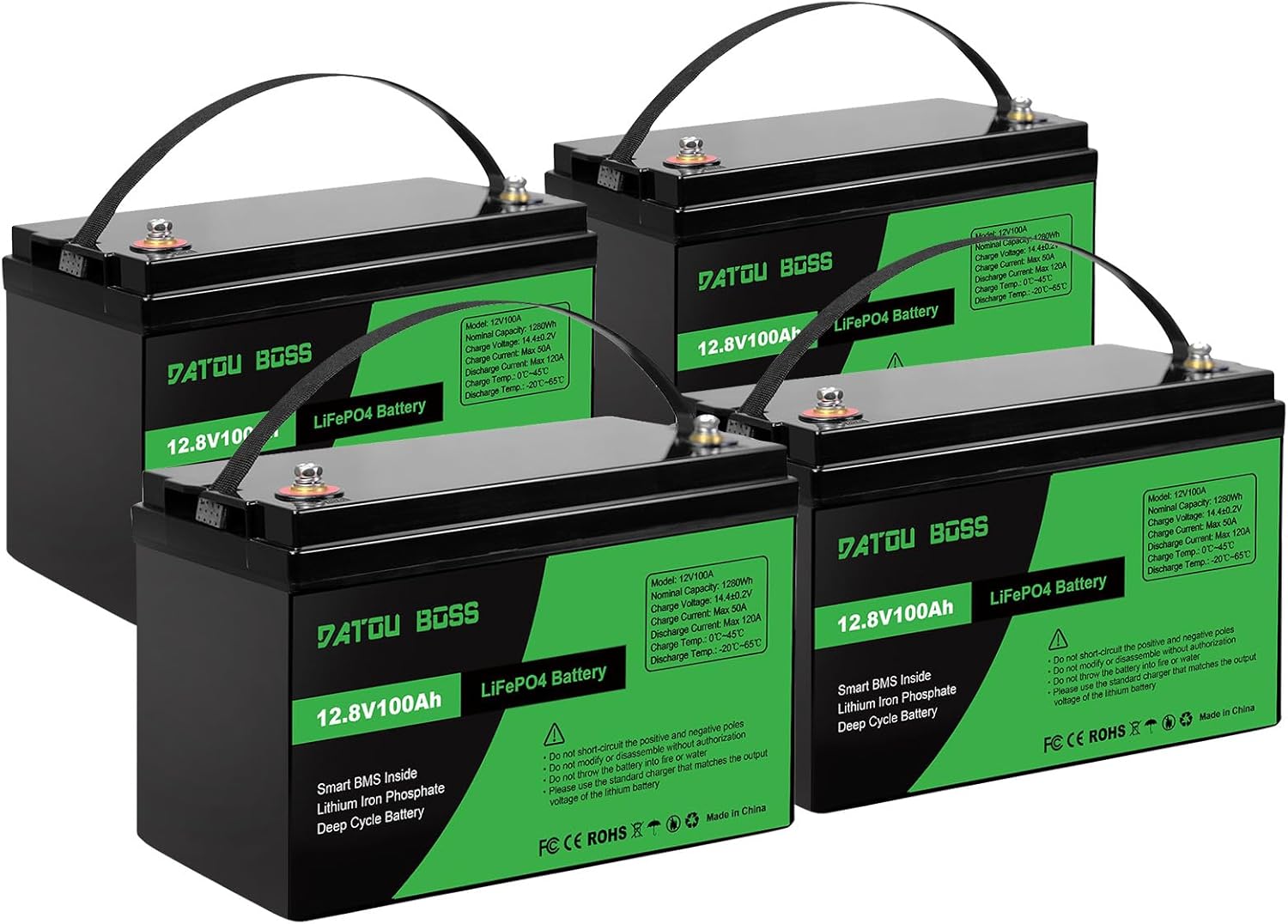

Figure 1: Multiple DATOUBOSS 12V 100Ah LiFePO4 Lithium Batteries, showcasing the product design.
2. Safety Instructions
Observe the following safety precautions to prevent injury or damage to the battery and connected equipment:
- Do not use this battery as a car starting battery or for golf carts.
- Ensure correct polarity when connecting the battery. Reverse connection can cause severe damage.
- Do not short-circuit the battery terminals.
- Avoid exposing the battery to extreme temperatures outside the specified operating range (4°F to 150°F / -20°C to 65°C).
- Do not disassemble, puncture, or modify the battery.
- Use only compatible chargers designed for LiFePO4 batteries.
- Keep the battery away from water, fire, and corrosive substances.
- Handle with care due to its weight (approximately 12 kg).
3. Product Features
- Grade A LiFePO4 Cells: Constructed with automotive-grade cells for stable performance and high efficiency (up to 95%).
- Integrated 100A BMS: Provides protection against overcharge, overdischarge, overcurrent, short circuit, overvoltage, overload, and high/low temperature.
- Long Cycle Life: Offers 8000-15000+ deep cycles, ensuring a service life of up to 10 years.
- Lightweight Design: Approximately 23.8 lbs (12 kg), making it 60% lighter than comparable lead-acid batteries.
- Wide Operating Temperature: Functions reliably from 4°F (-20°C) to 150°F (65°C).
- Flexible Expansion: Supports series and parallel connections for increased voltage (up to 48V) or capacity.
Figure 2: DATOUBOSS 12V 100Ah LiFePO4 battery highlighting its 100A BMS and various protection features including overcharge, overvoltage, over-discharge, short circuit, reverse connection, and overcurrent protection.
Figure 3: DATOUBOSS 12V 100Ah LiFePO4 battery illustrating its low and high temperature protection function, indicating operation from -20°C (-4°F) to 65°C (150°F).
4. Setup and Installation
4.1 Unpacking
Carefully remove the battery from its packaging. Inspect the battery for any visible damage. If damage is found, contact customer support immediately.
4.2 Terminal Connections
The battery is equipped with M8 terminals. Ensure all connections are clean, tight, and secure to prevent resistance and overheating.
Figure 4: Product dimensions (330x170x215mm) and M8 terminal specifications for the DATOUBOSS 12V 100Ah LiFePO4 battery.
4.3 Series and Parallel Connections
Multiple DATOUBOSS 12V 100Ah batteries can be connected in series or parallel to achieve desired voltage or capacity. Always ensure all batteries are at a similar state of charge before connecting them.
- Parallel Connection (4P): Connect positive terminals together and negative terminals together to increase total capacity while maintaining 12V. For example, four 12V 100Ah batteries in parallel yield 12V 400Ah (5.12KWh).
- Series Connection (4S): Connect the positive terminal of one battery to the negative terminal of the next to increase total voltage. For example, four 12V 100Ah batteries in series yield 48V 100Ah (5.12KWh).
- Series-Parallel Connection (4P4S): A combination for higher voltage and capacity. For example, a 4P4S configuration can achieve 48V 400Ah (20.48KWh).
Figure 5: Illustration of connecting four batteries in parallel (4P) to achieve 12V 400Ah.
Figure 6: Illustration of connecting four batteries in series (4S) to achieve 48V 100Ah.
Figure 7: Illustration of a 4P4S configuration for a 48V 400Ah system.
5. Operating Instructions
5.1 Charging the Battery
The DATOUBOSS LiFePO4 battery can be charged using several methods:
- Solar Panel + Charge Controller: Connect a compatible solar panel system with a LiFePO4 charge controller.
- Battery Charger: Use a dedicated LiFePO4 battery charger.
- Generator + LiFePO4 Charger: A generator can power a LiFePO4 charger for off-grid charging.
Always ensure the charging voltage and current are within the battery's specifications to prevent damage.
Figure 8: Charging methods for the LiFePO4 deep cycle battery.
5.2 Discharging the Battery
The battery is suitable for powering various appliances and systems. The built-in BMS protects against over-discharge. Ensure your connected loads do not exceed the battery's maximum continuous discharge current.
Figure 9: Example of the 12V 100Ah battery supporting multiple loads simultaneously, such as a TV, refrigerator, coffee maker, and toaster.
5.3 Applications
This battery is ideal for a wide range of applications, including:
- Home Energy Storage
- Recreational Vehicles (RVs) and Caravans
- Marine Applications (Ships, Boats)
- Off-Grid Solar Systems
- Backup Power Systems
- Camping and Outdoor Activities
Figure 10: Diverse applications of the DATOUBOSS LiFePO4 battery.
6. Maintenance
LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. However, following these guidelines will ensure optimal performance and longevity:
- Regular Inspection: Periodically check battery terminals for corrosion or loose connections. Clean terminals if necessary.
- Storage: If storing the battery for an extended period, ensure it is charged to approximately 50% state of charge and stored in a cool, dry place within the recommended temperature range.
- Avoid Deep Discharge: While the BMS protects against over-discharge, it is good practice to recharge the battery promptly after significant discharge.
- Cleaning: Keep the battery casing clean and free of dust and debris. Use a dry cloth for cleaning.
7. Troubleshooting
If you encounter issues with your DATOUBOSS LiFePO4 battery, refer to the following common problems and solutions:
| Problem | Possible Cause & Solution |
|---|---|
| Battery not charging | Possible Cause: Loose connections, faulty charger, BMS protection activated (over-discharge, low temperature). Solution: Check all connections. Verify charger functionality. Allow battery to warm up if in cold conditions. If BMS is active, it may require a specific charging sequence to reset (refer to charger manual or contact support). |
| No power output | Possible Cause: Battery discharged, BMS protection activated (over-discharge, overcurrent, short circuit), loose connections. Solution: Charge the battery. Check for short circuits or excessive load. Inspect all wiring and connections. Reduce load if overcurrent protection is active. |
| Battery overheating | Possible Cause: Excessive charging/discharging current, poor ventilation, internal fault. Solution: Reduce charge/discharge current. Ensure adequate ventilation around the battery. Disconnect the battery and contact support if overheating persists. |
If the problem persists after attempting these solutions, please contact DATOUBOSS customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DATOUBOSS |
| Model Number | Lifepo4 Battery 12V 100Ah |
| Nominal Voltage | 12 Volts |
| Nominal Capacity | 100 Ah |
| Battery Cell Composition | Lithium-Phosphate (LiFePO4) |
| Built-in BMS | 100A |
| Cycle Life | 8000-15000+ cycles |
| Operating Temperature Range | 4°F (-20°C) to 150°F (65°C) |
| Dimensions (L x W x H) | 33.02 x 21.49 x 16.99 cm (13 x 8.46 x 6.69 inches) |
| Item Weight | 12 kg (26.46 lbs) |
| Terminal Type | M8 |
| Max Expansion Capacity | Up to 4S4P (48V 400Ah) |
9. Warranty and Support
9.1 Warranty Information
The DATOUBOSS 12V 100Ah LiFePO4 battery comes with a 5-year warranty covering manufacturing defects and quality issues. Please retain your proof of purchase for warranty claims.
9.2 Customer Support
For technical support, product-related questions, or warranty inquiries, please contact DATOUBOSS customer service. We provide professional technical assistance and aim to respond within 24 hours.
Contact information (placeholder, as none provided in JSON): support@datouboss.com or visit our official website.
