1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Dasan Rainfall Dual Shower System, model DA-RN3012C6-BG. This system features a 12-inch round rainfall shower head, a 6-inch round wall-mounted shower head, and a handheld shower, all controlled by an upgraded button diverter and a pressure balance valve.
Please read this manual thoroughly before installation and use to ensure proper function and longevity of your shower system. Keep this manual for future reference.
Image 1.1: Dasan Dual Shower System in operation, illustrating the simultaneous use of multiple shower functions.
2. Included Components
Verify that all components listed below are present and undamaged before beginning installation.
Image 2.1: All components included in the Dasan Rainfall Dual Shower System package.
- 12" Round Shower Head
- Shower Valve (with rough-in box)
- Face Plate
- Valve Handle
- 6" Round Shower Head
- Ceiling Mount Shower Arm (for 12" head)
- Handheld Shower
- 59" Shower Hose
- Wall Mount Shower Arm (for 6" head)
- Handheld Shower Bracket
- Trim Plate (Long Shower Arm)
- Trim Plate (Short Shower Arm)
- Escutcheon (Shower Bracket)
- Mounting Kit (screws, anchors)
- Installation Manual (this document)
Image 2.2: Overview of the Dasan Rainfall Dual Shower System components.
3. Product Specifications
| Feature | Specification |
|---|---|
| Model Number | DA-RN3012C6-BG |
| Brand | Dasan |
| Color | Brushed Gold |
| Material | Brass, Stainless Steel |
| Finish Type | Brushed |
| Number of Handles | 1 (for temperature control) |
| Item Weight | 5.69 Kilograms (12.51 pounds) |
| Mounting Type | Wall Mount (for valve, 6" head, handheld), Ceiling Mount (for 12" head) |
| Flow Rate | 1.8 GPM (Gallons Per Minute) |
| Shower Head Sizes | 12-inch Round, 6-inch Round |
| Handheld Hose Length | 59 inches |
| Valve Type | Pressure Balance Valve with Sedal Ceramic Cartridge |
| Diverter Type | Button Diverter (3 independent buttons) |

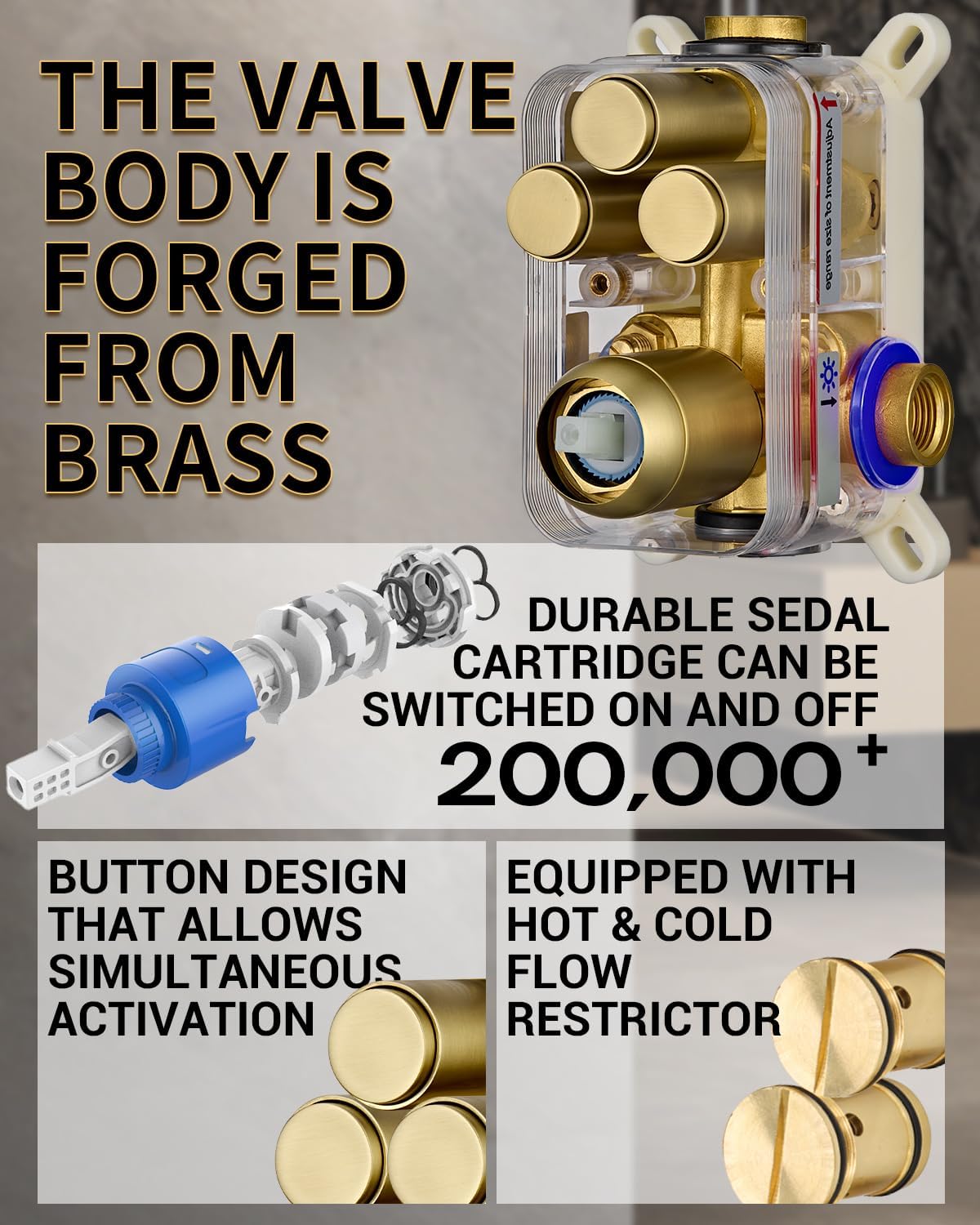

Image 3.1: Internal components of the Dasan shower valve, highlighting the durable Sedal ceramic cartridge and forged brass body.
4. Installation Instructions
Professional installation is recommended. Ensure all local plumbing codes are followed. Turn off the main water supply before starting installation.
4.1. Tools and Materials Required (Not Included):
- Adjustable wrench
- Pipe sealant tape (Teflon tape)
- Screwdriver (Phillips and flathead)
- Drill
- Level
- Measuring tape
- Safety glasses
4.2. General Installation Steps:
- Prepare the Wall: Ensure the wall cavity is clear and properly reinforced for the shower valve and arms.
- Install the Rough-in Valve: Mount the shower valve body securely within the wall, ensuring it is level and at the correct depth according to the trim plate specifications. Connect the hot and cold water lines to the designated inlets on the valve.
- Connect Outlet Pipes: Connect the outlet pipes from the valve to the locations for the 12-inch shower head (ceiling mount), 6-inch shower head (wall mount), and handheld shower bracket.
- Install Shower Arms: Securely install the ceiling-mount shower arm for the 12-inch shower head and the wall-mount shower arm for the 6-inch shower head. Apply pipe sealant tape to all threaded connections.
- Install Shower Heads: Attach the 12-inch round shower head to the ceiling arm and the 6-inch round shower head to its wall arm. Ensure they are tightened properly.
- Install Handheld Shower Bracket and Hose: Mount the handheld shower bracket to the wall. Connect the 59-inch shower hose to the handheld shower and the outlet on the valve. Place the handheld shower into its bracket.
- Install Trim Kit: Once all plumbing connections are complete and tested for leaks, install the face plate, valve handle, and trim plates/escutcheons.
- Test the System: Turn on the main water supply and check all connections for leaks. Test the functionality of each shower component and the temperature control.
5. Operating Instructions
Your Dasan Rainfall Dual Shower System is designed for ease of use with its intuitive button diverter and temperature control handle.
5.1. Temperature Control:
- The main handle on the face plate controls the water temperature.
- Rotate the handle to adjust between hot and cold water. The pressure balance valve maintains a consistent temperature, preventing sudden changes.
5.2. Function Selection (Button Diverter):
The system features three independent buttons to control the water flow to each shower component. These can be operated simultaneously.
- Button 1: Activates/Deactivates the 12-inch Rainfall Shower Head.
- Button 2: Activates/Deactivates the 6-inch Wall-Mounted Shower Head.
- Button 3: Activates/Deactivates the Handheld Shower.
Press a button to turn on the corresponding shower function. Press it again to turn it off. You can use any combination of these functions simultaneously for a customized shower experience.
Image 5.1: The button diverter allows for simultaneous activation of multiple shower functions.
Image 5.2: The 12-inch rainfall shower head features air injection technology for enhanced pressure and water saving.
6. Care and Maintenance
Proper care and maintenance will ensure the longevity and appearance of your Dasan shower system.
6.1. Cleaning:
- Clean the surfaces regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for brushed finishes.
- Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed gold finish.
- For shower heads with silicone nozzles, gently rub the nozzles with your finger to dislodge any mineral buildup.
- Wipe dry with a soft cloth after cleaning to prevent water spots.
Image 6.1: Easy-to-clean silicone nozzles on the rainfall shower head.
6.2. General Care:
- Periodically check all connections for tightness to prevent leaks.
- If water flow decreases, check for mineral buildup in the shower heads or aerators and clean as necessary.
7. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow from shower heads. | Mineral buildup in nozzles; partially closed shut-off valves; low water pressure in household. | Clean shower head nozzles by gently rubbing them. Ensure shut-off valves are fully open. Consult a plumber if household water pressure is consistently low. |
| Water temperature fluctuates. | Pressure balance valve issue; hot/cold water supply imbalance. | Ensure hot and cold water supplies are stable. If problem persists, contact a qualified plumber to inspect the pressure balance valve. |
| Leaks at connections. | Loose connections; insufficient pipe sealant tape. | Turn off water supply. Tighten connections. If necessary, disassemble, reapply pipe sealant tape, and reassemble. |
| Diverter buttons not working correctly. | Debris in diverter mechanism; worn cartridge. | Flush the system. If the issue persists, the diverter cartridge may need inspection or replacement by a professional. |
8. Warranty Information
Dasan provides the following limited warranty for this product:
- Residential Use: 10-Year Limited Warranty
- Commercial Use: 5-Year Limited Warranty
This warranty covers defects in material and workmanship under normal use and service. It does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs. Please retain your proof of purchase for warranty claims.
9. Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact Dasan customer support through the retailer where the product was purchased or visit the official Dasan website for contact information.
When contacting support, please have your model number (DA-RN3012C6-BG) and proof of purchase readily available.
