Product Overview
The LOEFME LYJ-09 Heavy Duty Clothes Rack is designed for efficient and robust clothing storage. Its dual-rail, foldable design allows for versatile placement, including room corners, and it boasts a high load capacity suitable for various garments and items. This manual provides detailed instructions for assembly, usage, maintenance, and troubleshooting.
Safety Information
- Ensure all connections are securely tightened before use.
- Do not exceed the maximum weight capacity of 150 kg (330 lbs).
- Distribute weight evenly across the rack to prevent tipping.
- Keep children and pets away during assembly and ensure the rack is stable.
- Place the rack on a flat, stable surface to prevent wobbling.
Package Contents
Please verify that all the following components and hardware are included in your package before beginning assembly. Refer to the assembly video for visual identification of each part.
Image: All components of the LOEFME LYJ-09 clothes rack laid out on the floor, including pipes, connectors, and tools.
Components:
| Part | Description | Quantity |
|---|---|---|
| A | Base T-Connectors with short horizontal pipes | 2 |
| B | Middle T-Connector with short horizontal pipe | 1 |
| C | Short Straight Pipes for base | 2 |
| D | Vertical Pipes (lower section) | 2 |
| E | Vertical Pipes (upper section) | 2 |
| F | Long Straight Pipe for base | 1 |
| G | L-shaped Pipe for top left corner | 1 |
| H | L-shaped Pipe for top right corner | 1 |
| I | Long Straight Pipes for top horizontal rails | 2 |
| J | Connecting Clamps | 8 |
Hardware & Tools:
| Part | Description | Quantity |
|---|---|---|
| K | Screws for vertical pipe connections | 4 |
| L | Screws for base connections | 4 |
| M | Screws for top horizontal connections | 4 |
| N | M6*28MM Screws for clamps | 4 |
| O | M6 Nuts for clamps | 4 |
| Tool | Allen Wrench | 1 |
| M10 Wrench | M10 Wrench | 1 |
Setup and Assembly
Assembly of the LOEFME LYJ-09 Clothes Rack is required. Follow the steps below and refer to the comprehensive assembly video for visual guidance. Ensure you have all parts and tools listed in the 'Package Contents' section before starting.
Video: A complete step-by-step guide to assembling the LOEFME LYJ-09 Heavy Duty Clothes Rack.
Step 1: Assemble the Base Frames
Begin by connecting the base frame pipes (Parts A, B, C, F) using the provided screws (Part L) and the Allen wrench. Create two separate base units as shown in the video (approx. 0:04-0:15 for the first, 0:16-0:28 for the second). Ensure the connections are firm but do not fully tighten until the entire structure is assembled.
Image: The initial base frame sections of the clothes rack, showing the horizontal and vertical pipe connections.
Step 2: Attach Vertical Support Pipes
Insert the lower vertical pipes (Part D) into the base units. Then, connect the upper vertical pipes (Part E) to the lower ones using screws (Part K). Repeat for both sides of the rack (approx. 0:18-0:27 in video for one side, 0:34-0:40 for the other).
Step 3: Install Horizontal Bars and Clamps
Attach the horizontal hanging bars (Part I) to the vertical supports using the connecting clamps (Part J), M6*28MM screws (Part N), and M6 nuts (Part O). Use both the Allen wrench and M10 wrench to secure these connections. Ensure the clamps are positioned correctly to allow for the foldable feature (approx. 0:55-1:10 and 1:19-1:30 in video).
Image: A fully assembled LOEFME clothes rack, showcasing both upper and lower hanging bars.
Step 4: Final Tightening
Once all components are in place and the rack stands upright, systematically go through all screws and nuts, tightening them securely with the provided wrenches. Avoid over-tightening to prevent damage to the pipes or fasteners. Ensure the rack is stable and level.
Usage
Hanging Clothes:
Utilize the upper and lower horizontal bars for hanging various garments. The dual-rail design maximizes hanging space, allowing for organized storage of shirts, pants, dresses, and more.
Bottom Storage:
The space below the lower horizontal bar can be used for storing shoes, storage boxes, laundry baskets, or other accessories, keeping your space tidy and organized.
Image: The clothes rack in use, displaying clothes on both rails and storage items on the bottom.
Foldable Design:
The left and right clothes rails feature a foldable design, allowing them to be adjusted to fit into room corners or smaller spaces. This feature provides flexibility in placement and helps optimize your living area. To fold, loosen the clamps on the outer vertical pipes, adjust the horizontal bars inward, and re-tighten the clamps.

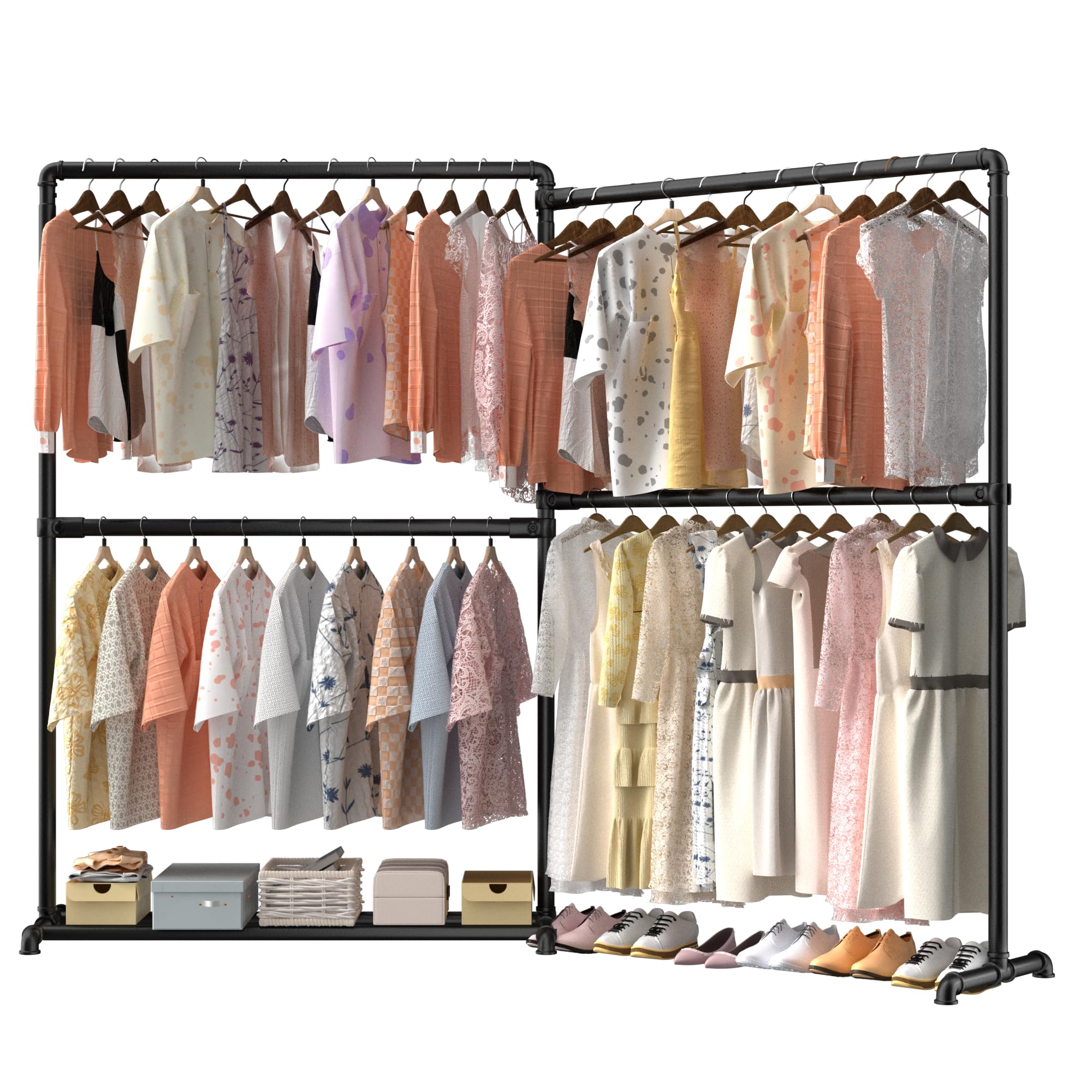

Image: The clothes rack demonstrating its foldable design, suitable for corner placement with rails adjusted.
Maintenance
- Regular Tightening: Periodically check all screws and nuts for tightness and re-tighten if necessary to maintain stability.
- Cleaning: Wipe down the metal frame with a soft, damp cloth to remove dust and dirt. Avoid using abrasive cleaners or harsh chemicals that could damage the finish.
- Moisture Protection: Ensure the rack is not exposed to excessive moisture or humidity to prevent rust and corrosion.
Troubleshooting
Rack is Unstable:
- Check Connections: Ensure all screws and nuts are fully tightened. Loose connections are a common cause of instability.
- Level Surface: Verify the rack is placed on a flat and level surface. Uneven flooring can cause wobbling.
- Weight Distribution: Ensure that weight is distributed evenly across the rack and not concentrated on one side or section.
Difficulty Assembling:
- Review Instructions: Carefully re-read the assembly steps and watch the provided video for visual guidance.
- Correct Parts: Double-check that you are using the correct screws and pipes for each step as indicated in the 'Package Contents' and assembly video.
- Do Not Force: If parts do not fit easily, do not force them. Disassemble the last few steps and re-check alignment.
Specifications
- Brand: LOEFME
- Model: LYJ-09
- Material: Heavy-duty Metal
- Color: Black
- Product Dimensions (Approximate): 195 cm (76.77 inches) Length x 45 cm (17.7 inches) Width x 170 cm (66.9 inches) Height
- Maximum Load-Bearing Capacity: 150 kg (330 lbs)
- Installation Type: Free Standing
- Special Features: Foldable design, Space Saver
Image: A diagram illustrating the dimensions (length, width, height) and maximum load capacity of the clothes rack.
Warranty and Support
For detailed warranty information or technical support regarding your LOEFME LYJ-09 Heavy Duty Clothes Rack, please contact LOEFME customer service directly through your retailer or the official LOEFME website. When contacting support, please have your model number (LYJ-09) and purchase date available to expedite assistance.
