Karlsson KA5867GR Modern Cuckoo Wall Clock Instruction Manual

Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Karlsson KA5867GR Modern Cuckoo Wall Clock. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your clock.

Safety Information

• Keep batteries out of reach of children.
• Do not mix old and new batteries, or different types of batteries.
• Remove batteries if the clock will not be used for an extended period to prevent leakage.
• Ensure the clock is securely mounted to a wall to prevent falling.
• Avoid exposing the clock to extreme temperatures, direct sunlight, or high humidity.

Package Contents

Please check that all items are present in the package:

• Karlsson KA5867GR Cuckoo Wall Clock Unit
• Pendulum
• Instruction Manual (this document)

Setup

1. Battery Installation

1. Locate the battery compartment on the back of the clock.
2. Insert three (3) AA batteries (not included) according to the polarity indicators (+/-).
3. Close the battery compartment cover securely.

2. Pendulum Attachment

Gently attach the pendulum to the hook located at the bottom of the clock mechanism. Ensure it hangs freely.

3. Setting the Time

1. Turn the time setting knob, usually located on the back of the clock, to set the correct time.
2. Move the minute hand clockwise until the desired time is displayed.

4. Wall Mounting

Select a suitable location on a wall. Use a sturdy screw or hook (not included) appropriate for your wall type. Hang the clock securely using the mounting slot on the back.

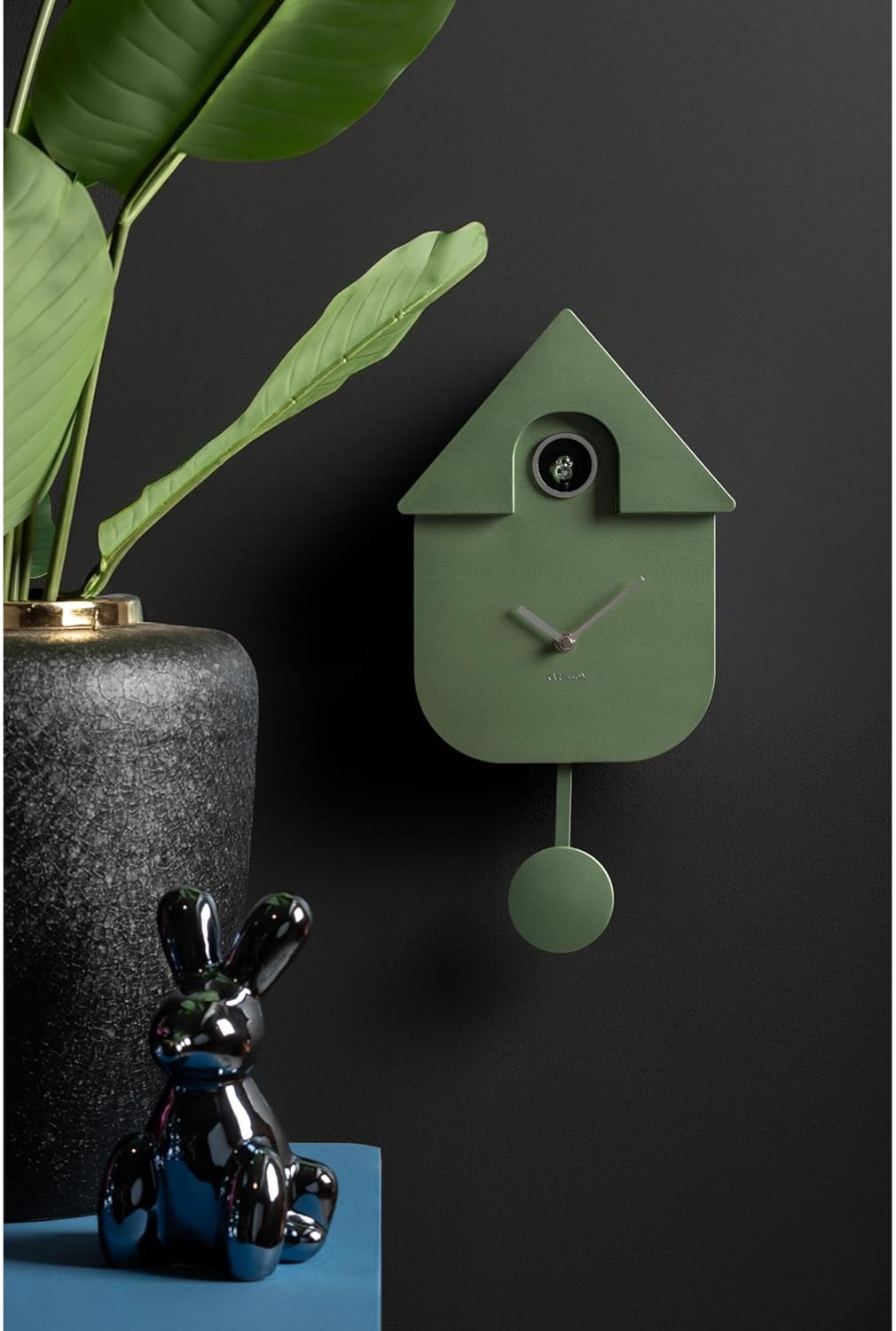

Image: The Karlsson KA5867GR Cuckoo Wall Clock displayed on a wall, illustrating its appearance in a home setting.

Operating Instructions

Cuckoo Chime Function

• The cuckoo will emerge and chime on the hour, indicating the current time with the number of calls.
• This clock features a light sensor, which automatically silences the cuckoo chime during periods of low light or darkness to prevent disturbance during nighttime hours.

Image: A detailed view of the clock's face and the cuckoo's housing, highlighting the design elements.

Maintenance

Cleaning

Wipe the clock's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.

Battery Replacement

When the clock's movement slows or the cuckoo chime becomes weak or stops, it is time to replace the batteries. Follow the battery installation steps in the Setup section.

Troubleshooting

• Clock not keeping accurate time:
  Check if the batteries are inserted correctly and have sufficient power. Replace batteries if necessary. Ensure the hands are not obstructed.
• Cuckoo not chiming:
  Verify that the batteries are fresh. Check if the room is dark; the light sensor will prevent chiming in low light. Ensure the time is set correctly, as the cuckoo mechanism is synchronized with the clock's time.
• Cuckoo chiming at incorrect times:
  This may occur if the clock hands were adjusted without allowing the cuckoo mechanism to cycle. To re-synchronize, set the clock to 12:00. Let the cuckoo chime the correct number of times for 12:00. Then, manually advance the minute hand clockwise to the current time, allowing the cuckoo to chime at each hour.

Specifications

Warranty Information

This product is covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or contact the retailer for specific details regarding warranty terms and conditions.

Support

For further assistance, technical support, or inquiries regarding your Karlsson KA5867GR Cuckoo Wall Clock, please contact your retailer or the manufacturer's customer service department. Contact information can typically be found on the product packaging or the manufacturer's official website.
