1. Introduction
This manual provides essential information for setting up, operating, and maintaining your Bmax X15 Pro 15.6-inch laptop. Please read this manual thoroughly to ensure proper use and to maximize the performance and longevity of your device.
Image: The Bmax X15 Pro laptop displaying the Windows 11 Pro operating system, highlighting its Intel N95 processor, 16GB RAM, 512GB SSD, and 1920x1080 FHD display.
2. What's in the Box
Upon unpacking your Bmax X15 Pro laptop, please verify that all the following items are included:
- 1 x BMAX MaxBook X15 Pro Intel N95 Notebook Computer
- 1 x 12V/3A DC Power Adapter
- 1 x Multi-Language User Manual
3. Product Overview
3.1. Physical Components and Ports
Familiarize yourself with the various ports and components of your laptop for optimal connectivity and usage.
Image: Side view of the Bmax X15 Pro laptop illustrating the placement of its various ports, including Micro SD, USB 3.0, Headset jack, HDMI, and Power input.
- Left Side: Micro SD slot, 2x USB 3.0 ports, 3.5mm Headset jack.
- Right Side: Power input, HDMI port, 1x USB 3.0 port, Security Lock slot.
3.2. Keyboard and Touchpad
The laptop features a full-size keyboard with large keycaps and a large touchpad supporting multi-touch gestures for efficient navigation and input.
Image: A top-down view of the Bmax X15 Pro laptop's full-size keyboard and large touchpad, highlighting its ergonomic design for comfortable use.
4. Setup
4.1. Initial Power On and Charging
- Connect the provided DC power adapter to the laptop's power input port and a wall outlet.
- Allow the laptop to charge for at least 30 minutes before initial use, or until the battery indicator shows sufficient charge.
- Press the power button located on the keyboard to turn on the laptop.
- Follow the on-screen instructions to complete the Windows 11 Pro setup process.
5. Operating Instructions
5.1. Power Management
- Power On: Press the power button.
- Sleep Mode: Close the lid or press the power button briefly.
- Shut Down: Click the Start button, then Power > Shut down.
- Restart: Click the Start button, then Power > Restart.
5.2. Display Usage
The 15.6-inch FHD IPS display offers a 180° convertible design, allowing for flexible viewing angles and collaborative use.
Image: The Bmax X15 Pro laptop shown in its 180-degree lay-flat configuration, demonstrating its versatility for sharing and collaboration.
5.3. Connectivity
The laptop supports various wireless and wired connections:
- Wi-Fi: Dual-band Wi-Fi 5 (802.11ac/a/b/g/n) for fast internet access.
- Bluetooth: Bluetooth 5.0 for connecting wireless peripherals.
- HDMI: Connect to external displays or projectors.
- USB 3.0: Three ports for high-speed data transfer with external devices.

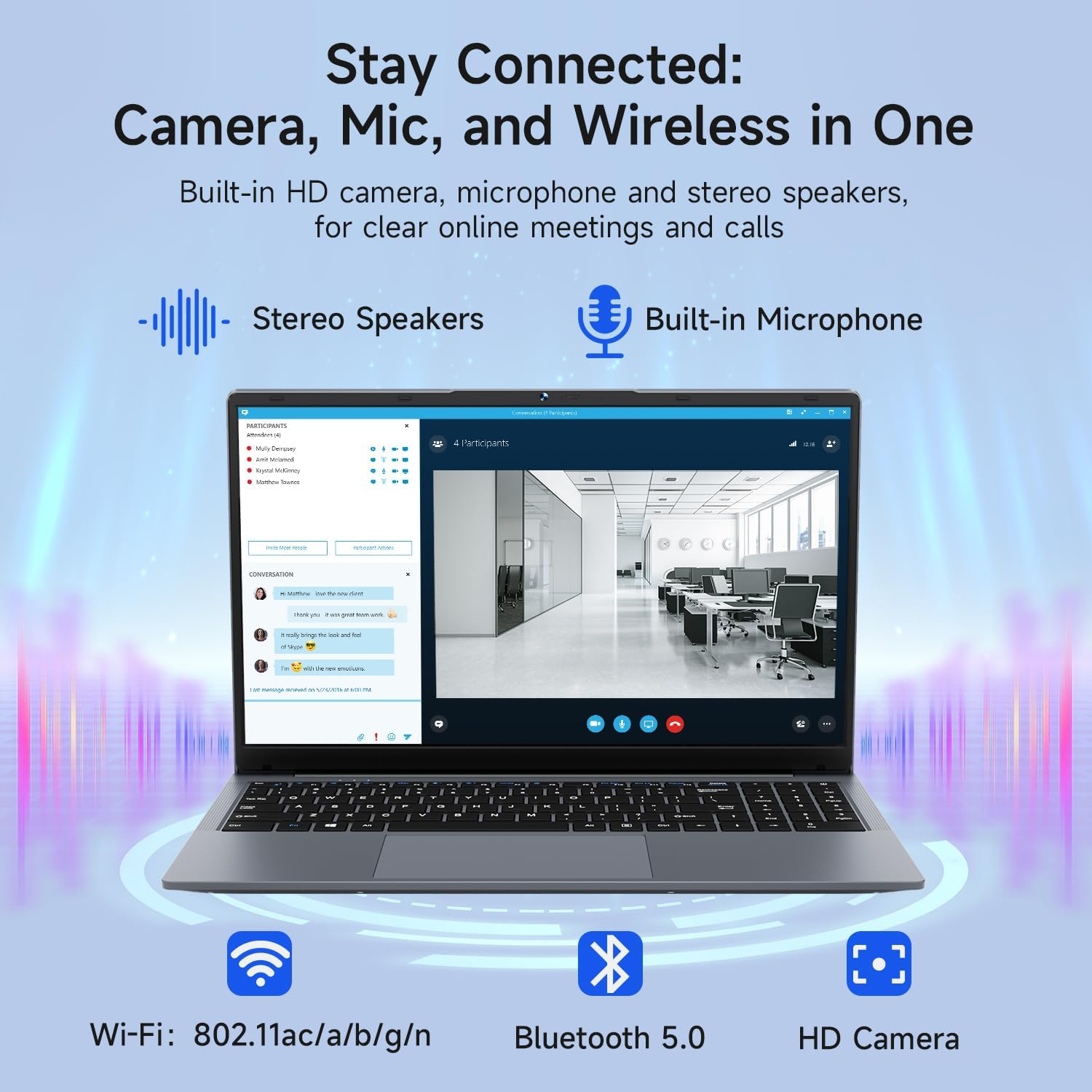

Image: The Bmax X15 Pro laptop with icons representing its integrated Wi-Fi, Bluetooth 5.0, and HD camera capabilities, emphasizing its comprehensive connectivity for communication.
6. Storage and Performance
The Bmax X15 Pro is equipped with robust components for efficient performance and ample storage.
6.1. Processor
Powered by the Intel Celeron N95 Quad-Core Processor (up to 3.4GHz), featuring 4 cores and 4 threads with a 6MB cache, ensuring efficient performance for various tasks.
Image: A graphic detailing the Intel 12th Gen Processor N95, showing its 3.40GHz Turbo Frequency, 6MB Cache, 15W Power Consumption, and 4 cores/4 threads, alongside performance benchmarks.
6.2. Memory and Storage
The laptop includes 16GB DDR4 RAM and a 512GB SSD, providing substantial storage capacity and enabling efficient multitasking. An M.2_SATA 2280 expansion slot is available for additional storage.

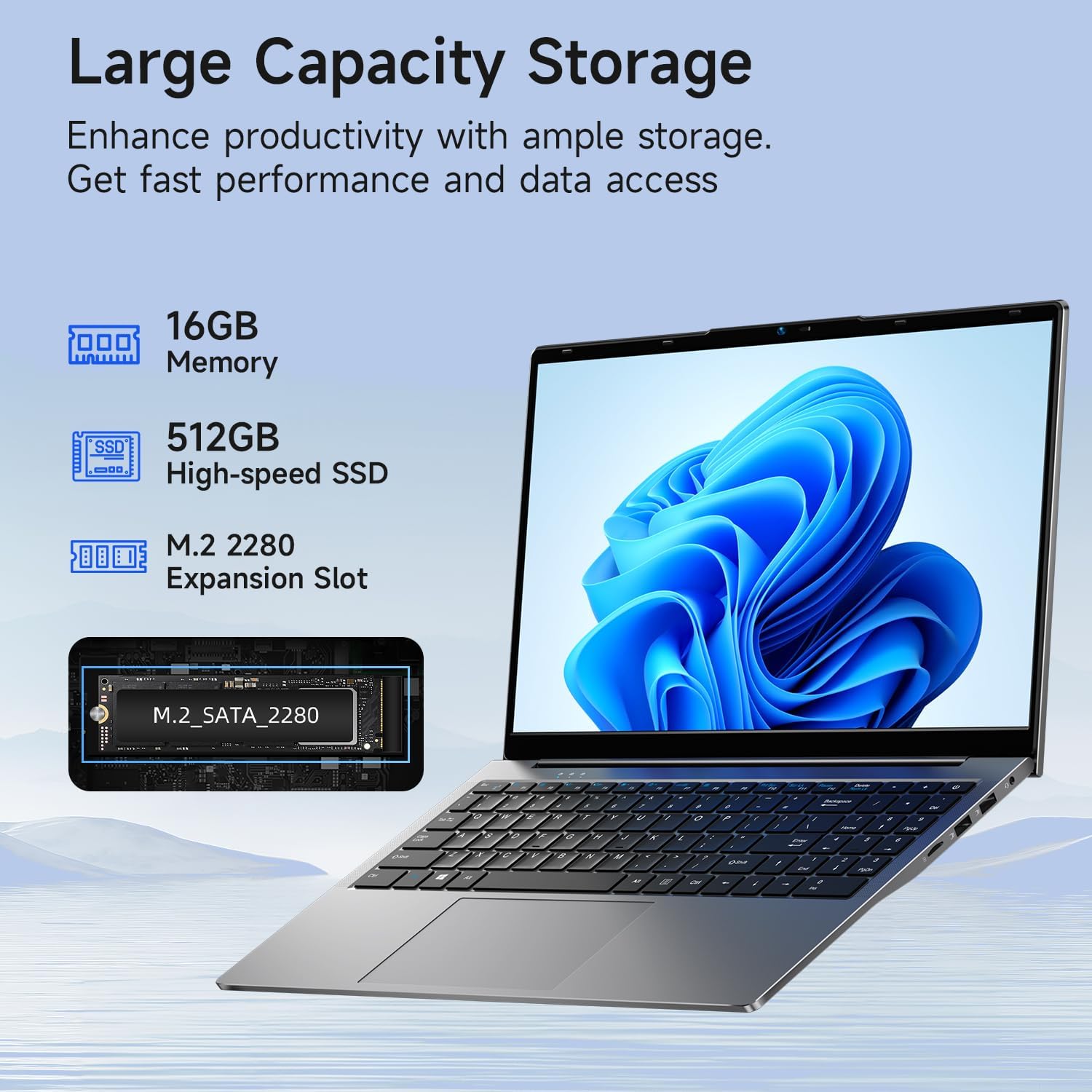

Image: A visual representation of the Bmax X15 Pro laptop's internal components, highlighting its 16GB memory, 512GB high-speed SSD, and an accessible M.2 2280 expansion slot for storage upgrades.
7. Display Features
Experience clear and vibrant visuals with the 15.6-inch FHD 1920x1080 IPS display, featuring a slim bezel design and 180° viewing angles.
Image: A graphic illustrating the Bmax X15 Pro laptop's display features, including its 15.6-inch IPS FHD screen, 1920x1080 resolution, 5.7mm ultra-narrow bezel, and 180° lay-flat design.
8. Cooling System
The laptop incorporates intelligent fans and dual copper heat pipes to ensure rapid heat dissipation, maintaining optimal performance and preventing overheating during extended use.
Image: An internal diagram of the Bmax X15 Pro laptop, highlighting its dual copper heat pipes and silent smart fan, illustrating the efficient and quiet cooling system.
9. Battery Management
The laptop is powered by a 51.3Wh battery, providing up to 6-8 hours of usage on a single charge, depending on usage patterns.
Image: A woman working on the Bmax X15 Pro laptop, with an overlay indicating a battery life of up to 8 hours and a capacity of 51.3Wh, emphasizing its long-lasting power.
10. Maintenance
Proper maintenance ensures the longevity and optimal performance of your laptop.
- Cleaning: Use a soft, lint-free cloth to clean the screen and exterior. Avoid harsh chemicals.
- Ventilation: Ensure the ventilation openings are clear of obstructions to prevent overheating.
- Software Updates: Regularly update your operating system and drivers to maintain security and performance.
- Battery Care: Avoid fully discharging the battery frequently. Store the laptop in a cool, dry place if not used for extended periods.
11. Troubleshooting
This section addresses common issues you might encounter with your Bmax X15 Pro laptop.
- Laptop does not power on: Ensure the power adapter is securely connected and the battery has sufficient charge. Try a different power outlet.
- Display issues: If the screen is blank, try connecting an external monitor to check if the issue is with the laptop's display. Adjust brightness settings.
- Wi-Fi connectivity problems: Ensure Wi-Fi is enabled in Windows settings. Restart your router and the laptop. Check for updated Wi-Fi drivers.
- Slow performance: Close unnecessary applications. Check for malware. Ensure sufficient free space on the SSD.
12. Specifications
| Feature | Specification |
|---|---|
| Standing screen display size | 15.6 Inches |
| Screen Resolution | 1920 x 1080 pixels |
| Max Screen Resolution | 1920x1080 Pixels |
| Processor | 3.4 GHz Celeron (Intel N95 Quad-Core) |
| RAM | 16 GB DDR4 |
| Memory Speed | 2666 MHz |
| Hard Drive | 512 GB SSD (PCIE x 4 interface) |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Card Ram Size | 8 GB (Integrated) |
| Wireless Type | 2.4 GHz Radio Frequency, 5 GHz Radio Frequency, 802.11a/b/g/n/ac, Bluetooth 5.0 |
| Number of USB 3.0 Ports | 3 |
| Average Battery Life (in hours) | 4-8 Hours (51.3Wh) |
| Operating System | Windows 11 Pro |
| Item Weight | 3.57 pounds |
| Product Dimensions | 14.08 x 9.04 x 0.76 inches |
| Color | Space Grey |
| Special Feature | HD Audio, Lightweight, Memory Card Slot, Numeric Keypad |
13. Warranty and Support
Your Bmax X15 Pro laptop comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures product reliability.
- Warranty Period: 12 months from the purchase date.
- Return Policy: Worry-free 30-day return period.
- Customer Service: 7 days/24 hours friendly customer support.
- Included Accessories: 2 replaceable plugs (US, EU) are included to meet diverse connectivity needs.
For technical assistance or warranty claims, please refer to the contact information provided with your purchase documentation or visit the official Bmax support website.
