1. Introduction
The DAYTECH 100 dB Water Leak Detector (Model 1PC) is designed to provide early warning of water leaks, drips, and flooding in your home or property. Its high-sensitivity probe and loud alarm help prevent significant water damage by alerting you immediately to potential issues. This manual provides instructions for proper setup, operation, and maintenance of your device.
Image 1.1: DAYTECH 100 dB Water Leak Detector main unit and sensor cable.
2. Product Features
- Powerful 100dB Whole-House Alarm: Features an adjustable alarm (mute to 100dB), loud enough to be heard anywhere in your home. It sounds immediately upon detecting drips, leaks, or flooding.
- High Sensitivity Drip & Leak Alarms: Designed with a double-sided probe to effectively detect water leaks and drips as small as 0.015 inches (0.4 mm).
- Flexible Placement: Includes an extra-long 78-inch (6.5ft) detector cable, making it suitable for tight spaces like under washing machines, dishwashers, or near sump pumps.
- Simple Setup & Low-Battery Alert: Easy battery insertion and mounting. Automatically alerts you when batteries run low, ensuring continuous protection.

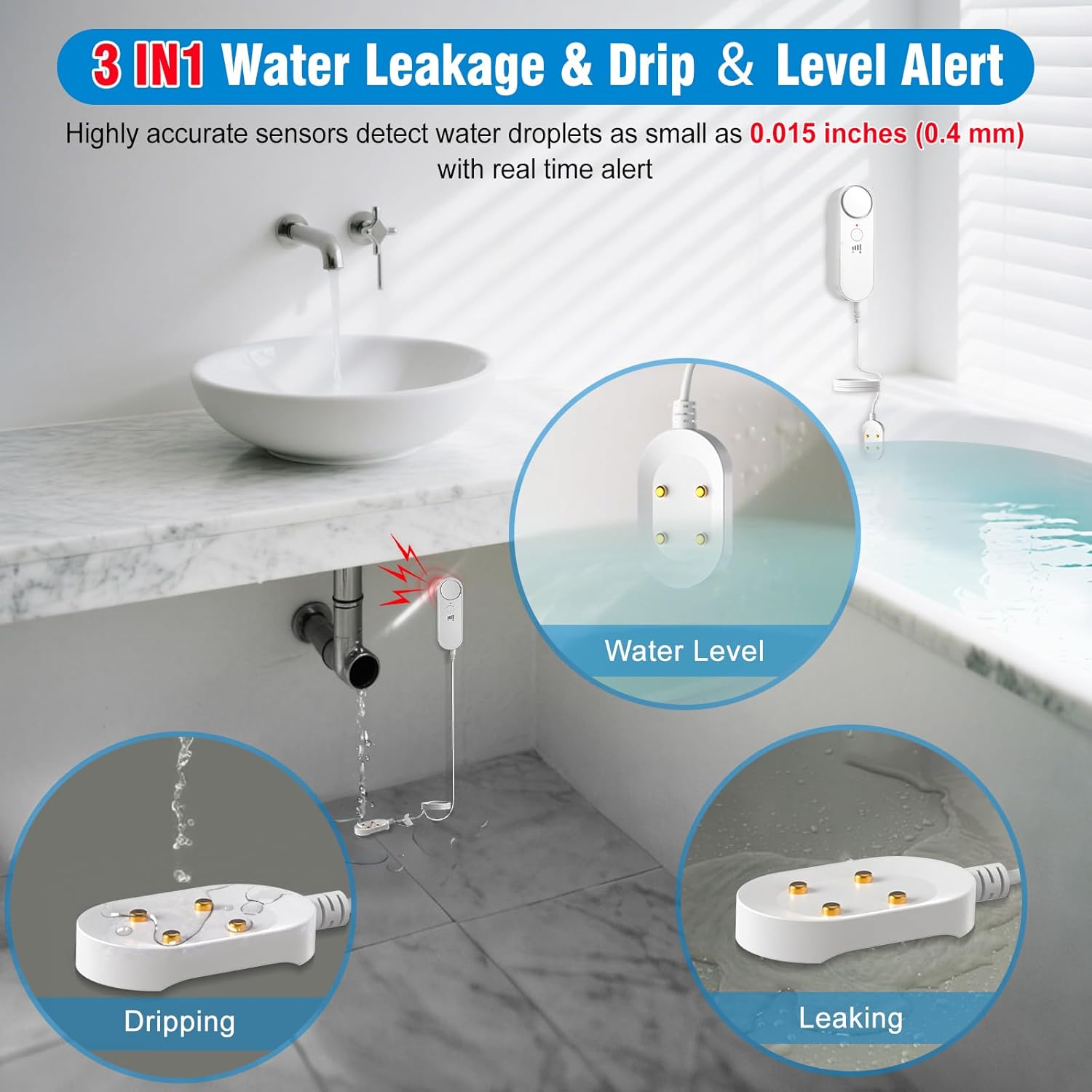

Image 2.1: The detector's high sensitivity allows it to detect dripping, leaking, and rising water levels.
Image 2.2: The ultra-thin probe and 78-inch cable allow for flexible placement in tight spaces.
3. Package Contents
Verify that all items are present in your package:
- Detector unit x 1
- Water leak/drip sensing probe x 1 (with 78-inch cable)
- Adhesive sticker x 1
- AAA batteries x 4 (included)
- User manual x 1
- Cable fixer x 1
- Screws x 2
Image 3.1: All components included in the DAYTECH Water Leak Detector package.
4. Setup
- Install Batteries: Open the battery compartment on the back of the detector unit. Insert the 4 AAA alkaline batteries, ensuring correct polarity. Close the compartment securely.
- Connect Probe: Plug the sensing probe cable into the designated port on the detector unit.
- Mount Detector: Choose a suitable location for the main detector unit, such as a wall above the area prone to leaks. Use the provided adhesive sticker or screws to secure the unit.
- Position Probe: Place the sensing probe on the floor or surface where water leaks are most likely to occur. The 78-inch cable allows for flexible positioning. Use the cable fixer to manage excess cable if needed.
Image 4.1: Battery installation and visual representation of the low battery alert.
5. Operation
5.1 Alarm Activation
When the sensing probe detects water, the detector will sound an alarm for 4 seconds and then pause for 4 seconds. This cycle will continue until the water is no longer detected or the battery is depleted.
5.2 Pausing the Alarm
To temporarily pause the alarm, press the 'Set' button on the detector unit. The alarm will pause for 10 seconds. If the leak is not addressed within this time, the alarm will resume.
5.3 Volume Levels
The detector features 4 adjustable volume levels, ranging from mute (0 dB) to 100 dB. Use the volume control buttons (+/-) on the unit to adjust the alarm loudness to your preference.
5.4 Low Battery Alert
When the battery voltage drops below 2.4V, the detector will emit a "Di" sound once every minute to indicate a low battery. Replace the batteries promptly to ensure continuous protection. If the voltage drops below 1.7V, the unit will power off.
Image 5.1: Demonstration of how the sensor sounds an alarm and how to pause it.
Image 5.2: The 100dB alarm is designed to be heard throughout a typical home.
6. Maintenance
- Battery Replacement: Replace all 4 AAA batteries when the low battery alert sounds. Use new alkaline batteries for optimal performance.
- Cleaning: Periodically clean the sensing probe and the detector unit with a dry, soft cloth. Do not use abrasive cleaners or immerse the unit in water.
- Regular Testing: It is recommended to test the detector periodically by placing the probe in a small amount of water to ensure it is functioning correctly.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Alarm does not sound when water is detected. | Low or dead batteries; probe not making contact with water; unit is in mute mode. | Replace batteries; ensure probe is flat on the surface; check volume settings. |
| Alarm sounds continuously or falsely. | Probe is wet or damp; probe is in contact with conductive material. | Dry the probe thoroughly; reposition the probe away from damp or conductive surfaces. |
| Low battery alert sounds frequently. | Batteries are old or depleted. | Replace with new alkaline AAA batteries. |
8. Specifications
- Brand: Daytech
- Model Number: 1PC
- Power Source: Battery Powered (4 x AAA Alkaline Batteries, included)
- Audible Noise: Up to 100 Decibels
- Maximum Range (Cable Length): 78 Inches (6.5 feet)
- Sensor Technology: Contact Sensor (double-sided probe)
- Control Method: Touch (for pause and volume adjustment)
- Smart Home Compatibility: Not Smart Home Compatible
- Manufacturer Warranty: 1 year
9. Placement Examples
The DAYTECH Water Leak Detector can be strategically placed in various locations prone to water leaks:
Image 9.1: Near washing machines or laundry areas.
Image 9.2: Under kitchen or bathroom sinks.
Image 9.3: Adjacent to water heaters or tanks.
Image 9.4: Above sump pumps in basements.
Image 9.5: On bathroom floors near toilets or showers.
Image 9.6: General areas where leaks could cause significant damage.
10. Product Demonstration Video
Video 10.1: This video demonstrates the DAYTECH Water Leak Detector in action, showing how it detects leaks, drips, and its alarm functionality, including the pause feature and adjustable volume levels. It also highlights flexible placement options.
11. Warranty and Support
The DAYTECH 100 dB Water Leak Detector (Model 1PC) comes with a 1-year manufacturer's warranty. If you encounter any issues or have questions regarding your product, please contact Daytech customer service for assistance. Customer satisfaction is our priority.
