PYY PYYZBGH5001US

PYY Commercial 5-Tier Electric Bun Steamer Food Warmer Manual

Model: PYYZBGH5001US

1. Introduction

This manual provides detailed instructions for the safe and efficient use of your PYY Commercial 5-Tier Electric Bun Steamer Food Warmer. Please read all instructions carefully before operating the appliance. Proper installation, operation, and maintenance are crucial for optimal performance and longevity of the unit.

2. Important Safety Instructions

  • Always connect the appliance to a grounded power outlet with the correct voltage (110V-120V/60HZ).
  • Do not immerse the appliance, cord, or plug in water or other liquids.
  • Keep hands and face away from steam vents during operation to prevent burns.
  • Ensure the water tank is filled to the appropriate level before operation. The unit features an auto shut-off anti-dry function.
  • Unplug the appliance from the power outlet before cleaning or performing any maintenance.
  • Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
  • This appliance is for commercial use only.
  • Keep out of reach of children.

3. Package Contents

Verify that all items listed below are included in your package:

  • 1 x PYY Commercial 5-Tier Electric Bun Steamer Food Warmer Machine
  • 5 x Shelves
  • 10 x Shelf Clasps
  • 1 x Slag Separator Plate
Components of the PYY Commercial Bun Steamer: main unit, 5 shelves, 10 shelf clasps, and a slag separator plate.
Image: The PYY Commercial Bun Steamer and its included accessories: the main food warmer machine, five wire shelves, ten shelf clasps, and a slag separator plate. This image illustrates all parts you should find in the package.

4. Setup and Installation

Follow these steps to properly set up your PYY Commercial Bun Steamer:

  1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
  2. Positioning: Place the food warmer machine on a stable, level, and heat-resistant surface. Ensure adequate ventilation around the unit.
  3. Install Slag Separator Plate: Open the door of the steamer. Install the slag separation plate onto the bottom layer of the machine. This plate helps collect any food particles and ensures hygiene.
  4. Install Racks: Fasten the rack onto the corresponding snap positions on both sides of the food warmer machine. Ensure they are securely in place.
  5. Place Shelves: Finally, place the 5 hollow shelves on the racks in sequence, aligning them with the buckle positions and securing them.
  6. Water Tank: Locate the external water inlet. Fill the 4L water tank with clean water. Do not overfill.
  7. Power Connection: Plug the power cord into a grounded 110V-120V/60HZ electrical outlet.
Video: This video demonstrates the step-by-step installation process for the PYY Commercial Bun Steamer, including placing the slag separation plate, installing the side racks, and positioning the five shelves.
PYY Commercial Bun Steamer with 5 tiers, showing capacity for different bun sizes.
Image: The PYY Commercial Bun Steamer, illustrating its five-tier design and large capacity. It shows how different sizes of buns (7cm, 8cm, 9-10cm diameter) can be accommodated, with estimated quantities per tier.

5. Operating Instructions

This section details how to operate your PYY Bun Steamer for optimal food warming and display.

  1. Power On: Turn the ON/OFF switch to the "ON" position. The power indicator light will illuminate.
  2. Load Food: Carefully place steamed buns, dim sum, or other food items onto the shelves. Ensure even distribution for consistent warming.
  3. Set Temperature: Use the temperature control knob to set the desired warming temperature. The adjustable range is 86°F to 230°F (30°C-110°C). The heat indicator light will turn on when heating.
  4. Monitor Water Level: The 4L large-capacity water tank provides 3-5 hours of continuous steam. Regularly check the water level. The auto shut-off anti-dry function will activate if the water level becomes too low. Refill water via the external water inlet as needed.
  5. Serving: Open the double-layer tempered glass doors carefully to retrieve food. The silicone seals minimize steam leakage, maintaining food temperature and flavor.
  6. Visual Display: The top inclined glass design recirculates steam, preventing water vapor droplets from dripping onto food, ensuring an appealing visual display.
Video: This video showcases the PYY Commercial Bun Steamer in operation, demonstrating its use in various commercial settings and highlighting its features for keeping food warm and ready for display.

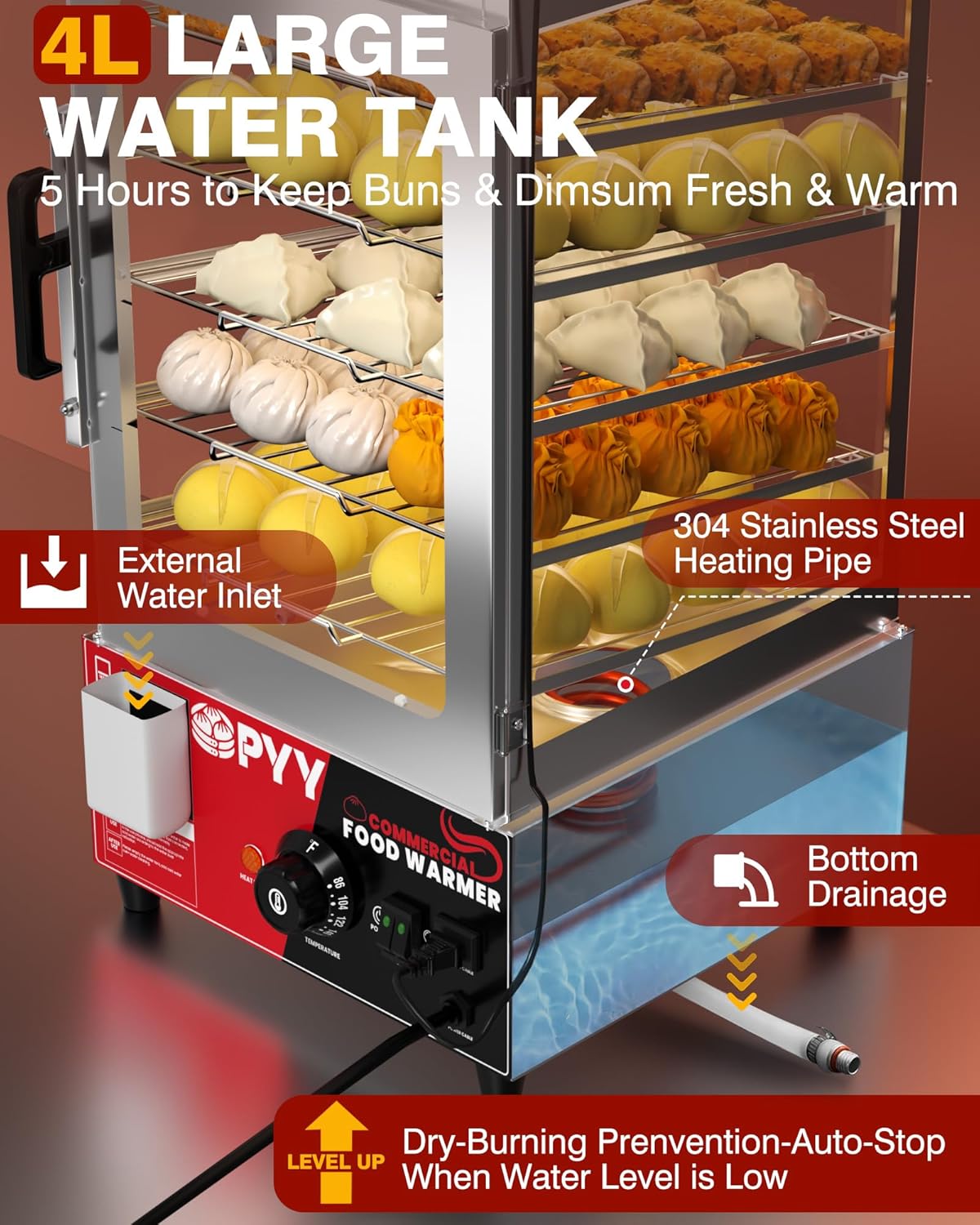

PYY Commercial Bun Steamer with large 4L water tank and external water inlet.
Image: A detailed view of the PYY Commercial Bun Steamer's base, highlighting the 4L large water tank, external water inlet, and bottom drainage system. This design ensures continuous steam and easy water management.

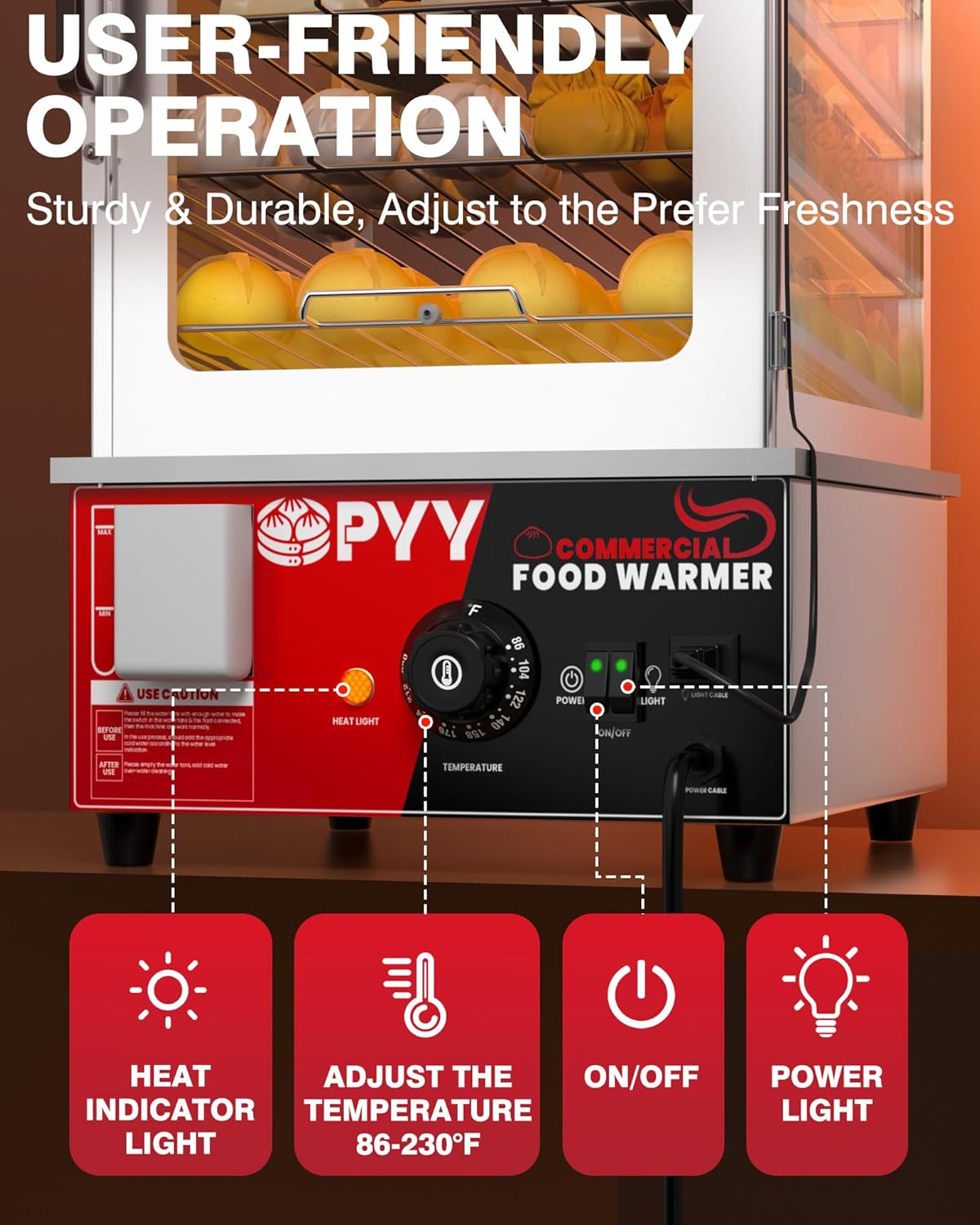

Control panel of the PYY Commercial Bun Steamer with temperature knob and indicator lights.
Image: Close-up of the user-friendly control panel on the PYY Commercial Bun Steamer. It features a temperature adjustment knob (86-230°F), a heat indicator light, an ON/OFF switch, and a power light for easy operation.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your PYY Bun Steamer.

  • Daily Cleaning: After each use, unplug the unit and allow it to cool completely. Remove the shelves and slag separator plate. Wash them with warm, soapy water and rinse thoroughly.
  • Interior Cleaning: Wipe the interior surfaces, including the tempered glass doors, with a damp cloth and mild detergent. Avoid abrasive cleaners that could scratch the surfaces.
  • Water Tank: Drain any remaining water from the tank using the bottom drainage design. Clean the water tank regularly to prevent mineral buildup. For stubborn mineral deposits, use a descaling solution as recommended by the manufacturer.
  • Exterior Cleaning: Wipe the exterior stainless steel surfaces with a soft, damp cloth.
  • Storage: Ensure the unit is completely dry before storing. Store in a clean, dry place.
PYY Commercial Bun Steamer in various commercial settings like Chinese restaurants, dim sum restaurants, food stores, and Asian supermarkets.
Image: The PYY Commercial Bun Steamer displayed in different commercial environments, including a Chinese restaurant, a dim sum restaurant, a food store, and an Asian supermarket. This illustrates its versatility and suitability for multi-catering businesses.

7. Troubleshooting

If you encounter any issues with your PYY Bun Steamer, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Unit does not power on.Not plugged in; power switch off; power outage.Ensure the power cord is securely plugged into a working outlet. Turn the ON/OFF switch to "ON". Check the circuit breaker.
No steam or insufficient steam.Water tank empty or low; heating element malfunction.Refill the water tank. Ensure the temperature is set correctly. If the problem persists, contact customer support.
Food not warming properly.Temperature set too low; door not properly closed; too much food loaded.Increase the temperature setting. Ensure the door is securely closed. Reduce the amount of food to allow for proper steam circulation.
Water leakage.Water tank overfilled; seals damaged; drainage plug loose.Do not overfill the water tank. Check the condition of the silicone seals. Ensure the bottom drainage plug is securely tightened.

If the issue is not resolved by the above steps, please contact PYY customer support for assistance.

8. Product Specifications

FeatureDetail
BrandPYY
Model NumberPYYZBGH5001US
Power1200W
Voltage110V-120V/60HZ
MaterialStainless Steel, Tempered Glass
Product Dimensions (L x W x H)15" x 15.7" x 29.5" (38 x 40 x 75 cm)
Item Weight44.5 LBS / 20.18 KG
Water Tank Capacity4 Liters
Temperature Range86°F to 230°F (30°C-110°C)
Shelves5 tiers, each 11.8" x 11.8" (30 x 30 cm)
Special FeaturesAuto shut-off anti-dry function, Double-layer tempered glass doors, Silicone seals, Top inclined glass design, External water inlet, Bottom drainage.
Detailed dimensions of the PYY Commercial Bun Steamer: 15 inches length, 15.7 inches width, 29.5 inches height.
Image: A diagram showing the precise dimensions of the PYY Commercial Bun Steamer, including its length (15 inches), width (15.7 inches), and height (29.5 inches), along with shelf dimensions.

9. Warranty and Support

PYY offers a one-year warranty for this product. For any inquiries, technical support, or warranty claims, please contact PYY customer service. Our team is available to provide one-on-one technical assistance.

Contact information can typically be found on the PYY official website or through your purchase platform.

© 2024 PYY. All rights reserved.
