Rowenta Freemove Force Cordless Steam Iron DE6720D1 User Manual

Introduction

This manual provides detailed instructions for the safe and efficient use of your Rowenta Freemove Force Cordless Steam Iron DE6720D1. Please read all instructions carefully before first use and retain for future reference. This appliance is designed for domestic use only.

Image: The Rowenta Freemove Force Cordless Steam Iron, shown resting on its charging base. The iron features a black and silver design with a comfortable handle.

Safety Instructions

• Always unplug the iron from the power outlet before filling with water, cleaning, or when not in use.
• Do not leave the iron unattended while it is switched on or connected to the mains.
• Keep the iron and its cord out of reach of children.
• Never immerse the iron, charging base, or cord in water or other liquids.
• Use the iron only for its intended purpose.
• Do not operate the iron if it has been dropped, if there are visible signs of damage, or if it is leaking.
• Ensure the voltage indicated on the rating plate matches your mains supply.

Product Components

Familiarize yourself with the parts of your Rowenta Freemove Force iron:

• Soleplate: Stainless steel, scratch-resistant for optimal glide.
• Water Tank: For steam generation.
• Temperature Control Dial: Adjusts heat for different fabric types.
• Steam Trigger/Button: Activates continuous steam or steam boost.
• Spray Nozzle: For moistening stubborn creases.
• Filling Inlet: For adding water to the tank.
• Charging Base: Provides power to heat the iron and stores it securely.
• Indicator Light: Signals heating status.

Setup

1. Unpacking: Carefully remove the iron and all accessories from the packaging. Retain packaging for transport or storage.
2. First Use Preparation: Before first use, it is recommended to iron an old piece of fabric to remove any manufacturing residues from the soleplate.
3. Filling the Water Tank:
   • Ensure the iron is unplugged and cooled.
   • Open the water tank inlet cover.
   • Fill the tank with tap water up to the 'MAX' level indicator. Do not overfill.
   • Close the inlet cover securely.
4. Placing on Charging Base: Place the iron securely on its charging base. Ensure the base is on a stable, heat-resistant surface.
5. Connecting to Power: Plug the charging base into a suitable electrical outlet. The indicator light on the base will illuminate, signaling that the iron is heating.

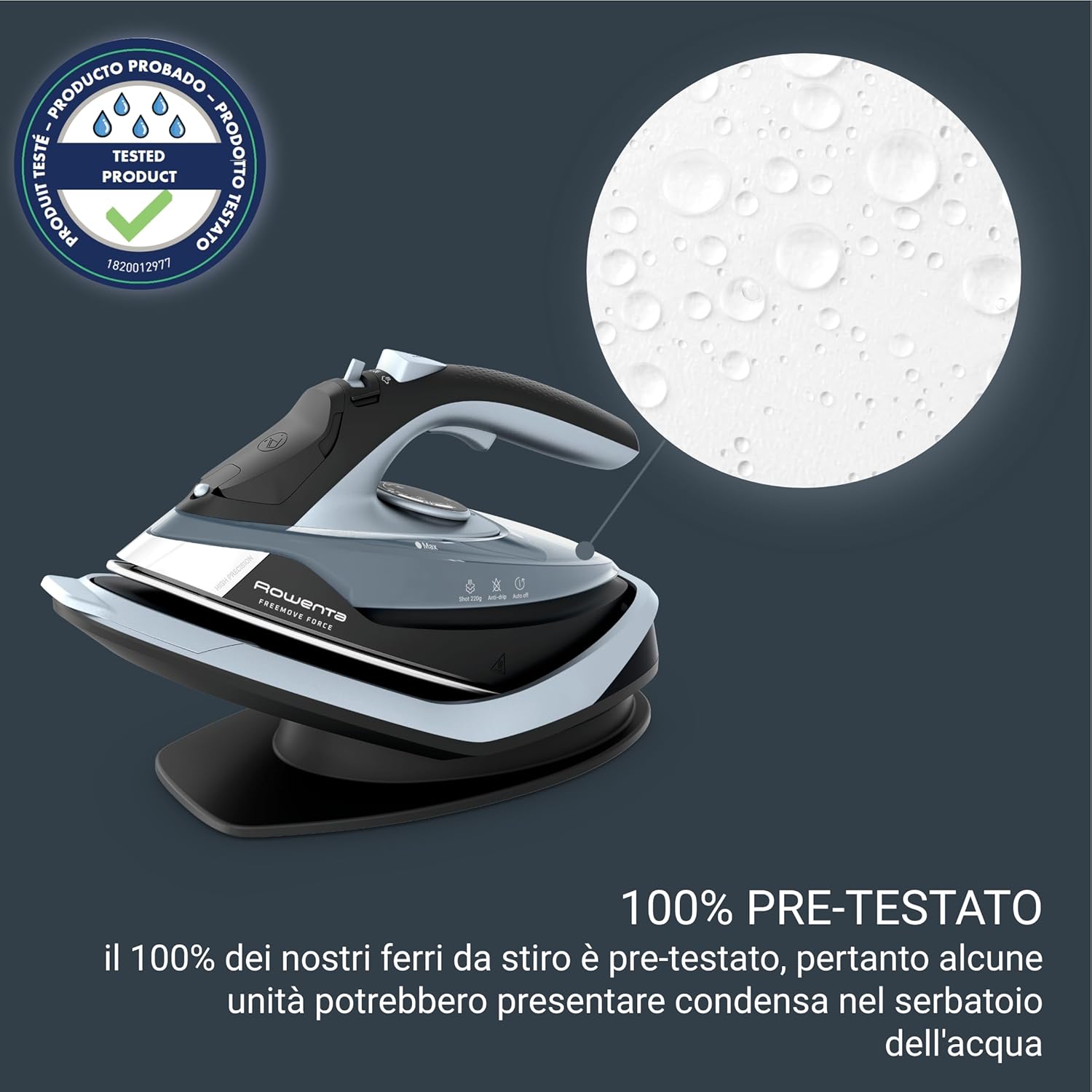

Image: The Rowenta Freemove Force iron on its charging base, illustrating the 'Tested Product' certification. This indicates that the product undergoes factory testing, which may result in residual water droplets in the tank.

Operating Instructions

1. Pre-heating: Once plugged in, the iron will begin to heat. The indicator light on the base will flash during heating and become solid when the desired temperature is reached (approximately 30 seconds).
2. Temperature Selection: Rotate the temperature control dial to select the appropriate heat setting for your fabric type. Refer to the garment care labels.
3. Cordless Operation: Lift the iron from its base. You now have full freedom of movement for ironing.
4. Steam Function:
   • Continuous Steam: Press and hold the steam trigger under the handle for a continuous steam output of up to 35 g/min.
   • Steam Boost: For stubborn creases, press the steam boost button for an extra powerful burst of steam (up to 220 g/min).
   • Vertical Steaming: The steam boost can also be used for vertical steaming of hanging garments.
5. Recharging: When you pause ironing or need to re-heat, simply place the iron back onto its charging base. The iron recharges rapidly. The indicator light will flash during recharging and become solid when ready.
6. Dry Ironing: For dry ironing, ensure the steam function is off and select the desired temperature.
7. Automatic Shut-off: For safety, the iron features an automatic shut-off function if left unattended for a period of time.

Image: A person using the Rowenta Freemove Force cordless iron on an ironing board, demonstrating the ease of movement without a power cord.

Image: The Rowenta Freemove Force iron releasing a strong jet of steam, highlighting its powerful ironing capability.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your iron.

• Cleaning the Soleplate:
  • Ensure the iron is unplugged and completely cool.
  • Wipe the soleplate with a damp cloth and a non-abrasive cleaner if necessary. Do not use metallic pads or abrasive cleaners.
• Descaling (Anti-Calc System): Your iron is equipped with an anti-calc system. However, regular descaling is recommended, especially in hard water areas.
  • Refer to the specific descaling instructions provided in the full product manual for your region.
  • Generally, this involves filling the tank with a descaling solution (or water and vinegar, if recommended by Rowenta), heating the iron, and then flushing it out.
• Emptying the Water Tank: After each use, empty any remaining water from the tank to prevent mineral buildup.
• Storage: Store the iron on its charging base in an upright position in a dry, safe place, out of reach of children.

Image: A detailed view of the iron's soleplate, showing the pattern of steam holes designed for optimal steam distribution.

Troubleshooting

Specifications

• Model: DE6720D1
• Brand: Rowenta
• Power: 2500 W
• Continuous Steam Output: Up to 35 g/min
• Steam Boost: Up to 220 g/min
• Heat-up Time: Approximately 30 seconds
• Soleplate Material: Stainless Steel
• Item Weight: 1.74 kg
• Dimensions (approx.): 34.7 x 25 x 19.6 cm (Package dimensions, actual iron dimensions may vary slightly)
• Color: Black & Silver
• Model Year: 2021

Image: A diagram illustrating the approximate dimensions of the Rowenta Freemove Force iron, showing its length, width, and height.

Warranty and Support

Rowenta is committed to product quality and environmental responsibility.

• 15-Year Reparability: This product is designed for easy repair for 15 years from the date of purchase. Low-cost spare parts are available through our network of 6200 repair centers worldwide. This initiative supports environmental protection and waste reduction.
• Customer Support: For further assistance, troubleshooting not covered in this manual, or warranty claims, please contact Rowenta customer service or visit the official Rowenta website.
