Midea MER30S2AST 30 Electric Range User Manual

1. Introduction

This user manual provides important information for the safe and efficient operation of your Midea MER30S2AST 30 Electric Range. Please read this manual thoroughly before using the appliance and keep it for future reference. This electric range features a steam clean function, a seamless design, a flexible 4-element cooktop, and a convenient storage drawer.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, injury to persons, or damage when using the appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Ensure proper installation and grounding by a qualified installer.
• Do not leave children alone or unattended in an area where the appliance is in use.
• Do not store flammable materials in or near the range.
• Always use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam.
• Do not heat unopened food containers. Pressure build-up may cause the container to burst.
• Do not use water on grease fires. Smother fire or flame or use dry chemical or foam-type extinguisher.
• Do not touch heating elements or interior surfaces of the oven. These surfaces may be hot enough to burn even though they are dark in color.
• Clean the range regularly to prevent grease buildup.

Electrical Safety

This appliance requires a dedicated 240V electrical supply. Ensure the electrical installation meets all local codes and ordinances. Do not use extension cords with this appliance.

3. Setup and Installation

The Midea MER30S2AST is a freestanding electric range. Proper placement and electrical connection are crucial for safe and optimal performance.

Unpacking

Carefully remove all packaging materials, tape, and protective film from the range. Retain packaging for potential future transport or service.

Placement

Ensure the installation area has sufficient space. The product dimensions are approximately 47 inches (height) x 31 inches (width) x 34 inches (depth). The appliance weighs approximately 177 pounds, so ensure the floor can support this weight. Maintain proper clearances from combustible materials as per local building codes.

Figure 3.1: Angled view of the Midea MER30S2AST electric range, showing the side profile and control panel.

Electrical Connection

Connect the range to a properly grounded electrical outlet with a voltage of 120/240V. Consult a qualified electrician for installation to ensure compliance with all electrical codes.

4. Operating Instructions

Your Midea electric range is designed for ease of use with its touch control console and versatile cooking features.

Control Panel Overview

The range features a touch control console located at the front. This panel allows you to set oven functions, temperatures, and timer settings. The cooktop controls are managed by rotary knobs.

Figure 4.1: Front view of the Midea MER30S2AST electric range, highlighting the control panel and oven door.

Cooktop Operation

The flexible 4-element cooktop provides various heating zones for different pot and pan sizes. Each element is controlled by a dedicated rotary knob. Turn the knob to the desired heat setting (Low, Medium, High) for cooking.

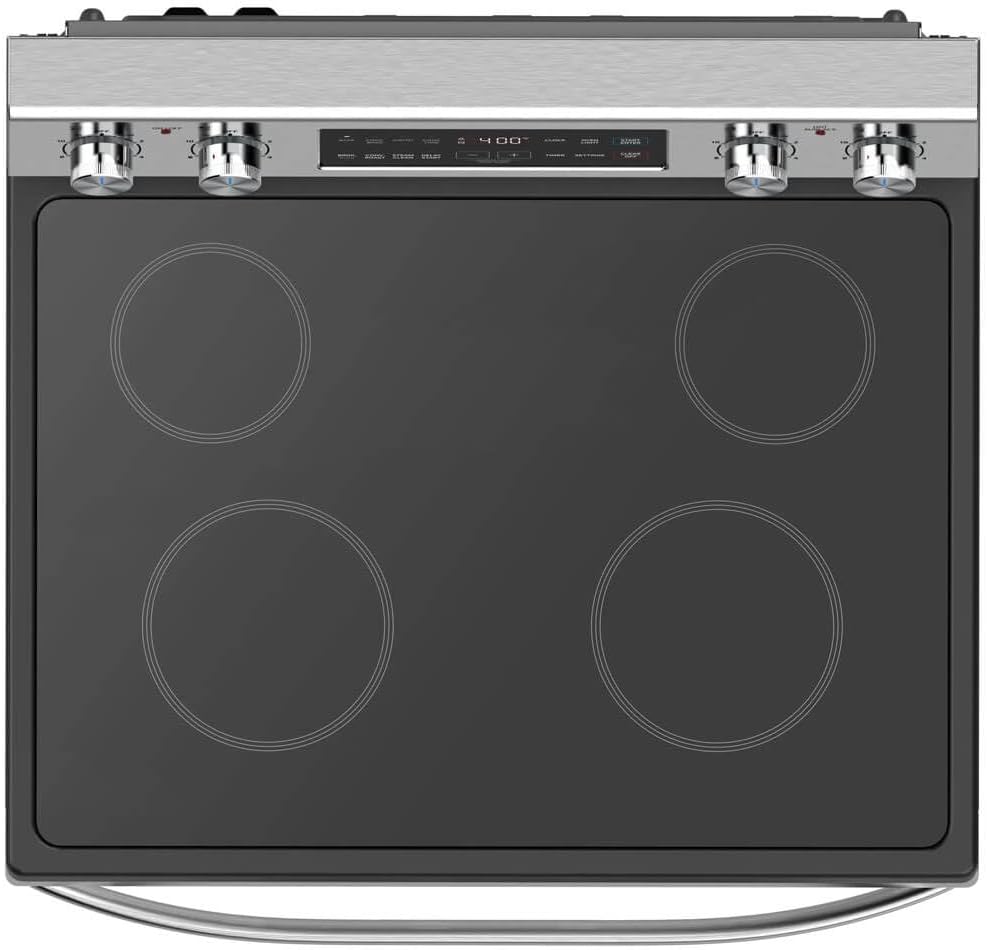

Figure 4.2: Top-down view of the Midea MER30S2AST electric range cooktop, showing the four heating elements.

Oven Operation

The oven features two racks for versatile cooking. Use the touch control console to select baking, broiling, or other oven functions. Set the desired temperature and cooking time using the touch interface.

Storage Drawer

A convenient storage drawer is located at the bottom of the range. This drawer can be used to store bakeware, pots, or pans, helping to keep your kitchen organized.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your electric range.

Steam Clean Function

The steam clean feature simplifies oven cleaning. To use:

1. Remove all racks and large food debris from the oven.
2. Pour approximately 1 cup of distilled water into the bottom of the oven.
3. Close the oven door and select the "Steam Clean" function on the control panel.
4. Allow the cycle to complete. Once finished, wipe away softened residue with a damp cloth.

Cooktop Cleaning

For daily cleaning, wipe the ceramic glass cooktop with a damp cloth and mild detergent. For stubborn stains, use a ceramic cooktop cleaner and a non-abrasive pad. Avoid abrasive cleaners or scouring pads that can scratch the surface.

Exterior Cleaning

Clean exterior surfaces with a soft cloth and mild soapy water. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.

6. Troubleshooting

Before calling for service, review the following common issues and their solutions. If the problem persists, contact customer support.

• Range not turning on: Check if the range is properly plugged into the electrical outlet. Verify the circuit breaker has not tripped.
• Oven not heating: Ensure the oven function and temperature are correctly set. Allow sufficient preheating time.
• Cooktop element not heating: Confirm the control knob is turned to an active heat setting. Check for any error codes on the display.
• Steam Clean not effective: Ensure the oven was relatively clean before starting the cycle and that the correct amount of water was used.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Midea website. You may also contact customer support directly for assistance with your Midea MER30S2AST electric range.

Customer Support: For assistance, please refer to the contact information provided in your product packaging or visit the Midea support portal.
