Bosch Professional VDE Screwdriver SL/PH2x125 Instruction Manual

1. Introduction

Welcome to the instruction manual for your Bosch Professional VDE Screwdriver SL/PH2x125. This tool is engineered for safe and precise work on electrical installations, certified up to 1000 volts. Please read this manual thoroughly before using the screwdriver to ensure safe operation and optimal performance.

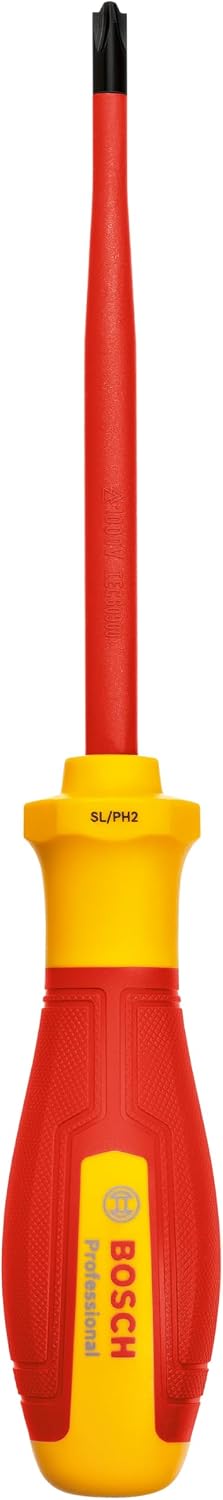

Figure 1: Bosch Professional VDE Screwdriver SL/PH2x125. This image shows the complete screwdriver, highlighting its insulated handle and shaft, designed for electrical safety.

2. Important Safety Information

Your Bosch Professional VDE Screwdriver is designed for safety when working with electrical components. Adherence to these safety guidelines is crucial to prevent injury and damage.

• VDE Certification: This screwdriver is tested up to 10,000 volts and VDE certified up to 1,000 volts according to DIN EN/IEC 60900. Always verify the VDE marking before use.
• Inspection Before Use: Before each use, visually inspect the screwdriver for any signs of damage to the insulation, such as cracks, cuts, or abrasions. Do not use a damaged screwdriver.
• Proper Application: Use this tool only for its intended purpose, which is working on electrical installations within the specified voltage limits.
• Personal Protective Equipment: Always wear appropriate personal protective equipment (PPE), such as insulated gloves and eye protection, when working with electricity.
• Working on Live Circuits: Only qualified personnel should work on live electrical circuits. Ensure power is disconnected whenever possible.
• Storage: Store the screwdriver in a clean, dry place, protected from extreme temperatures and direct sunlight, to preserve the integrity of the insulation.

Figure 2: DIN EN/IEC 60900 Certification. This logo indicates that the screwdriver meets international standards for working safely with live electrical components up to 1000V.

3. Product Overview

The Bosch Professional VDE Screwdriver SL/PH2x125 combines safety, precision, and durability for professional use. Key features include:

• Insulated Handle: The handle is insulated with Thermoplastic Elastomer (TPE) for a secure grip and electrical protection.
• Slim Shaft: The S2 blade features a slim shaft with an insulating protective coating, allowing access to recessed screws and terminals.
• Robust Tip: The precise and robust tip ensures efficient power transfer and prevents cam-out.
• Ergonomic Design: The soft handle and superior ergonomic design protect the hand and ensure comfortable working during prolonged use.

Figure 3: Screwdriver Handle and Tip Detail. This image provides a closer look at the ergonomic handle and the insulated shaft, highlighting the SL/PH2 tip marking.

Figure 4: Screwdriver Dimensions. This image illustrates the overall length (245 mm) and handle width (39 mm) of the screwdriver, providing a clear understanding of its physical size.

4. Setup and Preparation

Before using your VDE screwdriver, perform the following steps:

1. Unpack: Carefully remove the screwdriver from its packaging.
2. Initial Inspection: Conduct a thorough visual inspection of the entire screwdriver, paying close attention to the red and yellow insulation. Ensure there are no cracks, nicks, or other damage that could compromise its insulating properties.
3. Familiarization: Identify the SL/PH2 tip type to ensure it matches the fastener you intend to work with.

5. Operating Instructions

Follow these guidelines for effective and safe operation of your VDE screwdriver:

• Select Correct Tip: Always use the correct screwdriver tip (SL/PH2) that precisely fits the screw head to prevent damage to the screw and the tool.
• Apply Firm Pressure: When turning, apply firm, steady pressure to the screwdriver to keep the tip engaged with the screw head, reducing the risk of slipping.
• Maintain Grip: Utilize the ergonomic handle for a comfortable and secure grip, especially when applying torque.
• Work within Limits: Remember the VDE certification for 1000V. Do not exceed this voltage rating.
• Avoid Prying: Do not use the screwdriver as a pry bar or chisel, as this can damage the tip and insulation.

6. Maintenance and Care

Proper maintenance ensures the longevity and continued safety of your VDE screwdriver:

• Cleaning: After each use, wipe the screwdriver clean with a damp cloth to remove dirt, grease, or other contaminants. Do not use harsh chemicals or abrasive cleaners that could damage the insulation.
• Storage: Store the screwdriver in a dry, clean environment, away from direct sunlight and extreme temperatures. Protect the tip from impact.
• Regular Inspection: Periodically inspect the insulation for any signs of wear, damage, or degradation. If any damage is found, the screwdriver must be replaced immediately.

7. Troubleshooting

While the Bosch Professional VDE Screwdriver is a simple and robust tool, here are some common considerations:

• Screwdriver Tip Damage: If the tip becomes worn or damaged, it may slip from screw heads. Replace the screwdriver if the tip is no longer effective.
• Insulation Damage: Any damage to the insulation (cracks, cuts, punctures) renders the screwdriver unsafe for electrical work. Immediately discontinue use and replace the tool.
• Difficulty Turning Screws: Ensure you are using the correct size and type of screwdriver for the screw. Applying lubricant to the screw threads (if appropriate for the application) can sometimes help.

8. Technical Specifications

9. Warranty and Customer Support

Bosch Professional products are manufactured to the highest quality standards. For information regarding warranty terms, service, or technical support, please refer to the official Bosch Professional website or contact your local Bosch Professional service center.

Please retain your proof of purchase for any warranty claims.
