DLHVFOKK 686ZZ Small Size Chrome Steel Ball Bearings Instruction Manual

1. Product Overview

The DLHVFOKK 686ZZ small size chrome steel ball bearings are designed for applications requiring radial load support and smooth rotational motion. These bearings feature a single-row construction with shields (ZZ) to protect against contaminants and retain lubricant. They are manufactured from 52100 chrome steel for durability and performance.

Common applications include household appliances, garden machinery, outdoor vehicles, industrial production, skateboards, longboards, inline skates, scooters, robots, and ship rudder axles. Their design ensures low friction, fast speed, smooth operation, and low noise.

Figure 1: A set of DLHVFOKK 686ZZ small size chrome steel ball bearings.

2. Technical Specifications

The following table details the technical specifications for the 686ZZ bearings:

Figure 2: Individual bearing weight measurement.

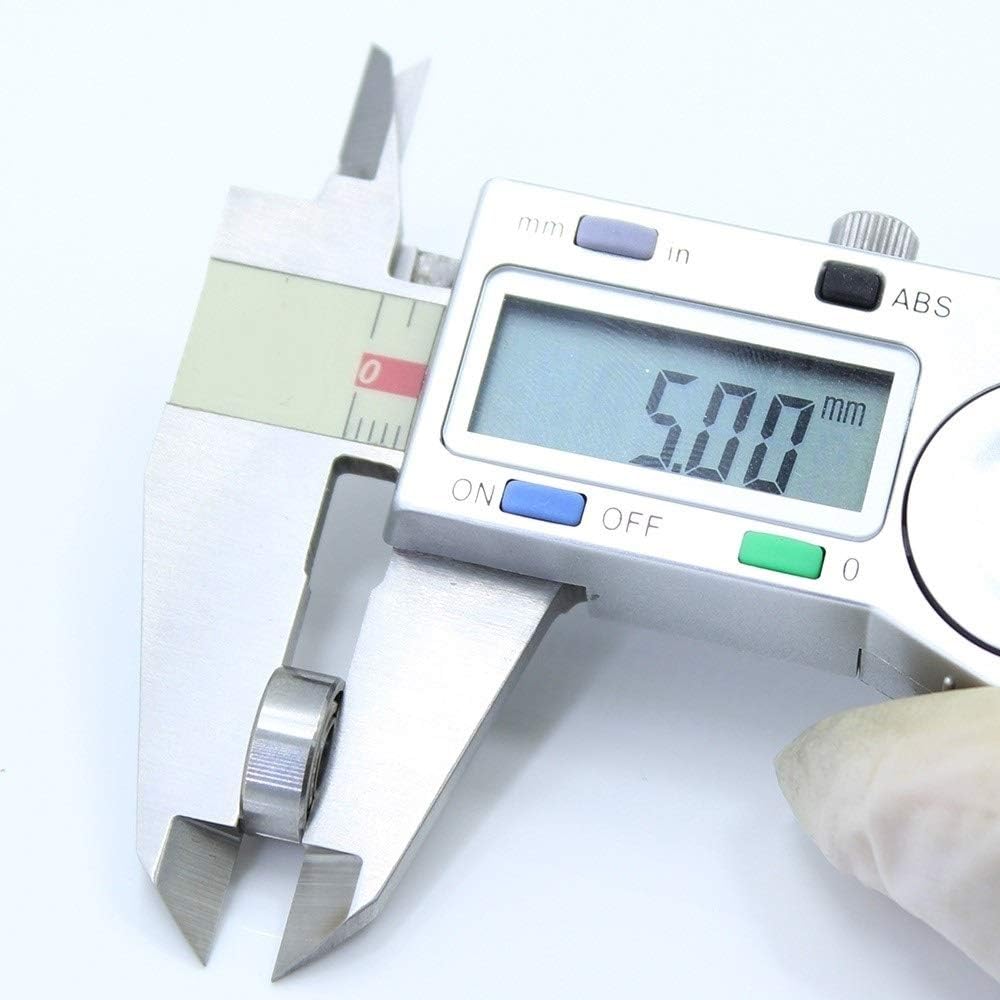

Figure 3: Bearing width measurement (5 mm).

Figure 4: Bearing outer diameter measurement (13 mm).

Figure 5: Bearing bore diameter measurement (6 mm).

3. Installation Guidelines

Proper installation is crucial for the longevity and performance of your 686ZZ bearings. These bearings are designed for a press fit onto a shaft.

1. Preparation: Ensure the shaft and housing bores are clean, free from burrs, and within specified tolerances.
2. Lubrication: Although the bearings are shielded (ZZ) and typically pre-lubricated, a thin film of appropriate lubricant on the shaft and housing surfaces can aid installation and prevent damage.
3. Press Fit:
   • Use a bearing press or a soft-faced hammer with a suitable installation tool (e.g., a bearing driver or a pipe of appropriate diameter) that applies force evenly to the inner ring when mounting on a shaft, or to the outer ring when mounting into a housing.
   • Never strike the outer ring when pressing onto a shaft, or the inner ring when pressing into a housing, as this can damage the bearing.
   • Apply steady, even pressure. Avoid tilting the bearing during installation.
4. Inspection: After installation, manually rotate the shaft or housing to ensure smooth, free rotation without binding or excessive play.

For applications requiring high precision or heavy loads, consider consulting a professional for installation.

4. Operating Principles

The 686ZZ ball bearings are designed to reduce friction between moving parts, allowing for smooth and efficient rotation. The chrome steel construction and shielded design contribute to their durability and performance in various environments.

• Load Capacity: These bearings are primarily designed for radial loads. While they can handle some axial load, it is generally recommended to keep axial forces minimal to maximize bearing life.
• Speed: The P0 (ABEC-1) grade indicates suitability for general-purpose applications. Operating within the specified temperature range (-20° to 120 °C) and ensuring proper lubrication will help maintain optimal speed capabilities.
• Noise and Vibration: Properly installed and lubricated bearings should operate with low noise and minimal vibration. Increased noise or vibration can indicate an issue requiring attention.

5. Maintenance

Regular maintenance helps extend the lifespan and ensure optimal performance of your 686ZZ bearings.

• Lubrication: The ZZ shields help retain factory grease and protect against dust. For demanding applications or after extended use, re-lubrication may be necessary. Use a high-quality bearing grease compatible with chrome steel. Consult the equipment manufacturer's guidelines for specific lubrication intervals and types.
• Cleaning: If bearings are exposed to excessive dirt or contaminants, they may need cleaning. This typically involves removing the bearing, carefully removing the shields (if designed for it, though ZZ shields are generally non-removable without damage), flushing with a suitable solvent, and then re-lubricating before reinstallation. Exercise caution to avoid damaging the shields or internal components.
• Inspection: Periodically inspect bearings for signs of wear, corrosion, excessive play, or unusual noise/vibration during operation. Replace bearings that show significant signs of wear or damage.
• Storage: Store spare bearings in a clean, dry environment, ideally in their original packaging, to prevent contamination and corrosion.

6. Troubleshooting Common Issues

If you encounter issues with your 686ZZ bearings, consider the following common problems and solutions:

7. Warranty and Support

DLHVFOKK products are manufactured to high standards. For specific warranty information or technical support regarding your 686ZZ bearings, please refer to the product packaging or contact DLHVFOKK customer service directly through their official channels. Please have your purchase details and product model number (686ZZ) available when contacting support.
