1. Introduction and Overview
The ERAYAK 2000W Power Inverter converts 12V DC battery power into 110V/120V AC household electricity, providing a reliable power source for various applications. This device is designed for off-grid and mobile use, suitable for RVs, trucks, solar systems, and home backup power. It features high-frequency conversion technology, multiple output ports, and comprehensive safety protections to ensure efficient and secure operation.
2. Safety Instructions
Always read and understand all safety instructions before operating the inverter. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Proper Ventilation: Ensure adequate ventilation around the inverter to prevent overheating. Do not block the cooling fan or vents.
- Dry Environment: Operate the inverter in a dry environment. Avoid exposure to rain, moisture, or liquids.
- Correct Voltage: Connect the inverter only to a 12V DC power source. Connecting to other voltages may damage the unit and connected devices.
- Load Capacity: Do not exceed the inverter's continuous power rating (2000W) or surge capacity (4000W). Overloading can cause damage or trigger safety shutdowns.
- Polarity: Ensure correct polarity when connecting to the battery (red to positive, black to negative). Reverse polarity can cause severe damage.
- Fuse Protection: The inverter includes built-in fuses for protection against overcurrent. Use only the specified fuse type and rating for replacement.
- Children and Pets: Keep the inverter out of reach of children and pets.
- Flammable Materials: Do not operate the inverter near flammable liquids, gases, or other combustible materials.
The inverter features 7-Intelligent Safety Protections including under-voltage, over-voltage, overload, over-temperature, short circuit, and reverse polarity via fuse. It also has Advanced Protection with Auto Reset, automatically shutting down if voltage is below 9.5V or above 15.5V, and restarting when conditions normalize. A manual reset is also available via the power button.
3. Package Contents
Verify that all items listed below are included in your package:
- 1 x ERAYAK 2000W Power Inverter
- 1 x Pair of Terminal Cables (Red for Positive, Black for Negative)
- 1 x 3m Wired Remote Switch
- 1 x User Manual
- Mounting brackets
- Fuses (6x40A)
Image: Contents of the Erayak 2000W Power Inverter package, including the inverter unit, terminal cables, remote switch, and fuses.
4. Product Features
The ERAYAK 2000W Power Inverter is engineered with advanced features for optimal performance and user convenience:
- High Power Output: Delivers 2000W continuous power and 4000W surge capacity, converting 12V DC to 115V AC.
- Modified Sine Wave: Features high-frequency conversion technology for smooth operation of various appliances.
- Multiple Output Ports: Equipped with 2 U.S. standard 110V AC outlets, 1 USB-A, and 1 USB-C (shared 3.1A) for versatile charging.
- Smart LCD Display: Integrated screen shows real-time battery voltage, AC output wattage, and fault warnings.
- Wired Remote Control: A 3-meter wired remote switch allows convenient power control from a distance.
- Intelligent Cooling Fan: Temperature-controlled fan activates automatically to maintain safe operating conditions and minimize noise.
- Compact Design: Measuring 8.0×11.6×2.9 inches, it offers significant power in a space-saving form factor.
Image: The Erayak 2000W Power Inverter highlighting its high-quality modified sine wave output for smooth appliance operation.

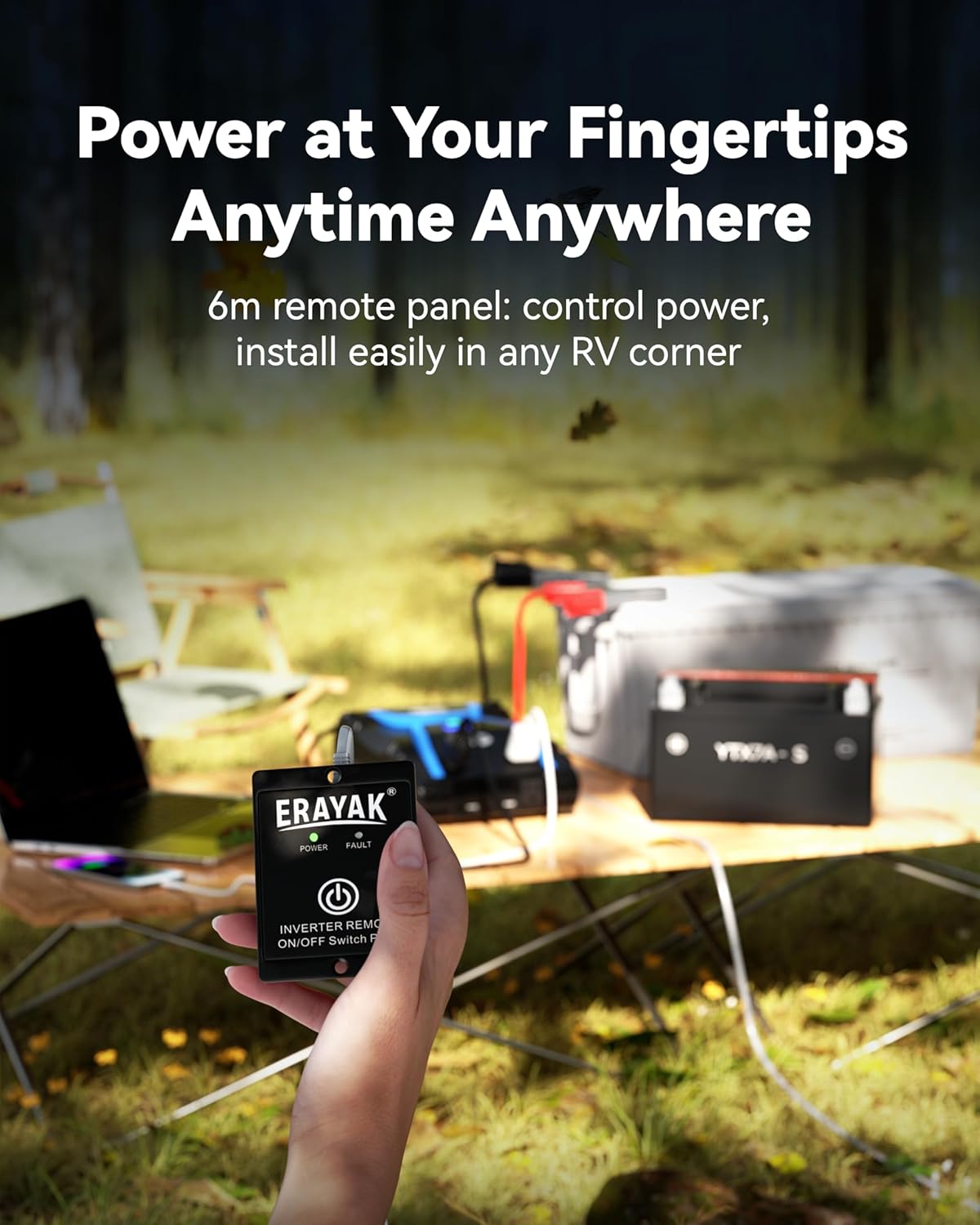

Image: The Erayak 2000W Power Inverter with its wired remote control, allowing convenient power management.
Image: A detailed diagram of the Erayak 2000W Power Inverter's ports, including AC outlets, USB-A, USB-C, and battery terminals.
5. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your ERAYAK Power Inverter. Follow these steps carefully:
- Choose a Location: Select a cool, dry, and well-ventilated area for mounting the inverter. Ensure it is away from direct sunlight, heat sources, and flammable materials. Use the provided mounting brackets if securing the unit.
- Prepare the Battery: Ensure your 12V DC battery is fully charged and in good condition. Turn off any loads connected to the battery.
- Connect Terminal Cables:
- Connect the RED terminal cable to the POSITIVE (+) terminal of the inverter.
- Connect the BLACK terminal cable to the NEGATIVE (-) terminal of the inverter.
- Connect the other end of the RED cable to the POSITIVE (+) terminal of your 12V battery.
- Connect the other end of the BLACK cable to the NEGATIVE (-) terminal of your 12V battery.
- Ensure all connections are tight and secure to prevent arcing or overheating.
- Install Remote Switch (Optional): Plug the 3-meter wired remote switch into the designated port on the inverter. This allows you to turn the inverter on/off from a convenient location.
- Initial Power-Up: After all connections are secure, press and hold the power button on the inverter or the remote switch to turn on the unit. The LCD display should illuminate, showing battery voltage.
Image: The Erayak 2000W Power Inverter connected to a 12V battery using the provided terminal cables, ready for operation.
6. Operating Instructions
Once the inverter is properly installed and powered on, you can begin connecting your devices:
- Power On/Off: Press and hold the main power button on the inverter or the remote switch for a few seconds until the LCD screen activates/deactivates.
- Monitor LCD Display: The LCD screen provides real-time information:
- Battery Voltage: Displays the current voltage of your 12V DC battery.
- AC Output Wattage: Shows the power consumption of connected AC devices.
- Fault Warnings: Indicates any protection triggers (e.g., overload, low voltage).
- Connect AC Devices: Plug your 110V/120V AC appliances into the two standard AC outlets on the inverter. Ensure the total wattage does not exceed 2000W.
- Connect USB Devices: Use the USB-A and USB-C ports to charge compatible devices like phones, tablets, and laptops. The USB-A and USB-C ports share a 3.1A output.
- Overload Protection: If an overload occurs, the inverter will automatically shut down. Disconnect the overloaded device, wait a few moments, and then restart the inverter.
Image: The Erayak 2000W Power Inverter in use, demonstrating its ability to power a laptop and other devices with ultra-low no-load power consumption.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your inverter:
- Keep Clean: Periodically clean the exterior of the inverter with a dry cloth. Ensure the cooling fan and vents are free from dust and debris.
- Check Connections: Regularly inspect all battery and output connections for tightness and corrosion.
- Fuse Replacement: The inverter features a user-replaceable fuse system. If a fuse blows, replace it with a fuse of the same type and rating (6x40A). Refer to the diagram for fuse locations.
- Storage: When not in use for extended periods, disconnect the inverter from the battery and store it in a cool, dry place.
Image: Close-up view of the Erayak 2000W Power Inverter's user-replaceable fuse system, showing the location of the fuses.
8. Troubleshooting
If you encounter issues with your ERAYAK Power Inverter, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power Output | Loose battery connections, low battery voltage, blown fuse, inverter off. | Check and tighten all connections. Recharge or replace battery. Check and replace fuses. Ensure inverter is powered on. |
| Overload Warning | Connected device(s) exceed 2000W continuous or 4000W surge. | Disconnect high-power devices. Reduce total load. Restart inverter. |
| Low Voltage Shutdown | Battery voltage dropped below 9.5V. | Recharge the 12V battery. Disconnect loads to prevent further discharge. |
| Over Voltage Shutdown | Battery voltage exceeded 15.5V. | Check battery charging system. Disconnect inverter from overcharging source. |
| Over-Temperature Warning | Inverter is overheating due to poor ventilation or excessive load. | Ensure clear airflow around the inverter. Reduce load. Allow to cool down. |
Image: Visual representation of the Erayak 2000W Power Inverter's comprehensive safety features, including over-temperature, overload, short circuit, and voltage protections.
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | 2000W |
| Continuous Power | 2000W |
| Surge Power | 4000W |
| Input Voltage | 12V DC |
| Output Voltage | 110V-120V AC |
| Output Waveform | Modified Sine Wave |
| AC Outlets | 2 x US Standard 110V AC |
| USB-A Ports | 1 (shared 3.1A with Type-C) |
| USB-C Ports | 1 (shared 3.1A with USB-A) |
| Product Dimensions | 11.6 x 8 x 2.9 inches |
| Item Weight | 7.54 pounds |
| Power Source | Battery Powered |
10. Warranty and Support
The ERAYAK 2000W Power Inverter is backed by ERAYAK’s responsive U.S.-based customer support. For any questions, technical assistance, or warranty claims, please contact ERAYAK customer service via phone or email. Contact information can be found on the product packaging or the official ERAYAK website.
