TECWARE Spectre 96% RGB Mechanical Gaming Keyboard User Manual

Introduction

Welcome to the TECWARE Spectre 96% RGB Mechanical Gaming Keyboard user manual. This guide provides detailed instructions on setting up, operating, maintaining, and troubleshooting your new keyboard. The Spectre 96% is designed to enhance your gaming and typing experience with its advanced features and customizable options.

A top-down view of the TECWARE Spectre 96% RGB Mechanical Gaming Keyboard, showcasing its full layout with vibrant RGB backlighting.

Setup

Package Contents

• 1 x TECWARE Spectre 96% RGB Mechanical Gaming Keyboard
• 1 x Braided 1.8m USB Cable
• 1 x Switch & Keycap Remover Tool
• 1 x Spacebar Silencer Pad
• 1 x Spare LCD Screen Protector
• 4 x Spare Switches
• Quick User Guide

Connectivity Modes

The TECWARE Spectre 96% keyboard offers versatile connectivity options:

• 2.4GHz Wireless: For a stable and fast wireless connection.
• Bluetooth 5.0: For convenient wireless pairing with multiple devices.
• USB-C: For a reliable wired connection and charging.

An illustration showing the keyboard's three connectivity modes: 2.4GHz Wireless, Bluetooth 5.0, and USB-C, along with its 4000mAh battery.

Connecting via 2.4GHz Wireless

1. Move the switch on the keyboard to the '2.4G' position.
2. Insert the included USB dongle into an available USB port on your computer.
3. The keyboard should pair automatically.

Connecting via Bluetooth 5.0

1. Move the switch on the keyboard to the 'BT' position.
2. Press FN + 1, 2, or 3 to switch between paired Bluetooth devices.
3. Press and hold FN + 1, 2, or 3 for 3 seconds to initiate pairing. The LCD screen will indicate 'Pairing'.
4. On your computer or mobile device, search for Bluetooth devices and select 'TECWARE Spectre' to connect.

Connecting via USB-C (Wired Mode)

1. Move the switch on the keyboard to the 'USB' position.
2. Connect the included USB-C cable from the keyboard to your computer.
3. The keyboard will function as a wired device and charge simultaneously.

Adjustable Keyboard Feet

The keyboard features two-step adjustable feet on the underside, allowing you to customize the typing angle for optimal comfort and ergonomics.

Operating Your Keyboard

Customizable LCD Screen

The 1.14-inch TFT-LCD smart screen allows for personalization and quick access to information:

• Display Time and Date
• Show Connection Modes
• Monitor System Info (CPU/GPU usage)
• Upload Custom Images/GIFs

The 1.14-inch TFT-LCD smart screen on the keyboard, capable of displaying GIFs, time, date, and system information like CPU/GPU usage.

Multi-Function Knob

The dedicated knob on the top right of the keyboard serves multiple purposes:

• Volume Control: Rotate to adjust volume. Press to mute/unmute.
• LCD Menu Navigation: Press and hold FN + Knob for 3 seconds to switch between LCD and Volume mode. In LCD mode, rotate to navigate menus and press to confirm selections.

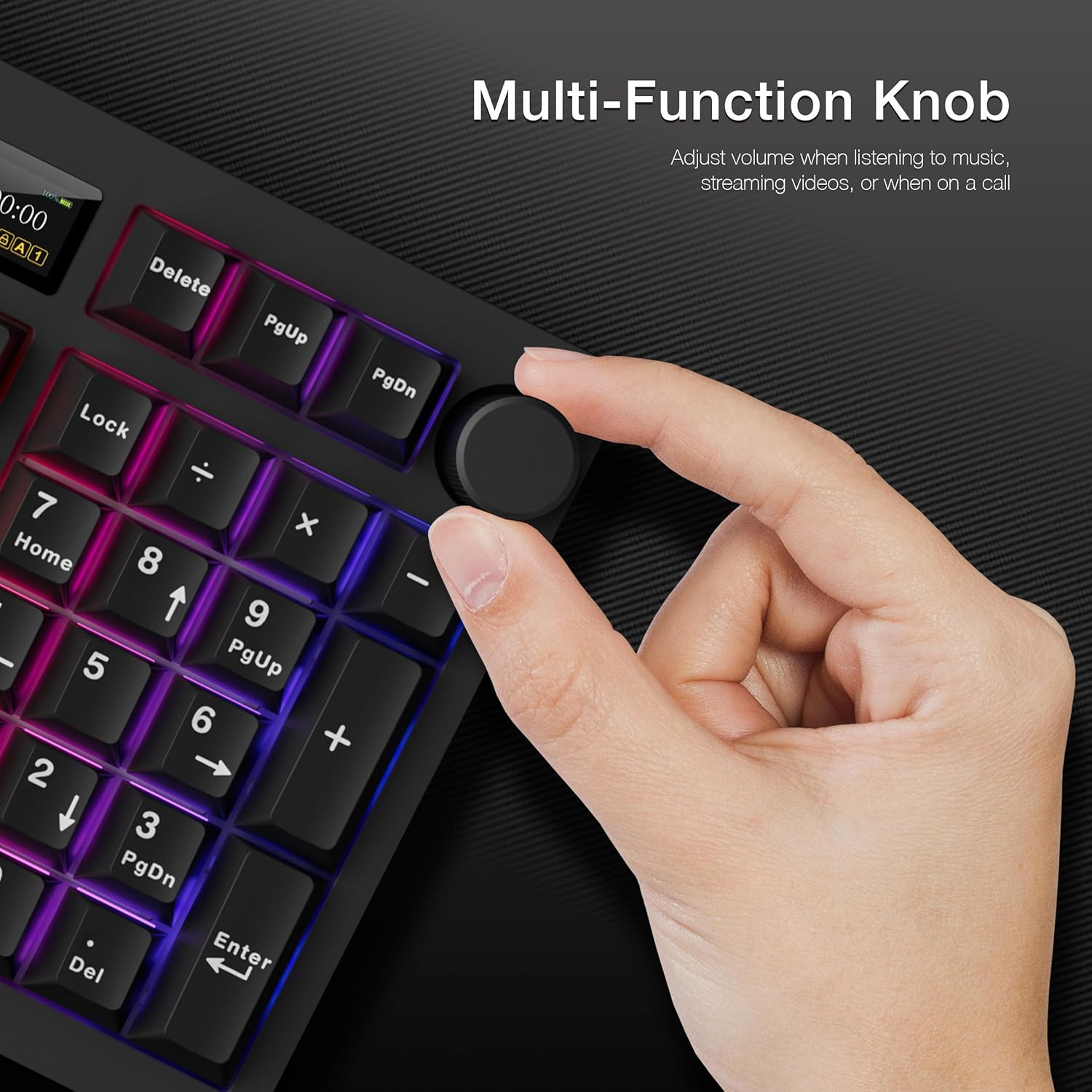

A hand adjusting the multi-function knob located on the top right of the keyboard, used for volume control and LCD screen navigation.

RGB Illumination

The keyboard features 16.8 million RGB colors with per-key customization and a stunning RGB LED side underglow. There are 19 pre-set lighting modes available.

The keyboard illuminated with vibrant RGB lighting, featuring customizable per-key RGB and a 3-zone RGB underglow.

Adjusting RGB Lighting

• Use the multi-function knob in LCD mode to navigate to 'Effect' and 'Colour' settings to change lighting modes and colors directly on the keyboard.
• Adjust brightness and speed through the LCD menu.

Dedicated Software Support

For advanced customization, download the dedicated software from the official TECWARE website. The software allows for:

• Macro Recording and Assignment
• Custom User Profiles
• Detailed RGB Lighting Control (Static, Reactive, Breathing, etc.)
• Uploading Custom GIFs to the LCD Screen

The keyboard shown alongside its dedicated software, which allows for macro recording, macro assignment, and custom user profiles.

Maintenance

Hot-Swappable Sockets

The Spectre 96% features 5-pin universal hot-swappable sockets, allowing for easy replacement of switches without soldering. This ensures compatibility with most aftermarket switches.

Detail view of the keyboard's hot-swappable 5-pin universal sockets and south-facing LEDs, supporting 3-pin and 5-pin switches.

Replacing Switches

This video provides instructions on replacing the keyboard switches. It covers removing the keycap using a puller tool, detaching the switch by latching the prongs and pulling vertically, and then installing a new switch by aligning the pins and pushing it down firmly.

Installing the Spacebar Silencer Pad

A spacebar silencer pad is included to reduce typing noise, especially for the spacebar key.

This video guides users through the process of installing the spacebar silencer pad, demonstrating how to remove the spacebar keycap, apply the silencer pad to the stabilizer, and reattach the keycap to reduce typing noise.

Replacing the LCD Screen Protector

A spare LCD screen protector is provided to keep your screen free from scratches and scuffs.

A step-by-step video demonstrating how to replace the LCD screen protector. It shows how to remove the top case, carefully detach the old protector, apply the new one, and reassemble the keyboard, ensuring the connectivity switch is aligned.

Troubleshooting

Common Issues and Solutions

• Keyboard not responding: Ensure the correct connectivity mode (2.4G, BT, USB) is selected via the toggle switch. Check battery level. For wired mode, ensure the USB-C cable is securely connected.
• Wireless connection issues: Ensure the USB dongle is properly inserted for 2.4GHz. For Bluetooth, ensure the keyboard is in pairing mode and visible to your device. Try re-pairing if issues persist.
• LCD screen not displaying correctly: Check the keyboard's battery level. If using CPU/GPU monitoring, ensure the dedicated software is running on your computer.
• Keys not registering or double-typing: This could indicate a faulty switch. Utilize the included switch remover tool and spare switches to replace the affected key.
• Keyboard not waking up from idle: If the keyboard does not respond after a period of inactivity, try toggling the power switch off and on, or reconnecting the USB cable if in wired mode.

Specifications

Warranty and Support

This product is subject to a 30-day return policy for refund or replacement. For detailed warranty information and technical support, please visit the official TECWARE website or contact their customer service directly.

You can also visit the TECWARE Store on Amazon for more information and product offerings.
