Introduction
This manual provides essential instructions for the safe and effective use of your NINSI Butane Torch Lighter, Model NS-GL-3. Please read this manual thoroughly before operating the device and retain it for future reference.
Safety Information
WARNING: Butane is a highly flammable gas. Failure to follow these instructions may result in fire, injury, or property damage.
- Keep out of reach of children.
- Do not expose to temperatures exceeding 120°F (49°C) or prolonged sunlight.
- Use only in well-ventilated areas.
- Do not puncture or incinerate the lighter.
- Ensure the flame is extinguished before storing.
- Avoid direct contact with skin or clothing when operating.
- Do not attempt to disassemble or modify the lighter.
Product Overview
The NINSI Butane Torch Lighter is designed for various applications requiring a powerful, adjustable flame, such as cooking, baking, soldering, and outdoor activities. It features a windproof jet flame and a safety lock mechanism.
Image Description: A detailed diagram illustrating the various components of the NINSI Butane Torch Lighter, including the high-temperature resistant spout, ventilation cooling holes, safety lock/flame lock button, ignition switch, flame size adjustment, and bottom inflation port. Dimensions are also shown.
Setup
Butane Refilling Instructions
- Ensure the lighter is completely cool and the flame adjustment is set to the lowest setting.
- Invert the lighter to expose the butane filling port located at the bottom.
- Hold the butane gas canister vertically and firmly press its nozzle into the lighter's filling port.
- Apply firm, even pressure for approximately 5-10 seconds. Repeat if necessary until the lighter is full.
- After filling, wait a few minutes for the gas to stabilize and reach room temperature before attempting to ignite.
Note: After refilling, due to air pressure changes, the initial flame may be irregular. This is normal and will stabilize after a few uses.

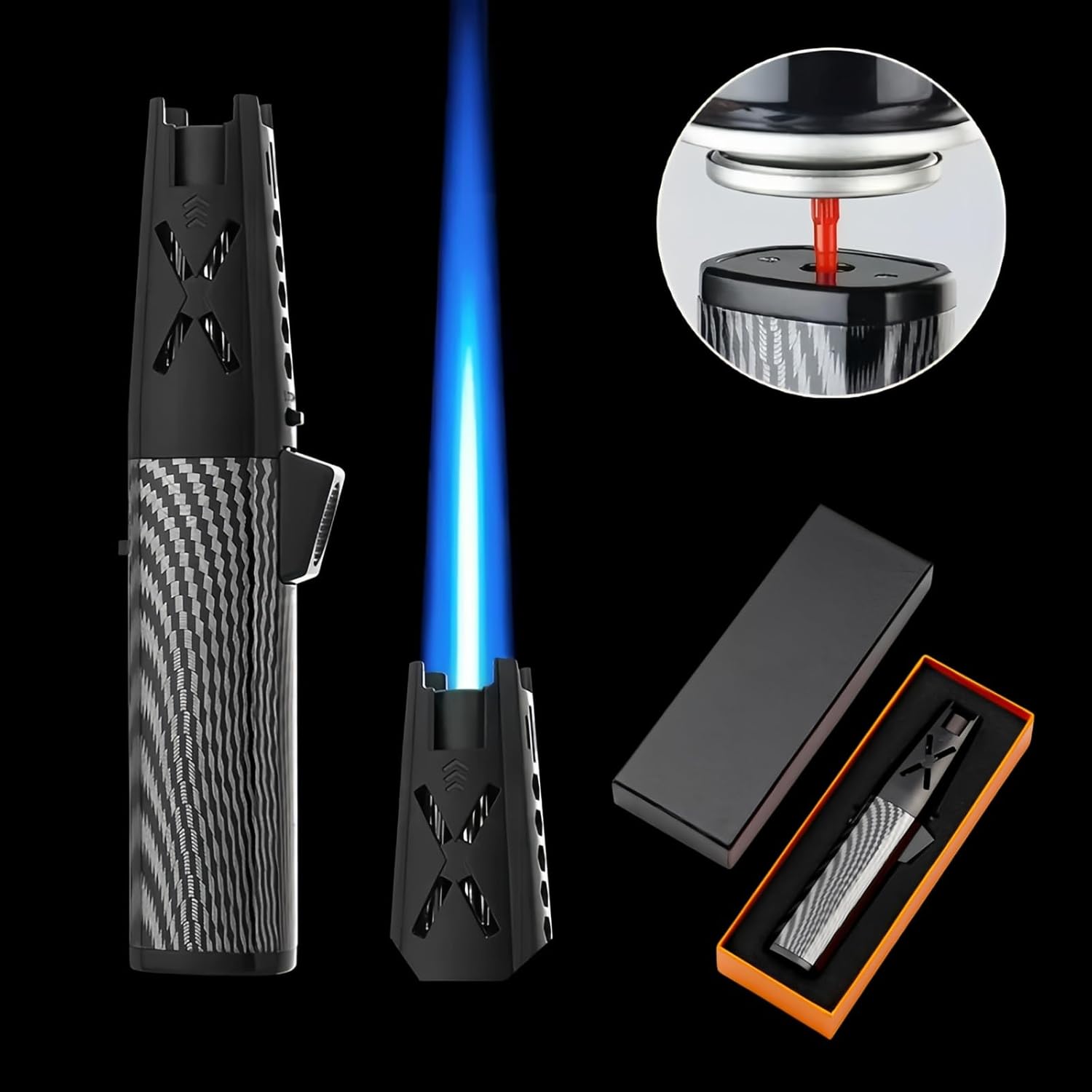

Image Description: A visual guide demonstrating how to refill the butane torch lighter. The image shows the bottom of the lighter with the filling port and a butane canister being inserted.
Operating Instructions
Igniting the Flame
- Ensure the safety lock is disengaged (if applicable).
- Press the ignition switch to light the flame. The lighter is designed for sensitive and quick ignition.
Adjusting Flame Size
Locate the flame adjustment mechanism, typically a small dial or lever. Rotate or slide this control to increase or decrease the flame intensity. The maximum jet length can reach up to 6.5 inches.

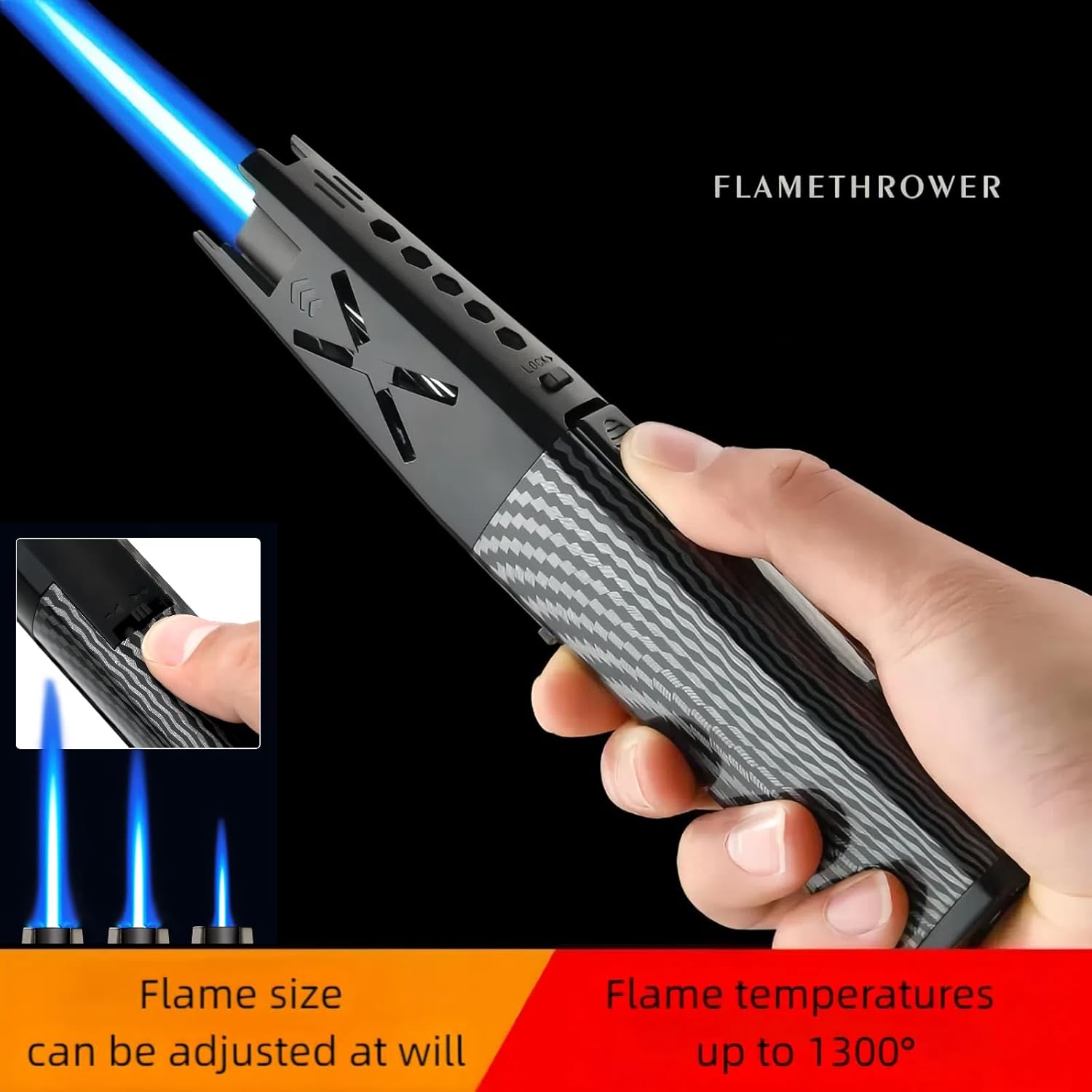

Image Description: A close-up view of the torch lighter demonstrating the flame adjustment feature. It shows how to manipulate the control to achieve different flame sizes.
Using the Safety Lock
The lighter features a one-button, dual-use safety locking flame switch. When engaged, this lock keeps the flame burning continuously without needing to hold the ignition switch. When not in use, ensure the lock is engaged to prevent accidental ignition.
360° Use Capability
This torch lighter is designed to be used at any angle, including inverted, without affecting flame performance. This feature provides versatility for various tasks.
Image Description: Two hands holding the torch lighter, one upright and one inverted, both producing a strong blue flame, illustrating its 360-degree operational capability.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the lighter. Do not use abrasive cleaners or immerse the lighter in water.
- Storage: Store the lighter in a cool, dry place, away from direct sunlight and heat sources. Ensure the lighter is empty of butane and the safety lock is engaged before long-term storage.
- Nozzle Care: Periodically check the flame spout for any debris. Clean gently if necessary to ensure optimal flame performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No flame or weak flame | Low butane level; air in tank; clogged nozzle; flame adjustment too low. | Refill with butane; purge air from tank (if applicable); clean nozzle; adjust flame setting. |
| Irregular flame after refilling | Air pressure imbalance after refilling. | This is normal. The flame will stabilize after a few uses. |
| Lighter does not ignite | No butane; faulty ignition switch; safety lock engaged. | Refill butane; ensure safety lock is disengaged; if problem persists, contact support. |
Specifications
- Model: NS-GL-3
- Brand: NINSI
- Color: Frosted Red
- Material: Zinc
- Product Dimensions: 7.3"L x 1.4"W x 1"H
- Item Weight: 5.92 ounces
- Power Source: Butane
- Maximum Temperature: 1300 Degrees Celsius
Warranty and Support
Specific warranty details are not provided in this manual. For warranty information or technical support, please refer to the product packaging or contact the retailer where the product was purchased. You may also visit the official NINSI website for further assistance.
