EverStar XG-Lit Outdoor 10G Ethernet PoE++ (100W) Surge Protector Instruction Manual

1. Introduction

The EverStar XG-Lit is an outdoor-rated 10G Ethernet PoE++ surge protector designed to safeguard your electronic equipment from transient voltage spikes caused by lightning and other strong electrical events. This device ensures long-term system reliability by absorbing high amounts of transient energy, protecting 10G Ethernet/PoE++ devices. It utilizes Gas Discharge Tube (GDT) technology for comprehensive protection and is UL 497B compliant.

2. Safety Information

• Always ensure proper grounding for the surge protector. Improper grounding can compromise protection and create safety hazards.
• Do not open the device housing. There are no user-serviceable parts inside.
• Ensure all connections are secure and properly sealed, especially in outdoor environments, to prevent moisture ingress.
• Disconnect power to connected devices before installing or removing the surge protector.
• This device is designed for outdoor use. Ensure it is installed in a location protected from direct water spray if possible, though it is rated for outdoor conditions.

3. Package Contents

• EverStar XG-Lit Surge Protector Unit
• Mounting hardware (screws/anchors, if included)
• Quick Start Guide (if included)

4. Product Features

• Advanced Protection: Features 80KA Gas Discharge Tube (GDT) technology for robust lightning and surge protection.
• 10G Ethernet Compatible: Supports full 10G Ethernet bandwidth with low insertion loss and high return loss, ensuring zero frame loss.
• Wide Cable Compatibility: Compatible with Category CAT5, CAT5e, CAT6, and CAT6A cabling.
• Extended Range: 10G compatible up to 100m in the channel using Cat-6A S/FTP cabling.
• Comprehensive Protection Modes: Provides line-to-line and line-to-ground protection.
• High PoE Power Support: Supports maximum PoE power up to PoE++ (100W).
• Durable Connectors: Equipped with CAT6A RJ45 Jacks.
• Integrated Cable Management: Housing features a back knockout for concealing wires.
• Wide Operating Temperature: Functions reliably in temperatures from -10°C to 85°C.

5. Setup and Installation

The EverStar XG-Lit is designed for easy installation. Follow these steps for proper setup:

5.1 Mounting the Unit

1. Choose a suitable outdoor location for mounting, ensuring it is close to the equipment requiring protection and allows for proper cable routing.
2. Use the provided mounting hardware to securely attach the surge protector to a wall or other stable surface. The housing features a back knockout for wire concealment, which can be utilized during mounting.

5.2 Connecting Ethernet Cables

The surge protector has two RJ45 ports: "LINE" and "EQUIP".

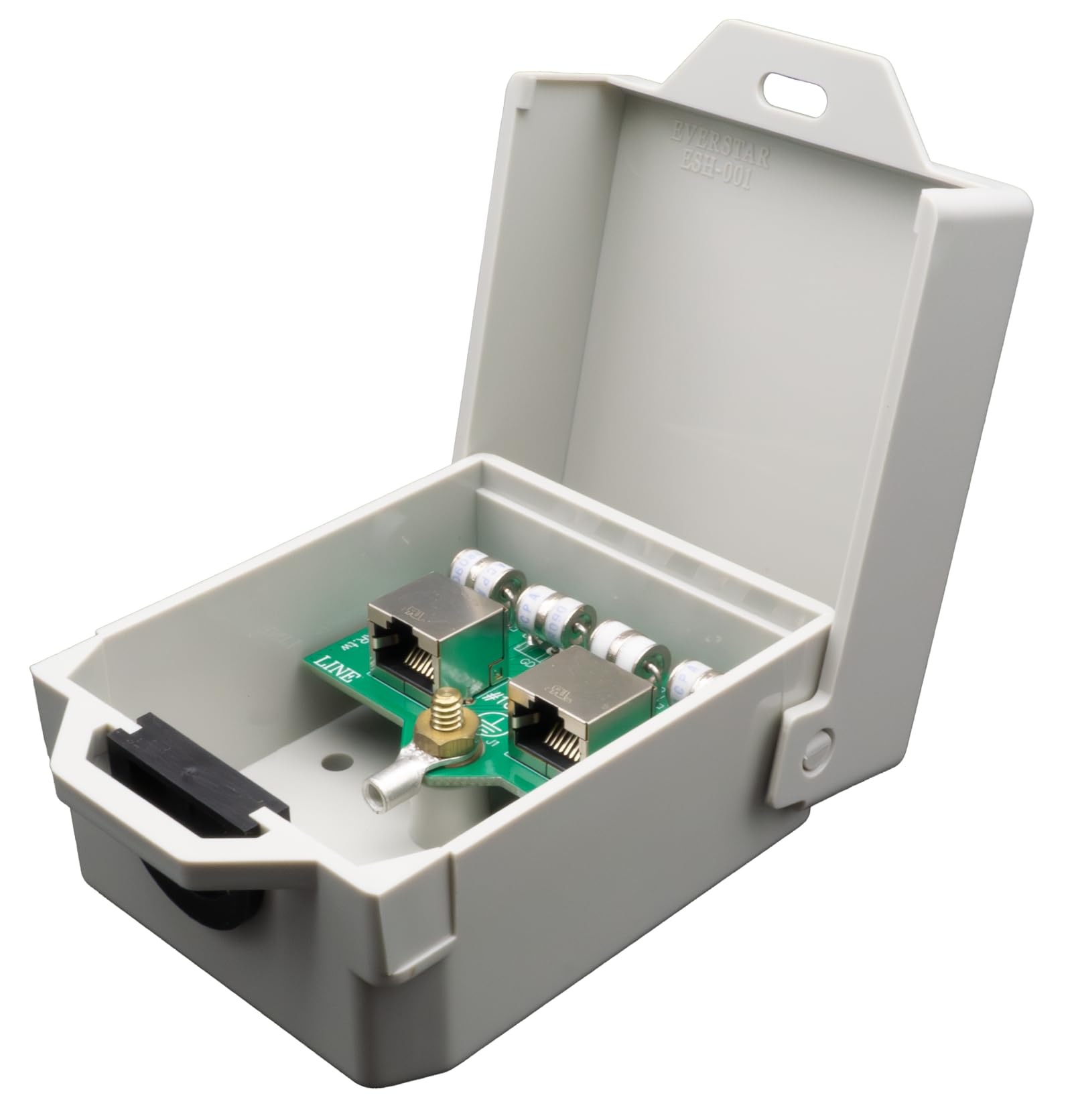

Image: EverStar XG-Lit unit with cover open, revealing the internal circuit board with two shielded RJ45 ports labeled "LINE" and "EQUIP", and a central grounding screw.

1. Connect the incoming Ethernet cable (from the network switch, router, or other source) to the port labeled "LINE".
2. Connect an Ethernet cable from the port labeled "EQUIP" to the device you wish to protect (e.g., IP camera, wireless access point, VoIP phone).
3. Ensure all RJ45 connections are secure and fully seated.

5.3 Grounding the Unit

Proper grounding is critical for the effective operation of the surge protector.

1. Locate the grounding terminal on the surge protector (typically a screw terminal).
2. Connect a suitable grounding wire (not included) from this terminal to a reliable earth ground. This could be a dedicated ground rod, a building's main grounding busbar, or another approved grounding point.
3. Ensure the grounding connection is tight and corrosion-free.

Image: EverStar XG-Lit unit with its protective cover closed, showing the compact and weather-resistant design.

6. Operating Instructions

The EverStar XG-Lit surge protector operates passively and requires no user interaction once installed. It continuously monitors the Ethernet line for transient voltage spikes and diverts excess energy to ground, protecting connected equipment. Ensure that the connected PoE source provides power within the PoE++ (100W) specification if Power over Ethernet is being utilized.

7. Maintenance

• Regular Inspection: Periodically inspect the unit and its connections for any signs of physical damage, corrosion, or loose connections.
• Cleaning: If necessary, gently clean the exterior of the unit with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Grounding Check: Verify that the grounding connection remains secure and effective.
• Post-Surge Event: After a significant lightning strike or power surge in the vicinity, it is recommended to inspect the surge protector for any signs of damage. While designed to withstand multiple surges, extreme events can sometimes compromise components. If network connectivity issues arise after a surge, consider replacing the unit.

8. Troubleshooting

• No Network Connectivity:
  • Check all Ethernet cable connections to ensure they are fully seated in both the "LINE" and "EQUIP" ports, and to the connected devices.
  • Verify that the incoming Ethernet cable from the network source is functional by testing it directly with the protected device (bypassing the surge protector).
  • Ensure the grounding connection is secure.
  • If connectivity is restored when bypassing the surge protector, the unit may be damaged and require replacement.
• PoE Not Functioning:
  • Confirm that your PoE source is active and providing power.
  • Ensure the connected device is PoE compatible and within the PoE++ (100W) power budget.
  • Test the PoE functionality by connecting the device directly to the PoE source, bypassing the surge protector.
• Physical Damage: If the unit shows signs of physical damage (e.g., cracks, burn marks), discontinue use immediately and replace it.

9. Specifications

10. Warranty Information

The EverStar XG-Lit Surge Protector comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation. Please retain your proof of purchase for warranty claims.

11. Support

For technical support, warranty claims, or further assistance, please contact EverStar customer service. Refer to the official EverStar website or your purchase documentation for contact details.
