Introduction
Thank you for purchasing the Milex Cyclonic 2000W Vacuum Cleaner, Model MVA101. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your vacuum cleaner. Please read these instructions thoroughly before first use and retain them for future reference.
Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not use without dust bag and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
Product Overview
The Milex Cyclonic 2000W Vacuum Cleaner is designed for effective cleaning across various floor types. It features cyclonic technology for consistent suction and a high-capacity dust bin.
Image: The Milex Cyclonic 2000W Vacuum Cleaner (Model MVA101) in red and black, with its hose, telescopic wand, and floor nozzle attached, ready for use on a carpeted floor.
Components and Features:
- Main Unit: Contains the motor, dust bin, and filter system.
- Flexible Hose: Connects the main unit to the wand and attachments.
- Telescopic Wand: Adjustable length for comfortable reach.
- Floor Nozzle: For general cleaning of carpets and hard floors.
- 2-in-1 Nozzle: A versatile attachment combining a crevice tool and a brush nozzle for detailed cleaning.
- Sponge Filter: High-efficiency filter designed to trap microscopic particles.
- Auto-Rewinding Cable: For convenient storage of the power cord.
- High-Capacity Dust Bin (3.5L): Easy to remove and empty.
Image: Various attachments for the Milex Cyclonic Vacuum Cleaner, including the flexible hose, telescopic wand, floor nozzle, and a 2-in-1 crevice/brush tool.
Setup
Follow these steps to assemble your Milex Cyclonic 2000W Vacuum Cleaner before first use.
- Unpack Components: Carefully remove all parts from the packaging. Ensure all components listed in the "What's in the Box" section are present.
- Attach Flexible Hose: Insert the larger end of the flexible hose into the suction inlet on the main unit until it clicks securely into place.
- Connect Telescopic Wand: Attach the handle end of the flexible hose to the telescopic wand.
- Attach Floor Nozzle or Accessory: Connect the desired cleaning attachment (e.g., floor nozzle, 2-in-1 nozzle) to the end of the telescopic wand. Ensure it is firmly attached.
- Check Dust Bin and Filter: Ensure the dust bin is correctly installed and the sponge filter is in place before operating. Refer to the "Maintenance" section for filter location.
Operating Instructions
This section details how to use your vacuum cleaner for optimal performance.
Powering On and Off:
- Plug In: Extend the power cable from the auto-rewinding mechanism and plug it into a suitable electrical outlet (220-240V, 50/60Hz).
- Start Vacuuming: Press the power button located on the main unit to turn the vacuum cleaner on.
- Stop Vacuuming: Press the power button again to turn the vacuum cleaner off.
- Rewind Cable: Press the cable rewind button to automatically retract the power cord. Guide the cord to prevent whipping.
Using Attachments:
Select the appropriate attachment for the cleaning task:
- Floor Nozzle: Ideal for general cleaning of large carpeted and hard floor areas.
- 2-in-1 Nozzle (Crevice Tool): Use the narrow end for tight spaces, corners, and edges.
- 2-in-1 Nozzle (Brush Tool): Slide the brush attachment over the crevice tool for dusting surfaces, upholstery, and delicate items.

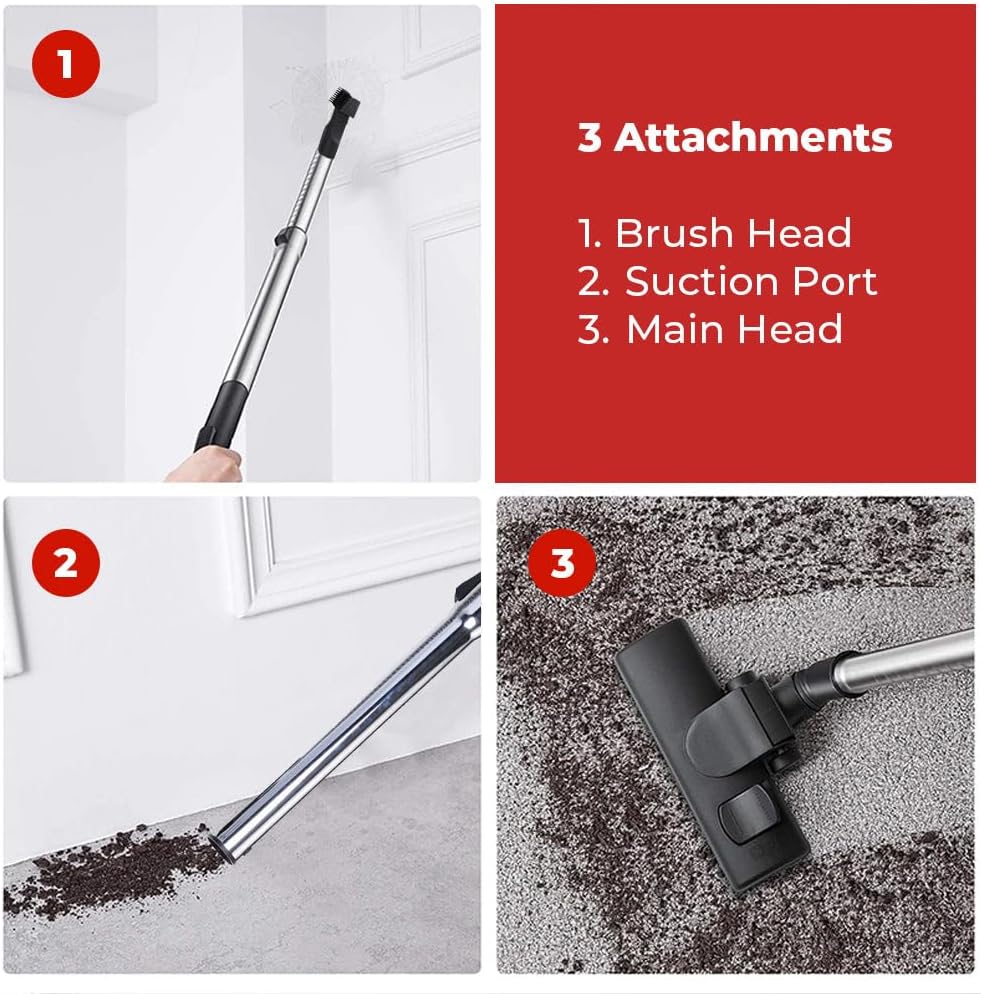

Image: A visual guide demonstrating the use of different attachments: a brush head for high surfaces, a suction port for tight corners, and the main head for carpet cleaning.
Cleaning Tips:
- For best results, move the nozzle slowly over the surface to allow the vacuum to pick up debris effectively.
- Empty the dust bin regularly to maintain optimal suction power.
- Check and clean the filter periodically as described in the "Maintenance" section.
Maintenance
Regular maintenance ensures the longevity and performance of your Milex Cyclonic 2000W Vacuum Cleaner.
Emptying the Dust Bin:
- Disconnect Power: Always unplug the vacuum cleaner from the power outlet before performing any maintenance.
- Remove Dust Bin: Locate the dust bin release button or latch on the main unit and press/open it to detach the dust bin.
- Empty Contents: Hold the dust bin over a waste receptacle and open the bottom flap to empty the collected dirt and debris.
- Reattach Dust Bin: Close the bottom flap securely and reattach the dust bin to the main unit until it clicks into place.

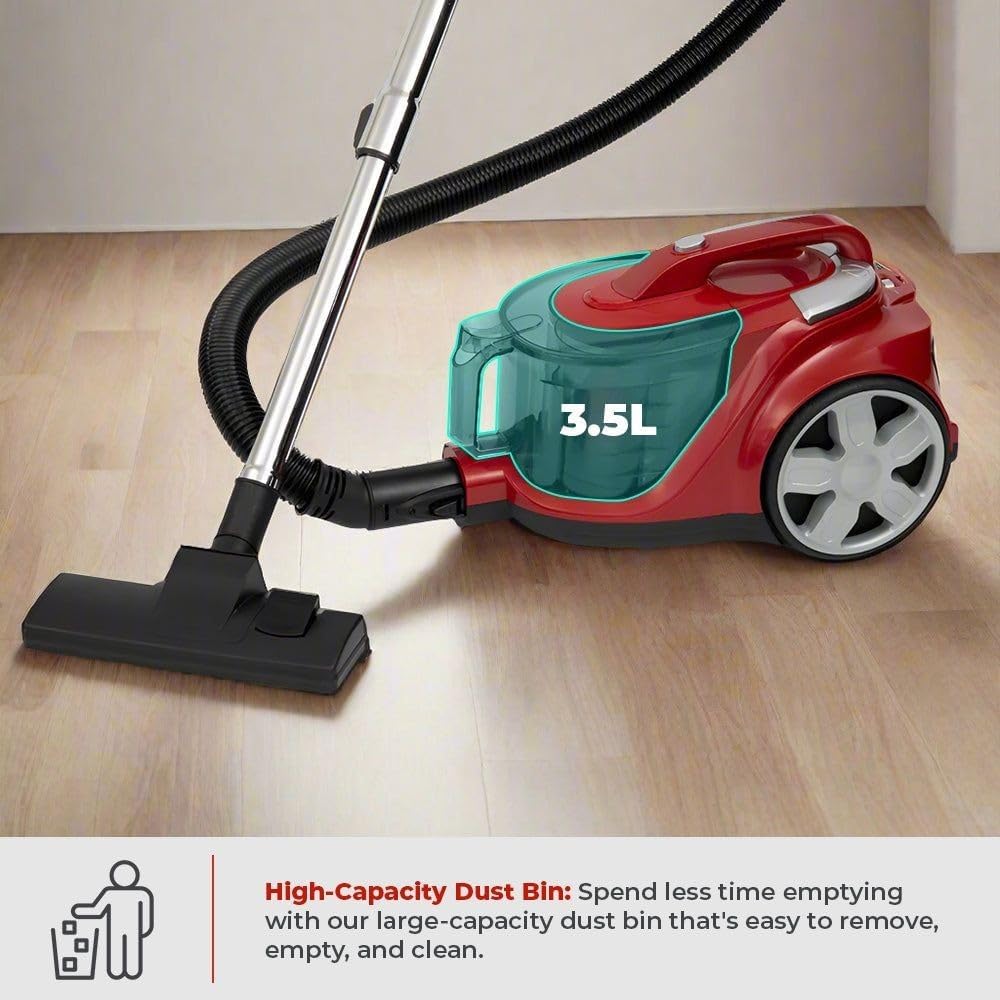

Image: The Milex Cyclonic Vacuum Cleaner with its 3.5L dust bin capacity clearly indicated, demonstrating its high-capacity design for extended cleaning sessions.
Cleaning the Sponge Filter:
The sponge filter should be cleaned regularly, especially if you notice a decrease in suction power.
- Disconnect Power: Ensure the vacuum cleaner is unplugged.
- Access Filter: Remove the dust bin. The sponge filter is typically located within or near the dust bin assembly. Refer to your specific model's diagram if unsure.
- Clean Filter: Gently tap the filter to remove loose dust. For a more thorough clean, rinse the sponge filter under cool running water until the water runs clear.
- Dry Filter: Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use a dryer or heat source.
- Reassemble: Once completely dry, place the filter back into its housing and reattach the dust bin.
Image: A close-up of the Milex Cyclonic Vacuum Cleaner's sponge filter, highlighting its design for trapping fine particles and allergens, contributing to improved air quality.
General Cleaning:
- Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Check the hose and attachments for blockages periodically. Remove any obstructions carefully.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | Not plugged in; no power at outlet; power button not pressed. | Check power cord connection; test outlet with another appliance; press power button firmly. |
| Loss of suction. | Dust bin full; filter clogged; hose/attachments blocked. | Empty dust bin; clean or replace filter; check hose and attachments for obstructions and clear them. |
| Unusual noise. | Blockage in hose/nozzle; foreign object in motor area (unlikely for user to fix); motor issue. | Turn off and unplug. Check for and remove blockages. If noise persists, contact customer support. |
| Vacuum cleaner overheats and shuts off. | Clogged filter; full dust bin; prolonged use; motor overload. | Turn off and unplug. Empty dust bin and clean filter. Allow unit to cool for at least 30 minutes before restarting. Reduce cleaning time if issue recurs. |
| Power cord does not rewind. | Cord is jammed; rewind mechanism issue. | Gently pull out a small amount of cord and press the rewind button again. Guide the cord manually if needed. If problem persists, contact customer support. |
Specifications
Technical details for the Milex Cyclonic 2000W Vacuum Cleaner (Model MVA101).
- Model: MVA101
- Power: 2000W
- Voltage: 220-240V
- Frequency: 50/60Hz
- Dust Capacity: 3.5 Liters
- Vacuum Pressure: 23kPa
- Filter Type: Sponge Filter
- Cable Length: 5 meters
- Power Source: Corded Electric
- Item Weight: 5 Kilograms
- Color: Black (Main unit is red and black)
- Surface Recommendation: All floors
- Included Components: Milex Cyclonic Vacuum, User Manual, Flexible Hose, Telescopic Wand, Floor Nozzle, 2-in-1 Nozzle.
Image: An infographic summarizing key specifications of the Milex Cyclonic Vacuum Cleaner MVA101, including 2000W power, 3.5L dust capacity, auto-rewinding cable, 2-in-1 nozzle, sponge filter, and 5m cable length.
Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or contact Milex customer service. Keep your proof of purchase for warranty claims.
Milex Customer Service: Please visit the official Milex website or refer to the contact details provided in your product packaging for assistance.
