LEADZM 4-Tier 3-in-1 Vertical Charcoal Grill and Smoker User Manual

Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your LEADZM 4-Tier 3-in-1 Vertical Charcoal Grill and Smoker. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Information

• Outdoor Use Only: This grill is designed for outdoor use only. Do not use indoors or in enclosed spaces.
• Clearance: Maintain a minimum distance of 10 feet (3 meters) from combustible materials.
• Stable Surface: Always place the grill on a firm, level, non-combustible surface.
• Children and Pets: Keep children and pets away from the hot grill.
• Hot Surfaces: The grill surfaces will become extremely hot during use. Use heat-resistant gloves and tools.
• Charcoal Safety: Use only charcoal briquettes or lump charcoal. Do not use gasoline, kerosene, or alcohol to light charcoal.
• Ash Disposal: Allow ashes to cool completely before disposing.
• Ventilation: Ensure proper airflow around the grill during operation.

Package Contents

Verify that all components are present before assembly:

• Grill Lid with Built-in Thermometer and Air Vent
• Upper Grill Section (Smoker Body) with Access Door
• Lower Grill Section (Charcoal Bowl)
• Charcoal Pan
• Ash Tray
• Cooking Grates (Multiple tiers)
• Legs/Stand Assembly
• Hardware Pack (Screws, nuts, bolts)
• User Manual (This document)

Setup and Assembly

Follow these steps to assemble your LEADZM 4-Tier 3-in-1 Vertical Charcoal Grill and Smoker:

1. Unpack Components: Carefully remove all parts from the packaging and ensure no components are missing or damaged.
2. Attach Legs: Securely attach the legs to the base of the charcoal bowl using the provided hardware. Ensure all connections are tight and stable.
3. Insert Ash Tray and Charcoal Pan: Place the ash tray into the bottom of the charcoal bowl, then position the charcoal pan on top of the ash tray.
4. Assemble Smoker Body: Place the lower grill section (charcoal bowl) onto the assembled legs. Then, place the upper grill section (smoker body) onto the lower section.
5. Install Cooking Grates: Insert the cooking grates into the designated slots within the smoker body. The number of grates used will depend on your cooking method (grilling or smoking).
6. Attach Lid: Place the lid onto the top of the smoker body. Ensure the built-in thermometer is facing forward for easy reading.

Figure 1: Exploded view of the grill components. This image illustrates the various parts including the lid, smoker body, charcoal pan, ash tray, and cooking grates, indicating their relative positions for assembly.

Figure 2: Assembled grill with key dimensions. This image provides a visual representation of the grill's height, width, and depth, useful for planning placement.

Operating Instructions

Your LEADZM grill offers versatile cooking options:

1. Grilling (BBQ Mode)

1. Prepare Charcoal: Place charcoal briquettes or lump charcoal into the charcoal pan.
2. Light Charcoal: Use a charcoal chimney starter or solid fire starters to ignite the charcoal. Do not use flammable liquids.
3. Preheat: Once charcoal is glowing, spread it evenly. Place one or two cooking grates directly above the charcoal. Close the lid and allow the grill to preheat for 10-15 minutes.
4. Adjust Temperature: Use the adjustable air vent on the lid and the access door to control airflow and temperature. More airflow increases temperature, less airflow reduces it. Monitor the built-in thermometer.
5. Cook Food: Place food on the cooking grates. Turn food as needed for even cooking.

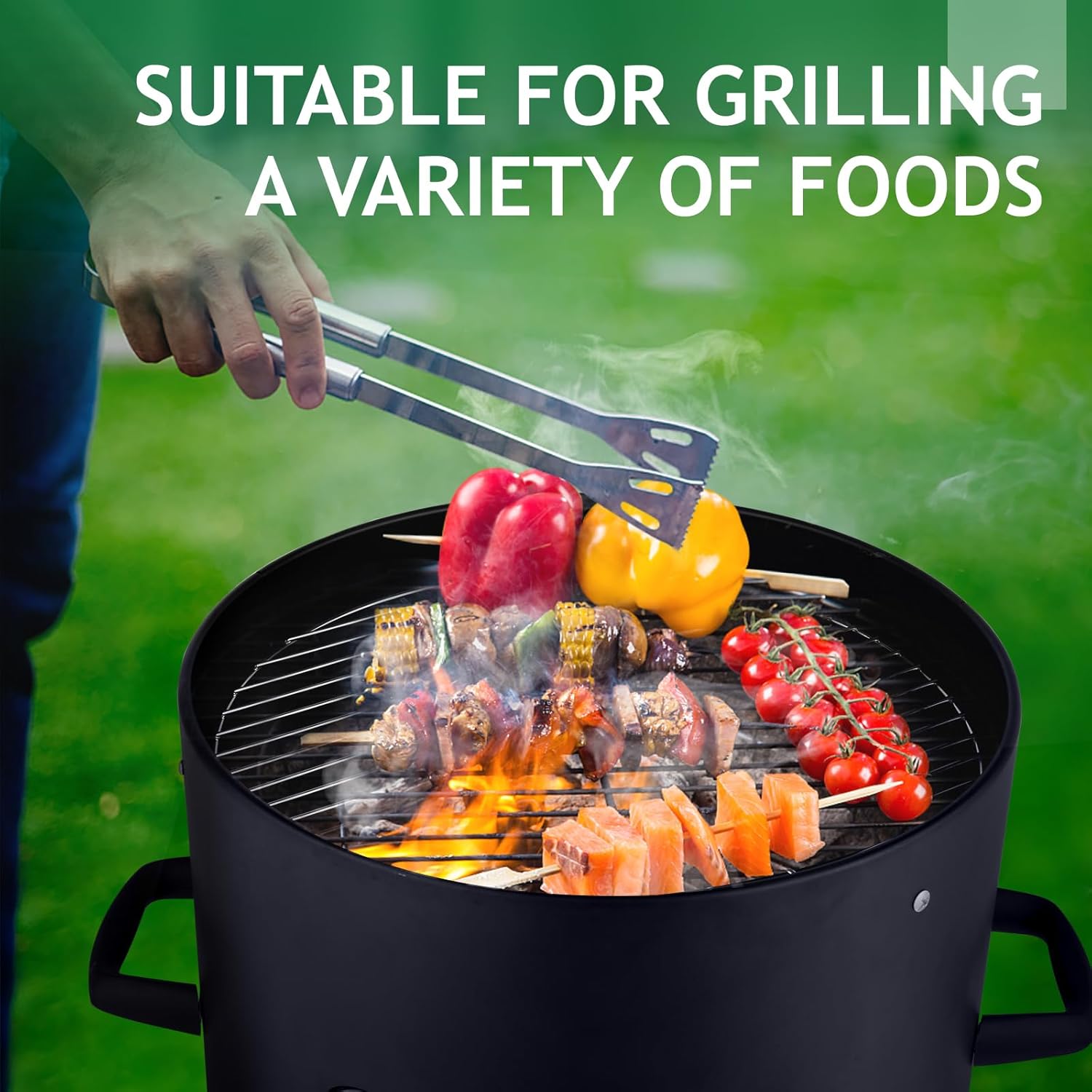

Figure 3: Grilling various foods. This image demonstrates the grill's capacity for direct grilling of items like vegetables, fish, and meat skewers.

2. Smoking (Vertical Smoker Mode)

1. Assemble Smoker: Ensure both the lower and upper grill sections are stacked. Place the charcoal pan with lit charcoal in the bottom.
2. Add Wood Chips: For smoke flavor, add pre-soaked wood chips (e.g., hickory, apple, mesquite) directly onto the hot charcoal or in a separate smoker box.
3. Water Pan (Optional): A water pan can be placed on the lower grate to add moisture and stabilize temperature.
4. Load Food: Place food on the upper cooking grates. For smoking, food is typically placed further from the heat source.
5. Control Temperature: Close the lid and use the air vent and access door to maintain a consistent low temperature (typically 225-275°F or 107-135°C) for smoking. The built-in thermometer helps monitor this.
6. Monitor: Avoid opening the lid frequently, as this releases heat and smoke. Use the access door to add more charcoal or wood chips if needed.

Figure 4: 3-in-1 Smoker configuration. This image illustrates how the grill can be configured for different cooking styles, including smoking with multiple tiers.

Figure 5: Versatile configurations. This composite image shows the grill functioning as a convenient fire pit, a spacious BBQ grill, a two-tier barbecue, and a complete vertical smoker.

3. Stewing/Boiling (Pot Cooking Mode)

While primarily a grill and smoker, the charcoal bowl can also be used as a heat source for pot cooking. Place a heat-safe pot directly on a grate above the charcoal for stewing or boiling.

Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your grill:

• After Each Use:
  • Allow the grill to cool completely.
  • Remove cooking grates and clean them with a grill brush and warm soapy water. Rinse thoroughly and dry.
  • Empty the ash tray and charcoal pan. Dispose of cooled ashes properly.
  • Wipe down interior and exterior surfaces with a damp cloth.
• Deep Cleaning (Periodically):
  • Disassemble the grill.
  • Clean all components with warm soapy water and a non-abrasive scrubber.
  • Rinse thoroughly and ensure all parts are completely dry before reassembly or storage.
• Storage: Store the grill in a dry, covered area when not in use to protect it from weather elements.

Troubleshooting

Specifications

Warranty Information

This LEADZM product is covered by a 1-Year Manufacturer Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair. Please retain your proof of purchase for warranty claims.

Customer Support

For any questions, assistance, or to report missing or damaged parts, please contact LEADZM customer support. Refer to your purchase documentation or the retailer's website for specific contact details.

When contacting support, please have your product model number (charcoal grill) and proof of purchase readily available.
