MZZYG EAFC 150PSI Portable Air Compressor User Manual

1. Introduction

Thank you for choosing the MZZYG EAFC 150PSI Portable Air Compressor. This device is designed for efficient and convenient inflation of various items, including car, motorcycle, and bicycle tires, as well as sports balls and inflatable toys. It features a digital display for precise pressure measurement and automatic shut-off for safety and ease of use. Please read this manual thoroughly before operation to ensure proper use and maintenance.

2. Safety Instructions

To prevent injury or damage to the device, always follow these safety precautions:

Ensure the compressor is placed on a stable, flat surface during operation.
Do not leave the compressor unattended while it is operating.
Keep out of reach of children.
Avoid direct contact with the inflation port during and immediately after use, as it may become hot. The recessed design helps reduce this risk.
Do not operate the compressor in wet conditions or near flammable liquids or gases.
Always check the recommended pressure for the item you are inflating to avoid over-inflation.
If the device shows signs of damage, do not use it. Contact customer support.
For the wireless version, use only the provided charging cable and adapter.

3. Package Contents

Please check the package for the following items based on your purchased version:

Corded Electric Version:

1 x MZZYG EAFC Portable Air Compressor (Corded)
3 x Gas Nozzles (various adapters)
1 x Air Hose
1 x Car Cigarette Lighter Cable
1 x User Manual

Wireless Rechargeable Version:

1 x MZZYG EAFC Portable Air Compressor (Wireless)
3 x Gas Nozzles (various adapters)
1 x Air Hose
1 x USB Charging Cable
1 x User Manual

4. Product Overview

The MZZYG EAFC Portable Air Compressor is a compact and versatile inflation device. It features a digital display for real-time pressure readings and intuitive button controls.

MZZYG EAFC Portable Air Compressor with cigarette lighter cable and inflation hose

Image 1: Front view of the MZZYG EAFC Portable Air Compressor, showing the digital display, control buttons, inflation hose, and the corded power adapter.

Key features include:

Digital Display: Shows current and target pressure.
Control Buttons: For power, mode selection, and pressure adjustment.
Inflation Port: Connects the air hose. Designed with anti-scald measures.
LED Light: For illumination in low-light conditions.
Power Input: USB-C for wireless version charging, 12V cigarette lighter for corded version.

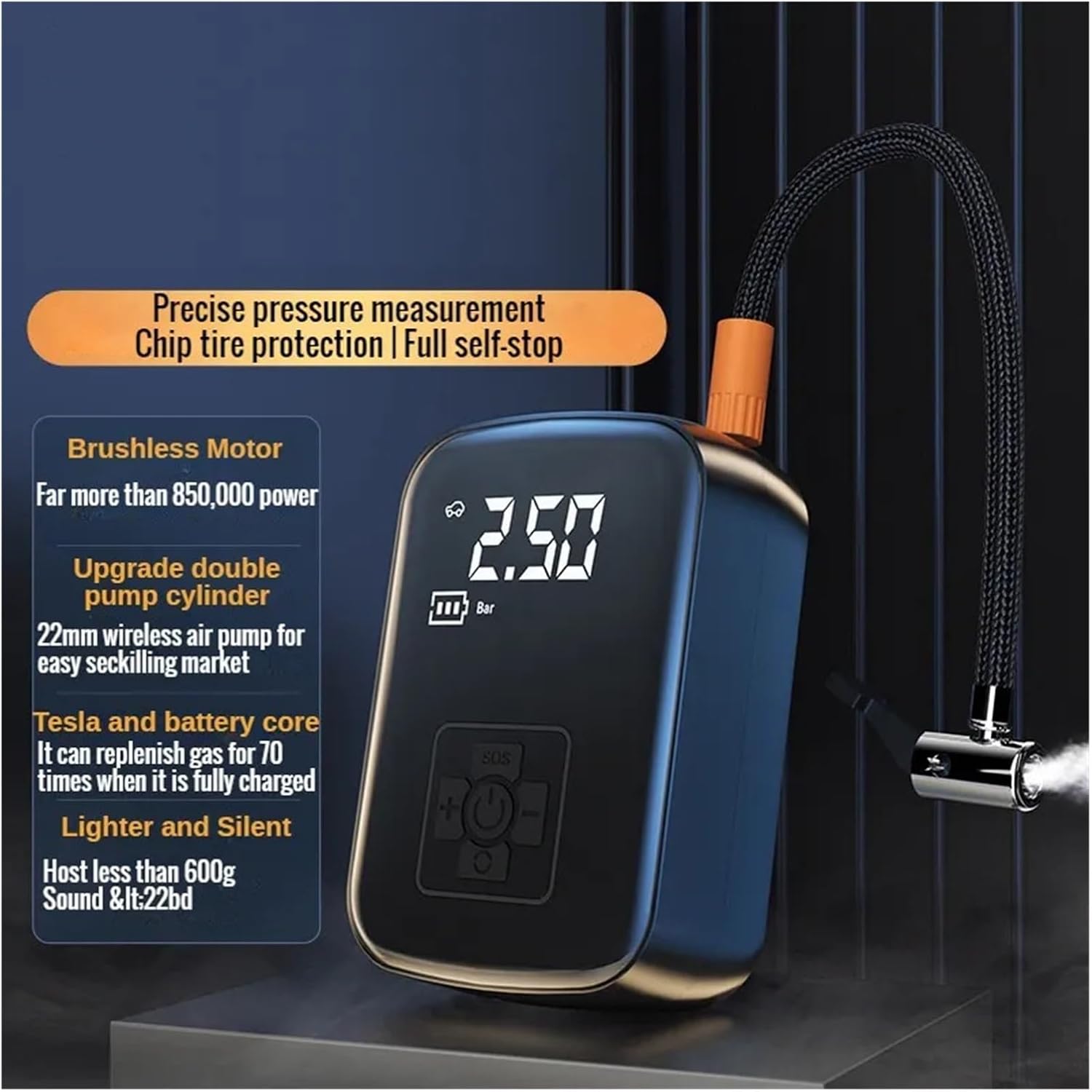

MZZYG EAFC Air Compressor highlighting internal components and features

Image 2: Diagram illustrating the internal features of the air compressor, including a brushless motor, upgraded double pump cylinder, and advanced battery core for efficient and quiet operation.

5. Specifications

Feature	Specification
Power	100 W
Air Pressure Range	3 - 150 PSI
Gas Flow	30 L/min
Air Hose Length	15 cm
Dimensions	13 x 9.5 x 6 cm
Weight	0.5 kg
Material	ABS + Electronic Components
Wireless Version:
Voltage	7.4 V
Battery Capacity	3600 mAh
Charging Time	3-4 hours
Battery Life (approx.)	15-25 minutes
Corded Version:
Power Source	12V Car Cigarette Lighter

6. Setup

6.1 Wireless Version: Charging the Device

Locate the USB charging port on the compressor.
Connect the provided USB charging cable to the compressor and a suitable USB power adapter (not included) or a USB port.
The digital display will indicate charging status. A full charge typically takes 3-4 hours.
Once fully charged, disconnect the charging cable.

6.2 Corded Version: Connecting to Power

Ensure your vehicle's engine is running to provide stable power.
Insert the car cigarette lighter cable into your vehicle's 12V power socket.
The compressor will power on, and the digital display will illuminate.

7. Operating Instructions

7.1 Preparing for Inflation

Connect the Air Hose: Screw the air hose securely onto the compressor's inflation port.
Attach Nozzle: Select the appropriate nozzle adapter for the item you wish to inflate (e.g., Schrader valve for car tires, Presta valve for some bicycles, needle for balls). Screw or push the nozzle onto the air hose.
Connect to Item: Attach the nozzle firmly to the valve stem of the item to be inflated. The digital display will show the current pressure.

MZZYG EAFC Air Compressor connected to a car tire valve

Image 3: The MZZYG EAFC Portable Air Compressor positioned next to a car tire, with its hose connected to the tire valve, demonstrating its use for vehicle tire inflation.

7.2 Setting Desired Pressure

Power On: Press the power button to turn on the compressor.
Select Mode: Use the mode button (often labeled 'M' or with icons) to cycle through different inflation modes (e.g., car, motorcycle, bicycle, ball). Each mode may have a default pressure setting.
Adjust Pressure: Use the '+' and '-' buttons to set your desired target pressure. Refer to the item's manufacturer recommendations for correct pressure.

7.3 Starting and Stopping Inflation

Start Inflation: Press the inflation/start button (often a play/pause icon or a dedicated inflation button). The compressor will begin to inflate, and the digital display will show the increasing pressure.
Automatic Shut-off: The compressor will automatically stop once the preset target pressure is reached.
Manual Stop: You can manually stop inflation at any time by pressing the inflation/start button again.
Disconnect: Carefully disconnect the nozzle from the item's valve, then unscrew the air hose from the compressor.

7.4 Versatile Applications

This air compressor is suitable for a wide range of inflation needs:

MZZYG EAFC Air Compressor inflating various items like cars, SUVs, motorcycles, bicycles, and inflatable beds

Image 4: A visual representation of the MZZYG EAFC Portable Air Compressor's versatility, showing its application for inflating tires on cars, SUVs, off-road vehicles, motorcycles, bicycles, and even inflatable beds.

MZZYG EAFC Air Compressor inflation capacity for different items

Image 5: An infographic detailing the approximate number of inflations possible with the MZZYG EAFC Portable Air Compressor on a single charge for various items, including car tires, motorcycle tires, bicycle tires, and basketballs.

8. Maintenance

Cleaning: Wipe the exterior of the compressor with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is off and disconnected from power before cleaning.
Storage: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the air hose and nozzles neatly stored to prevent damage.
Battery Care (Wireless Version): For optimal battery life, charge the device fully before long-term storage and recharge it every 3-6 months if not in use.
Hose Inspection: Periodically check the air hose and nozzles for any signs of wear, cracks, or damage. Replace if necessary.

9. Troubleshooting

Problem	Possible Cause	Solution
Compressor does not turn on.	Low battery (Wireless) Loose power connection (Corded) Vehicle's 12V socket fuse blown (Corded)	Charge the battery fully. Ensure the cigarette lighter plug is firmly inserted. Check and replace the vehicle's fuse if necessary.
Compressor runs but does not inflate.	Air hose or nozzle not securely attached. Leak in the hose or nozzle. Valve stem on item is faulty.	Tighten all connections. Inspect hose and nozzles for damage; replace if needed. Check the item's valve stem for damage.
Inaccurate pressure reading.	Loose connection. Sensor malfunction.	Ensure all connections are tight. If problem persists, contact customer support.
Compressor overheats.	Continuous operation for too long. Blocked air vents.	Allow the compressor to cool down for 10-15 minutes after extended use. Ensure air vents are clear of obstructions.

10. Warranty and Support

This MZZYG EAFC Portable Air Compressor comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer.

If you encounter any issues or have questions regarding the operation, maintenance, or troubleshooting of your device, please contact MZZYG customer support through the retailer's platform or the contact information provided in your purchase documentation.
