1. Introduction
This manual provides essential information for the assembly, operation, and maintenance of your DERCASS Full Espresso Storage Platform Bed. Please read these instructions carefully before assembly and retain them for future reference. This bed frame features a full-size platform bed, a twin-size trundle, two storage drawers, and integrated headboard shelving with USB charging capabilities.
Image 1.1: Fully assembled DERCASS Full Espresso Storage Platform Bed with trundle and drawers extended.
2. Safety Information
- Adult Assembly Required: This product requires adult assembly. Ensure all parts are present and undamaged before beginning.
- Use on Level Surface: Always assemble and use the bed on a flat, level surface to prevent instability.
- Tighten All Fasteners: Periodically check and tighten all bolts and screws to ensure the bed remains stable. Do not overtighten.
- Weight Capacity: Do not exceed the recommended weight capacity for the main bed (600 lbs) and trundle (250 lbs).
- Mattress Thickness: Use recommended mattress thickness for the main bed (8''-10'') and trundle (6'') to ensure proper fit and safety.
- Avoid Climbing: Do not allow children to climb on the headboard shelves or other parts of the bed.
- Electrical Safety (USB): Ensure the USB charging port is used with compatible devices and avoid exposing it to liquids. Disconnect power if any issues arise.
3. Package Contents
Your DERCASS Storage Platform Bed is shipped in two packages. Please verify that all components are present and undamaged before proceeding with assembly. Refer to the separate assembly instruction sheet included in your packaging for a detailed list of parts and hardware.
- Bed Frame Components (Headboard, Side Rails, Footboard)
- Bed Slats (for main bed and trundle)
- Trundle Bed Frame
- Storage Drawers (2 units)
- Headboard Shelving Units
- Assembly Hardware (bolts, screws, connectors, Allen wrench)
- USB Charging Module
- Assembly Instruction Manual
4. Setup and Assembly Instructions
Assembly of the DERCASS Storage Platform Bed requires two adults. Follow the step-by-step instructions provided in the separate assembly manual included with your product. Ensure you have adequate space and the necessary tools (typically an Allen wrench, which is usually provided, and a Phillips head screwdriver, not always included).
- Unpack Components: Carefully unpack all parts from both packages. Lay them out on a clean, soft surface (like a carpet) to prevent scratches.
- Identify Parts: Compare all parts against the parts list in your assembly manual to ensure nothing is missing or damaged.
- Assemble Headboard: Begin by assembling the headboard and its integrated shelving units. Connect the USB charging module as instructed.
- Assemble Bed Frame: Attach the side rails to the headboard and footboard.
- Install Slats: Securely install the wooden slats onto the bed frame. These slats provide mattress support and eliminate the need for a box spring.
- Assemble Trundle: Assemble the twin-size trundle frame and install its slats.
- Assemble Drawers: Assemble the two storage drawers.
- Position Trundle and Drawers: The trundle and drawers can be positioned on either side of the bed, allowing flexibility for your room layout. Slide them into place under the main bed frame.
- Final Check: Once assembled, ensure all connections are secure and the bed is stable.
Image 4.1: View of the bed frame with the trundle and storage drawers pulled out.
Image 4.2: Perspective view of the bed frame showing the trundle and drawers in their respective positions.
5. Operating Instructions
5.1. Using the Trundle Bed
- The twin-size trundle bed is designed to slide smoothly under the main bed frame.
- To extend: Gently pull the trundle frame outwards from under the main bed. The wheels on the trundle will facilitate movement.
- To retract: Push the trundle frame back under the main bed until it is fully stored.
- Ensure the trundle is clear of obstructions before pulling out or pushing in.
Image 5.1: Side view of the bed with the twin-size trundle fully extended.
5.2. Using the Storage Drawers
- The two storage drawers are located under the main bed frame and are designed for easy access.
- To open: Pull the drawer outwards using the integrated handle cutout.
- To close: Push the drawer back into its compartment until it is fully seated.
- The drawers and trundle can be swapped in position to suit your preference.

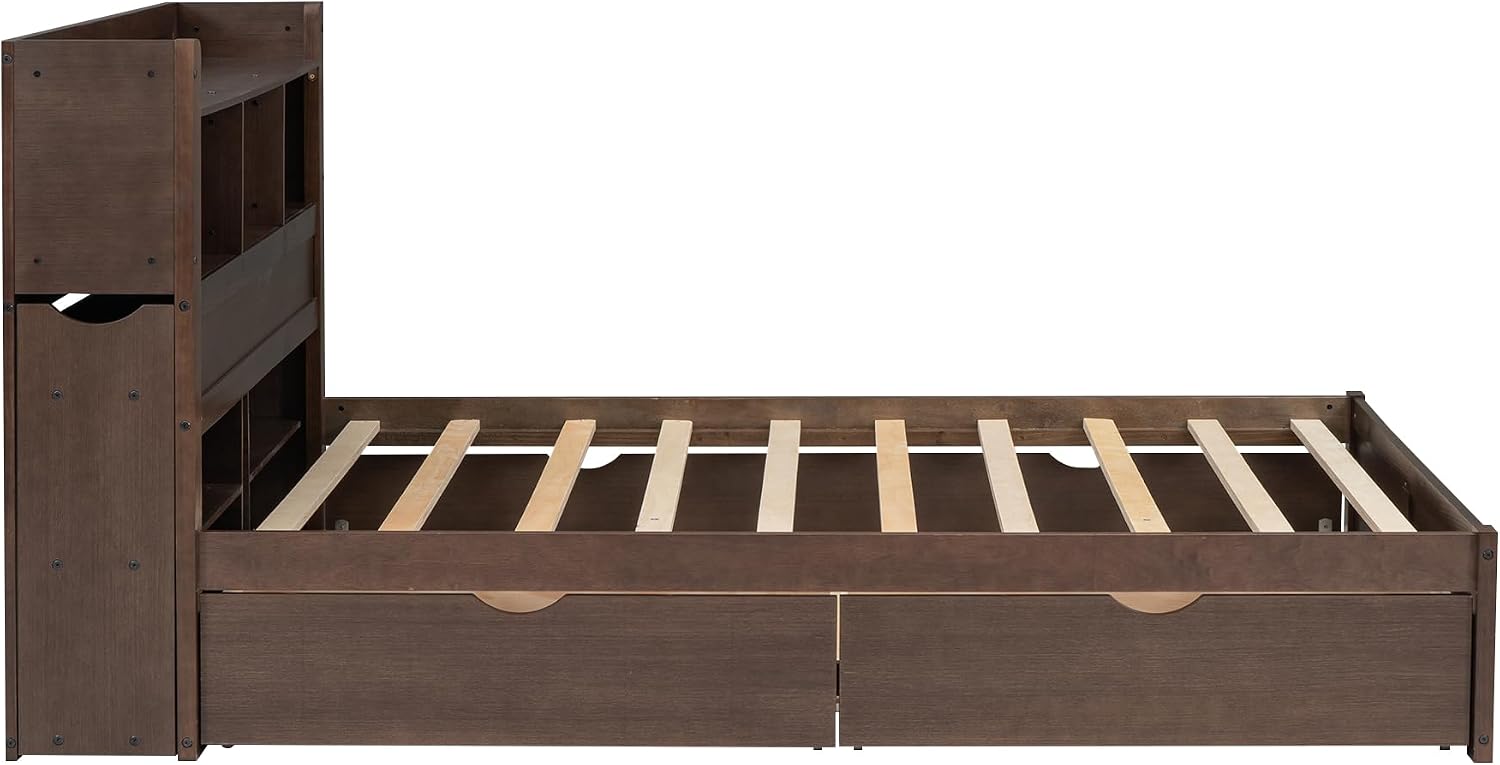

Image 5.2: Side view of the bed frame showing the two storage drawers.
Image 5.3: Close-up view of an empty storage drawer, highlighting its capacity.
5.3. Using the Headboard Shelves and USB Port
- The headboard features multiple tiers of shelving for convenient storage of books, decor, and personal items.
- An integrated USB charging port is provided for charging electronic devices. Ensure the bed is connected to a power source for the USB port to function.
Image 5.4: Detailed view of the USB charging port integrated into the headboard.
Image 5.5: Rear view of the headboard, showing the structure of the integrated shelves.
6. Maintenance
- Cleaning: Wipe the bed frame and surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
- Fastener Check: Periodically inspect all bolts and screws to ensure they are tight. Retighten as necessary, but do not overtighten.
- Avoid Moisture: Keep the bed frame dry. Prolonged exposure to moisture can damage the wood and MDF components.
7. Troubleshooting
- Squeaking Noises: If the bed squeaks, check all bolts and screws and tighten them. Ensure the mattress is properly seated on the slats.
- Drawers/Trundle Sticking: Ensure the floor surface is level. Check for any obstructions in the tracks or under the drawers/trundle. Clean any debris from the wheels.
- USB Port Not Working: Verify that the bed's power connection (if applicable for the USB module) is securely plugged into a working outlet. Check the USB cable and device for proper function.
- Missing Parts: If any parts are missing or damaged upon arrival, do not proceed with assembly. Contact DERCASS customer support immediately.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DERCASS |
| Model Number | GX000356A |
| Size | Full (Main Bed), Twin (Trundle) |
| Color | Espresso |
| Material | Pine Wood + MDF |
| Overall Product Dimensions | 88.6''L x 57.6''W x 43.3''H |
| Main Bed Dimensions | 76'' x 54.5'' |
| Total Height | 43.3'' |
| Number of Bed Slats (Upper/Trundle) | 10 pcs / 7 pcs |
| Recommended Mattress Thickness (Upper/Trundle) | 8''-10'' / 6'' |
| Overall Product Weight | 173 lbs |
| Bed Weight Capacity (Upper/Trundle) | 600 lbs / 250 lbs |
| Assembly Required | Yes |
| Special Features | 2 Drawers, No Box Spring Needed, Pull Out Shelves, Twin Size Trundle, USB Charging Port |
| UPC | 717392786220 |
Image 8.1: Technical drawing illustrating the dimensions of the DERCASS Storage Platform Bed.
9. Warranty Information
Warranty information for the DERCASS Storage Platform Bed is typically provided with the product packaging or can be obtained directly from the retailer or manufacturer. Please refer to the documentation included with your purchase for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.
10. Customer Support
For assistance with assembly, missing parts, or any other inquiries regarding your DERCASS Storage Platform Bed, please contact DERCASS customer support. Refer to your purchase documentation for contact details or visit the official DERCASS website.
