Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new Raysfung 13' x 15' Cedar Wood Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and maintenance will ensure the longevity and safe enjoyment of your gazebo.
Image: The Raysfung 13' x 15' Cedar Wood Hardtop Gazebo, showcasing its spacious design and galvanized steel roof.
Safety Information
- Weight Limit: Be aware of the roof's snow load capacity. The roof is designed to hold up to 15 inches of thick snow. Clear excessive snow accumulation promptly to prevent structural damage.
- Proper Installation: Ensure the gazebo is installed on a level surface. Use the provided anchoring plates and hardware to securely fix the posts to the ground (concrete, pavers, or grass with appropriate anchors).
- Handling Precautions: Components can be heavy and sharp. Wear appropriate safety gear, including gloves and eye protection, during assembly.
- Assembly Caution: Due to the size and weight of the components, assembly requires at least two adults. Do not attempt to assemble alone.
- Wind Resistance: The gazebo is designed to withstand winds up to 100 mph when properly anchored. In extreme weather conditions, it is advisable to secure any loose items within the gazebo.
Components Checklist
Before beginning assembly, verify that all parts are present and undamaged. Refer to the packing list included with your gazebo for a complete itemized list. Key components include:
- FSC Certified Cedar Wood Frame components (posts, beams, triangular supports)
- Galvanized Steel Roof panels
- Metal connection plates and brackets
- Anchoring plates and hardware (expansion screws for concrete/pavers, ground nails for grass)
- Assembly hardware (bolts, nuts, washers)
- Instruction manual and tools (if included)
Setup and Assembly
The Raysfung Gazebo is designed for straightforward assembly, though it requires careful attention to detail and assistance. All parts are pre-cut and pre-drilled for ease of installation.
Preparation
- Choose a level surface for installation.
- Clear the assembly area of any obstructions.
- Unpack all boxes and lay out components, verifying against the parts list.
- Gather necessary tools (e.g., wrenches, screwdrivers, ladder).
Assembly Steps (General Overview)
- Assemble the main wooden posts and beams, ensuring all connections are secure. The triangular frame structure and reinforced joints enhance stability.
- Attach the galvanized steel roof panels. The sloped design facilitates rainwater runoff.
- Securely anchor the gazebo to the ground using the provided hardware. This is crucial for stability, especially in windy conditions.
Image: Illustration of the solid triangular pillars, pre-drilled anchoring plates, and reinforced corners that contribute to the gazebo's structural integrity.
Image: Detail of the stable wooden frame, highlighting the reinforced joints and corners for superior stability and durability.
Assembly Video Reference
Video: A seller-provided overview of the Raysfung 13'x15' Wood Gazebo, demonstrating its features and scale.
Video: A seller-provided video showcasing a 13x15 hardtop gazebo with a double iron roof and storage bar, offering a visual guide to similar product features and assembly considerations (note: this video features an Amerlife branded product, but illustrates general gazebo features).
Video: A seller-provided video demonstrating an Aoxun Outdoor Wood Gazebo, which may offer insights into the assembly and features of similar wood gazebos.
Operating Instructions
Your Raysfung Gazebo is designed to enhance your outdoor living space, providing shade and shelter for various activities.
- Usage: The spacious 13'x15' area is ideal for parties, gatherings, events, or simply relaxing. It can comfortably seat 6-10 people.
- Weather Protection: The galvanized steel roof offers UV protection, is waterproof, and can withstand rain and snow, creating a comfortable environment in various weather conditions.
- Airflow: The double-layer metal top design ensures optimal airflow, preventing heat buildup underneath.
- Integrated Bar Counter: Some models may include a multifunctional storage bar counter, perfect for holding drinks, snacks, and other outdoor essentials.

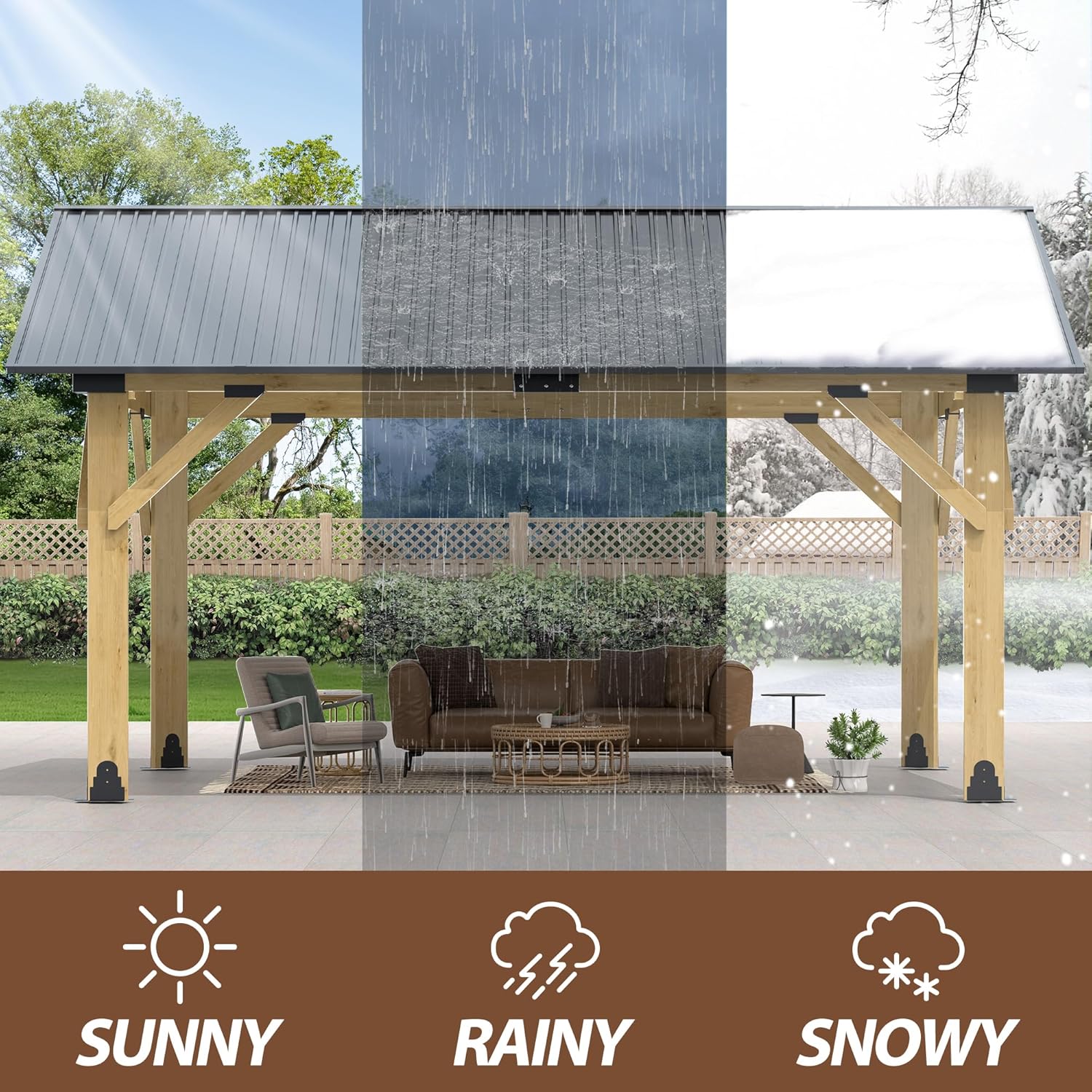

Image: The gazebo's robust construction provides protection and comfort in sunny, rainy, and snowy weather.
Maintenance
Regular maintenance will help preserve the appearance and structural integrity of your gazebo.
- Wood Frame Care: Periodically inspect the cedar wood frame for any signs of wear, rot, or insect damage. Clean the wood with a mild soap and water solution. Consider applying a wood sealant or stain annually to protect against UV rays and moisture, extending its lifespan.
- Steel Roof Care: Clean the galvanized steel roof panels with water and a soft brush to remove leaves, dirt, and debris. Inspect for any scratches or rust spots and touch up with appropriate outdoor metal paint if necessary to maintain its weather resistance.
- Hardware Inspection: Regularly check all bolts, nuts, and screws to ensure they are tight. Re-tighten as needed to maintain structural stability.
- Winter Preparation: While the roof can handle up to 15 inches of snow, it is recommended to clear heavy snow accumulation to prevent excessive stress on the structure. Ensure the anchoring is secure before winter.
Troubleshooting
Here are solutions to common issues you might encounter:
- Gazebo feels unstable: Ensure all posts are securely anchored to a level surface. Double-check that all bolts and connections are tightened according to the assembly instructions. Uneven ground can also contribute to instability; consider shimming posts if necessary.
- Water pooling on the roof: The sloped galvanized steel roof is designed for efficient water runoff. If water is pooling, check for any obstructions on the roof panels or in the rain guide design that might be impeding drainage. Ensure roof panels are correctly overlapped and sealed.
- Difficulty during assembly: Review the detailed installation instructions and diagrams. Ensure you have at least two people for assembly, especially when lifting heavy components like the roof. Verify that you are using the correct hardware for each step.
- Wood components appear damaged: Small imperfections in natural wood are normal. For significant damage, refer to the warranty information for possible replacement parts.
Specifications
| Feature | Detail |
|---|---|
| Brand | Raysfung |
| Model Number | CRZ24G044-NO |
| Material | Wood (FSC Certified Cedar) |
| Frame Material | Wood |
| Roof Material | Galvanized Steel |
| Style | Wooden, Gable Roof |
| Product Dimensions | 178.32"L x 155.52"W x 101.52"H (approx. 14.86'L x 12.96'W x 8.46'H) |
| Item Weight | 347.3 Pounds |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes |
| Color | Beige-Gable Roof |
Image: A detailed diagram illustrating the 13' x 15' dimensions of the gazebo, along with key features like waterproofing and ease of assembly.
Warranty and Support
Raysfung is committed to providing quality products and customer satisfaction. While specific warranty details are not included in this manual, please refer to your purchase documentation or contact Raysfung customer service for information regarding warranty coverage and support.
If you have any questions about your Raysfung 13' x 15' wooden gazebo, please contact us for assistance. We are here to help resolve any issues you may encounter.
