Raysfung 12' x 14' Wood Gazebo Instruction Manual

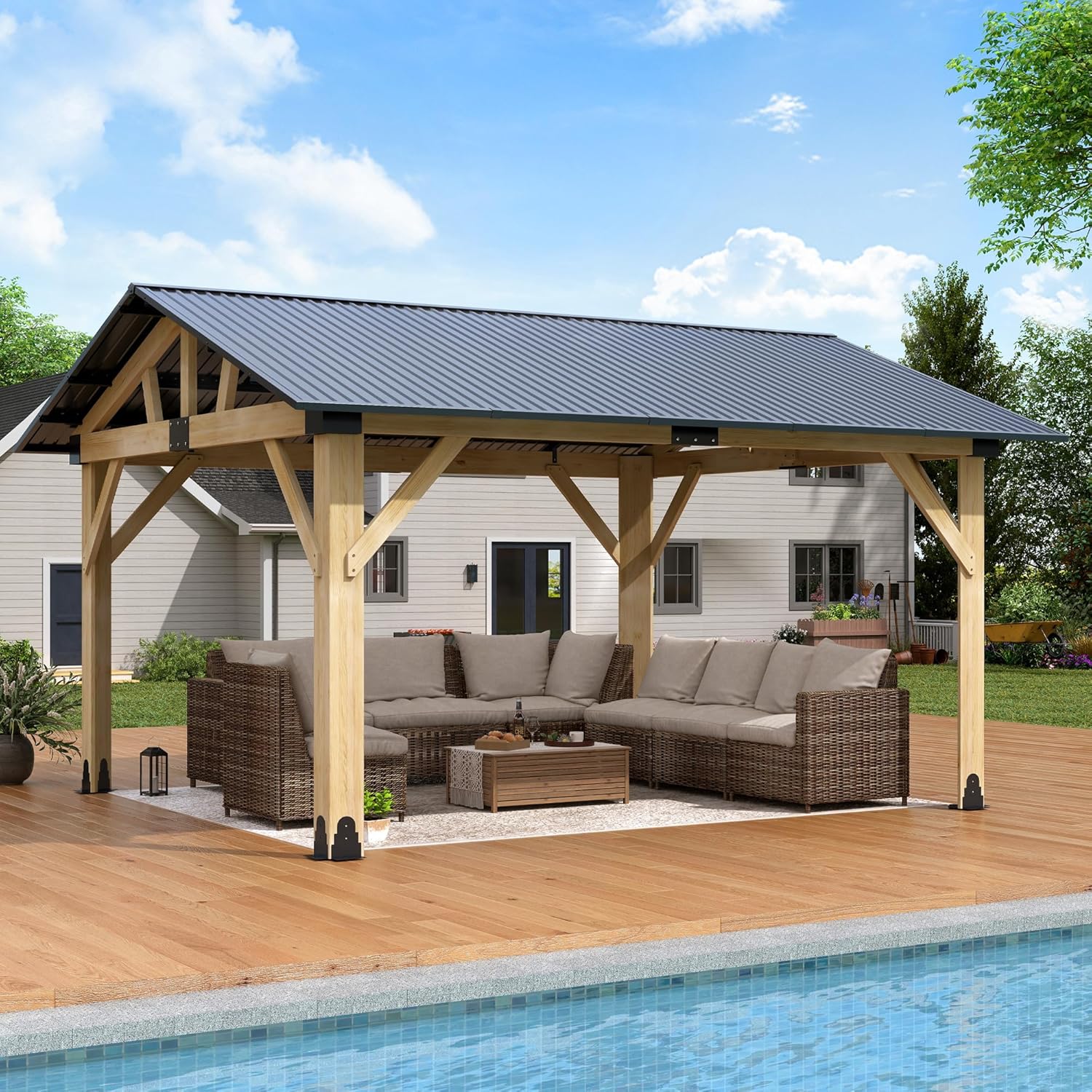

1. Product Overview

The Raysfung 12' x 14' Wood Gazebo is designed to enhance your outdoor living space, providing a spacious and durable shelter for various activities. It features a robust cedar wood frame and a galvanized steel roof, engineered for stability and longevity in diverse weather conditions.

Key Features:

• Upgraded Cedar Wood Frame: Constructed with FSC certified solid cedar wood, ensuring durability, strength, and a long lifespan. The heavy-duty design and ground stake compatibility contribute to stability.
• Enhanced Stability: Features a triangular frame structure and reinforced corners with iron sheets for increased stability and long-lasting use. Pre-drilled holes in the feet allow for secure anchoring with ground nails or expansion screws.
• Slope Galvanized Steel Roof: The roof is made from premium galvanized steel, offering superior resistance to rust and fading. It effectively protects against rain and creates a comfortable environment.
• Generous Space: With dimensions of 12' x 14', this gazebo provides ample space, comfortably accommodating 6-10 people, making it suitable for gatherings, events, or relaxation.
• Ease of Assembly: Designed for straightforward installation with detailed instructions provided.

2. Setup Instructions

Assembly of the Raysfung Wood Gazebo requires careful attention to detail and is best performed with at least two people. All components are clearly marked and organized across multiple boxes to facilitate the process.

Preparation:

• Unpack all boxes and verify that all parts are present according to the included parts list.
• Lay out components in an organized manner to streamline the assembly process.
• Ensure you have the necessary tools as specified in the detailed installation guide.

Assembly Steps:

1. Frame Assembly: Begin by assembling the main wooden frame components. Pay close attention to the orientation of each piece to ensure proper alignment for the roof and support structures.
2. Reinforcement Installation: Install the iron sheet reinforcements at corners and joints as indicated in the manual. These are crucial for the gazebo's structural integrity.
3. Roof Panel Attachment: Carefully attach the galvanized steel roof panels. Ensure all pre-punched holes align correctly for a secure and waterproof seal.
4. Anchoring: Once the main structure is complete, secure the gazebo to the ground using the provided ground nails or expansion screws through the pre-drilled holes in the feet. This step is vital for stability, especially in windy conditions.

3. Operating Instructions

The Raysfung Wood Gazebo is designed for continuous outdoor use, providing a comfortable and protected space for various activities. Its robust construction ensures reliable performance in different weather conditions.

Usage Guidelines:

• Outdoor Living: Utilize the gazebo for dining, lounging, entertaining guests, or simply relaxing in your garden, patio, or deck.
• Weather Protection: The galvanized steel roof offers excellent protection from sun (UV protection) and rain (waterproof). While designed for outdoor elements, it is advisable to take precautions during extreme weather events such as severe storms or heavy snowfall.
• Ventilation: The open design allows for natural airflow, ensuring a comfortable environment even on warm days.

4. Maintenance

Regular maintenance will ensure the longevity and optimal appearance of your Raysfung Wood Gazebo.

Cleaning:

• Wood Frame: Clean the cedar wood frame periodically with a soft cloth and mild soap solution. Rinse thoroughly with water and allow to air dry. Avoid harsh chemicals or abrasive cleaners that could damage the wood finish.
• Steel Roof: The galvanized steel roof can be cleaned with a soft brush or cloth and water to remove dirt, leaves, or debris. For stubborn stains, a mild detergent can be used.

Inspection:

• Structural Integrity: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain structural stability.
• Wood Condition: Check the wood for any signs of cracking, warping, or rot. Address minor issues promptly to prevent further damage. Applying a wood sealant or stain annually can help protect the wood from weathering.
• Roof Condition: Inspect the steel roof for any signs of rust, dents, or loose panels. Ensure proper drainage to prevent water accumulation.

5. Troubleshooting

This section addresses common issues that may arise during assembly or use of your gazebo.

Common Issues and Solutions:

• Difficulty with Assembly:
  • Ensure you have followed the detailed installation instructions precisely.
  • Verify that all parts are correctly identified and oriented before attempting to connect them. Some parts may appear similar but have subtle differences.
  • Confirm that you have at least two people assisting with the assembly, especially for larger or heavier components.
• Missing or Damaged Parts:
  • If you discover any missing or damaged components upon unpacking, please contact customer support immediately. Provide details of the missing parts and your purchase information.
• Wood Warping:
  • Minor warping of wood components can sometimes occur. Once the gazebo is fully assembled and anchored, the structure's rigidity often helps to straighten out slight warps.
  • If warping significantly affects assembly or structural integrity, contact customer support.
• Instability After Assembly:
  • Ensure all fasteners are securely tightened.
  • Verify that the gazebo is properly anchored to a level and stable surface using the provided ground nails or expansion screws.

6. Specifications

7. Warranty and Support

Raysfung is committed to providing quality products and excellent customer service. Your gazebo is designed for durability and comes with support for any issues you may encounter.

Customer Service:

If you have any questions regarding assembly, missing parts, or product performance, please do not hesitate to contact Raysfung customer support. We are dedicated to resolving any issues you may have.

For assistance, please refer to the contact information provided with your purchase documentation or visit the official Raysfung store online.

Protection Plans:

Extended protection plans may be available for your gazebo, offering additional coverage beyond the standard manufacturer's support. These plans can provide peace of mind for long-term use.

• 2-Year Protection Plan: Available for purchase.
• 3-Year Protection Plan: Available for purchase.
• Complete Protect: A monthly plan covering eligible past and future purchases.

Please check with your retailer or the manufacturer's website for details on how to acquire these protection plans.
