Cecotec Cecofry&Grill Smokin' 4500 Air Fryer Instruction Manual

1. Introduction

Thank you for choosing the Cecotec Cecofry&Grill Smokin' 4500 Air Fryer. This versatile appliance combines the functions of an air fryer, grill, and integrated smoker, allowing you to prepare a wide variety of healthy and delicious meals with minimal oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Do not immerse the appliance, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
• Keep the appliance out of reach of children and pets.
• Do not operate the appliance if the plug, power cord, or appliance itself is damaged.
• Always unplug the appliance when not in use and before cleaning.
• Allow the appliance to cool down completely before handling or cleaning.
• Do not block the air inlet or outlet vents during operation.
• Use only original accessories provided or recommended by Cecotec.
• Do not place the appliance against a wall or other appliances. Leave at least 10 cm of free space on the back, sides, and above the appliance.
• Do not place anything on top of the appliance.
• The surfaces may become hot during use. Do not touch hot surfaces directly. Use handles or oven mitts.

3. Product Overview

The Cecofry&Grill Smokin' 4500 is designed for versatile cooking, featuring multiple functions in one compact unit.

Figure 3.1: Overall view of the Cecotec Cecofry&Grill Smokin' 4500 Air Fryer.

Key Features:

• Air Frying: Circulates hot air for crispy results with little to no oil.
• Grill Function: Equipped with a Grillin' Style plate for searing meats and achieving optimal grill marks.
• Integrated Smoker: Allows for smoking preparations with wood chips or pellets, adding an authentic flavor.

Figure 3.2: Close-up of the integrated smoker compartment for wood chips or pellets.
• Dual Resistance Heating: Upper and lower heating elements ensure uniform heat distribution for consistent cooking without constant food turning.

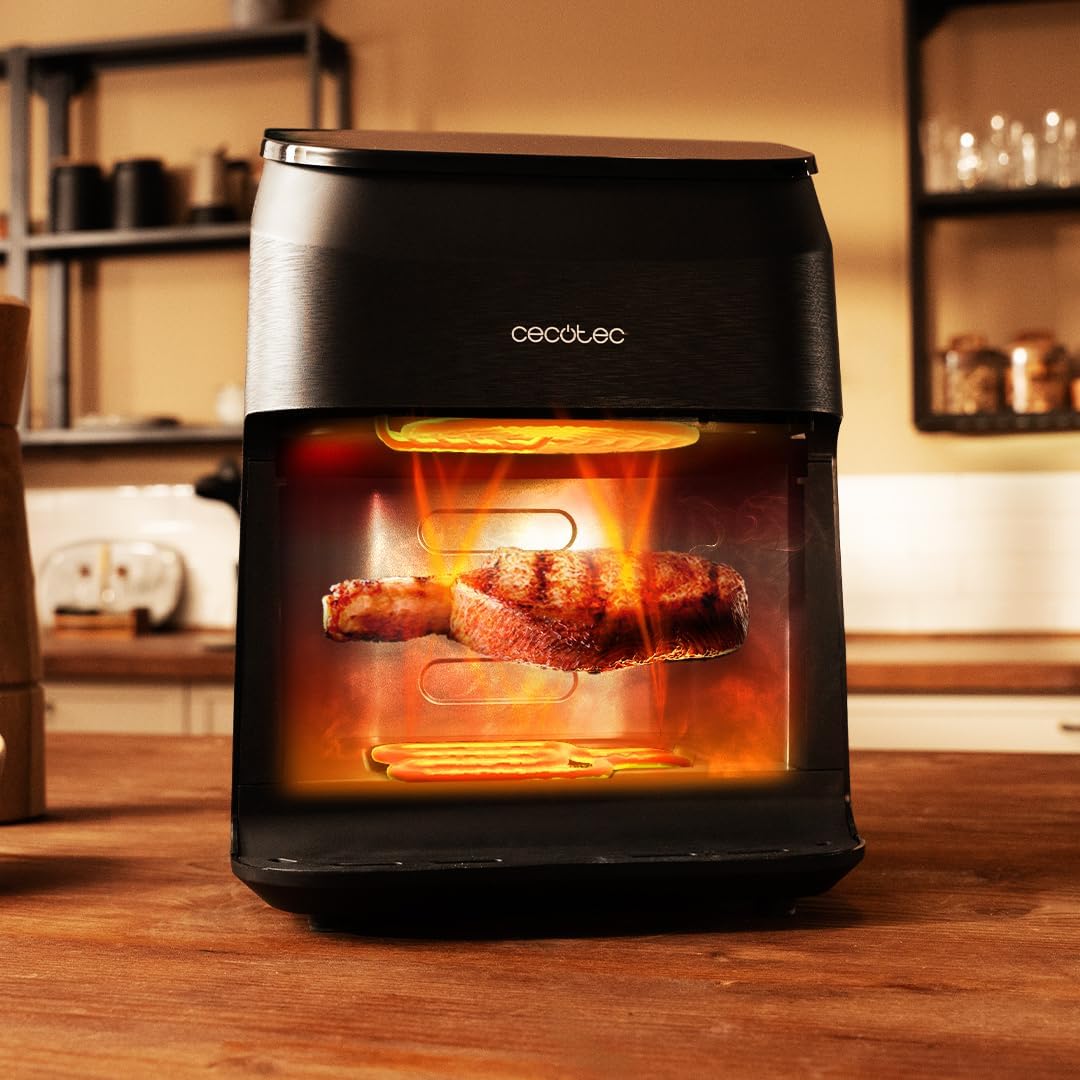

Figure 3.3: Illustration showing the dual heating elements for even cooking.

• 4.5 Liter Capacity: Ideal for preparing meals for individuals or small families.
• 1900W Power: Ensures rapid heating and efficient cooking.
• Adjustable Temperature: Control temperature from 40°C to 200°C.
• 10 Pre-set Menus: Convenient programs for various dishes.

4. Setup

1. Unpack: Carefully remove the appliance and all accessories from the packaging. Retain packaging for future storage or transport.
2. Clean: Before first use, clean the basket, grill plate, and pizza plate with warm soapy water. Wipe the main unit with a damp cloth. Ensure all parts are completely dry before assembly.
3. Placement: Place the appliance on a stable, heat-resistant, and level surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides).
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. Initial Run (Optional): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C to burn off any manufacturing residues. A slight odor may be present, which is normal. Ensure the area is well-ventilated.

5. Operating Instructions

General Operation:

1. Pull out the cooking basket from the main unit.
2. Place your desired accessory (grill plate, pizza plate, or no accessory for air frying) into the basket.
3. Place ingredients into the basket. Do not overfill.
4. Slide the basket back into the appliance until it clicks into place.
5. Press the power button to turn on the appliance.
6. Select a pre-set menu or manually set the temperature and time using the control panel.
7. Press the start button to begin cooking.
8. Some recipes may require shaking or flipping ingredients halfway through cooking. The appliance may beep to remind you.
9. Once cooking is complete, carefully pull out the basket and remove the food.

Using the Grill Function:

For grilling, use the dedicated Grillin' Style plate. This is ideal for meats, fish, and vegetables to achieve perfect grill marks and texture.

Figure 5.1: Preparing steak using the grill function.

Using the Pizza Plate:

The flat pizza plate allows for optimal crisping of pizza bases and other flat items.

Figure 5.2: Cooking a pizza using the dedicated pizza plate.

Using the Smoker Function:

To add a smoky flavor to your dishes, fill the integrated smoker compartment with suitable wood chips or pellets. Follow the specific instructions for the smoker function on the control panel.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your appliance.

• Unplug and Cool: Always unplug the air fryer and allow it to cool completely before cleaning.
• Basket and Accessories: The cooking basket, grill plate, and pizza plate are non-stick and can be washed with warm soapy water. For stubborn residue, soak them for a few minutes before cleaning. They are also dishwasher safe.
• Main Unit: Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners or scourers.
• Heating Element: Use a soft brush to gently clean any food residue from the heating element inside the appliance. Do not use water or liquid directly on the heating element.
• Storage: Ensure all parts are clean and dry before storing the appliance in a cool, dry place.

7. Troubleshooting

8. Specifications

9. Warranty and Support

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Cecotec website. For technical support, spare parts, or service inquiries, please contact Cecotec customer service through their official channels.
