dolria 6 Rings Modern LED Dimmable Chandelier Instruction Manual

1. Introduction

Thank you for purchasing the dolria 6 Rings Modern LED Dimmable Chandelier. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

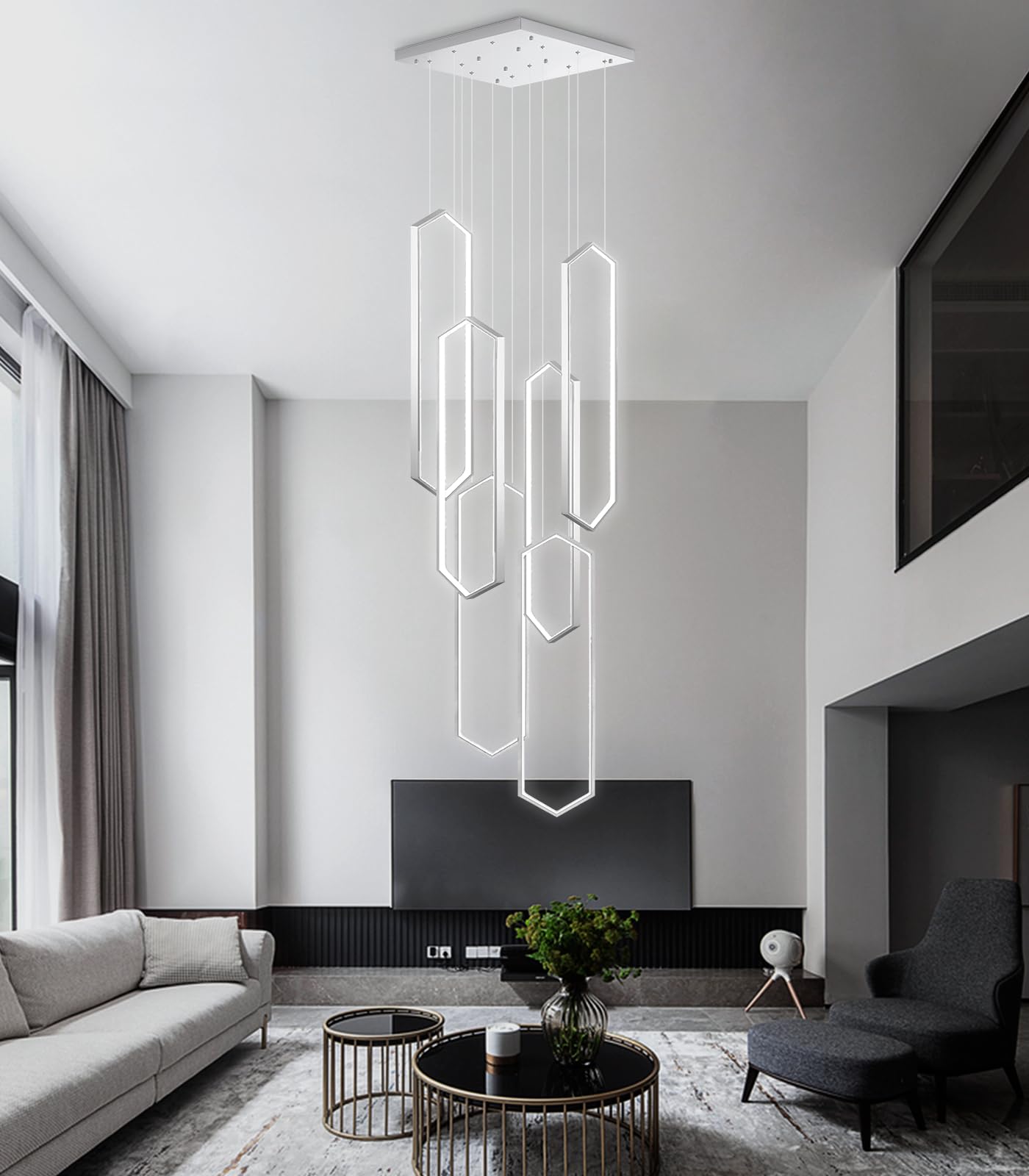

An elegant dolria 6 Rings Modern LED Dimmable Chandelier with a silver finish, featuring six rhombic rings suspended from a square ceiling plate, illuminating a high-ceiling living space.

2. Safety Information

• Electrical Safety: Always turn off the main power supply at the circuit breaker before installation, maintenance, or cleaning.
• Professional Installation: Installation should be performed by a qualified electrician to ensure proper wiring and safety.
• Voltage: Ensure the power supply voltage matches the fixture's requirements (110-240V).
• Handling: Handle the fixture with care to avoid damage to the LED components or silicone shades.
• Indoor Use Only: This chandelier is designed for indoor use only and is not water-resistant.

3. What's in the Box

Verify that all components are present and undamaged before beginning installation:

• LED Chandelier (6 Rings)
• Remote Control
• Mounting Hardware
• Shade (integrated silicone)
• Bulb (integrated LED)

4. Product Features

• Unique Rhombic Design: Features six 26-inch rhombic rings for a modern aesthetic.
• Adjustable Height: Hanging wires are adjustable from 3.9 inches to 118 inches, allowing for customization of the chandelier's overall height and shape.
• Dimmable LED: Brightness can be adjusted from 10% to 100% using the included remote control or a compatible phone app.
• Adjustable Color Temperature: Color temperature is dimmable from 2700K (Warm White) to 6000K (Cool White).
• High-Quality Materials: Constructed from aluminum with highly translucent silicone lampshades for optimal light transmission and heat dissipation.
• Wide Application: Suitable for various high-ceiling spaces such as staircases, foyers, living rooms, dining rooms, and villas.

5. Installation Guide

Note: All pendants are pre-wired and pre-threaded for simplified installation. Professional installation is recommended.

1. Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting surface is secure and can support the fixture's weight.
2. Mount the Canopy: Attach the canopy to the ceiling junction box using the provided mounting hardware. Ensure it is flush and stable.
3. Adjust Hanging Wires: The hanging wires for each ring are adjustable via cable locking pins on the canopy. Adjust each ring to your desired height and configuration. The wires may have a slight bend initially but will straighten over time.
4. Wiring Connections: Connect the chandelier's wires to the household electrical wires according to local electrical codes. Typically, this involves connecting live to live, neutral to neutral, and ground to ground.
5. Secure Connections: Ensure all wire connections are secure and insulated.
6. Final Assembly: Carefully tuck all wires into the canopy and secure the canopy cover.
7. Restore Power: Turn the main power back on at the circuit breaker.

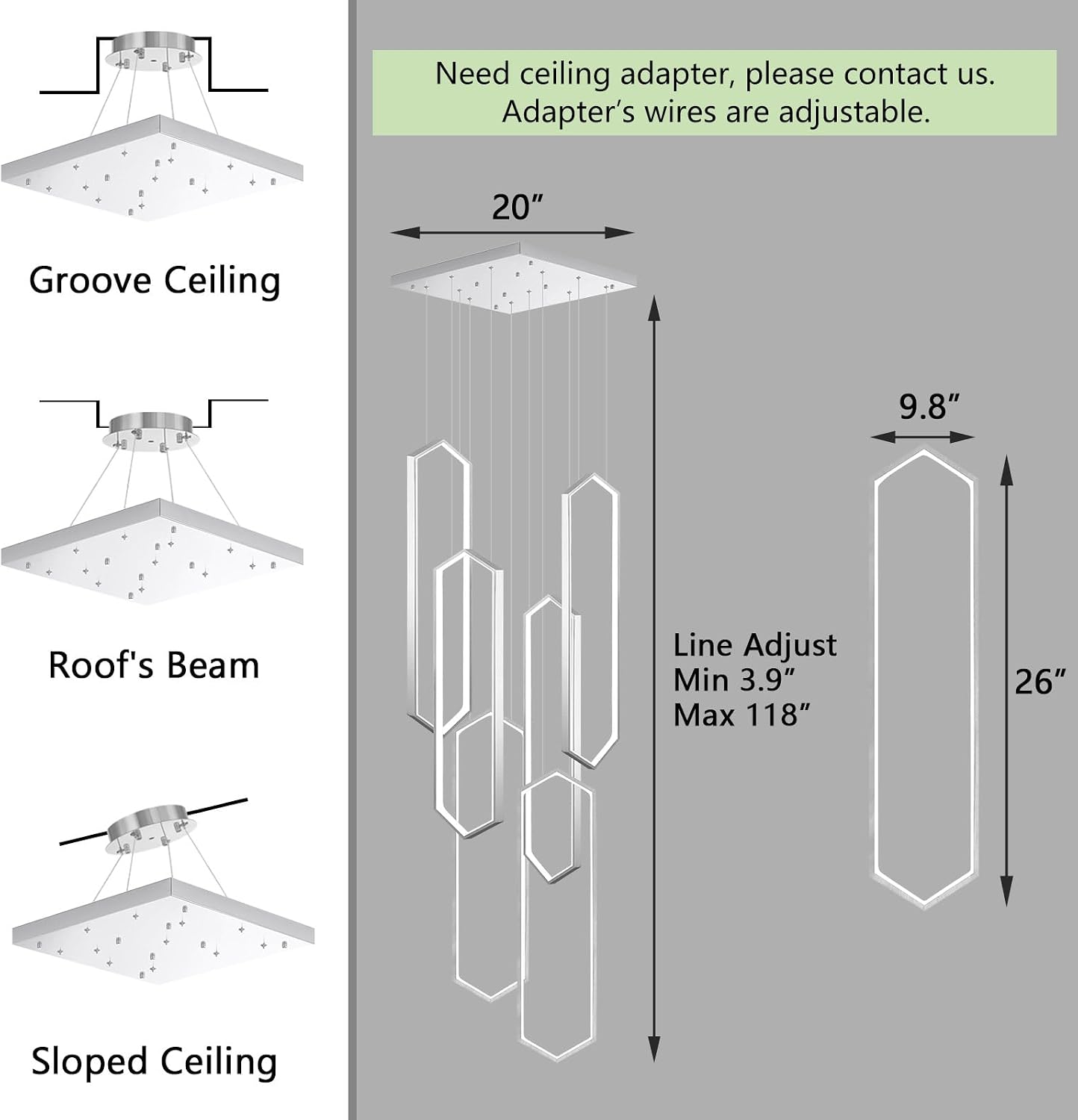

Diagram illustrating the chandelier's dimensions: each ring is 9.8 inches wide and up to 26 inches long, with a 20-inch canopy. Adjustable hanging wires range from 3.9 to 118 inches. Shows compatibility with groove, roof beam, and sloped ceilings.

Image demonstrating the use of a ceiling adapter for installations on sloped ceilings (angles greater than 30 degrees), groove ceilings, and roof beams. The adapter ensures proper flush mounting. Contact customer support if an adapter is needed.

Installation Video

6. Operating Instructions

Your dolria chandelier offers versatile lighting control via the included remote control or a compatible phone application.

• Brightness Adjustment: Use the remote control or phone app to adjust the brightness from 10% (dark) to 100% (bright).
• Color Temperature Adjustment: Cycle through or select desired color temperatures: 2700K (Warm Light), 4500K (Nature Light), and 6000K (Cool Light).
• Compatibility: The chandelier is designed for control via remote or phone app (AC110-240V). It is not compatible with standard wall switches or dimmer switches.

Visual representation of the chandelier's adjustable light temperatures (Cool Light 6000K, Nature Light 4500K, Warm Light 3000K) and dimmable brightness (5%-100%). Shows control via remote and phone app.

Diagram indicating that the chandelier is compatible with remote control and phone app (AC110-240V), but not with standard wall switches or dimmer switches.

Operation Video

7. Maintenance

• Cleaning: Ensure the power is off before cleaning. Use a soft, dry cloth to wipe the fixture. Do not use abrasive cleaners or solvents.
• Inspection: Periodically check for any loose connections or signs of wear.

8. Troubleshooting

If you encounter issues with your chandelier, refer to the following common solutions:

• Light Not Turning On: Check the main power supply at the circuit breaker. Ensure all wiring connections are secure. Verify the remote control battery is functional.
• Lights Flickering: Ensure all connections are tight. Confirm the power supply is stable. If using a wall switch, ensure it is not a dimmer switch, as this fixture is not compatible.
• Remote Control Not Working: Check the battery in the remote. Ensure there are no obstructions between the remote and the chandelier's receiver.
• Uneven Hanging Rings: The hanging wires are adjustable. Gently adjust the cable locking pins on the canopy to achieve the desired balance and height for each ring.

For persistent issues not resolved by these steps, please contact customer support.

9. Specifications

10. Warranty & Support

This dolria chandelier comes with a 6-year warranty. If you encounter any problems, require replacement parts for damaged or missing accessories, or need further assistance, please contact our customer service team. We are committed to ensuring your satisfaction.

Customer Support: Please refer to your purchase documentation or the seller's contact information for support details.
