1. Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your ZUKKA 24-inch, 7-speed Beach Cruiser Bike. Please read this manual thoroughly before assembly and first use to ensure safe and optimal performance.
The ZUKKA Beach Cruiser Bike is designed for comfortable urban and light off-road riding, featuring a low standover frame, 7-speed shifting system, and reliable V-brakes.

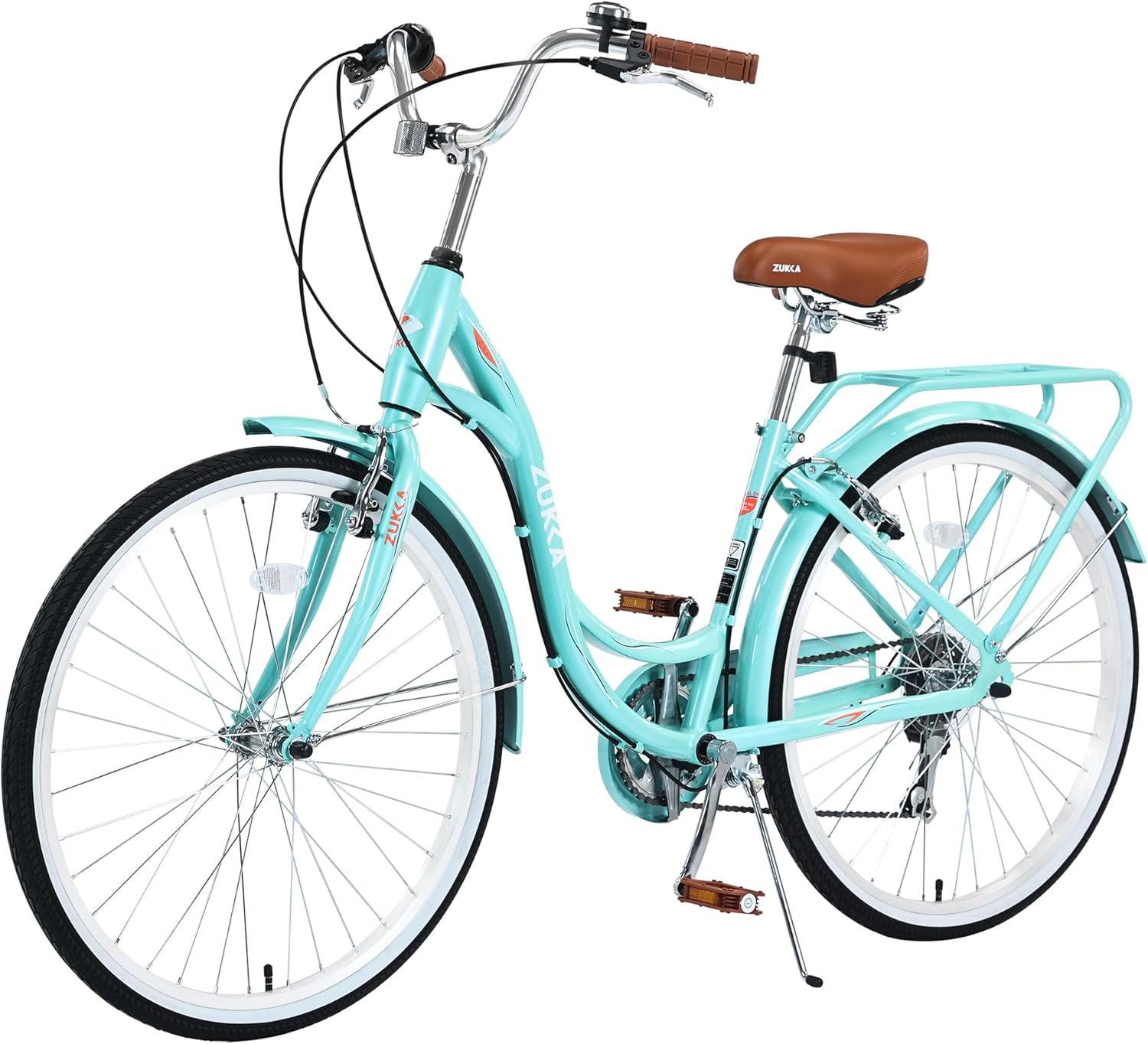

Image 1.1: Overview of the ZUKKA 24-inch Beach Cruiser Bike in Cyan.
2. Safety Information
- Always wear a helmet when riding.
- Ensure all bolts and quick releases are securely tightened before each ride.
- Check brake functionality before each use.
- Ride defensively and obey all traffic laws.
- Do not exceed the maximum weight recommendation of 330 pounds.
- Ensure the seat post is inserted past the minimum insertion mark.
3. Assembly Instructions
Your ZUKKA Beach Cruiser Bike arrives approximately 85% pre-assembled. A basic tool kit is included to assist with the remaining assembly steps. For detailed visual guidance, refer to the included assembly instructions and diagrams.
3.1 Unpacking
- Carefully remove the bike and all components from the packaging.
- Remove all protective packaging materials and zip ties.
- Verify all parts are present according to the packing list.
3.2 Front Wheel Installation
- Align the front wheel with the fork dropouts.
- Ensure the quick-release skewer or axle nuts are properly secured.
- Check that the wheel spins freely and is centered.
3.3 Handlebar Attachment
- Insert the handlebar stem into the fork steerer tube.
- Align the handlebars straight with the front wheel.
- Tighten the stem bolt securely.
- Adjust the angle of the handlebars for comfortable riding.
3.4 Seat Post and Saddle Installation
- Insert the seat post into the frame's seat tube.
- Ensure the seat post is inserted beyond the minimum insertion line.
- Adjust the saddle height for comfortable pedaling (slight bend in knee at bottom of pedal stroke).
- Secure the seat post quick release or bolt.
Image 3.1: The comfortable saddle, adjustable for rider height.
3.5 Pedal Attachment
- Identify the left (L) and right (R) pedals.
- The right pedal tightens clockwise, the left pedal tightens counter-clockwise.
- Thread pedals carefully into the crank arms and tighten securely with a wrench.
3.6 Fender and Rear Rack Installation
- Attach the front and rear fenders using the provided hardware.
- Secure the rear luggage carrier to the designated mounting points on the frame.
- Ensure all attachments are firm and do not interfere with wheel rotation or braking.
Image 3.2: The sturdy rear luggage carrier for carrying items.
4. Operating Instructions
4.1 Shifting Gears
Your ZUKKA Beach Cruiser Bike is equipped with a 7-speed Shimano shifting system (RS25-7R shifter and RD-TY21 derailleur).
- To shift to a higher gear (for faster riding or downhill), twist the grip shifter towards you (higher number).
- To shift to a lower gear (for easier pedaling or uphill), twist the grip shifter away from you (lower number).
- Shift gears while pedaling lightly to ensure smooth transitions. Avoid shifting while stationary or under heavy load.
Image 4.1: The Shimano RS25-7R 7-speed grip shifter for smooth gear changes.
4.2 Braking
The bike features dual V-brakes for reliable stopping power.
- The right brake lever controls the rear brake.
- The left brake lever controls the front brake.
- Apply both brakes simultaneously for controlled stopping. Avoid sudden, hard application of the front brake, especially at high speeds, to prevent loss of control.
Image 4.2: Details of the braking system (bottom left) and other components.
4.3 Adjusting Seat Height
Proper seat height is crucial for comfort and efficiency.
- Loosen the quick-release lever or bolt on the seat post clamp.
- Adjust the seat height so that your leg has a slight bend at the knee when the pedal is at its lowest point.
- Ensure the seat post is inserted past the minimum insertion mark.
- Securely tighten the quick-release lever or bolt.
Image 4.3: The adjustable seat post allows for personalized rider comfort.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your ZUKKA Beach Cruiser Bike.
5.1 Pre-Ride Check
- Tires: Check tire pressure before each ride. Inflate to the recommended PSI found on the tire sidewall.
- Brakes: Ensure brake levers engage smoothly and stop the wheels effectively. Check brake pads for wear.
- Chain: Inspect the chain for rust or stiffness. Lubricate if dry.
- Bolts & Quick Releases: Verify all bolts, nuts, and quick releases are tight.
5.2 Cleaning and Lubrication
- Clean the bike regularly with mild soap and water, then rinse and dry thoroughly.
- Lubricate the chain every few rides or after riding in wet conditions. Use bicycle-specific chain lubricant.
- Avoid spraying water directly into bearings (hubs, bottom bracket, headset).
5.3 Professional Servicing
It is recommended to have your bike inspected by a professional bicycle mechanic at least once a year, or more frequently if you ride often or in challenging conditions.
6. Troubleshooting
This section addresses common issues you might encounter. For complex repairs, consult a professional bicycle mechanic.
- Brakes feel weak: Check brake pad alignment and wear. Ensure brake cables are properly tensioned.
- Gears are not shifting smoothly: Inspect the derailleur for alignment. Check shifter cable tension. Ensure the chain is clean and lubricated.
- Tire is flat: Locate the puncture and repair or replace the inner tube. Ensure the tire is properly seated on the rim before re-inflating.
- Squeaking or grinding noises: Identify the source of the noise. Common culprits include dry chains, loose components, or worn brake pads.
7. Specifications
Detailed specifications for the ZUKKA 24-inch Beach Cruiser Bike:
| Feature | Specification |
|---|---|
| Bike Type | Cruiser Bike |
| Age Range (Description) | Adult |
| Brand | ZUKKA |
| Number of Speeds | 7 |
| Color | Cyan |
| Wheel Size | 24 Inches |
| Frame Material | Alloy Steel |
| Suspension Type | Dual (referring to V-brakes, not suspension forks) |
| Special Feature | Adjustable Seat |
| Included Components | Tool Kit |
| Brake Style | V Brake |
| Model Name | Beach Cruiser Bike |
| Power Source | Pedal power |
| Seat Material Type | Plastic (with comfortable padding) |
| Maximum Weight Recommendation | 330 Pounds |
| Assembly Required | Yes (85% pre-assembled) |
| Bicycle Gear Shifter Type | Trigger (Shimano RS25-7R) |
| Gear Type | Derailleur (Shimano RD-TY21) |
| Minimum User Height | 56 Inches (4'8") |
| Intended Riding Terrain | Urban and Light Off-Road |

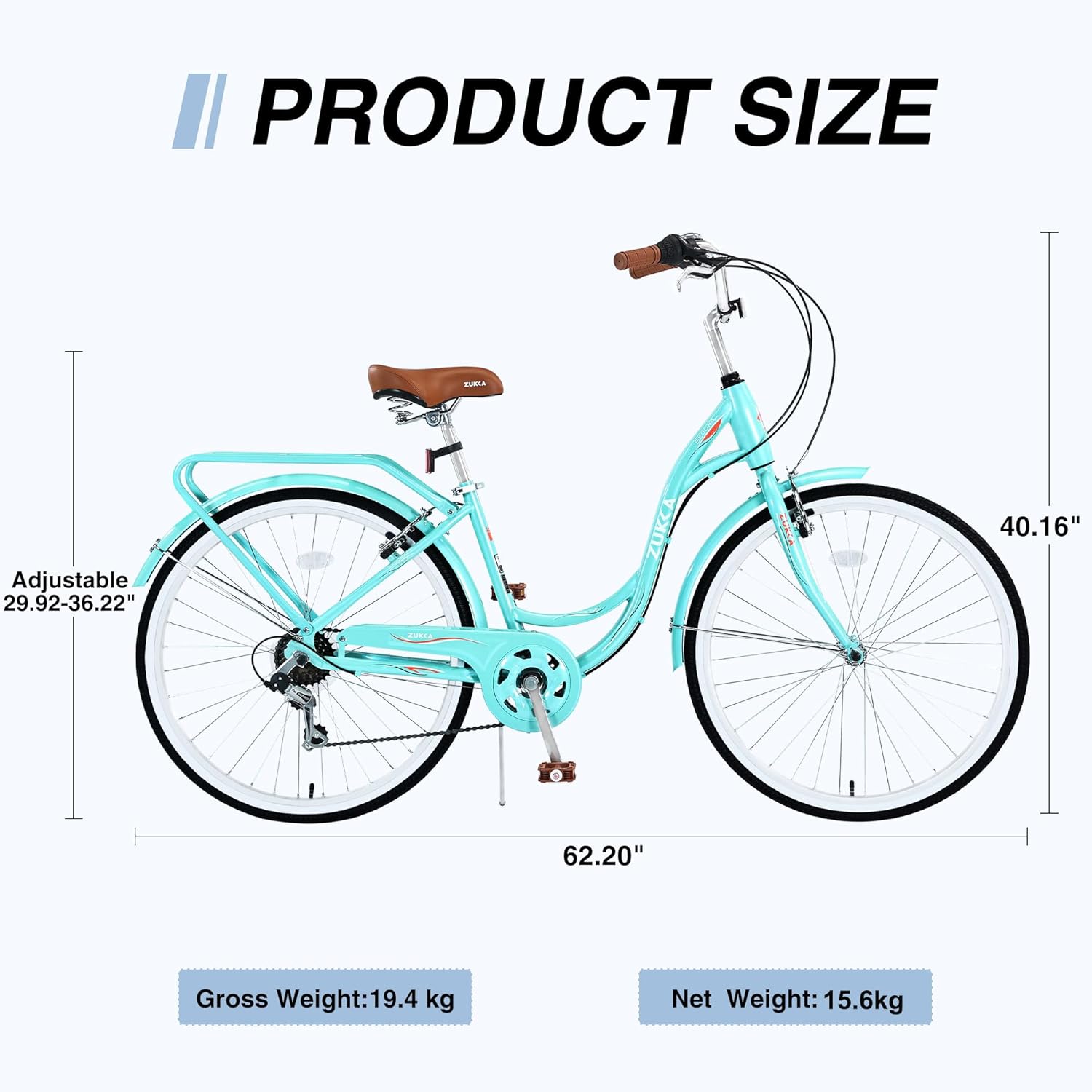

Image 7.1: Product dimensions and weight for the 24-inch model.
Image 7.2: Rider height guide for the 24-inch ZUKKA Beach Cruiser Bike.
8. Warranty Information
The ZUKKA Beach Cruiser Bike comes with a manufacturer's warranty. Specific details regarding the warranty period and coverage are typically provided with your product packaging or can be obtained by contacting ZUKKA customer support directly. Please retain your proof of purchase for warranty claims.
9. Customer Support
If you have any questions regarding the assembly, operation, maintenance, or troubleshooting of your ZUKKA Beach Cruiser Bike, please do not hesitate to contact ZUKKA customer support.
For support, please refer to the contact information provided in your product packaging or visit the official ZUKKA website.
