Soobaby 5-in-1 Baby Crib & Bassinet Instruction Manual (Model H31W)

Introduction

Thank you for choosing the Soobaby 5-in-1 Baby Crib & Bassinet. This versatile product is designed to adapt to your child's growth, offering multiple functionalities including a baby bedside sleeper, travel crib, baby cradle, playpen, and changing table. This manual provides essential information for safe assembly, operation, and maintenance to ensure a secure and comfortable environment for your child.

Important Safety Information

• Always ensure the crib is stable and level before use. A wobbly or uneven crib can cause items to fall, lead to discomfort, or even cause the crib to collapse under weight.
• Never leave your child unattended in the crib or bassinet.
• Do not use the changing table if your child can roll over or push up on their hands and knees.
• Always use the safety straps provided with the changing table.
• Ensure all locking mechanisms are securely engaged before placing your child in the crib or bassinet.
• Keep small parts and plastic bags away from children to prevent choking hazards.
• Regularly inspect the product for any signs of wear, damage, or loose parts. Discontinue use if any damage is found.

Package Contents

Please verify that all components are present before assembly:

• Main Crib Frame
• Mattress/Base Pad
• Detachable Changing Table
• Toy Mobile with Music Box
• Side Storage Caddy
• Travel/Storage Bag
• Instruction Manual

Setup and Assembly

1. Unfolding the Crib Frame

To unfold the crib, first ensure the center base is pulled upwards. Then, firmly pull up on the short and long sides until they lock into place. Finally, push down the center base until it is flat and secure. All four sides must be locked before pressing the base down.

Video: Demonstrates how to properly install the crib by locking the sides and pushing down the base.

2. Installing the Bassinet Insert

For infants, the bassinet insert provides a raised sleeping surface. Securely attach the bassinet insert to the top rails of the crib frame using the provided clips or straps. Ensure it is level and stable.

Image: A visual representation of the Soobaby 5-in-1 Baby Playard in various configurations, including the bassinet and bedside crib modes.

3. Attaching the Detachable Changing Table

The changing table can be easily attached to the side of the crib. Align the connectors on the changing table with the designated slots on the crib rail and press firmly until it clicks into place. Ensure it is securely fastened before use.

Image: A parent using the detachable diaper changing table attached to the Soobaby 5-in-1 Baby Playard.

4. Installing the Toy Mobile and Storage Caddy

Attach the toy mobile arm to the designated slot on the crib rail. Ensure the toys are securely hanging and the music box is functional. The storage caddy can be hooked onto the side for easy access to diapers, wipes, and other essentials.

Image: Detailed view of the music toy mobile and the convenient diaper and storage rack on the Soobaby 5-in-1 Baby Playard.

Video: A comprehensive overview of the Soobaby 5-in-1 Baby Bassinet Pack and Play, demonstrating its various features and ease of use.

Operating Instructions

1. Baby Bassinet Mode

Ideal for newborns up to 3 years old, the bassinet mode provides a cozy and elevated sleeping space. The co-sleeping position is available by adjusting the lowering bars. Place the bassinet bed right up against your bed and lock the wheels for easy access to your baby.

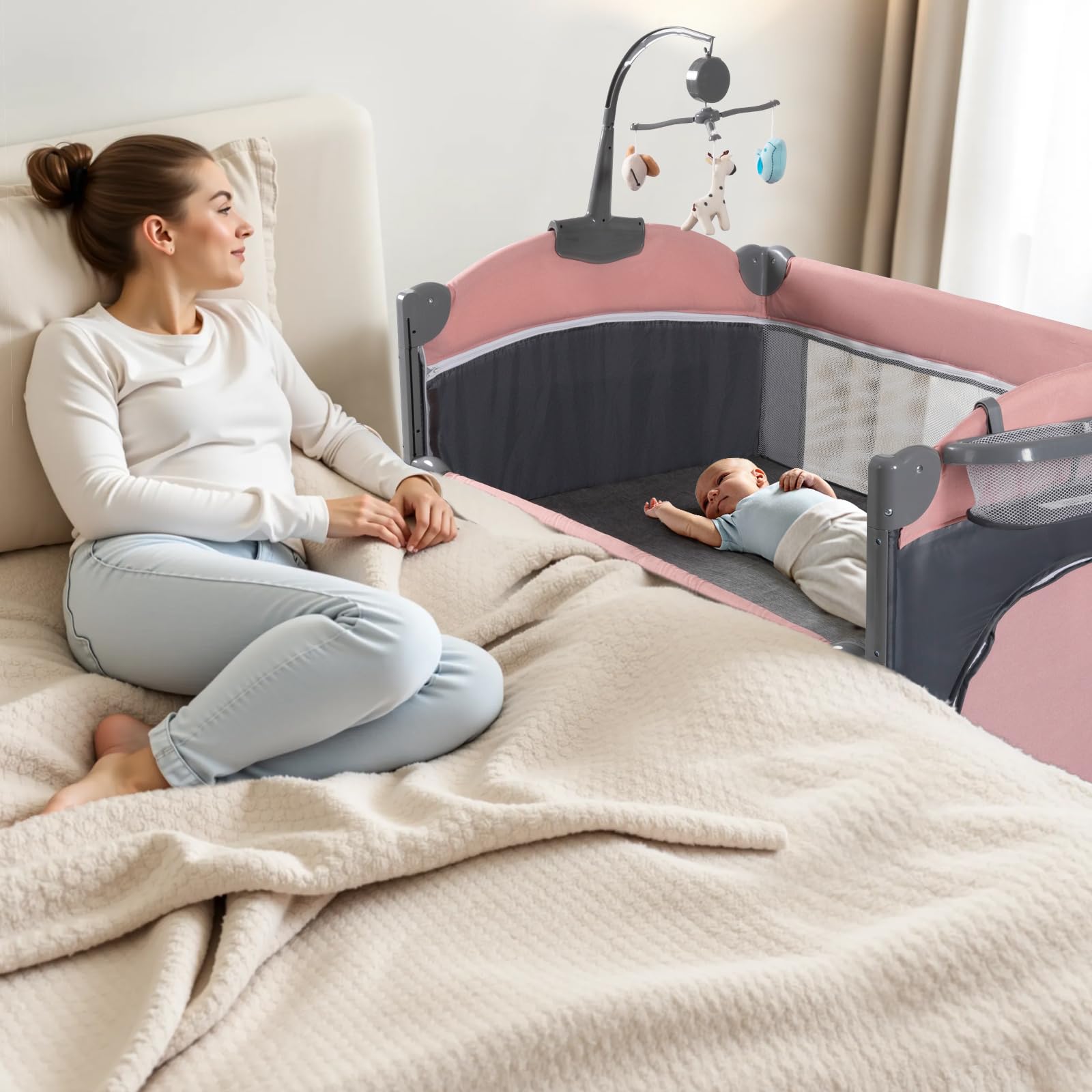

Image: The Soobaby 5-in-1 Baby Crib configured as a bassinet, positioned next to an adult bed for co-sleeping convenience.

2. Playpen Mode

For children aged 0-6 years, the playpen mode offers a secure and spacious area for play and rest. Lower the mattress to the bottom of the crib. The mesh design provides breathability and visibility. Some models feature a zippered side opening for easy access.

Image: The Soobaby 5-in-1 Baby Playard configured as a full-size play yard, featuring a comfortable and breathable mesh design with a baby playing inside.

3. Changing Table Mode

The detachable changing table provides a convenient surface for diaper changes. It features waterproof fabric for easy cleaning and includes a safety strap. Utilize the side storage caddy to keep all changing essentials within reach.

4. Portable Travel Bed Mode

The crib is designed for easy folding and portability, making it an ideal travel bed. It comes with sturdy wheels with brakes for smooth movement and stability. When folded, it fits into the included travel bag for convenient transport.

Image: The Soobaby 5-in-1 Baby Playard showcasing its lightweight, mobile, and versatile design, emphasizing the sturdy wheels with brakes for easy movement.

Maintenance and Care

• Cleaning: The product care instructions specify "Hand Wash Only." Use a mild soap and warm water to clean fabric surfaces. Wipe down the frame with a damp cloth.
• Storage: When not in use, fold the crib and store it in its travel bag in a dry, cool place away from direct sunlight.
• Inspection: Regularly check all parts for wear and tear, especially the mesh, fabric, and locking mechanisms.

Troubleshooting

Crib Side Will Not Lock

If one or more sides of the crib frame do not lock into place during assembly, ensure that the center base is pulled upwards before attempting to lock the sides. The sides must be locked before the base is fully pushed down. Apply firm, even pressure until you hear a click, indicating the side is locked.

Mattress Feels Loose in Bassinet Mode

Ensure the mattress is correctly positioned and the Velcro straps underneath are secured to the bassinet insert. While the playpen version has specific slits for securing the mattress, the bassinet mode relies on proper placement and securing of the straps to minimize movement.

Specifications

Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact Soobaby customer service. Refer to your purchase documentation for specific contact details or visit the official Soobaby website.
