Retevis NR30D DMR 2 Way Radio Instruction Manual

1. Product Overview

The Retevis NR30D is a professional-grade DMR (Digital Mobile Radio) 2-way radio designed for robust and reliable communication in demanding environments. Featuring long-range capabilities, advanced noise-canceling technology, and IP67 waterproofing, this handheld device ensures clear and secure communication. It supports both digital and analog modes, offering compatibility with various radio systems.

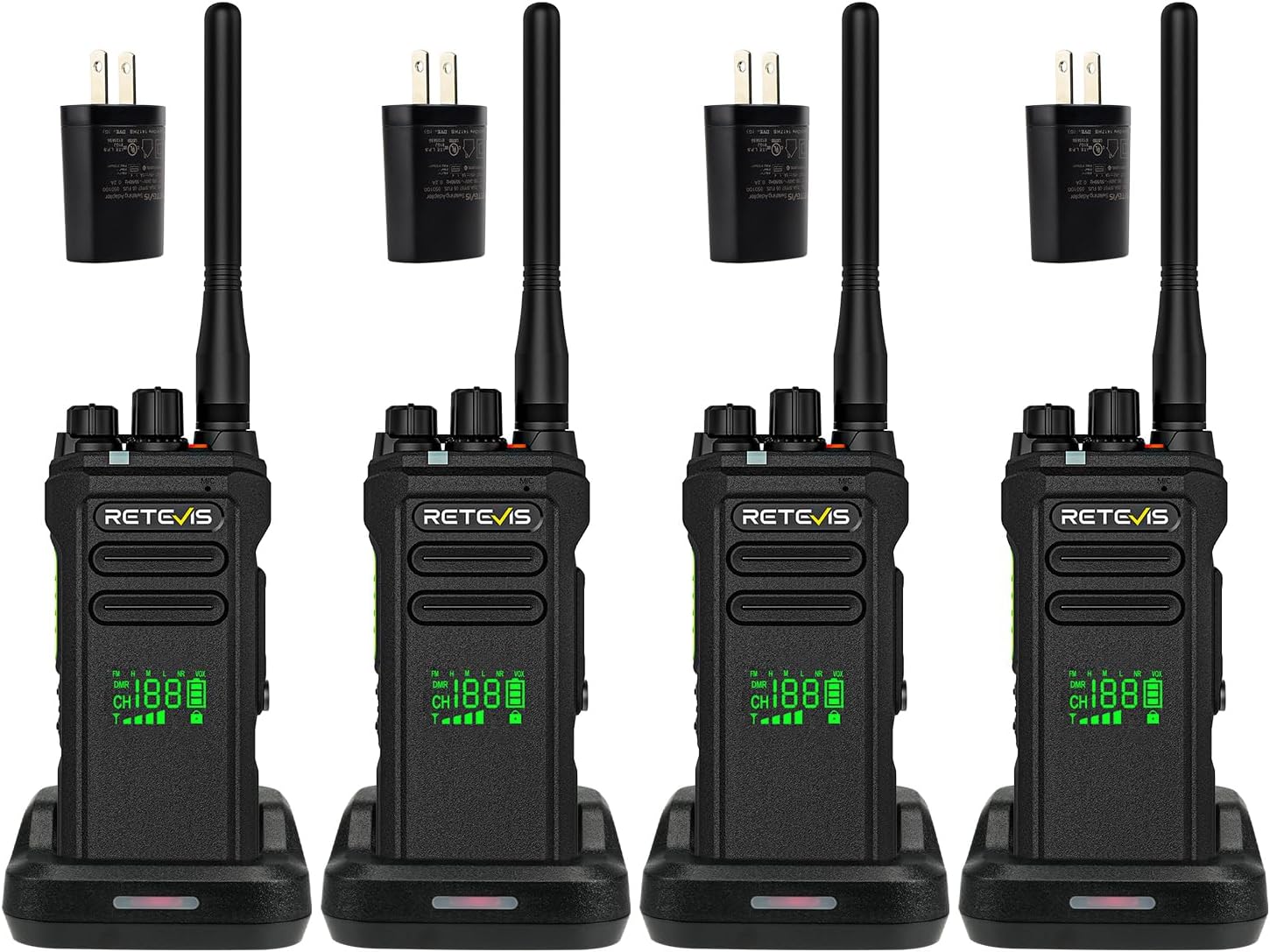

This image displays four Retevis NR30D two-way radios, each with its antenna, battery, and individual charging base. Power adapters are also visible, indicating a complete communication solution.

2. Package Contents

Verify that all items listed below are included in your package:

• NR30D two way radio x4
• Battery x4
• Charging base x4
• Charging cable x4
• Adapter x4
• User manual x4
• Belt clip x4
• Hand strap x4
• Data cable x1

This image illustrates the complete set of items included with the Retevis NR30D radios, neatly arranged in their packaging. It shows the radios, batteries, charging accessories, and documentation.

3. Key Features

3.1 Long Range and Coverage

The NR30D high-power walkie-talkie provides extensive coverage, reaching up to 700,000 square feet. Its strong penetration capabilities allow for clear communication across up to 50-story buildings, making it suitable for industrial parks and large warehouses.

The image shows a Retevis NR30D radio superimposed over a city skyline with construction sites, illustrating its capability to cover 700,000 square feet and penetrate up to 50 floors.

3.2 Noise Canceling Technology

Equipped with a built-in noise-canceling chip, the NR30D effectively filters background noise, enhancing communication clarity in noisy environments such as factories. DMR technology further improves sound quality, preventing distortion even at extended distances.

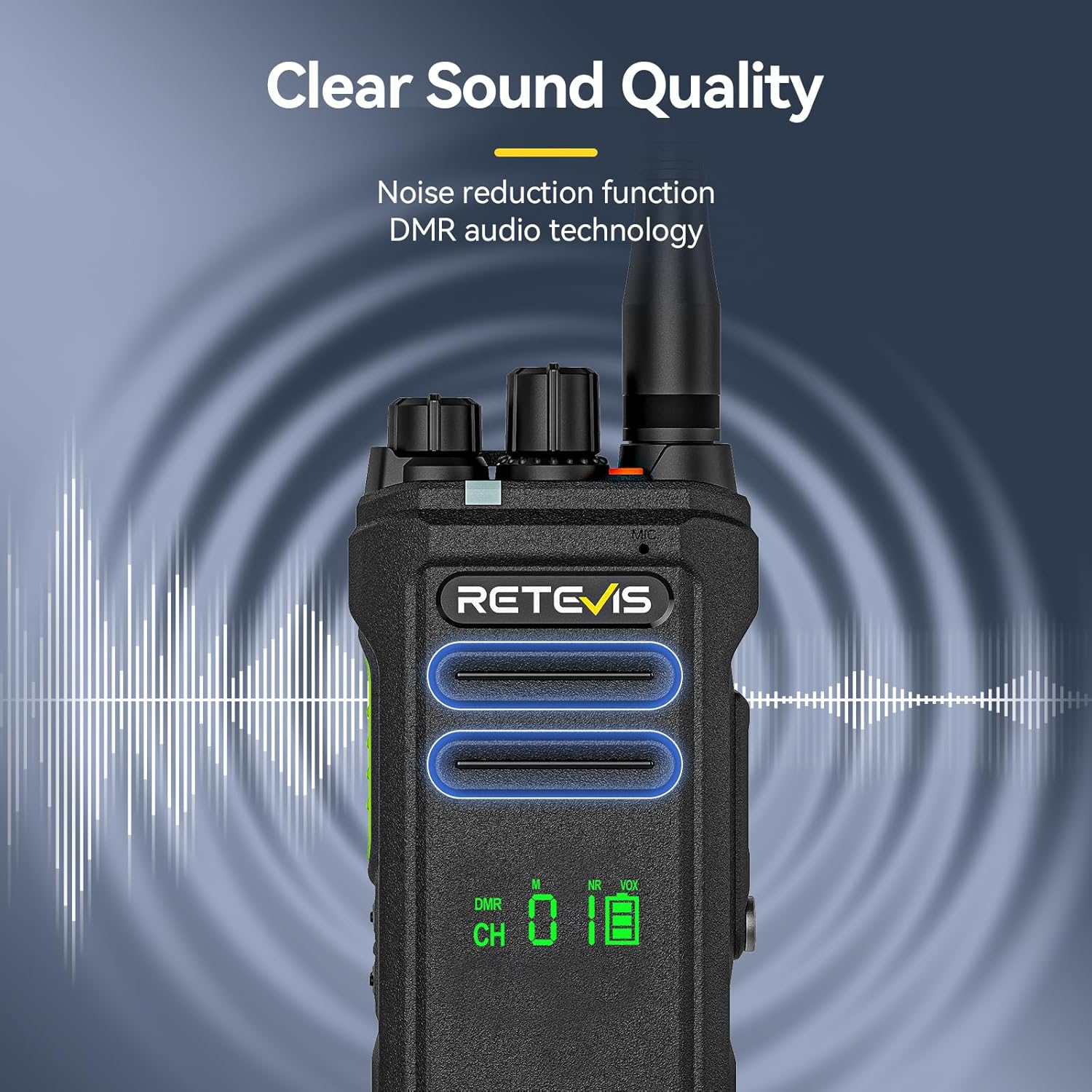

This graphic depicts a Retevis NR30D radio with sound waves emanating from its speaker, visually representing the noise reduction function and clear DMR audio technology.

3.3 Secure Communication and Compatibility

Digital walkie-talkies offer enhanced security compared to analog models, ensuring uninterrupted communication. The NR30D is compatible with R2, Motorola CP100D, and CP200D 2-way radios.

The image features a Retevis NR30D radio with a digital circuit background and text indicating AES256 encryption and strong compatibility with Motorola CP100 and CP200 walkie-talkies.

3.4 Durability: IP67 Waterproof, Dustproof, and Drop-proof

The NR30D boasts an IP67 protection level, allowing it to be immersed in 1 meter of water for 30 minutes without affecting communication. It is also dustproof and drop-proof, extending its lifespan in challenging environments like construction sites.

This graphic shows a Retevis NR30D radio being splashed with water and surrounded by dust, with icons indicating 1m depth for 30 minutes, protection against 0.1µm dust, and 1m drop resistance.

3.5 Digital & Analog Dual-Mode

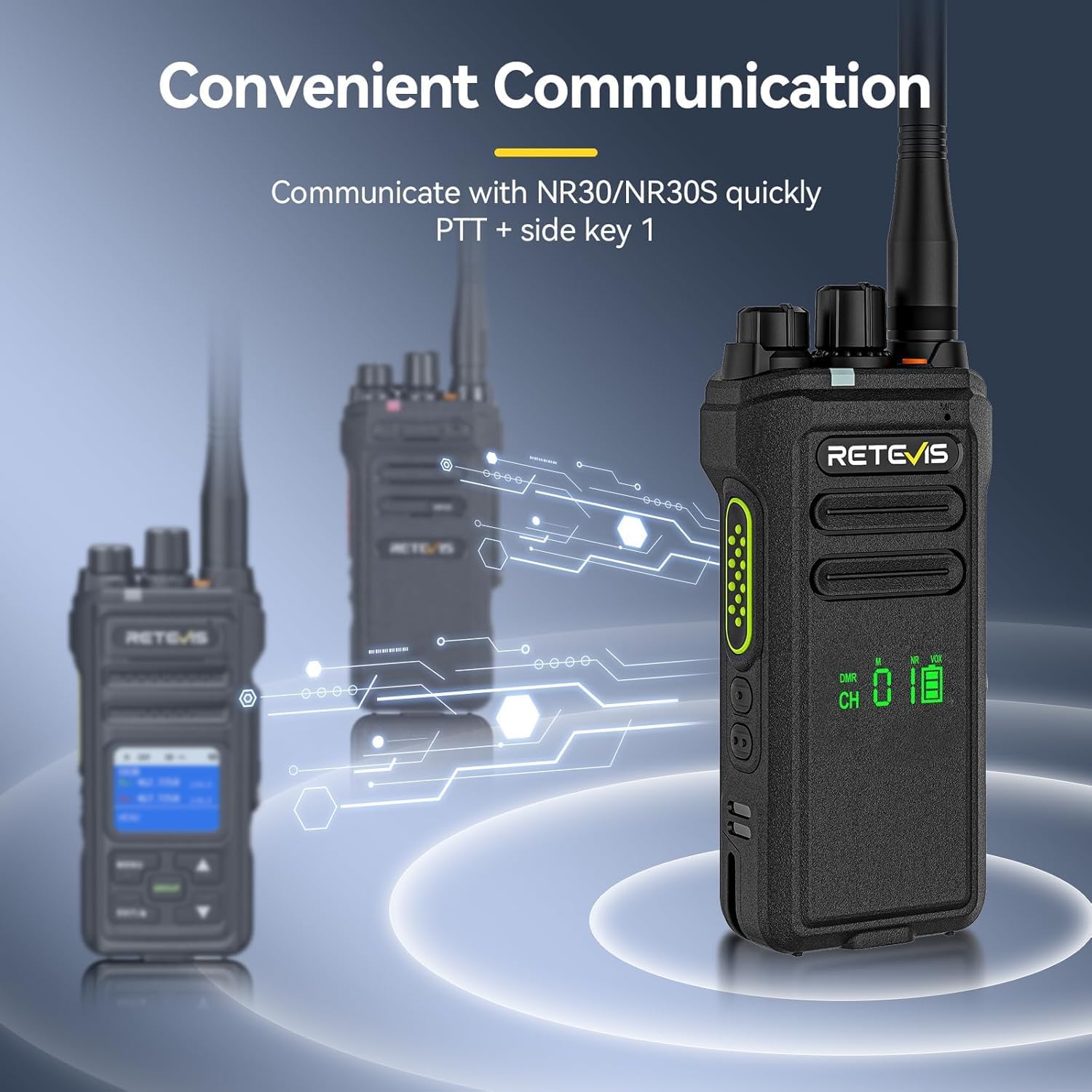

The dual-mode NR30D walkie-talkie combines the compatibility of analog radios with the powerful performance of digital radios. This offers superior sound quality and enhanced safety. It can be switched to the frequency of NR30/NR30S via a shortcut key for seamless compatibility.

3.6 Emergency Features

For enhanced user safety, the NR30D includes dual alarm modes: a one-key remote alarm and lone worker protection. These features are crucial for personnel working in isolated or hazardous conditions.

This image shows a Retevis NR30D radio with red alarm signals and icons for one-key remote alarm and lone worker protection, emphasizing its emergency capabilities.

3.7 Battery Information

The NR30D is powered by a 2800mAh Lithium-Ion battery, providing approximately 15 hours of work time and up to 70 hours of standby time. Charging can be done via the included charging base or a Type-C connection.

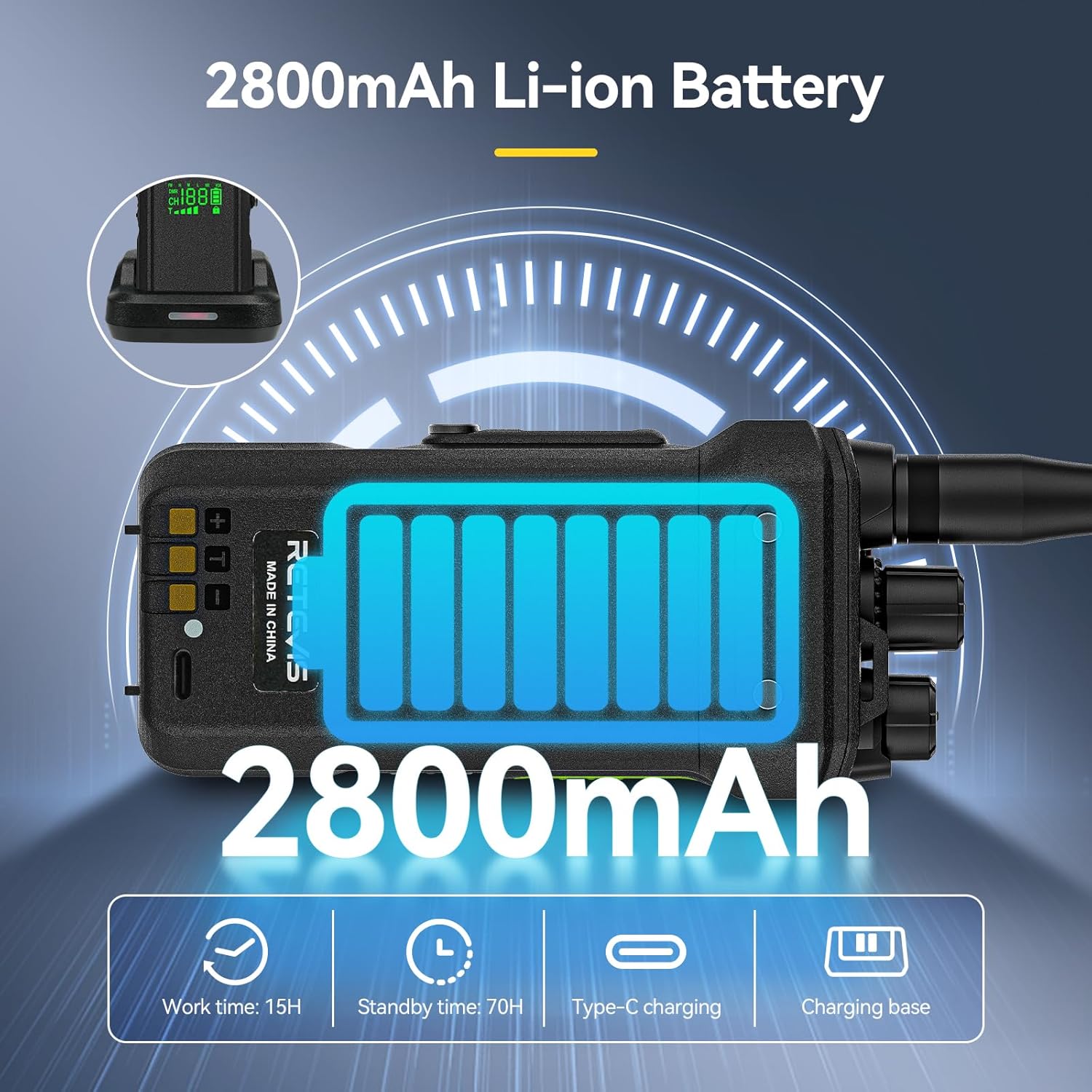

The graphic highlights the 2800mAh Li-ion battery of the Retevis NR30D, detailing its 15-hour work time, 70-hour standby time, and support for both Type-C and charging base charging.

4. Setup

4.1 Initial Charging

1. Connect the charging cable to the adapter and plug the adapter into a power outlet.
2. Place the radio into the charging base. Ensure the battery contacts align with the base contacts.
3. The indicator light on the charging base will illuminate to show charging status. A full charge typically takes several hours.

4.2 Attaching the Antenna and Belt Clip

1. Screw the antenna clockwise into the antenna connector on top of the radio until it is secure. Do not overtighten.
2. Attach the belt clip to the back of the radio using the provided screws.

5. Operating Instructions

5.1 Power On/Off and Volume Adjustment

1. To power on the radio, rotate the power/volume knob clockwise. You will hear a power-on tone.
2. To adjust the volume, rotate the power/volume knob. Clockwise increases volume, counter-clockwise decreases it.
3. To power off the radio, rotate the power/volume knob counter-clockwise until you hear a click.

5.2 Channel Selection

The NR30D features 64 channels. Use the channel selector knob on top of the radio to choose your desired channel. The display will show the current channel number.

5.3 Transmitting and Receiving

1. To transmit, press and hold the Push-to-Talk (PTT) button on the side of the radio. Speak clearly into the microphone.
2. Release the PTT button to receive.

5.4 Communication Modes (Single/Group/All Call)

The NR30D supports various call types to meet different communication needs:

• Single Call: Direct communication with a specific radio.
• Group Call: Communication with a predefined group of radios.
• All Call: Broadcast message to all radios within range.

This graphic shows a Retevis NR30D radio with icons representing single, group, and all call functions, indicating its versatile communication modes.

5.5 CTCSS/DCS Tones

CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digitally Coded Squelch) tones help filter out unwanted transmissions on a channel. Refer to the video below for instructions on how to manage these tones.

6. Maintenance

6.1 Cleaning

Wipe the radio's surface with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging contacts are clean and dry.

6.2 Battery Care

To maximize battery life, fully charge the battery before initial use. Avoid overcharging or completely draining the battery. Store the radio and battery in a cool, dry place when not in use for extended periods.

7. Troubleshooting

7.1 No Power

• Ensure the battery is properly installed and charged.
• Check if the power/volume knob is turned clockwise to the ON position.

7.2 Cannot Transmit or Receive

• Verify that the radio is on the correct channel.
• Ensure the PTT button is fully pressed when transmitting and released when receiving.
• Check if the antenna is securely attached.
• Confirm that CTCSS/DCS tones are correctly configured for your group.

7.3 Poor Audio Quality

• Adjust the volume level.
• Move closer to the other radio or to an area with fewer obstructions.
• Ensure the microphone and speaker are not obstructed.

8. Specifications

This image provides a detailed view of the Retevis NR30D radio, including its textured casing, control knobs, and side buttons, along with an inset showing its dimensions and weight.

9. Warranty and Support

Retevis provides comprehensive support for the NR30D radio:

• Radio Body: 2-year support.
• Accessories: 1-year support.
• Returns: 30-day no-reason return policy.

Beyond the support period, maintenance services are available, with buyers responsible for associated costs. For further assistance, please contact Retevis customer service.
