INVANTI V22PRO Electric Scooter User Manual

1. Introduction

Welcome to the user manual for your new INVANTI V22PRO Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

Figure 1: INVANTI V22PRO Electric Scooter

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Observe all local traffic laws and regulations.
• Do not exceed the maximum weight limit of 100 kg (220 lbs).
• Avoid riding in wet conditions, heavy rain, or on slippery surfaces.
• Ensure the scooter is fully charged before each use.
• This product has passed stringent UL 2272 testing for electrical safety.
• Familiarize yourself with the controls, including the dual braking system and turn signals, before riding in traffic.

3. Package Contents

Verify that all items are present in your package:

• INVANTI V22PRO Electric Scooter
• Power Adapter/Charger
• User Manual
• Assembly Tools (Allen wrench)

4. Assembly

The V22PRO Electric Scooter requires minimal assembly. Follow these steps:

1. Carefully remove the scooter and all components from the packaging.
2. Lift the handlebar stem to an upright position until it clicks into place.
3. Connect the main cable from the handlebar to the scooter body. Ensure the connection is secure.
4. Attach the handlebars to the stem using the provided screws and Allen wrench. Tighten securely.
5. Ensure all connections are firm and the folding mechanism is locked before riding.

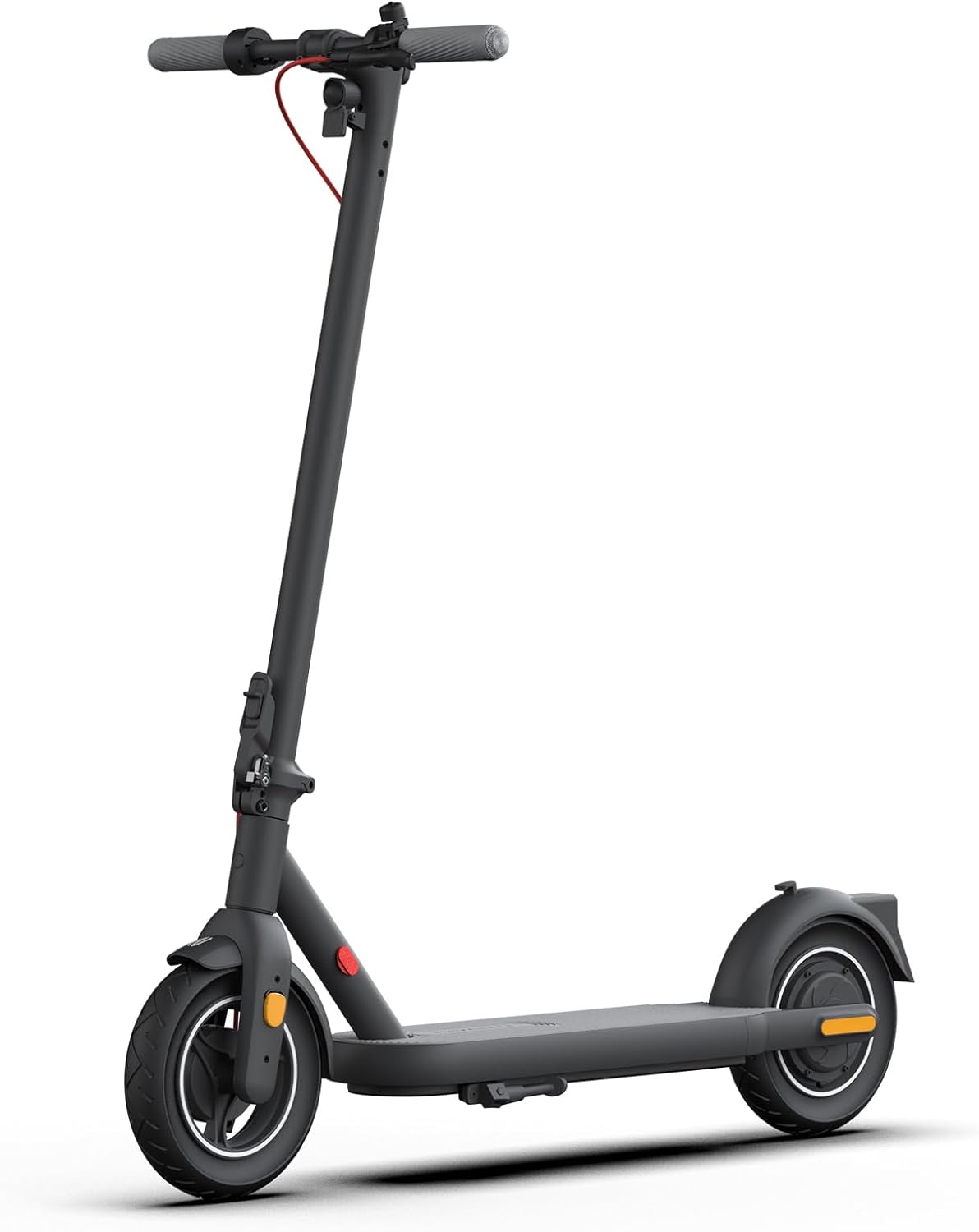

Figure 2: Scooter in upright position, ready for handlebar attachment.

5. Initial Setup and Charging

Before your first ride, fully charge the scooter's battery.

• Locate the charging port, typically near the base of the stem or on the side of the deck.
• Connect the power adapter to the charging port and then to a standard electrical outlet.
• The indicator light on the charger will change (e.g., from red to green) when charging is complete.
• The scooter is equipped with a 216Wh (36V 6Ah) lithium battery.

Connecting to the App (iOS/Android)

Enhance your riding experience by connecting to the INVANTI app:

1. Download the INVANTI app from your device's app store (iOS or Android).
2. Turn on the scooter and enable Bluetooth on your smartphone.
3. Open the app and follow the on-screen instructions to pair with your V22PRO scooter.
4. The app allows for features such as speed gear adjustment, riding stats, cruise control, and locking/unlocking the scooter.

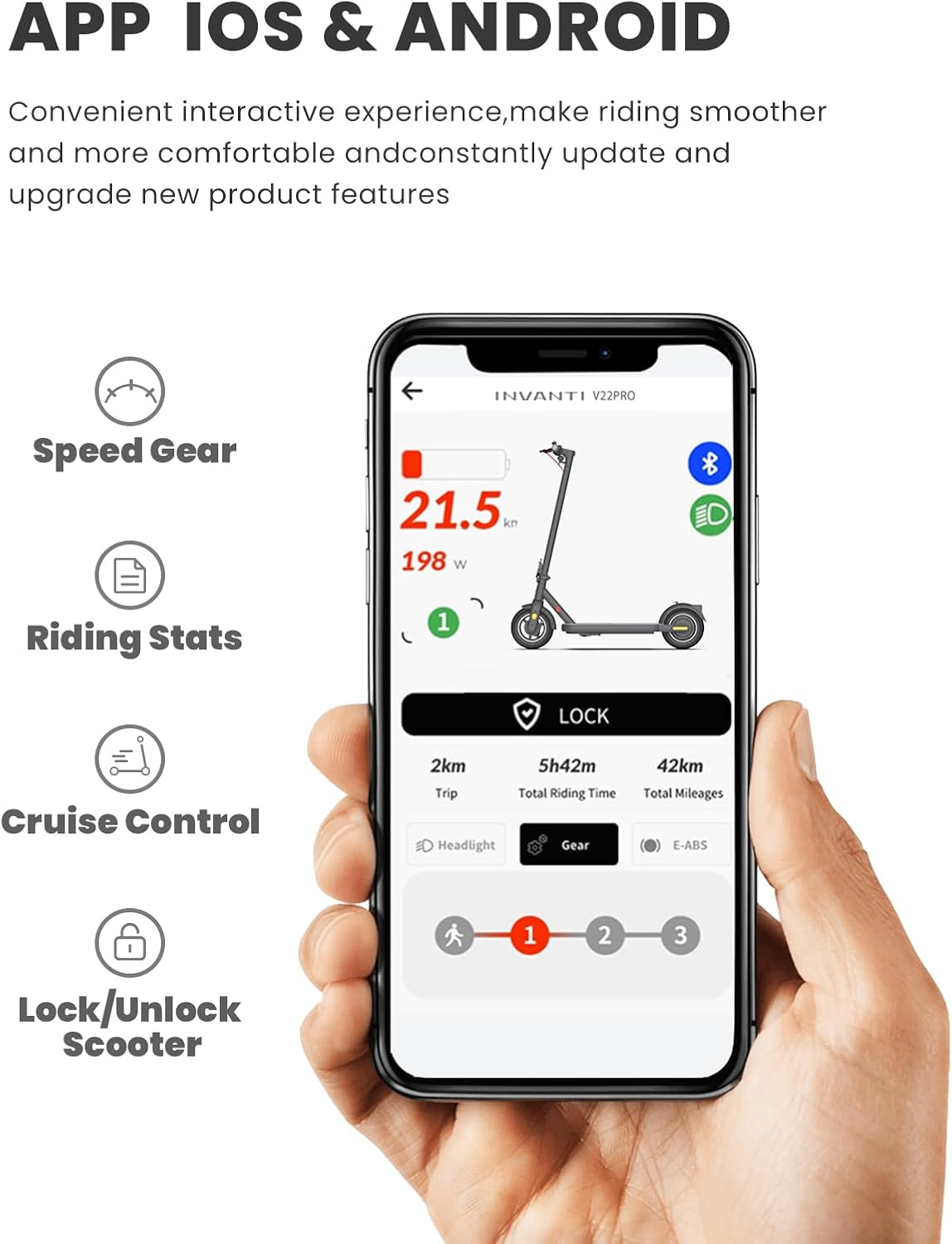

Figure 3: INVANTI App interface showing various controls and data.

6. Operating Instructions

Controls Overview

• Power Button: Press and hold to turn on/off. Single press to toggle headlight. Double press to cycle through speed modes.
• Throttle: Located on the right handlebar. Press down to accelerate.
• Brake Lever: Located on the left handlebar. Squeeze to engage the Front Drum Brake and Rear E-Brake.
• Turn Signals: Buttons on the left handlebar. Press left/right to activate corresponding turn signal. Press again to deactivate.
• Bell: Manual bell on the left handlebar for alerting pedestrians.
• LED Display: Shows current speed, battery level, riding mode, and accumulated mileage.

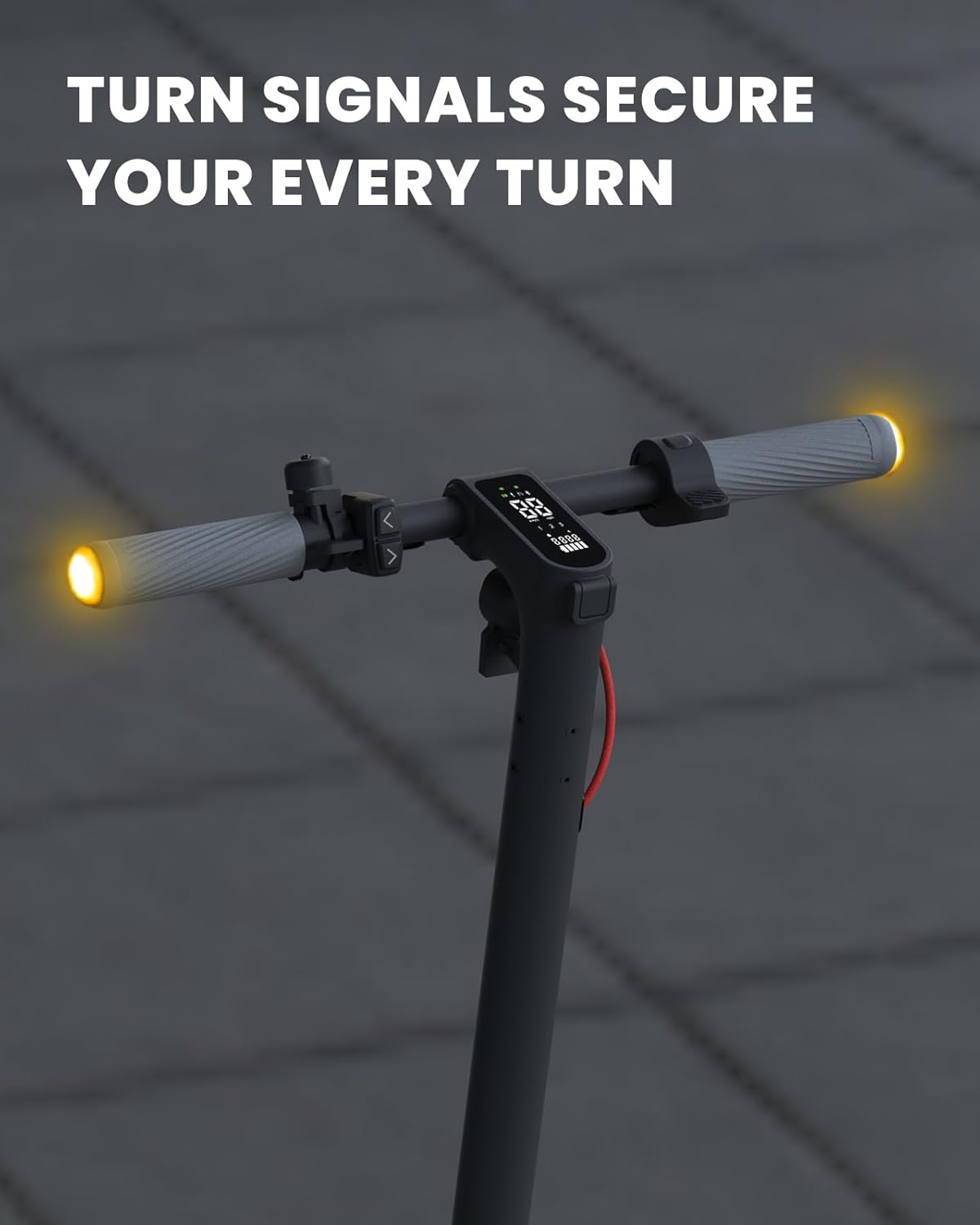

Figure 4: Handlebar controls and illuminated turn signals.

Riding Modes

The V22PRO offers three speed modes:

• Mode 1: Up to 10 mph (16 km/h) - Ideal for beginners or crowded areas.
• Mode 2: Up to 15 mph (24 km/h) - Balanced speed for general commuting.
• Mode 3: Up to 20 mph (32 km/h) - Maximum speed for open roads.

To change modes, double-press the power button. The current mode will be displayed on the LED screen.

Figure 5: Visual representation of scooter performance capabilities.

Folding the Scooter

For portability and storage, the V22PRO can be easily folded:

1. Ensure the scooter is powered off.
2. Locate the folding latch mechanism at the base of the handlebar stem.
3. Pull the latch to release the stem and fold it downwards until it locks into place with the rear fender.
4. The compact design makes it easy to carry or store.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Tires: Regularly inspect the 10-inch front pneumatic tire and rear honeycomb solid tire for wear, punctures, or damage. Maintain proper tire pressure for the pneumatic tire.
• Brakes: Check the functionality of the Front Drum Brake and Rear E-Brake regularly. Ensure they respond effectively.
• Cleaning: Wipe down the scooter with a damp cloth after use. Avoid using high-pressure water jets.
• Battery Care: Store the scooter in a cool, dry place. If storing for extended periods, charge the battery to approximately 50-70% every 3 months to preserve battery life.
• General Inspection: Periodically check all screws, bolts, and connections to ensure they are tight and secure.

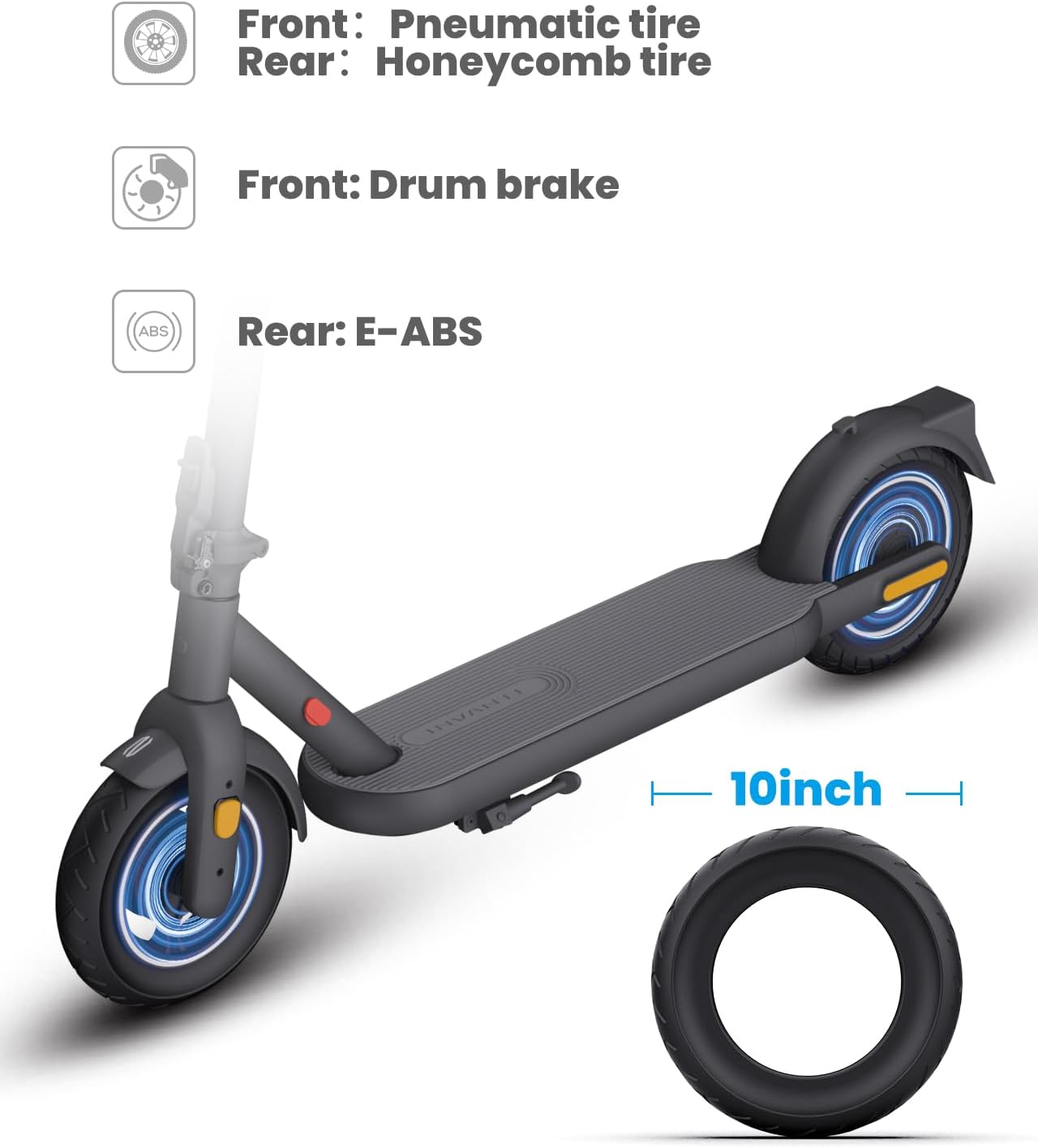

Figure 6: Close-up of the scooter's front and rear wheels, highlighting tire and brake types.

8. Troubleshooting

If you encounter issues with your V22PRO scooter, refer to this section:

9. Specifications

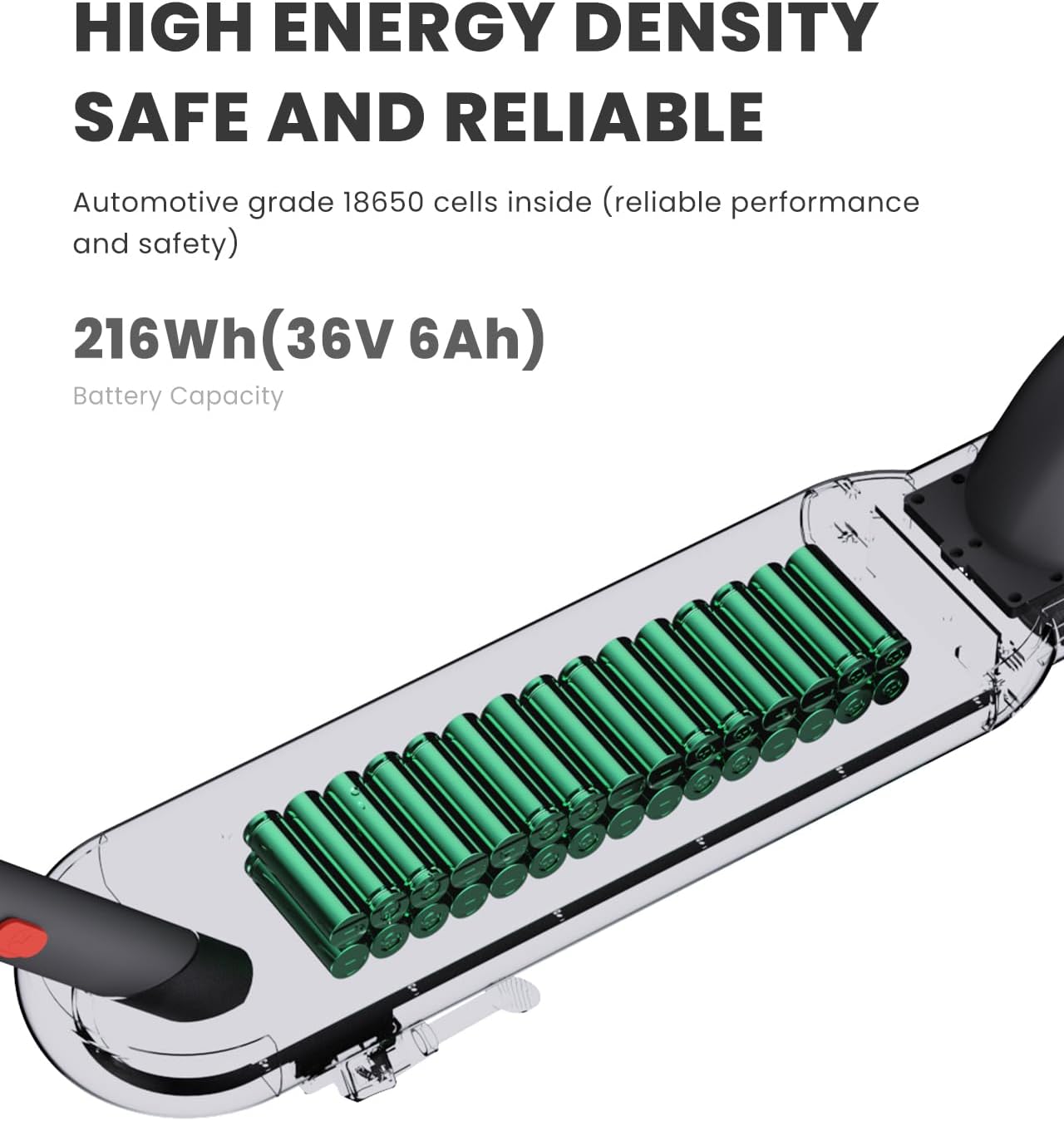

Figure 7: High energy density battery cells (216Wh).

10. Warranty and Support

INVANTI stands behind the quality of its products.

• Warranty: Your V22PRO Electric Scooter comes with a 12-month (1 year) warranty from the date of purchase. This warranty covers manufacturing defects.
• Customer Service: For any questions, technical assistance, or warranty claims, please contact INVANTI customer service. We offer 24/7 online customer service.
• Please retain your proof of purchase for warranty validation.

For more information, visit the official INVANTI store: INVANTI Store on Amazon
