1. Product Overview
The JOYMOR Low Loft Bed Twin Size with Stairs is designed to maximize space in smaller rooms while providing a safe and comfortable sleeping area for children, juniors, and young teens. Constructed from sturdy pine wood, this bed features a low height for easy access and a versatile under-bed area for various activities or storage.

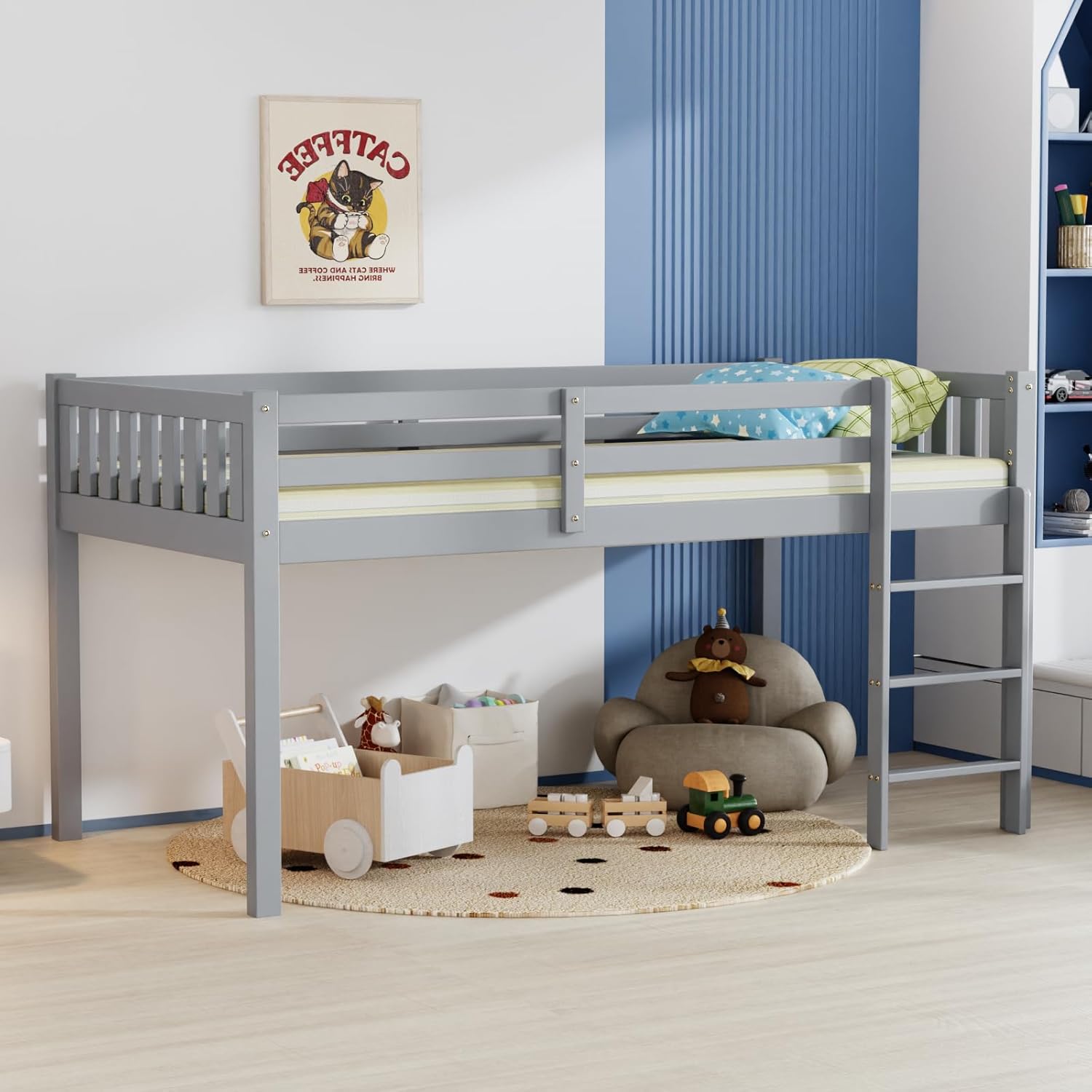

Figure 1: JOYMOR Low Loft Bed, Grey Twin Size.
Key Features:
- Versatile Space Utilization: Sleeping area on top with customizable space below for reading, play, or storage.
- Ideal Transition Bed: Low height (43.1 inches) suitable for transitioning from cribs or child beds.
- Safety First: Built with 100% pine wood frame, 1 center beam, 13.8-inch high guardrails, and 12 wood slat supports.
- Easy Assembly & Flexible Design: Labeled parts, well-packed, simple assembly, and a reversible ladder that can be installed on either side.
- Compact Yet Spacious: Measures 79"L x 43"W x 41"H with 28.8" clearance underneath, supporting up to 265 lbs.
2. Safety Information
Your child's safety is our top priority. Please adhere to the following safety guidelines to ensure proper use of the JOYMOR Low Loft Bed.
- Always ensure all screws and fasteners are securely tightened during assembly and periodically checked thereafter.
- Do not allow children to jump on or off the bed, or hang from any part of the bed frame.
- The surface of the mattress must be at least 5 inches (12.7 cm) below the upper edge of the guardrails to prevent falls.
- Ensure the bed is placed on a flat, stable surface.
- Only use a twin-size mattress that fits the bed frame dimensions (75"L x 38"W).
- The bed is designed to support a maximum weight of 265 lbs (120 kg). Do not exceed this limit.
- Keep small children away from the assembly area during setup to prevent injury from small parts.

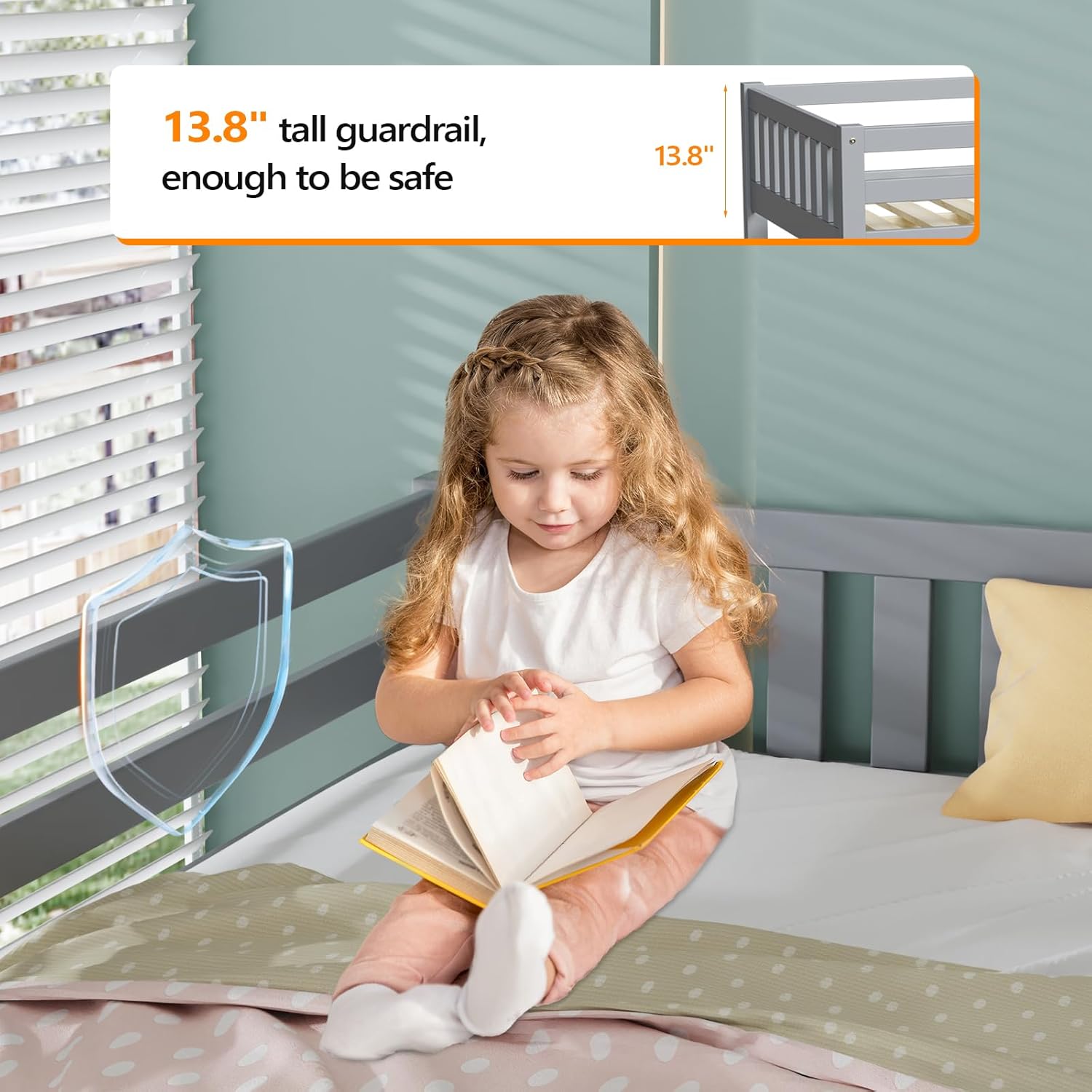

Figure 2: The 13.8-inch tall guardrail ensures safety.
Figure 3: Constructed from child-friendly, non-toxic pine wood.
3. Components List
Before beginning assembly, please ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
| Part | Description | Quantity |
|---|---|---|
| A | Headboard/Footboard Panels | 2 |
| B | Side Rails | 2 |
| C | Ladder | 1 |
| D | Support Slats | 12 |
| E | Center Beam | 1 |
| F | Hardware Pack (Screws, Bolts, Allen Wrench, etc.) | 1 |
Note: The actual number of slats may vary slightly. Refer to your specific packaging for exact quantities.
4. Setup and Assembly
Assembly of the JOYMOR Low Loft Bed is straightforward. It is recommended that two adults assemble the bed. All parts are labeled for ease of identification.
Required Tools:
- Included Allen Wrench
- Phillips Head Screwdriver (not included)
Assembly Steps:
- Step 1: Unpack and Identify Parts. Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratching. Identify each part using the provided components list.
- Step 2: Assemble Headboard and Footboard. Attach the vertical slats to the top and bottom rails of the headboard and footboard panels (Part A) using the appropriate hardware from the hardware pack (Part F).
- Step 3: Attach Side Rails. Connect the side rails (Part B) to the assembled headboard and footboard panels (Part A) using the designated bolts and an Allen wrench. Ensure all connections are snug but do not overtighten.
- Step 4: Install Center Beam and Slats. Place the center beam (Part E) along the middle of the bed frame. Distribute the support slats (Part D) evenly across the bed frame and secure them to the side rails using screws.
- Step 5: Attach the Ladder. The ladder (Part C) is reversible and can be attached to either the left or right side of the bed frame, depending on your room layout. Secure it firmly with the provided hardware.
Figure 4: The ladder can be installed on either the left or right side.
Figure 5: Product dimensions for planning your space.
For detailed visual instructions, please refer to the assembly diagrams included in your product packaging.
5. Operating Instructions
The JOYMOR Low Loft Bed is designed for daily use as a sleeping solution and a versatile space for children.
Utilizing the Under-Bed Space:
The 28.8-inch clearance underneath the bed provides ample room for various activities:
- Play Area: Create a cozy play nook with cushions, blankets, and toys.
- Study Nook: Fit a small desk and chair for homework or creative activities.
- Storage: Use storage bins, drawers, or shelves to organize toys, books, or clothing.

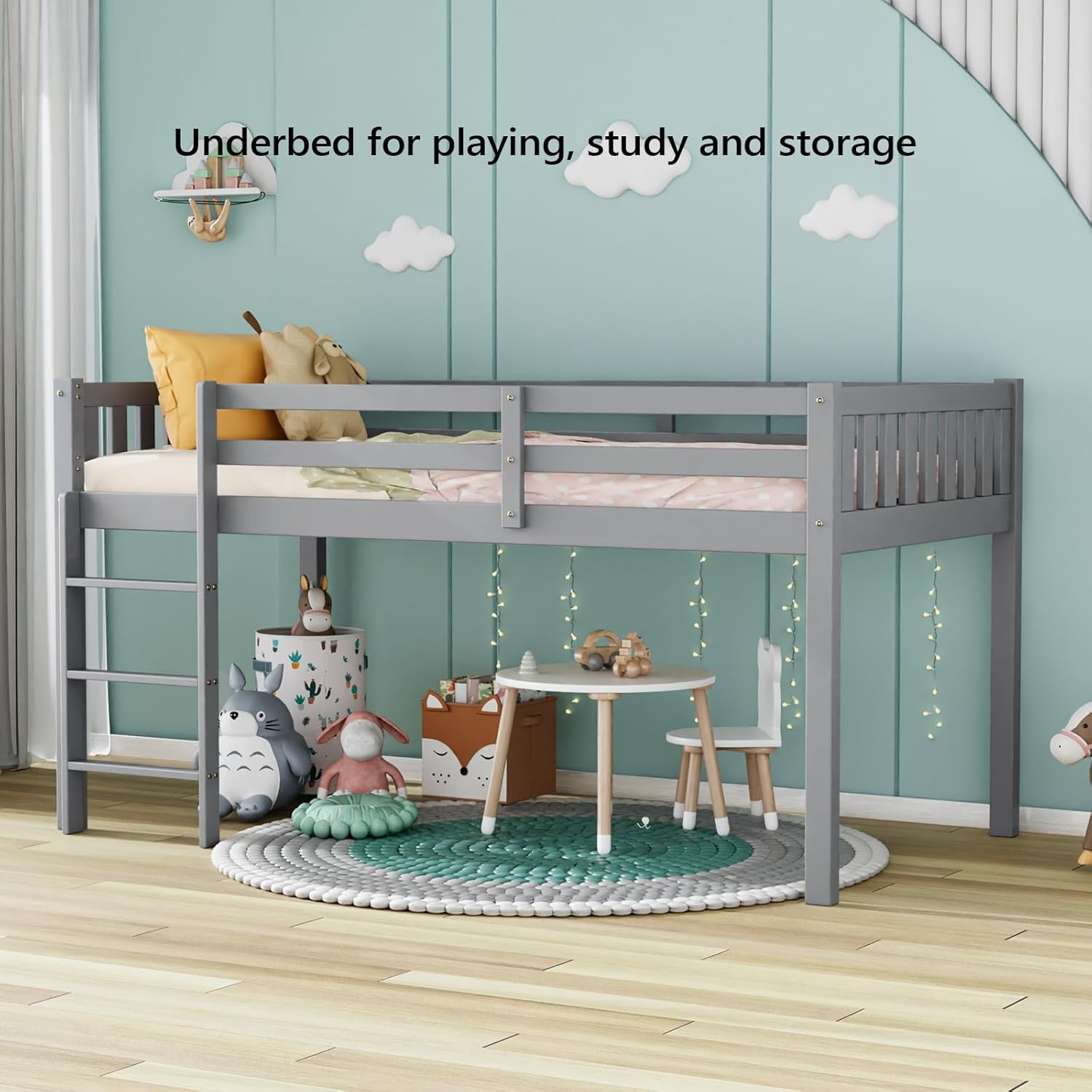

Figure 6: The under-bed area can be used for playing, studying, or storage.

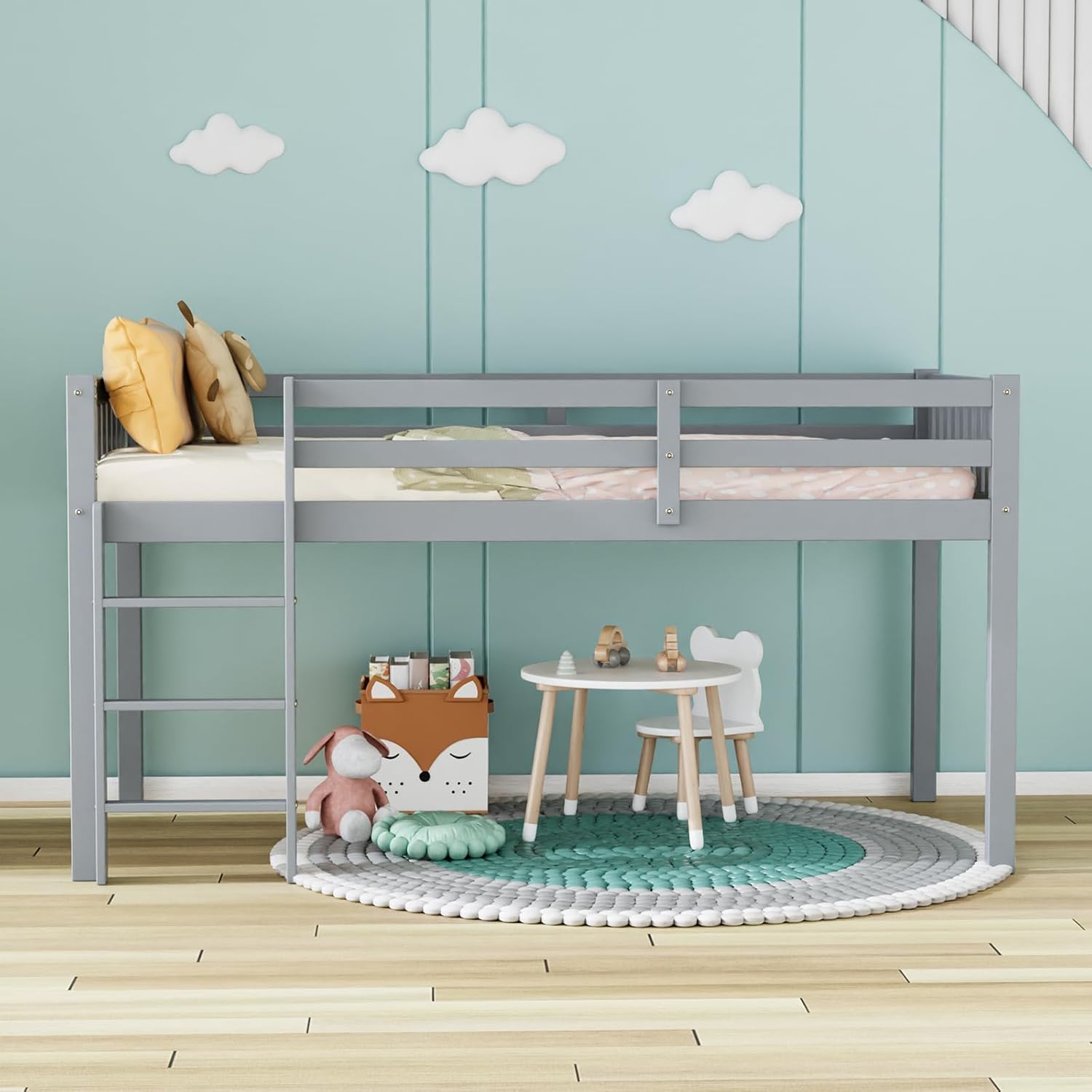

Figure 7: Maximizing space in a small room with the low loft design.
6. Maintenance
Regular maintenance will help prolong the life and ensure the safety of your JOYMOR Low Loft Bed.
- Cleaning: Wipe down the wood surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
- Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and connections to ensure they remain tight. Retighten if necessary, but do not overtighten.
- Slats Inspection: Inspect the wooden slats for any signs of damage, cracks, or warping. Replace any damaged slats immediately to maintain mattress support and safety.
- Environmental Conditions: Avoid exposing the bed to extreme temperature changes or high humidity, which can cause wood to warp or crack.
7. Troubleshooting
If you encounter any issues with your JOYMOR Low Loft Bed, please refer to the common problems and solutions below.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose hardware connections. | Check and tighten all bolts and screws using the Allen wrench. Ensure the bed is on a level surface. |
| Squeaking noises when using the bed. | Loose connections or friction between wood parts. | Tighten all hardware. If squeaking persists, apply a small amount of wax or silicone spray to contact points between wood pieces. |
| Ladder feels loose. | Ladder attachment hardware is not fully tightened. | Ensure the ladder is securely fastened to the bed frame. Retighten all ladder bolts. |
| Missing or damaged parts upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact JOYMOR customer support immediately for replacement parts. |
If the problem persists after attempting these solutions, please contact JOYMOR customer support for further assistance.
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | JOYMOR |
| Model Number | TLLB1G |
| Size | Low Loft, Twin |
| Product Dimensions (L x W x H) | 79" x 41" x 43.1" |
| Under-bed Clearance | 28.8" |
| Guardrail Height | 13.8" |
| Weight Limit | 265 lbs |
| Compatible Mattress Size | Twin size (75"L x 38"W) |
| Material | 100% Pine Wood |
| Finish Type | Painted (Grey) |
| Assembly Required | Yes |
| Item Weight | 59 pounds |
| UPC | 810158423510 |
9. Warranty and Support
JOYMOR is committed to providing high-quality products and excellent customer service.
Returns:
This product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for detailed instructions.
Customer Support:
For any questions, concerns, or assistance with assembly or product issues, please contact JOYMOR customer support. Have your model number (TLLB1G) and purchase information ready when contacting support.
You can typically find contact information on the JOYMOR official website or through the retailer where you purchased the product.
