Introduction
Thank you for choosing the BRANDT LVC328S freestanding dishwasher. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your appliance. Please read these instructions carefully before using your dishwasher and keep them for future reference.
Safety Information
General Safety:
- Ensure the dishwasher is properly grounded.
- Do not operate the dishwasher if it is damaged or malfunctioning.
- Keep children away from the dishwasher, especially when it is operating.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Never open the door during operation, especially during the hot wash or drying cycle, to avoid scalding.
Installation Safety:
- Installation must be performed by a qualified technician.
- Ensure all water and electrical connections comply with local regulations.
- Do not place the dishwasher on a carpeted floor as this may obstruct ventilation.
Setup
Unpacking
Carefully remove all packaging materials. Inspect the dishwasher for any damage during transit. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.
Placement and Leveling
Place the dishwasher on a firm, level floor. Adjust the leveling feet to ensure the appliance is stable and level. Proper leveling is crucial for door alignment and efficient operation.
Water Connection
Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks. The drain hose should be connected to a drain pipe or sink trap, ensuring it is not kinked or obstructed.
Electrical Connection
Connect the dishwasher to a properly grounded electrical outlet. Ensure the voltage and frequency match the specifications on the rating plate of the appliance. Do not use extension cords or multiple adapters.
Initial Use
Before the first wash, fill the salt dispenser with dishwasher salt and the rinse aid dispenser with rinse aid. Run an empty cycle without dishes to clean the interior.

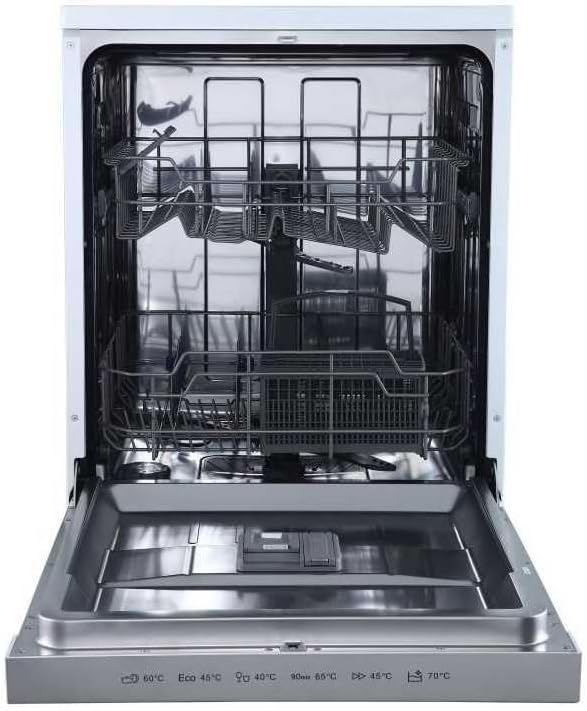

Image: Interior view of the BRANDT LVC328S dishwasher, showing the upper and lower racks, cutlery basket, and detergent dispenser. This illustrates how dishes are loaded and where cleaning agents are placed.
Operating Instructions
Control Panel Overview
The control panel features buttons for power, program selection, delay start, and start/pause, along with indicator lights for salt, rinse aid, and selected program.
Image: Close-up of the BRANDT LVC328S dishwasher control panel, displaying power, program, and start/pause buttons, along with a digital display and indicator lights for various functions.
Loading the Dishwasher
- Scrape off large food particles from dishes.
- Place larger items in the lower rack and smaller, delicate items in the upper rack.
- Ensure dishes do not block the spray arms.
- Place cutlery in the cutlery basket with handles down for most items, but knives with handles up for safety.
Adding Detergent, Rinse Aid, and Salt
- Detergent: Open the detergent dispenser and add the recommended amount of dishwasher detergent. Close the dispenser lid securely.
- Rinse Aid: Open the rinse aid dispenser and fill it until the indicator shows full. Adjust the dosage setting if necessary.
- Dishwasher Salt: Unscrew the cap of the salt dispenser located at the bottom of the dishwasher. Use the funnel provided to add dishwasher salt until it is full. Replace the cap tightly.
Selecting a Program
Press the 'Prog' button repeatedly to cycle through the available wash programs until the desired program indicator lights up.
Starting a Cycle
Close the dishwasher door firmly. Press the 'Start/Pause' button to begin the selected wash cycle. The program indicator will flash during operation.
Interrupting or Changing a Program
To interrupt a program, press the 'Start/Pause' button. To change a program, press and hold the 'Prog' button for a few seconds until the current program is cancelled, then select a new program and press 'Start/Pause'.
Wash Programs
| Program | Description | Temperature | Duration (approx.) |
|---|---|---|---|
| Intensive | For heavily soiled dishes, pots, and pans. | 70°C | Long |
| Eco | Standard program for normally soiled daily dishes, most efficient in terms of energy and water consumption. | 45°C | 3:40 (220 min) |
| 90 min | For normally soiled dishes that need a quicker wash. | 65°C | 90 min |
| Rapid | Quick wash for lightly soiled dishes without drying. | 45°C | 30 min |
| Glass | Gentle wash for delicate glassware. | 40°C | Short |
Maintenance
Cleaning Filters
Regularly clean the filter system located at the bottom of the dishwasher. Remove the coarse filter, fine filter, and microfilter. Rinse them under running water to remove food particles. Reassemble and replace them correctly.
Cleaning Spray Arms
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clean the holes with a thin object like a toothpick. Ensure they rotate freely after reinstallation.
Exterior Cleaning
Wipe the exterior surfaces of the dishwasher with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Winter Storage
If the dishwasher is to be stored in an unheated location during winter, drain all water from the appliance to prevent freezing and damage. Disconnect water and power supplies.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power supply issue, door not closed properly, program not selected. | Check power connection, ensure door is latched, select a program and press start. |
| Poor cleaning results | Incorrect loading, clogged spray arms, insufficient detergent, dirty filters. | Reload dishes correctly, clean spray arms, add more detergent, clean filters. |
| Water not draining | Clogged drain hose or filter, drain pump malfunction. | Check and clean drain hose and filters. If problem persists, contact service. |
| Excessive noise | Dishes interfering with spray arms, foreign object in pump, improper leveling. | Rearrange dishes, check for foreign objects, ensure dishwasher is level. |
Specifications
- Model: BRANDT LVC328S
- Installation Type: Freestanding
- Capacity: 12 Place Settings
- Noise Level: 48 dB
- Special Functions: Quick Wash
- Weight: 49 kg
- Energy Efficiency Class: D (New European Energy Label)
- Energy Consumption (per 100 cycles): 82 kWh
- Water Consumption (per cycle): 11.0 Liters
- Eco Program Duration: 3:40 (220 minutes)
- Included Components: Cutlery basket
Image: Energy label for the BRANDT LVC328S dishwasher, showing an energy efficiency class of D, 82 kWh per 100 cycles, 11.0 liters of water per cycle, and a 3:40 hour duration for the Eco program.
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your appliance or visit the official BRANDT website. In case of technical issues or questions not covered in this manual, please contact BRANDT customer service or an authorized service center.
