1. Introduction
Thank you for choosing the LOVMOR Pull Out Cabinet Organizer. This product is designed to enhance the functionality and organization of your kitchen cabinets by providing easy access to stored items. Its smooth-gliding mechanism allows for full extension, eliminating the need to reach deep into cabinets.
2. Product Overview
The LOVMOR Pull Out Cabinet Organizer is a single-tier, chrome-plated wire basket system that slides out of your cabinet on ball-bearing rails. It is ideal for storing various kitchen accessories, utensils, and other items, making them easily accessible.
Image: A single-tier LOVMOR pull-out cabinet organizer, chrome-plated, shown with a bottle and two cups, illustrating its use for storing items.
Key Features:
- Full Extended Ball Bearing System: Ensures smooth, silent, and stable operation even with heavy loads.
- Durable Construction: Made with high-quality chrome-plated steel for longevity.
- Easy Installation: Designed for quick and straightforward setup.
Image: A LOVMOR pull-out cabinet organizer extended from a cabinet, showcasing the full extended ball bearing system for smooth, silent, and heavy-load operation.
3. Safety Information
- Ensure the organizer is securely mounted to prevent tipping or detachment.
- Do not overload the organizer beyond its weight capacity.
- Keep fingers clear of moving parts during operation.
- Always use appropriate tools for installation.
4. Setup and Installation
4.1 Pre-Installation Measurement
Before installation, accurately measure your cabinet's interior dimensions. This organizer is 7½ inches wide and 21½ inches deep. Ensure your cabinet opening is at least 8 inches wide and the interior depth is 22 inches or more to allow for proper clearance and full extension. If your cabinet has hinges, measure the width from the hinges, as they may prevent the basket from being pulled out completely.

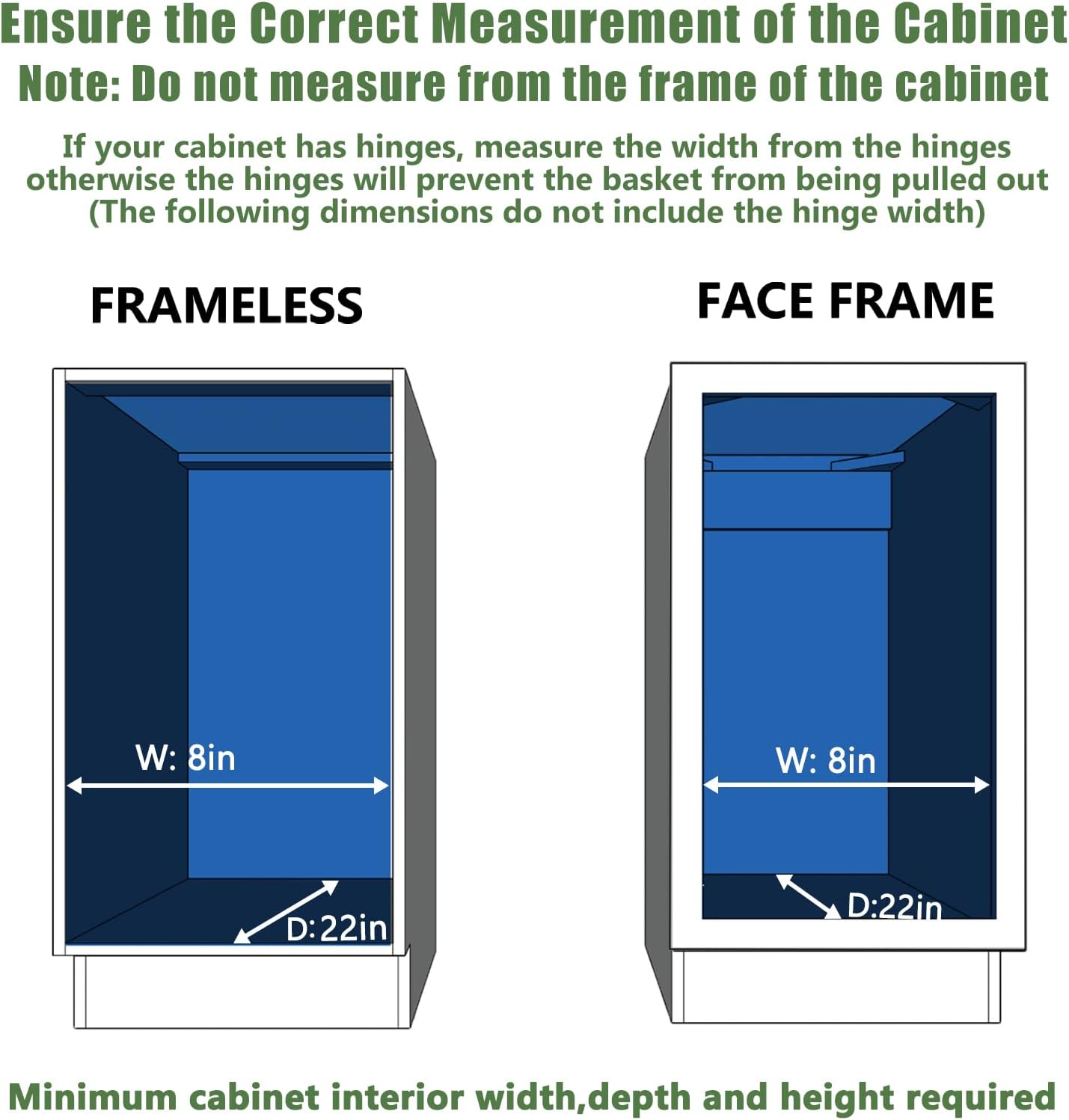

Image: An illustration demonstrating how to measure cabinet dimensions for both frameless and face frame cabinets, emphasizing the minimum required interior width (8 inches) and depth (22 inches) for proper fit.
4.2 Installation Steps
Installation can typically be completed in under 10 minutes using the provided drilling screws and following the diagram.
- Position the Template: Place the provided template on the bottom of your cabinet, aligning it with the front edge. Mark the drilling points.
- Install Slide Rails: Secure the slide rails to the cabinet floor using the drilling screws at the marked points. Ensure they are parallel and firmly attached.
- Attach the Basket: Slide the organizer basket onto the installed rails until it clicks securely into place.
Image: A visual guide for the 2-step installation process, showing how to use a template for drilling and then attaching the slide rails and basket.
5. Operating Instructions
To use the LOVMOR Pull Out Cabinet Organizer, simply grasp the front of the basket and gently pull it outwards. The 3-section ball bearing slide rails will allow the basket to extend fully, providing complete access to all items stored within. To retract, push the basket back into the cabinet until it is fully seated.
Image: A 'Before and After' comparison showing a cluttered cabinet shelf transformed into an organized space with a LOVMOR pull-out organizer, holding a coffee maker and dishes.
6. Maintenance
To ensure the longevity and smooth operation of your LOVMOR Pull Out Cabinet Organizer:
- Cleaning: Wipe down the chrome-plated basket with a soft, damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish.
- Lubrication: Periodically check the slide rails for debris. If movement becomes stiff, a small amount of silicone-based lubricant can be applied to the ball bearings.
- Inspection: Regularly inspect all screws and connections to ensure they remain tight. Tighten any loose fasteners as needed.
7. Troubleshooting
Common Issues and Solutions:
- Organizer does not slide smoothly:
- Check for debris in the slide rails and clean if necessary.
- Apply a small amount of lubricant to the ball bearings.
- Ensure the rails are installed parallel and not bent.
- Organizer feels wobbly:
- Verify that all mounting screws are securely tightened to the cabinet floor.
- Ensure the basket is properly seated and locked into the slide rails.
- Organizer does not fit in cabinet:
- Re-measure your cabinet's interior dimensions and compare them to the product specifications. Ensure sufficient clearance, especially around hinges.
8. Specifications

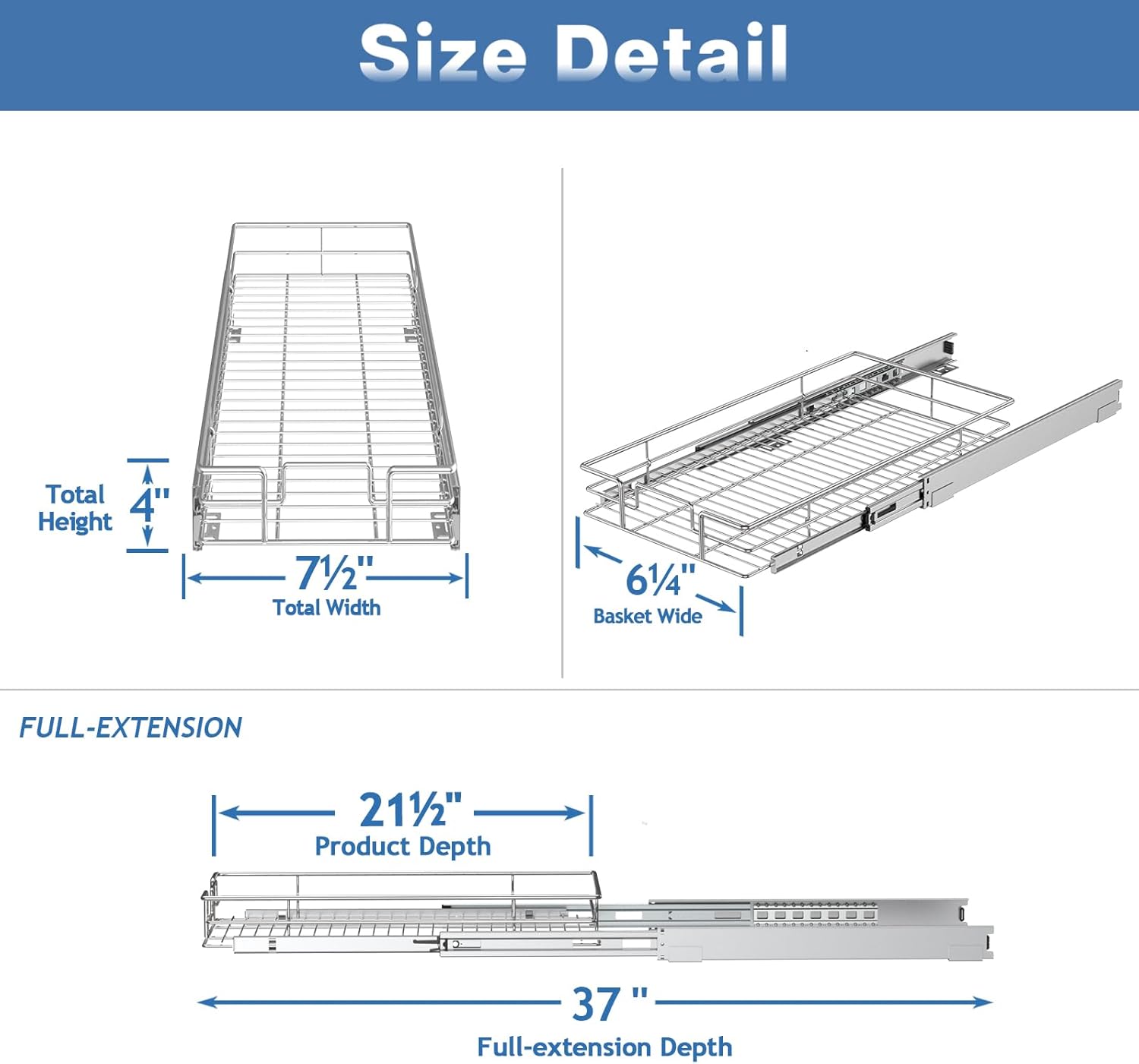

Image: A diagram detailing the dimensions of the pull-out organizer, including total height (4 inches), total width (7.5 inches), basket width (6.25 inches), product depth (21.5 inches), and full-extension depth (37 inches).
| Feature | Detail |
|---|---|
| Brand | LOVMOR |
| Model Number | 422081K |
| Product Dimensions | 21.5"D x 7.5"W x 3.5"H |
| Color | 1 Tier |
| Item Weight | 6.8 pounds |
| Specific Uses For Product | Utensils, Kitchen Storage |
| Special Feature | Expandable, Pull-Out |
| UPC | 093337134524 |
9. Warranty and Support
For any questions, concerns, or support needs regarding your LOVMOR Pull Out Cabinet Organizer, please refer to the contact information provided at the point of purchase or visit the official LOVMOR website. Please retain your purchase receipt for any warranty claims.
