1. Product Overview
The BAILONGJU Permanent Outdoor String Lights (Model HCP045) provide versatile and durable outdoor lighting for your home. This 150ft string features 90 RGB LEDs, offering smart control via a dedicated app and remote. Designed for permanent installation on eaves and roofs, these lights are IP67 waterproof, making them suitable for various weather conditions and occasions.

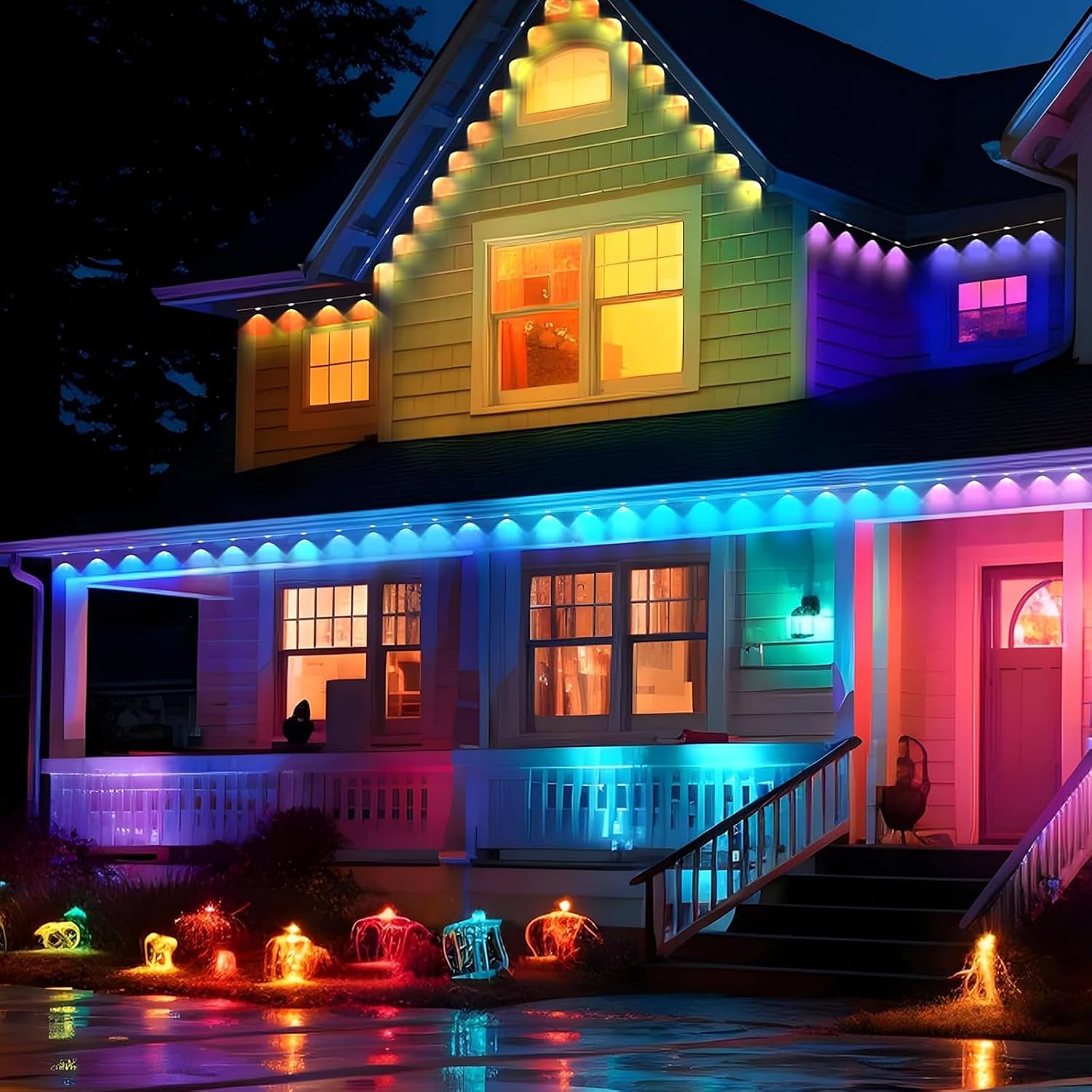

The BAILONGJU permanent outdoor string lights installed along the eaves and porch of a house, displaying vibrant, multi-color illumination.
Key Features:
- Smart App and Remote Control: Manage lighting settings, colors, scenes, and timers via the "Magic Lantern" application or the included remote control.
- Waterproof and Safe: Features IP67 waterproof rating and low voltage (24V) operation for safety and durability in outdoor environments.
- Multicolor Illumination: 90 LEDs across 150 feet provide a wide range of colors and dynamic lighting effects for any occasion.
- Easy Installation: Designed for straightforward installation with adhesive backing, securing clips, and screws.
2. What's in the Box
Verify that all components are present before beginning installation:
- 150ft LED Eave Lights (Model HCP045)
- Power Adapter
- Control Box
- Wireless Remote Control
- Securing Clips
- Screws
- Screwdriver
3. Specifications
This image highlights the SMD5056 high-brightness LED beads, emphasizing their 50,000-hour service life, -20°C to 60°C operation temperature, and IP67 waterproof rating.
| Model Number | HCP045 |
| Light Length | 150 Feet |
| Number of LEDs | 90 |
| Light Source Type | LED (SMD5056) |
| Power Source | Corded Electric (24V Low Voltage) |
| Water Resistance Level | IP67 (Lights), IP65 (Control Box) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Material Type | Polycarbonate |
| Control Method | App Control, Remote Control |
| Service Life | 50,000 Hours |
This graphic illustrates the IP67 waterproof rating of the lights, showing them resistant to rain and snow, and their operating temperature range from -20°C to 60°C.
4. Installation Guide
Follow these steps for proper installation of your BAILONGJU Permanent Outdoor String Lights:
- Plan Placement: Determine the desired path for your string lights. Ensure the lights are installed 5-10 cm (2-4 inches) away from the wall surface for optimal light dispersion.
- Clean Surface: Before applying, thoroughly clean the installation surface (e.g., eaves, roofline) with a cloth or tissue to remove dust and debris. A clean surface ensures strong adhesive bonding.
- Apply Lights: Carefully peel off the VHB adhesive backing from each light unit. Press the light firmly against the cleaned surface for at least 5 seconds to secure it.
- Secure with Clips: For long-term stability and to prevent falling, attach the provided screw clips to each string light unit. Use the included screws and screwdriver to fix the clips firmly.
- Connect Adapter: Connect the string lights to the control box, and then connect the control box to the power adapter. Ensure all connections are secure and the caps are screwed on tightly to maintain waterproof integrity.
- Power On: Plug the power adapter into a suitable outdoor power outlet.
A six-step visual guide detailing the installation process: measuring distance from the wall, cleaning the surface, peeling adhesive, pressing lights firmly, attaching screw clips, and connecting the adapter.
An illustrative diagram displaying the adapter, control box, and individual eave light units, along with their respective lengths and IP ratings (Adapter ETL Certificate, Control Box IP65 Waterproof, Eave Light IP67 Waterproof).
5. Operating Instructions
5.1. Smart App Control
The "Magic Lantern" application allows comprehensive control over your lights from your smartphone.
- Download App: Search for and download the "Magic Lantern" app from your device's app store.
- Connect Lights: Follow the in-app instructions to pair your string lights with the application. Ensure your phone's Bluetooth or Wi-Fi is enabled.
- Control Features: Once connected, you can:
- Select from 16 million colors.
- Choose from 54 pre-set scene modes.
- Adjust brightness levels.
- Set timers for automatic on/off schedules.
- Utilize voice control (if supported by your device).
- Sync lights with music rhythm.
- Create custom DIY lighting modes.
The 'Magic Lantern' application interface on a smartphone, demonstrating color selection, scene modes, and other control options for the outdoor string lights.
A close-up of the 'Magic Lantern' app, showing options for 2.4G remote, 16 million colors, 63 scenes, dimmable settings, voice control, music rhythm, DIY mode, and timer functions.
5.2. Remote Control
The included 2.4G wireless remote control provides convenient access to basic functions.
- Power On/Off: Use the power button to turn the lights on or off.
- Mode Selection: Cycle through various lighting modes and effects.
- Brightness Adjustment: Increase or decrease the light intensity.
- Color Selection: Choose specific colors or color cycles.
- Range: The remote operates within approximately 20 meters (65 feet) without dead corners, providing all-round coverage.
A remote control unit for the BAILONGJU outdoor string lights, showing buttons for power, mode, brightness, and color selection, with a house illuminated in the background.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your outdoor string lights.
- Cleaning: Periodically wipe down the light units and cables with a soft, damp cloth to remove dirt, dust, or debris. Avoid using harsh chemicals or abrasive cleaners.
- Inspect Connections: Annually inspect all connections, including the adapter and control box, to ensure they remain tight and free from corrosion.
- Check Mounting: Verify that the adhesive and screw clips are still securely holding the lights in place, especially after severe weather conditions. Re-secure if necessary.
- Weather Resistance: While the lights are IP67 waterproof, ensure the power adapter and control box are protected from prolonged direct exposure to heavy rain or standing water if their rating is lower (Control Box is IP65).
7. Troubleshooting
If you encounter issues with your BAILONGJU Permanent Outdoor String Lights, refer to the following common solutions:
- Lights Not Turning On:
- Check if the power adapter is securely plugged into a working outlet.
- Ensure all connections between the lights, control box, and adapter are firm.
- Verify the remote control or app is sending the 'on' command.
- App Connectivity Issues:
- Ensure your phone's Bluetooth or Wi-Fi is enabled and within range of the control box.
- Restart the "Magic Lantern" app.
- Unplug the lights for 10 seconds and plug them back in to reset the control box.
- If issues persist, try re-pairing the lights through the app.
- Remote Control Not Responding:
- Check the battery in the remote control and replace if necessary.
- Ensure there are no obstructions between the remote and the control box.
- Confirm you are within the remote's operating range (approx. 20 meters).
- Lights Displaying Incorrect Colors or Flashing:
- This can sometimes indicate a loose connection or a fault in an individual LED. Check connections.
- Try resetting the lights by unplugging and replugging them.
- If a specific light is consistently faulty, it may require replacement.
- Lights Falling Off:
- Ensure the installation surface was clean and dry before applying the adhesive.
- Verify that all screw clips are properly installed and tightened.
- In harsh weather conditions, additional securing methods may be considered.
8. Warranty and Support
The BAILONGJU Permanent Outdoor String Lights (Model HCP045) come with a 1-year manufacturer's warranty.
For warranty claims, technical support, or further assistance, please contact the seller or manufacturer directly through your purchase platform. Please have your order number and product model (HCP045) available when contacting support.
